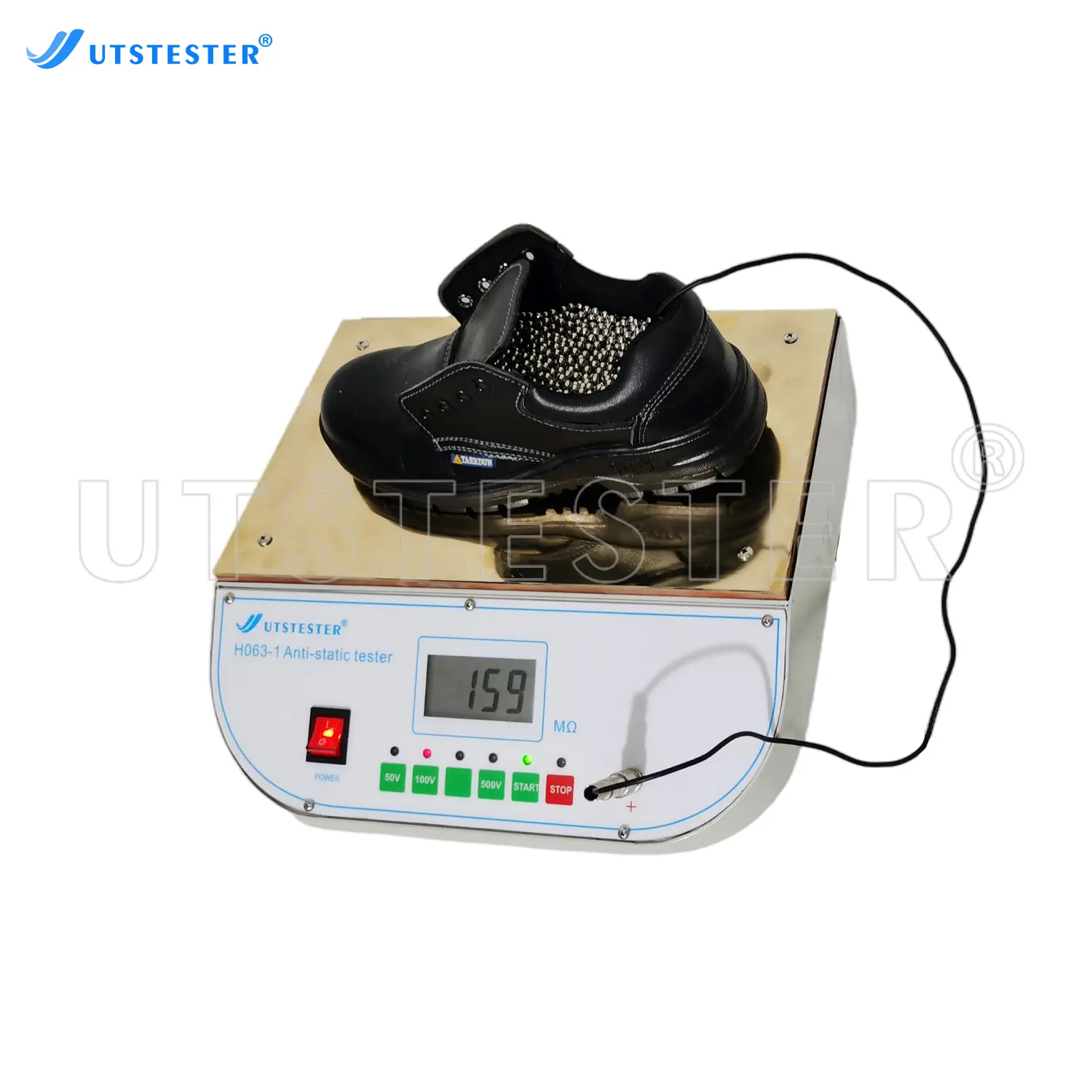

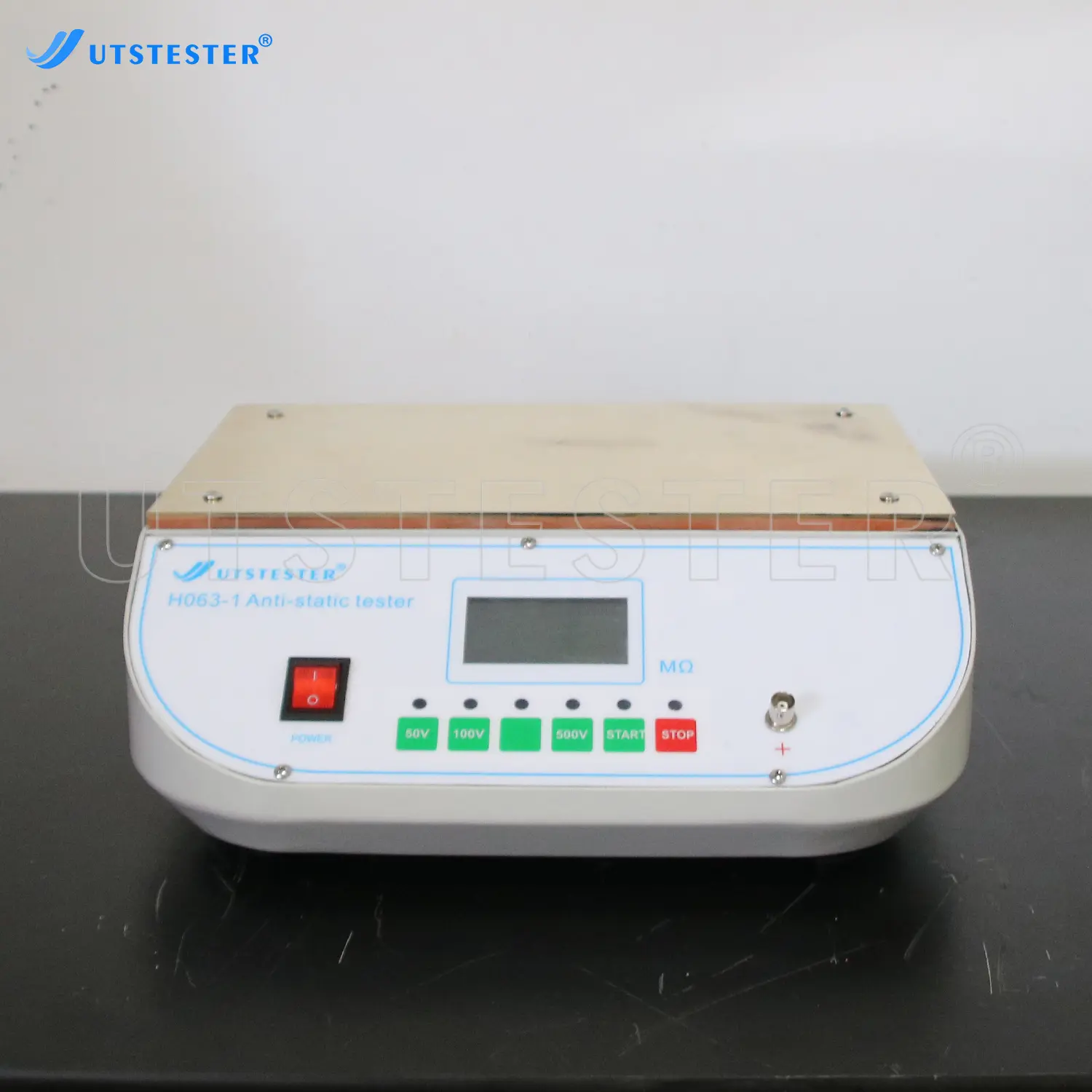

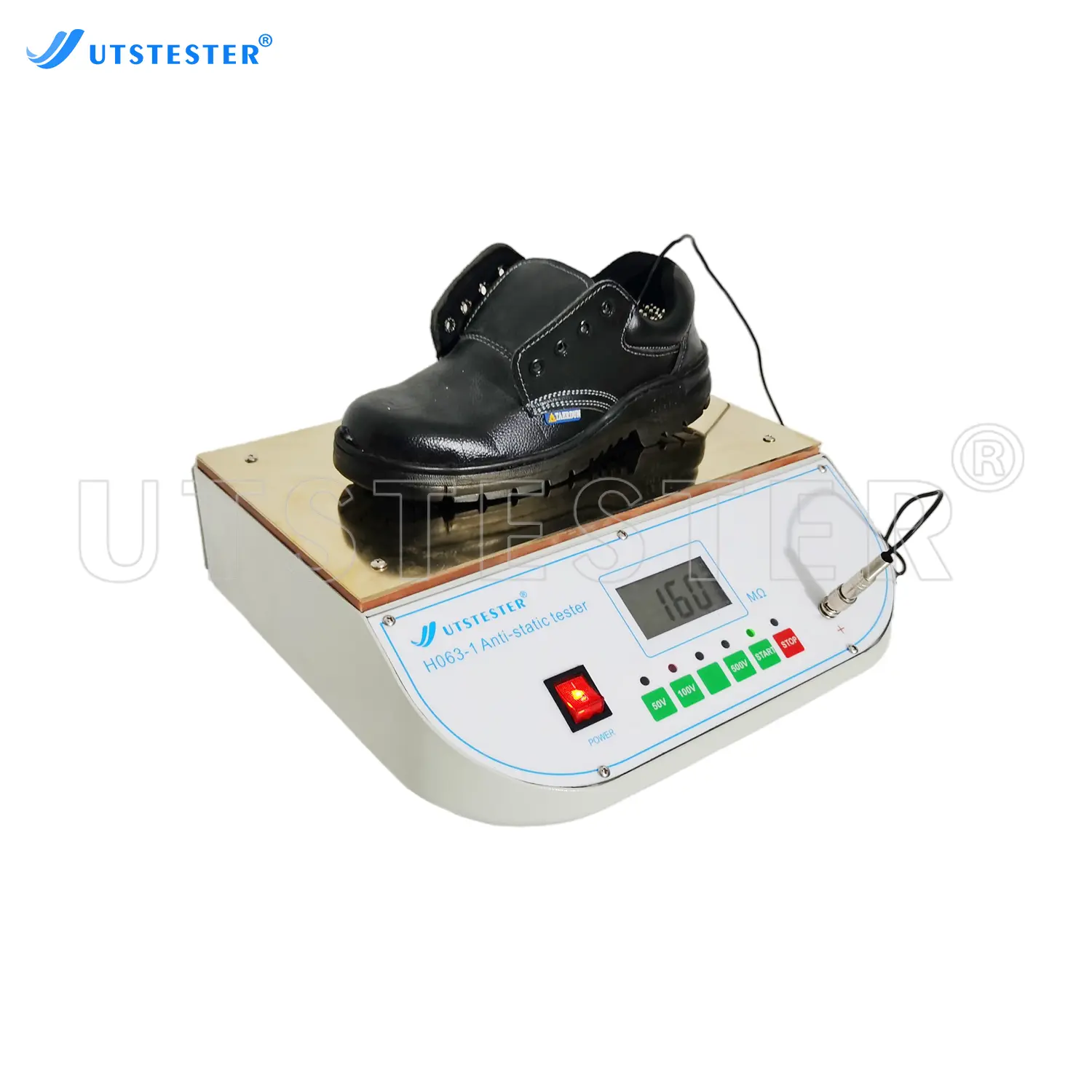

Shoes Anti Static Tester Footwear Anti Static Electrical Resistance Tester H063-1
Overview

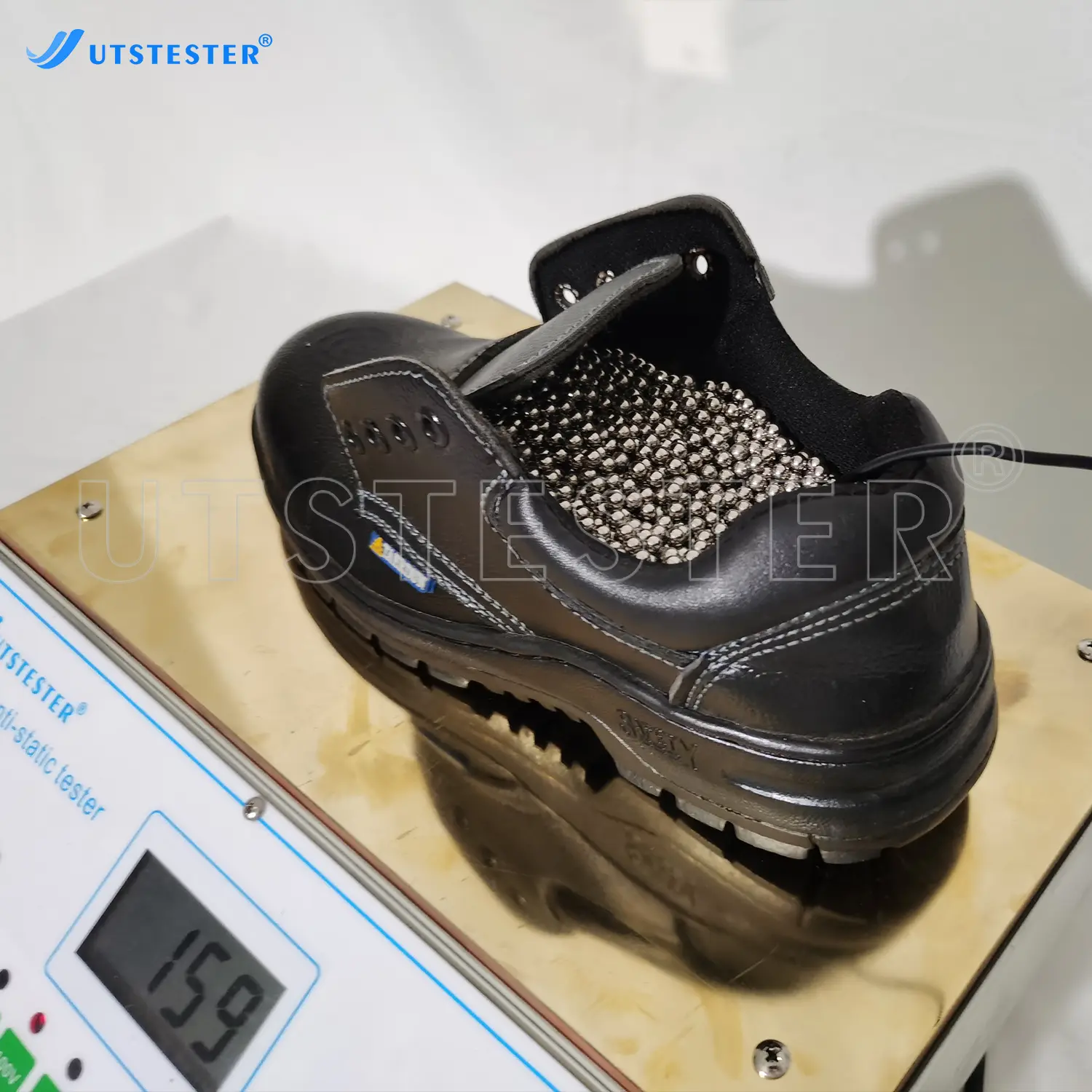

After passing through the closed circuit composed of the sample and steel ball at a certain voltage, the resistance of the sample is measured, and whether the value falls within the insulation resistance range of the antistatic sample is evaluated to determine whether the test sample has antistatic performance.
Application

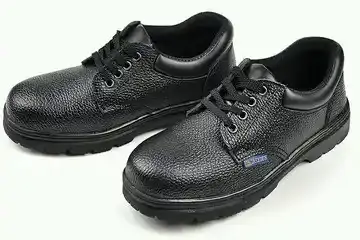

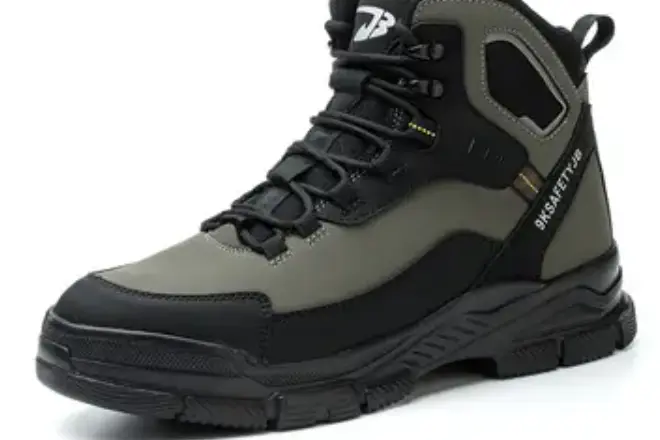

Safety shoes
Safety shoes
Standards
GB/T20991-2007, EN ISO20344-2012, CSA /CAN-Z195, SATRA,etc
Key Parameters
|
Model |
H063-1 |
|
Voltage range |
DC50V, DC100V and DC500V |
|
Test range |
0.001-1999 meohm |
|
Test accuracy |
±2%, ±5%, ±10% vary with the test range. |
|
Using the environment |
Temperature 0 to 40 ℃, humidity: 20-90% R.H |
|
Power supply |
AC 220V, 50HZ. |
|
Dimensions (L x W x H) |
350*330*220mm |
|
Weight |
22kg |
Product Details

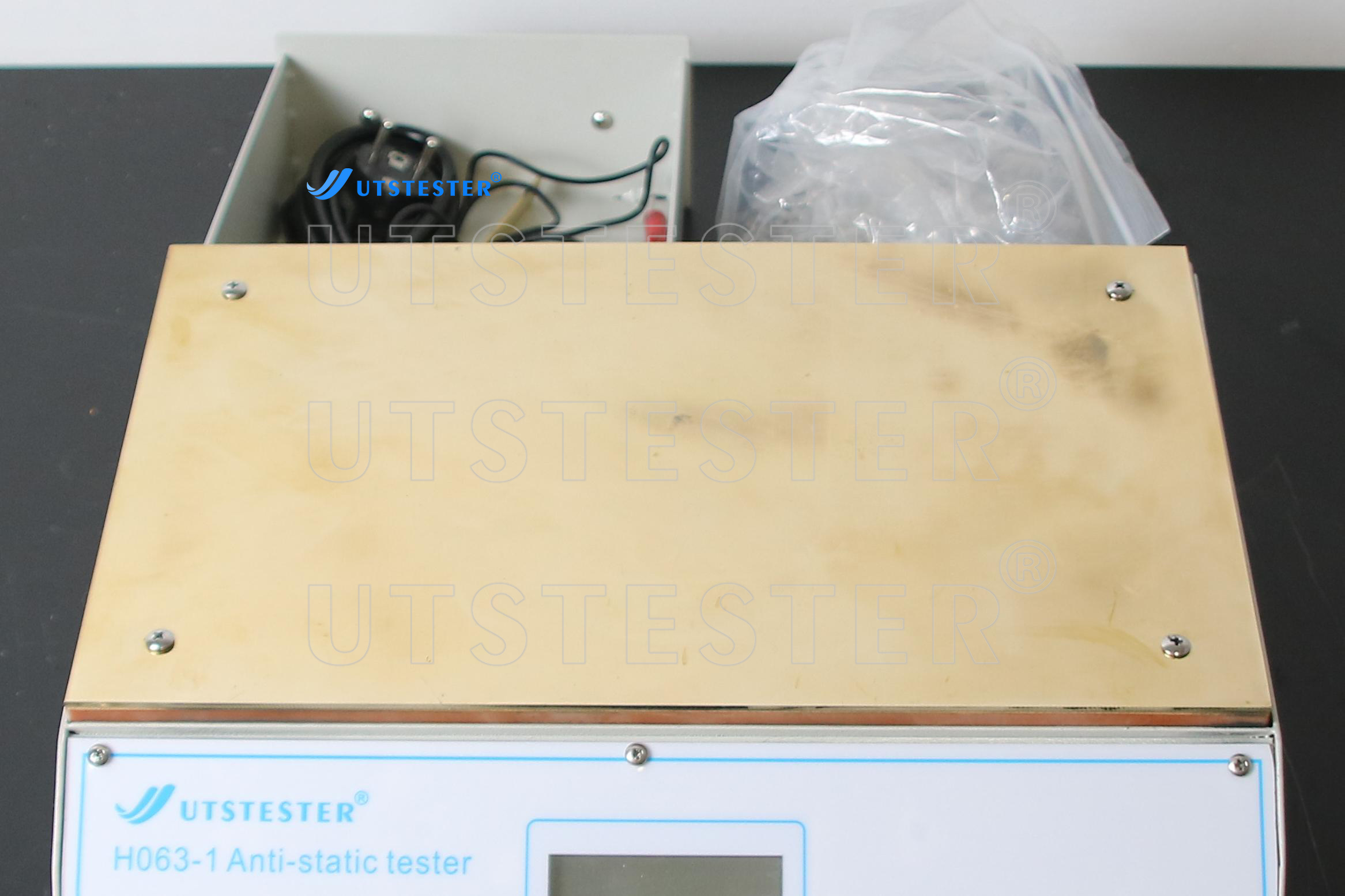

Workbench

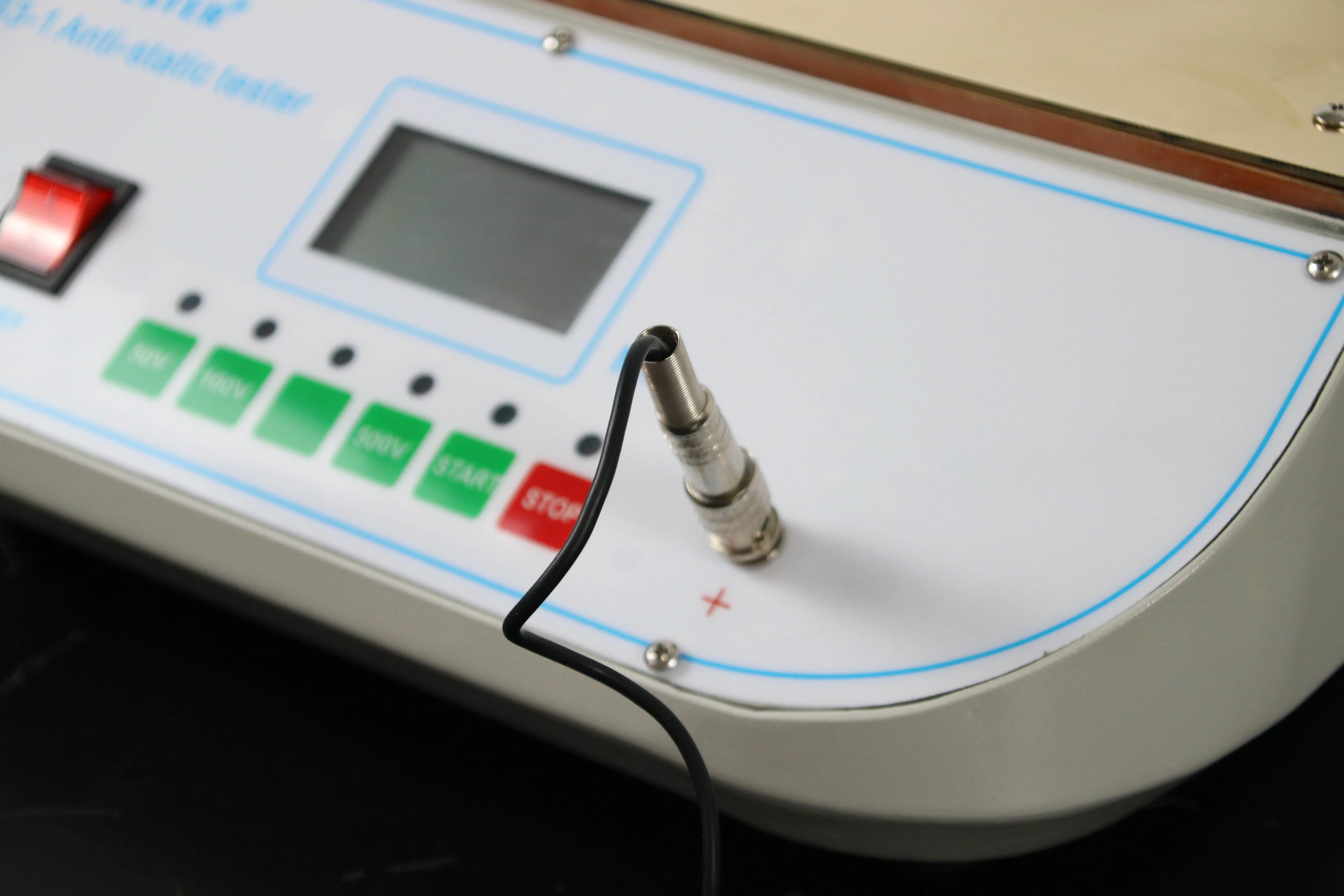

Positive and negative cables

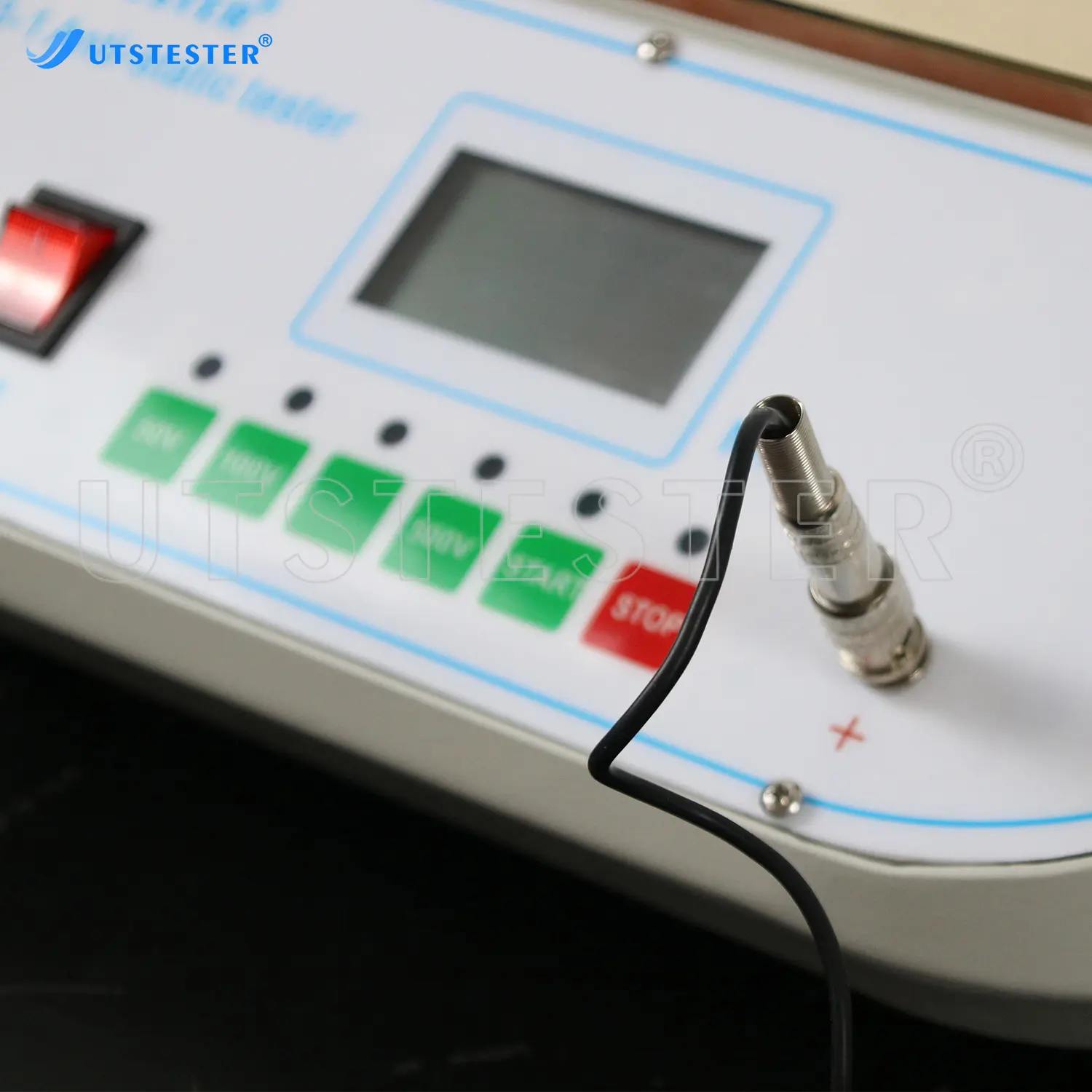

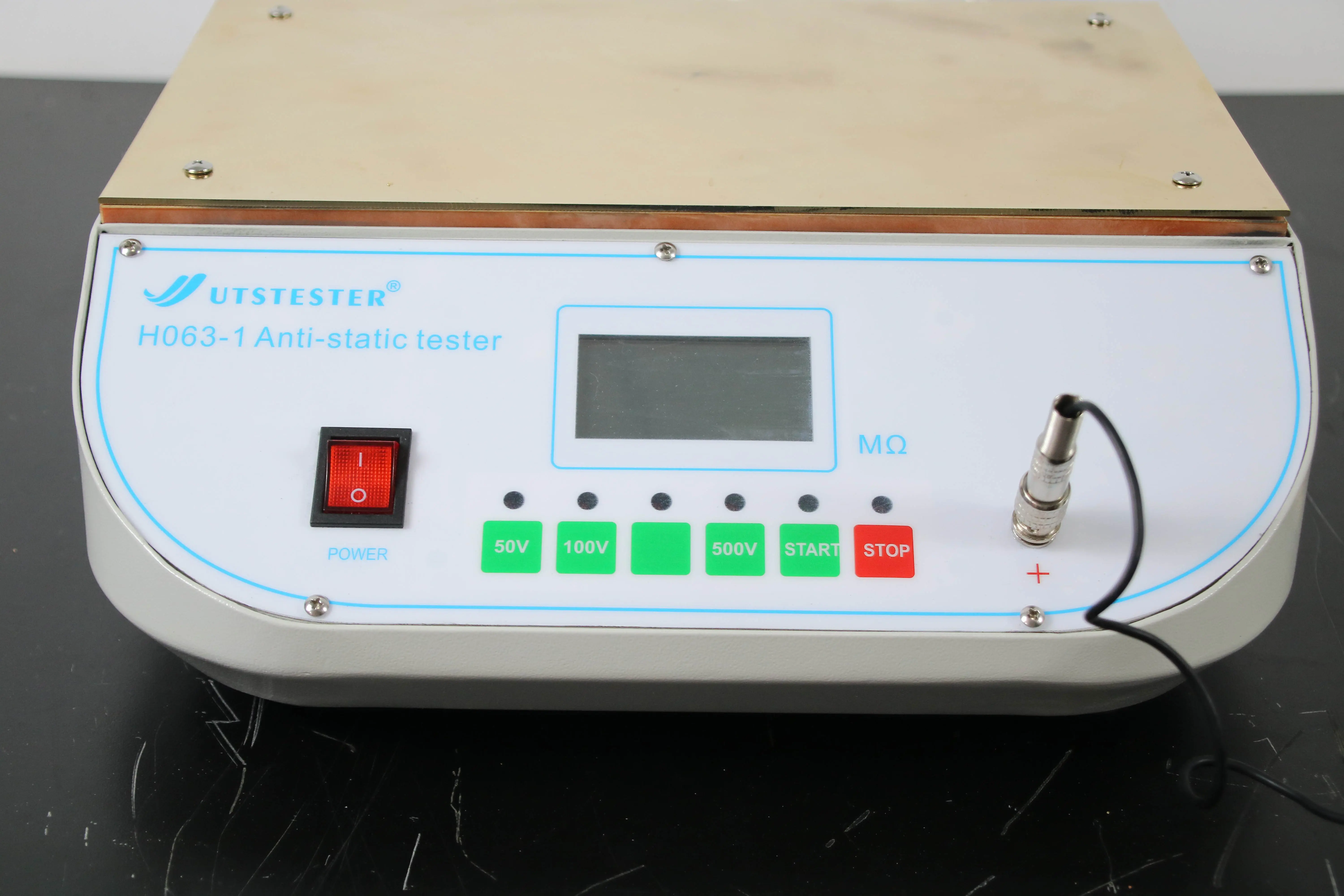

Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
