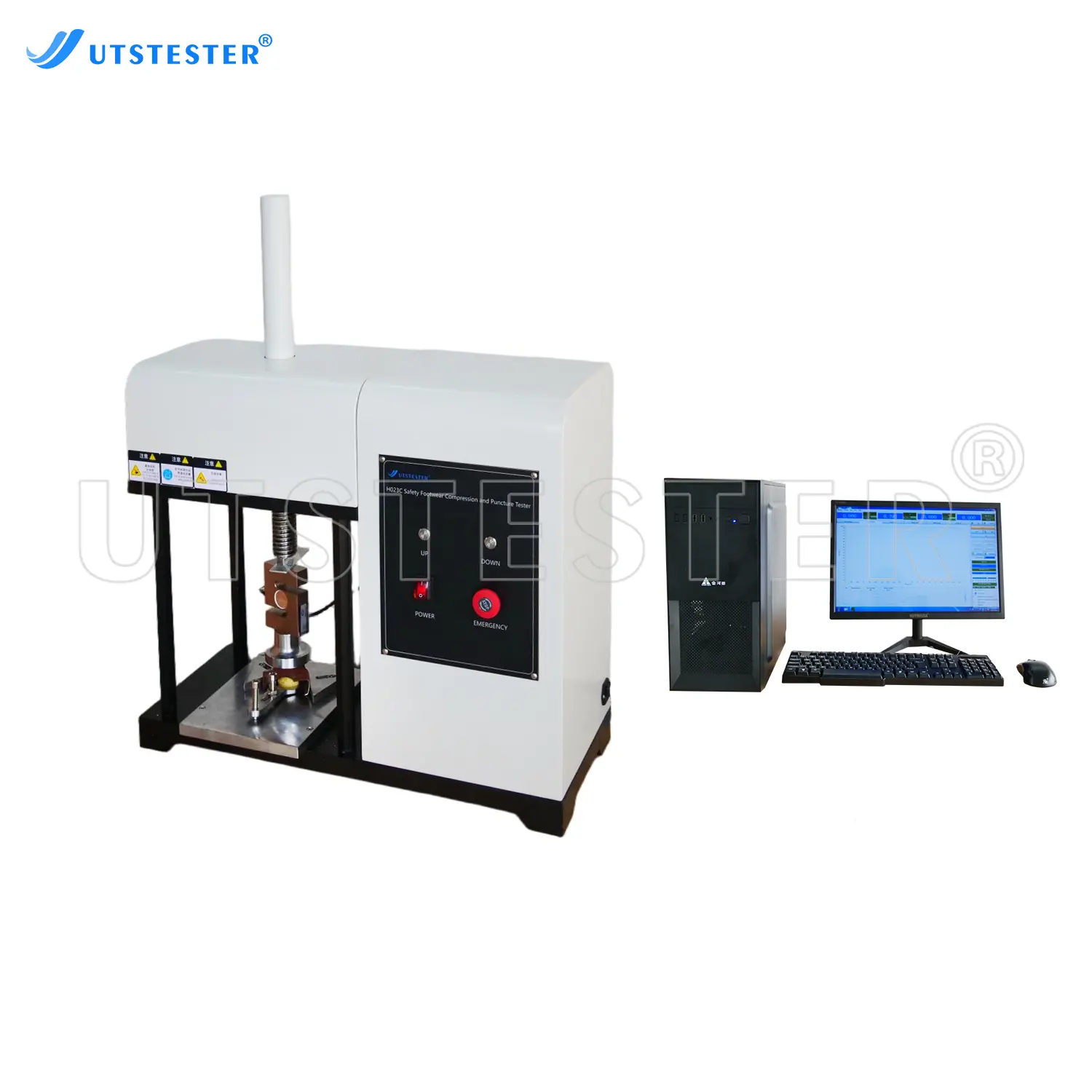

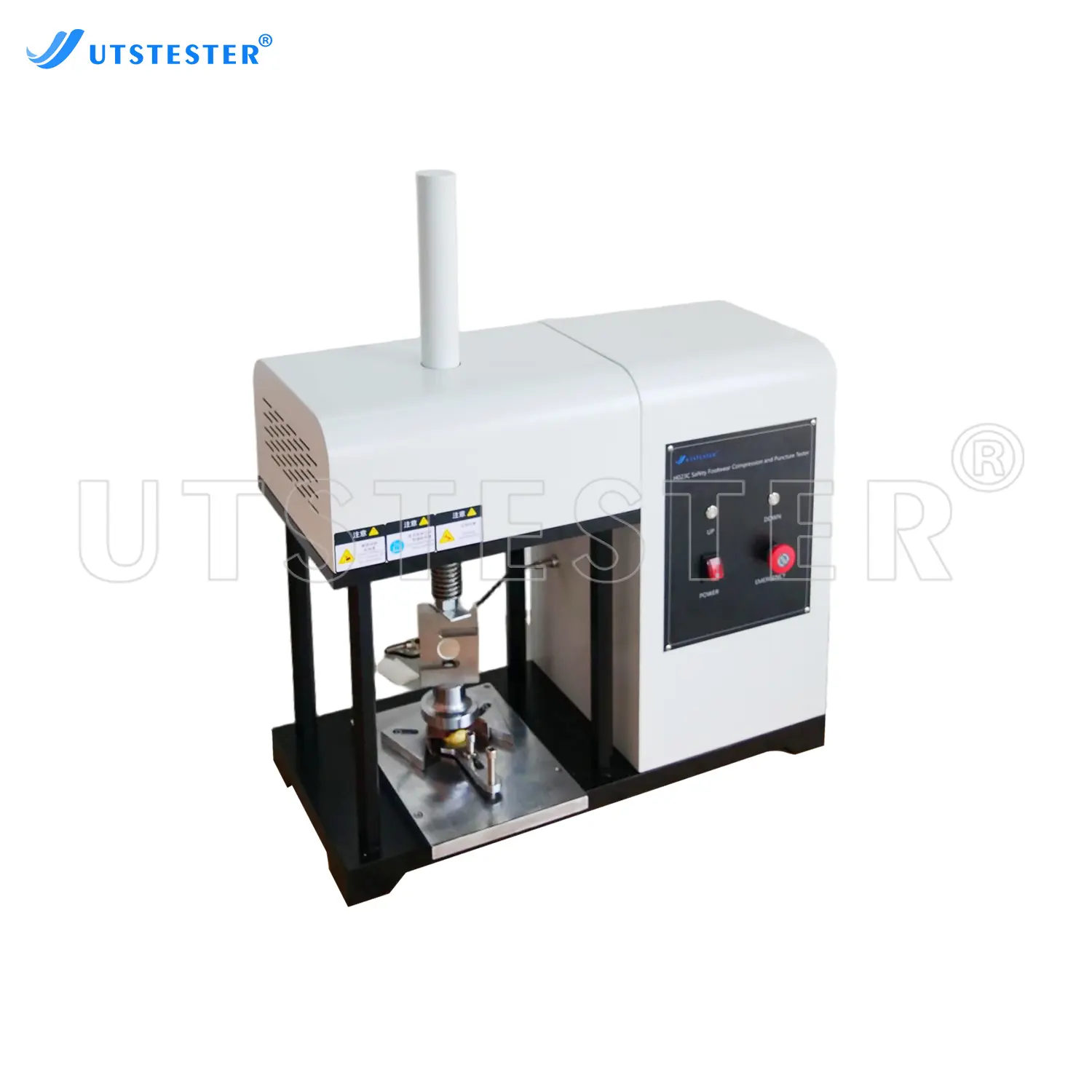

Safety Shoe Compression Puncture Testing Machine Safety Shoes Puncture Resistance Tester H023C
Overview

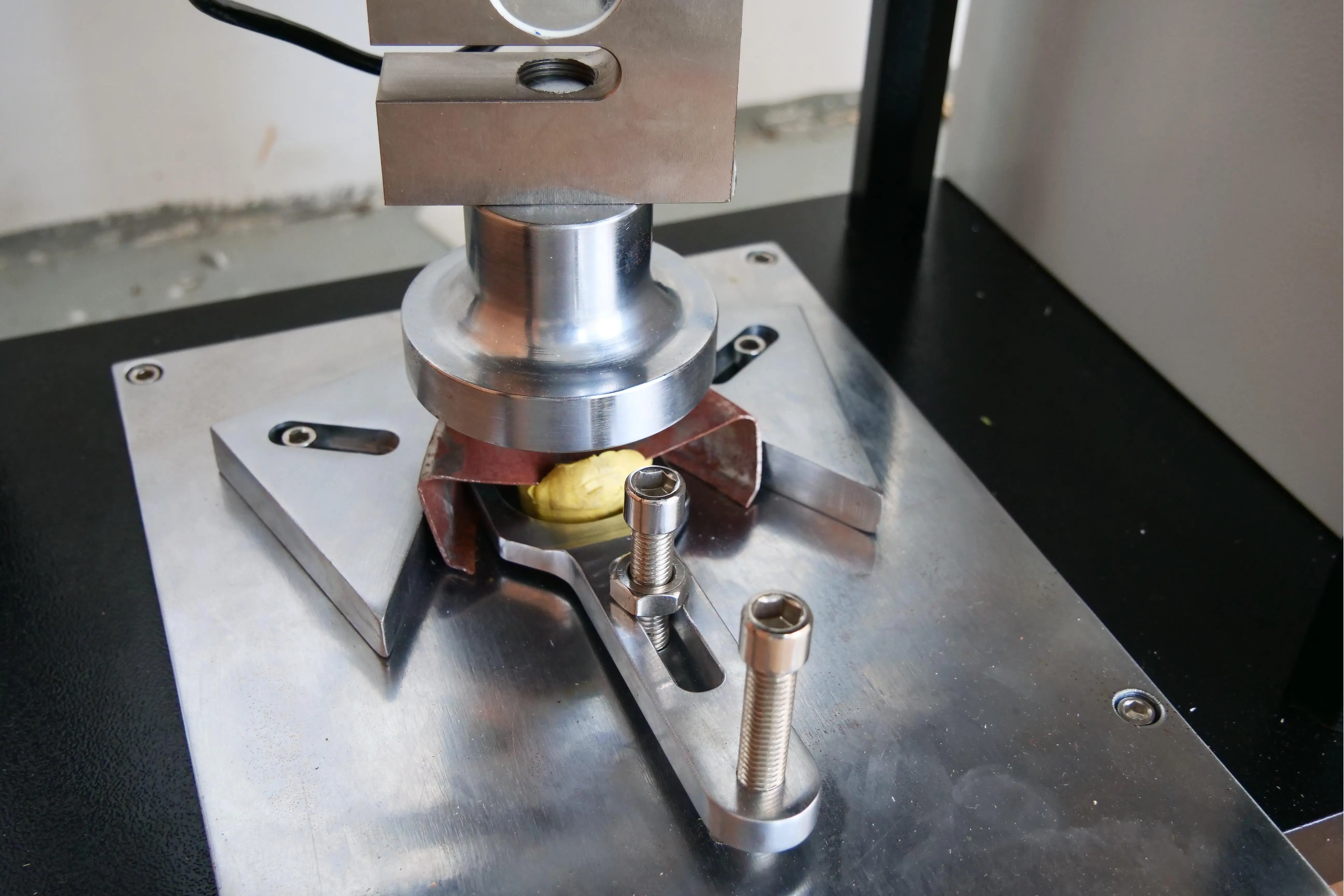

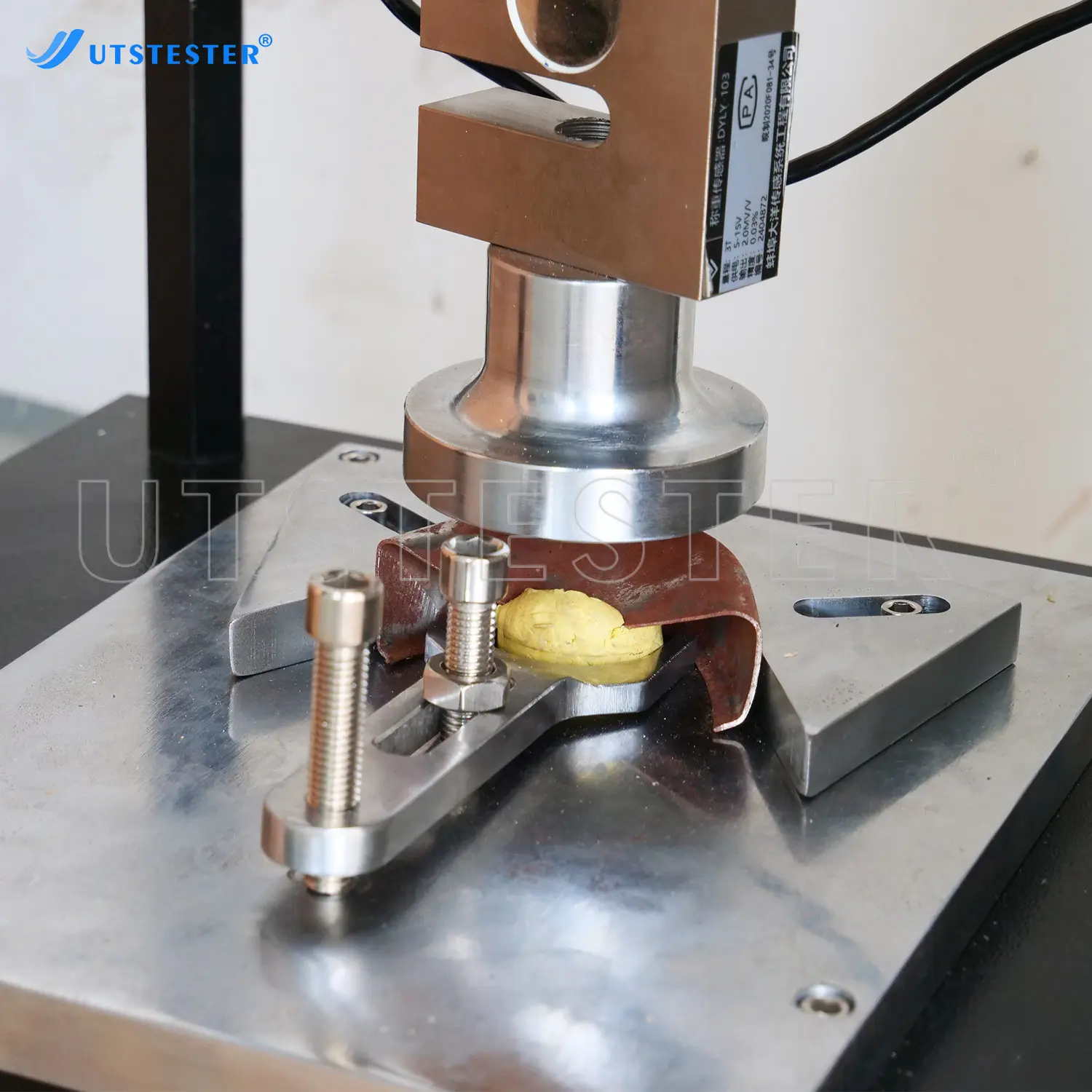

A:(static pressure test) : through the testing machine to test the toe at a constant rate of pressure until the pressure value reaches the specified value, measure the minimum height of the sculpture clay cylinder in the test toe, and evaluate the compression resistance of the toe of safety shoes or protective shoes based on its size.
B: (puncture test) : The puncture nail is driven by the testing machine to puncture the sole at a certain speed until the sole is completely pierced or reaches a certain specified force. The puncture prevention performance of safety shoes, protective shoes or professional shoes with anti-puncture midsole is evaluated by the maximum force required for the sole to be completely pierced or whether the puncture nail is exposed when the sole reaches a certain specified force.
Application
Safety shoes
Safety shoes
Standards
CSA-Z195, ASTM F2413-2005, ASTM F2412-2018
Key Parameters
|
Model |
H023C |
|
Function |
Compression + Puncture |
|
Test speed |
222.4N/s |
|
Capacity |
20KN |
|
Unit |
kg, N, Ib can be arbitrarily switched. |
|
Test mode |
Pressure and puncture |
|
Precision |
±0.25% |
|
Power supply |
AC 220V, 10A. |
|
Size |
710*300*760mm. |
|
Weight |
108kg. |
Product Details

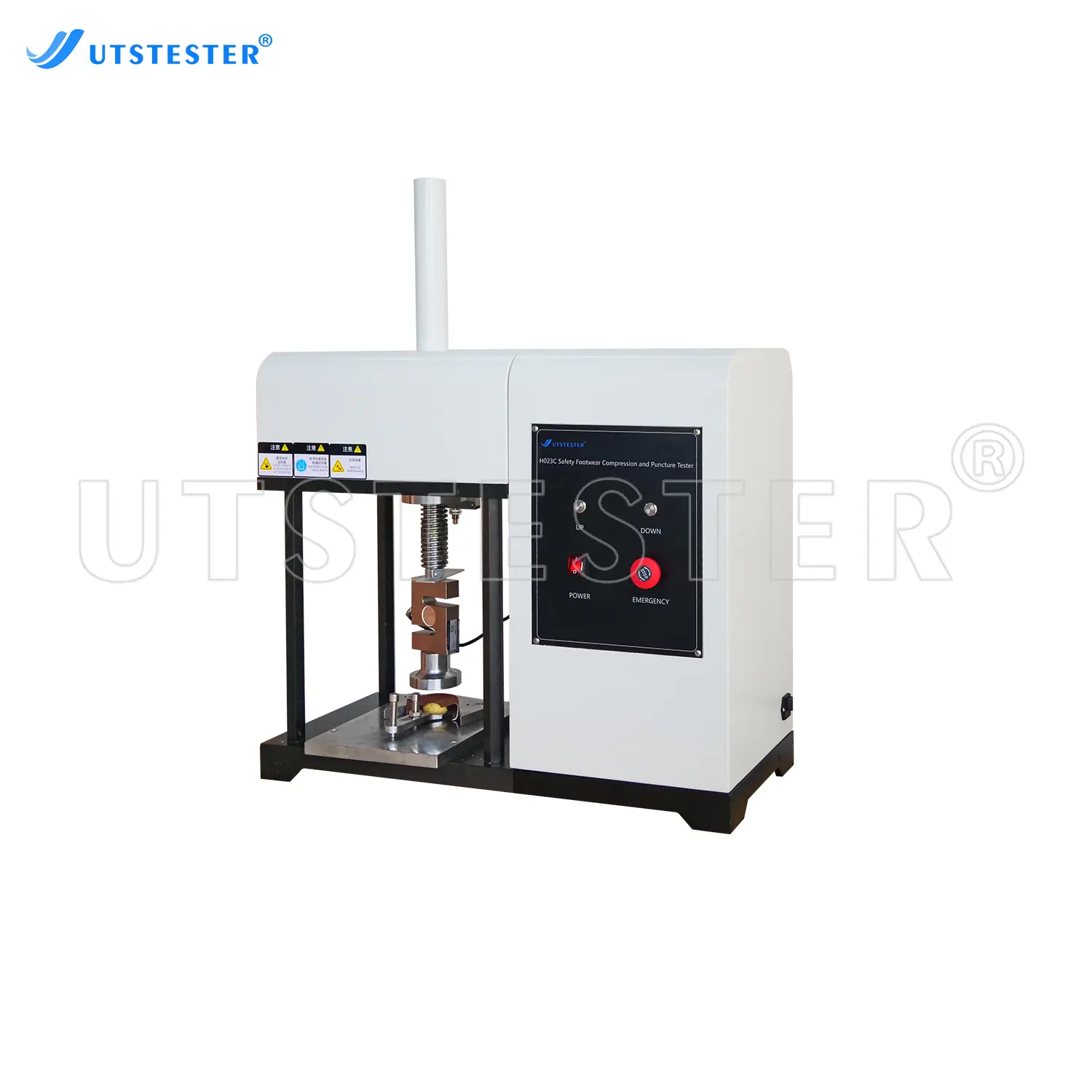

Control panel

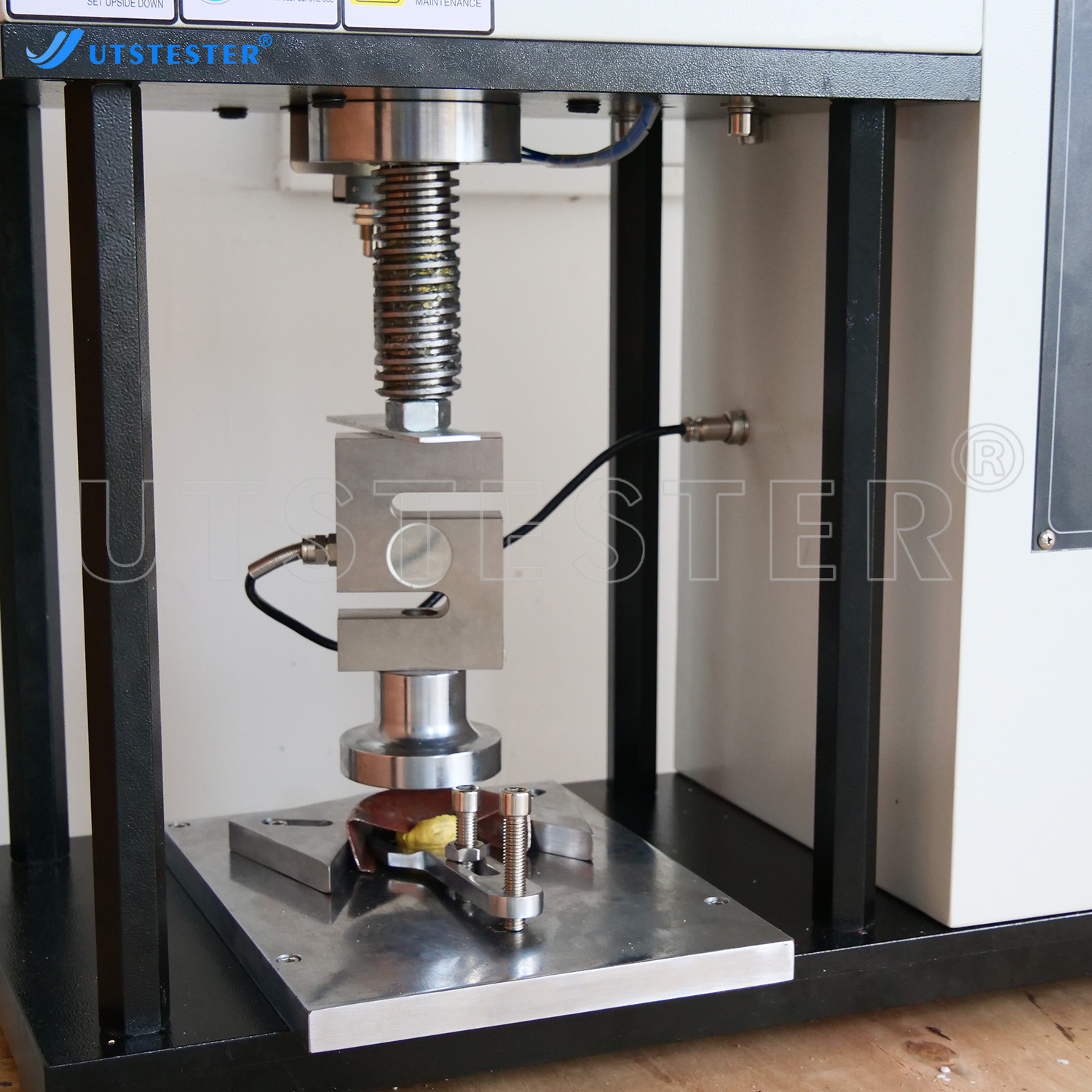

Pressure bar
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
