Rubber Testing Equipment

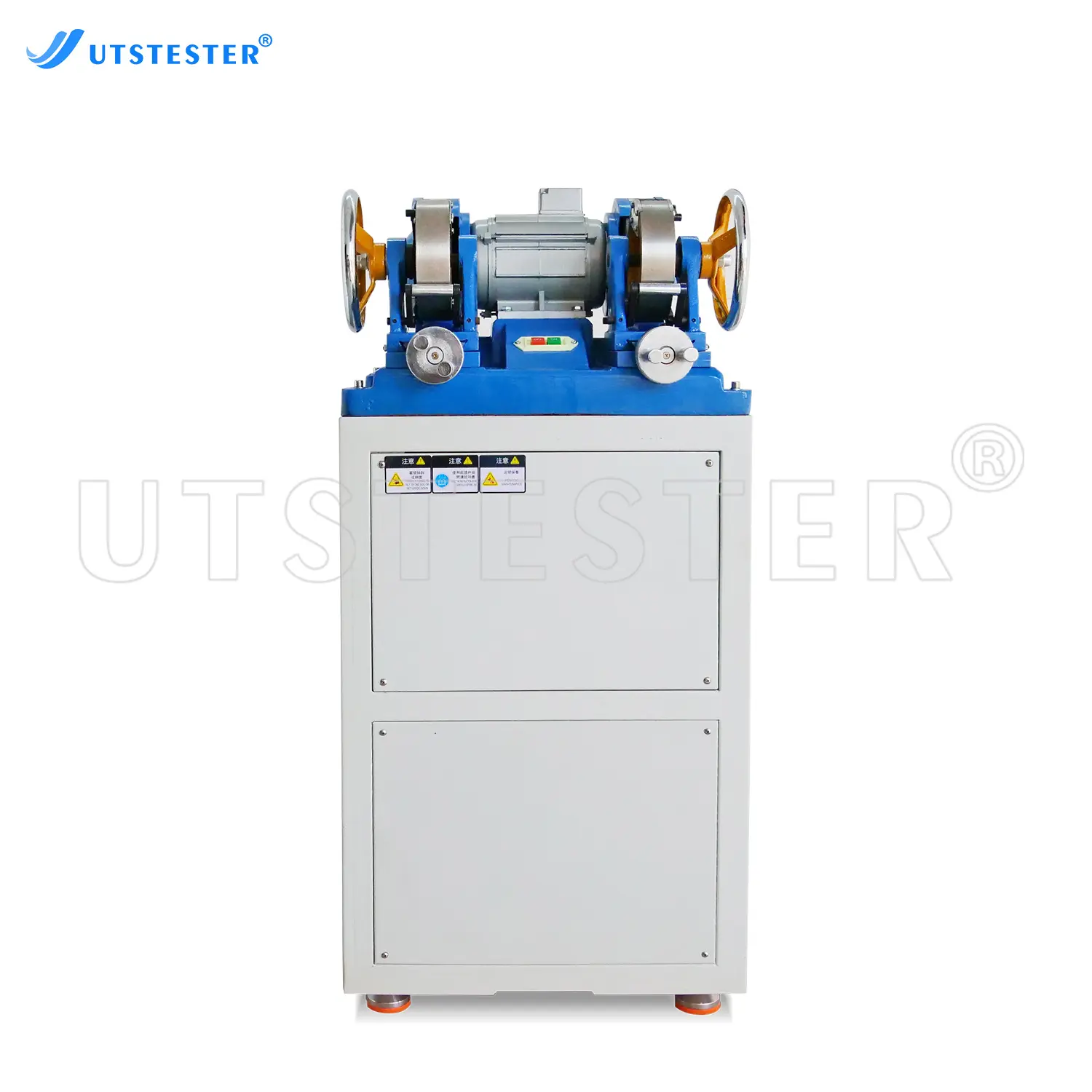

Hand wheel, three - head screw, machine base, spring, shaft, shaft, platform.
The screw hole of the fuselage is equipped with three screw rods, the upper end of the screw rod is equipped with hand wheel, the lower end of the screw rod is equipped with sliding shaft, the upper end is tightened by spring, and the lower end can be replaced by different type of cutter.When rotating the hand wheel, the three-headed screw can drive the cutter by sliding shaft, which can make reciprocating motion to achieve the purpose of cutting the test piece.

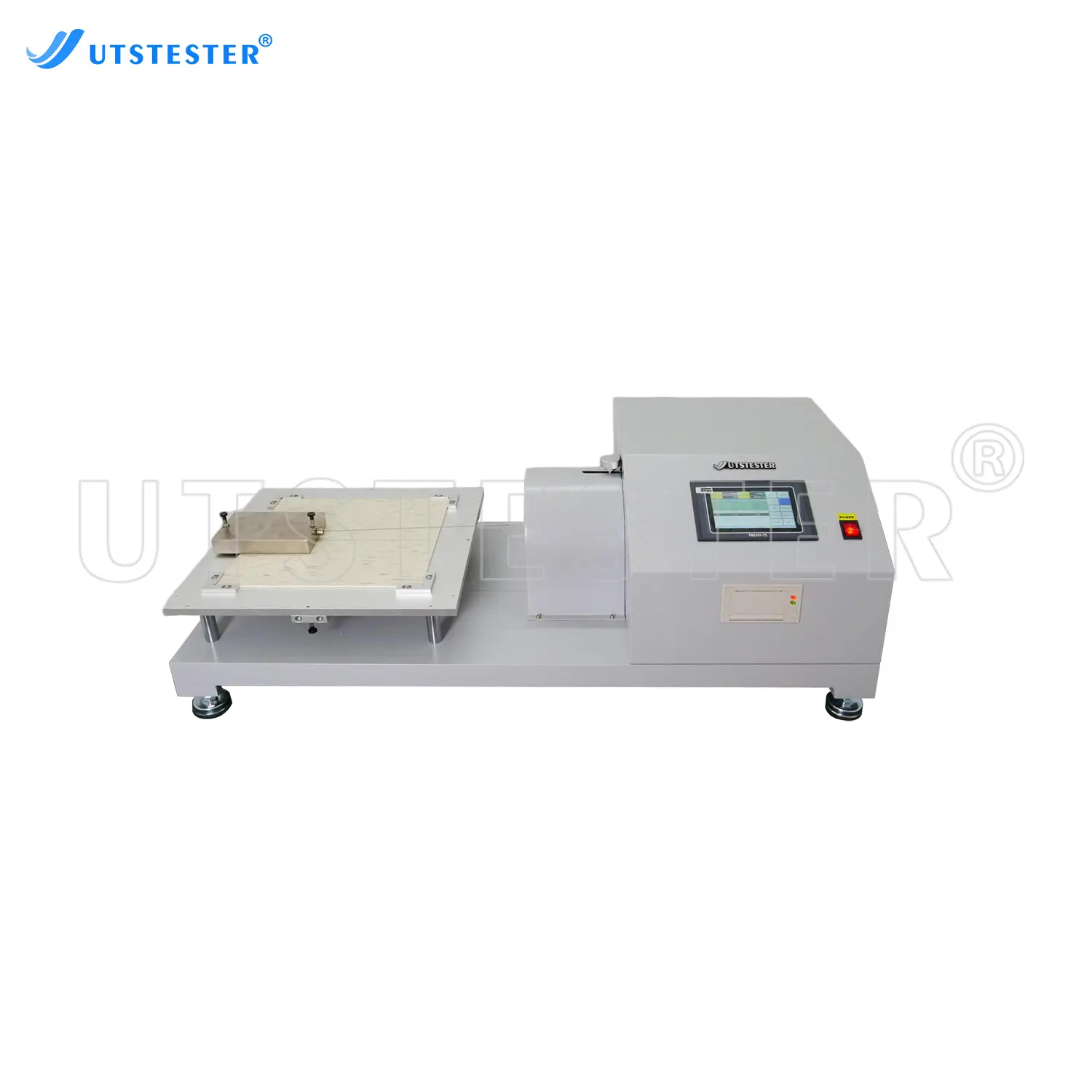

Mount the specified sample onto the friction plate horizontally as standard required. The sample surface needed to test face down, applying certain load, use the method of horizontal pulling to pull the sample at a certain speed, measured its maximum tension, and calculate the static coefficient of friction, so as to measure sample’s static non-slip performance.

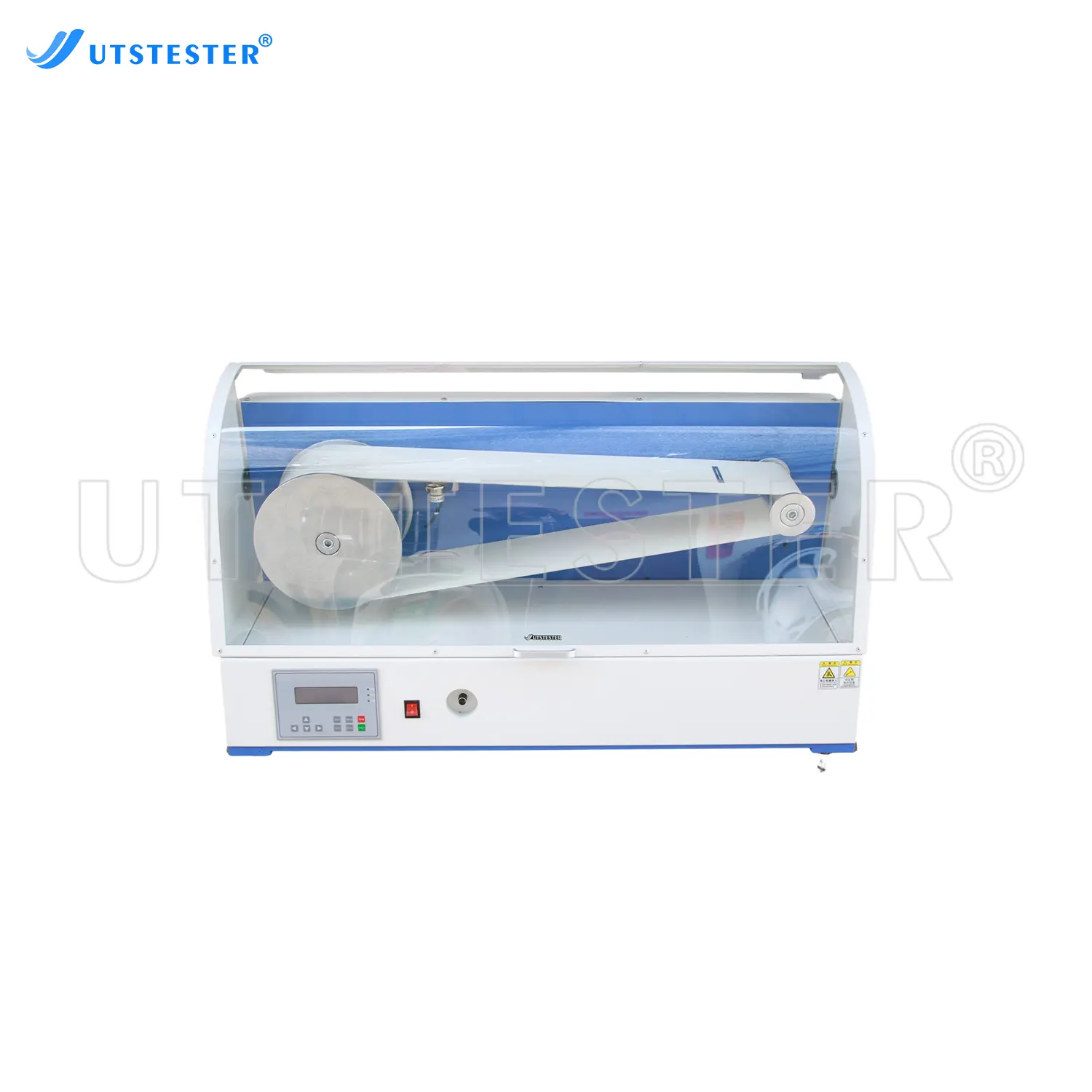

To stick or sew the outsole of non leather materials onto canvas belt surface, and belt is installed on the rotor shaft. Start the machine and rotor shaft, outsole will be flexed. After flexing for a certain of times, inspect the damage and crack condition for outsole, so as to assess its resistance to flex property. The belt rotating due to big rotary wheel drives small rotary wheel. Three different small rotary wheels with different diameter are optional to meet test requirements.

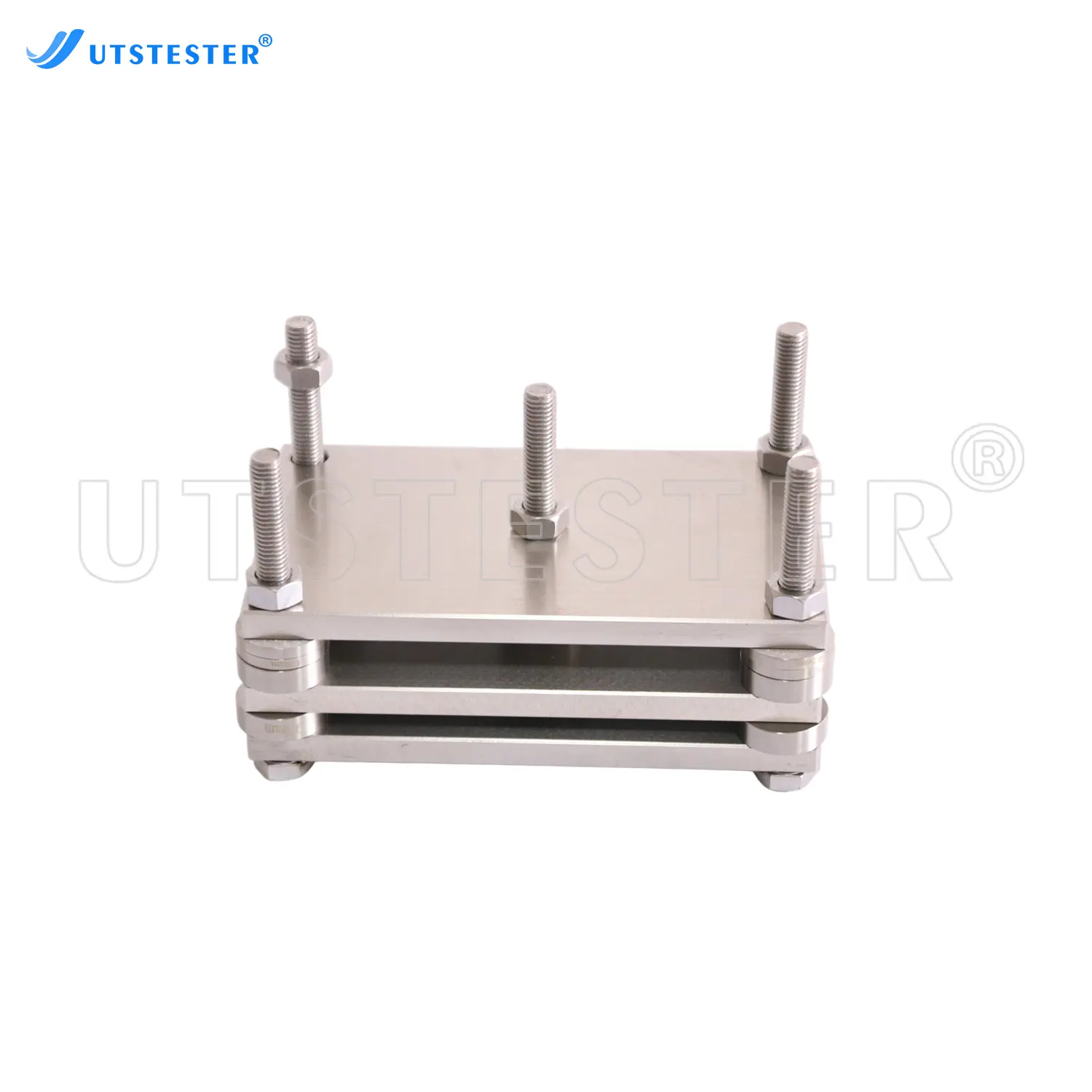

Take standard specimens, clamp between this flat plates, screw rotation, compress to a certain ratio, then put in a certain temperature of oven (purchase  separately), after the prescribed time, remove the specimen, cooling for 30 minutes, measuring its thickness for calculating its permanent deformation rate.

1. LCD screen directly display testing times.
2. Automatic stop after tests finished.
3. New version with protective cover to ensure safety during testing.
4. Working positions available to customize for meet different demand.

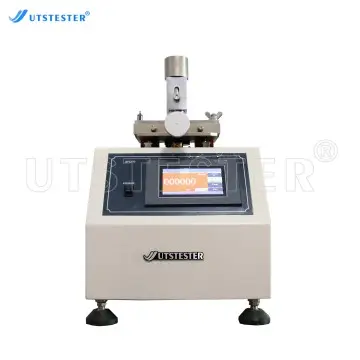

Under specified pressure, the sample is placed on the test surface and clamped to do reciprocating abrasion; Then insert the wool felt in the end of the rubbing head and switch on the tester. After test for specified times, inspect visually the color changing and fading of sample wool felt and discoloration of wool felt. In the case of colour transferring, the wool-felt rubbing pad is evaluated using the grey scale.

1. The instrument has beautiful appearance and structure and is easy to operate;
2. The integrated design of the heating furnace body and control system facilitates user instrument management.
3. It has a high degree of automation. You only need to set the temperature value and heating time, and the instrument will automatically heat up to the set value;
4. High temperature control accuracy, wide temperature range, and high furnace temperature uniformity;
5. 7-inch LCD touch screen display, extremely friendly operation interface, can be started with one button operation
6. It has excellent constant temperature function and can set the constant temperature time with high constant temperature accuracy;
7. The instrument can set any group of different heating time periods, and can have different heating temperatures, heating rates, and constant temperature times;
8. Comprehensive parameter display, showing the set number of groups, theoretical temperature, actual temperature, and heating time (or constant temperature time);
9. During the operation of the instrument, the set parameters and heating or constant temperature time can be viewed.Key Parameters

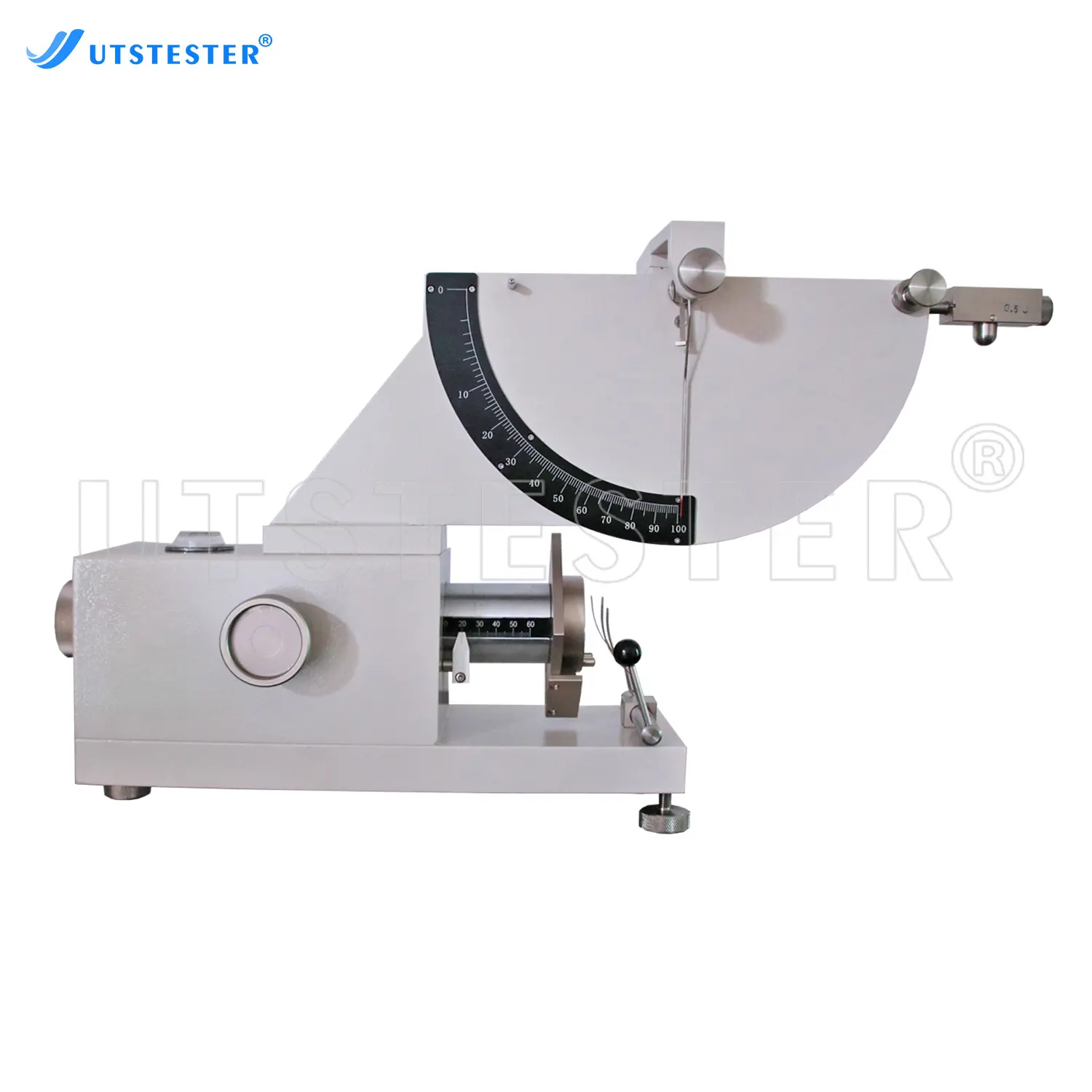

Manual operations and the mechanical mechanism greatly simplifies the testing procedure, reducing technician intervention and producing accurate, precise and reliable results.
The resilience measurements are accurate, reliable, repeatable, reproducible and as easy as 1—2—3!
   1. Insert the specimen,
   2. Release the Pendulum Arm,
   3. Remove the specimen.

Automatic Counting:Equip with digital counter, automatically stop after test finished.
New Version Available:New version with a self-tracking suction head that can be connected to a standard vacuum cleaner without the operator having to keep an eye on it.
Necessary Accessory:Necessary accessory provided to conduct tests after receive our instrument.
Simple Operation:Sample installation, testing times preset, then you can start your test in ease.

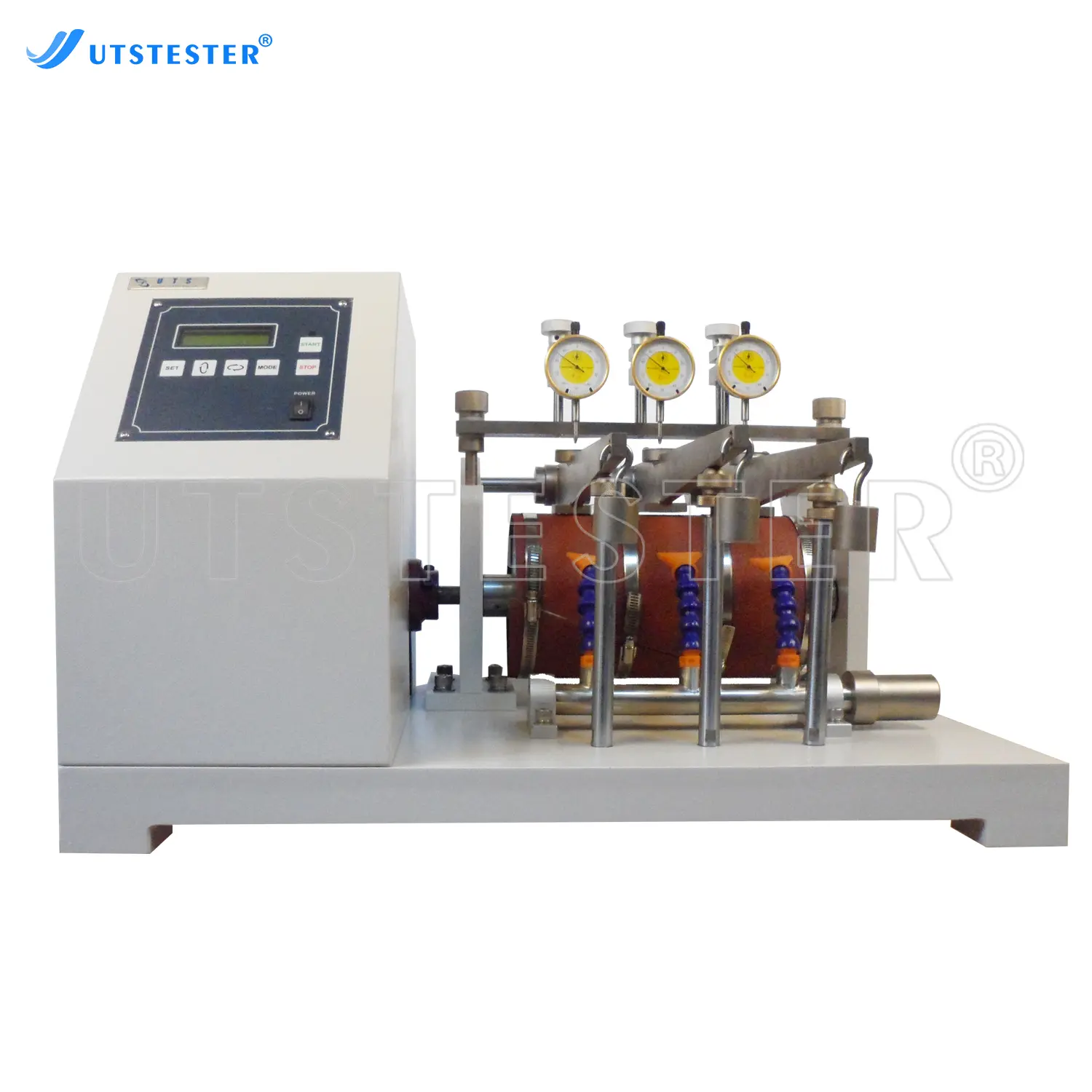

1. Counter with 5-bit electronic LCD display;
2. Can be connected with dust collector to collect powder produced in test process;
3. Equip with 3 pieces of dial indicators to set testing pre-wear thickness.
4. With protective devices: short circuit protection, automatic stop, motor control device and support device for fine-tuning nut.
