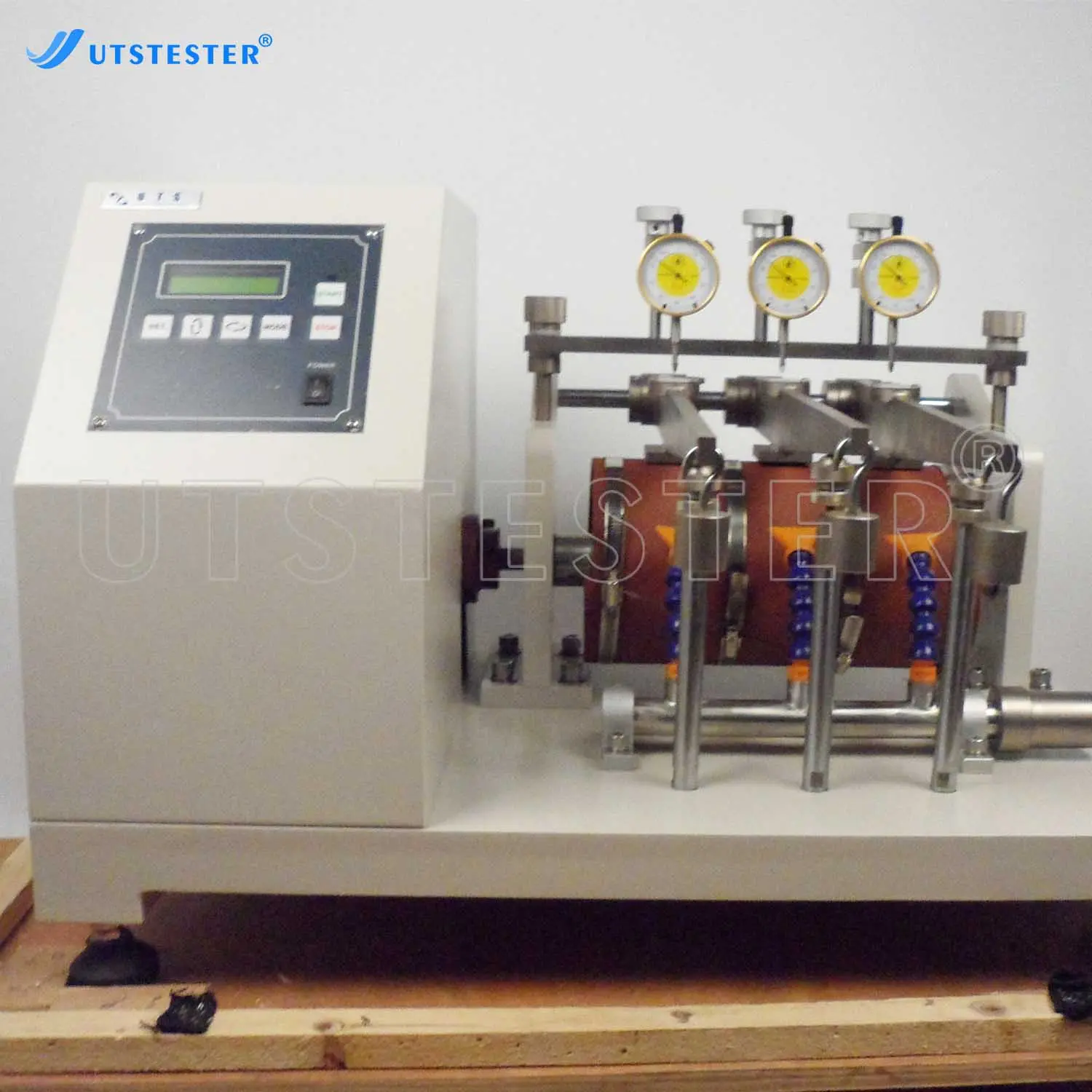

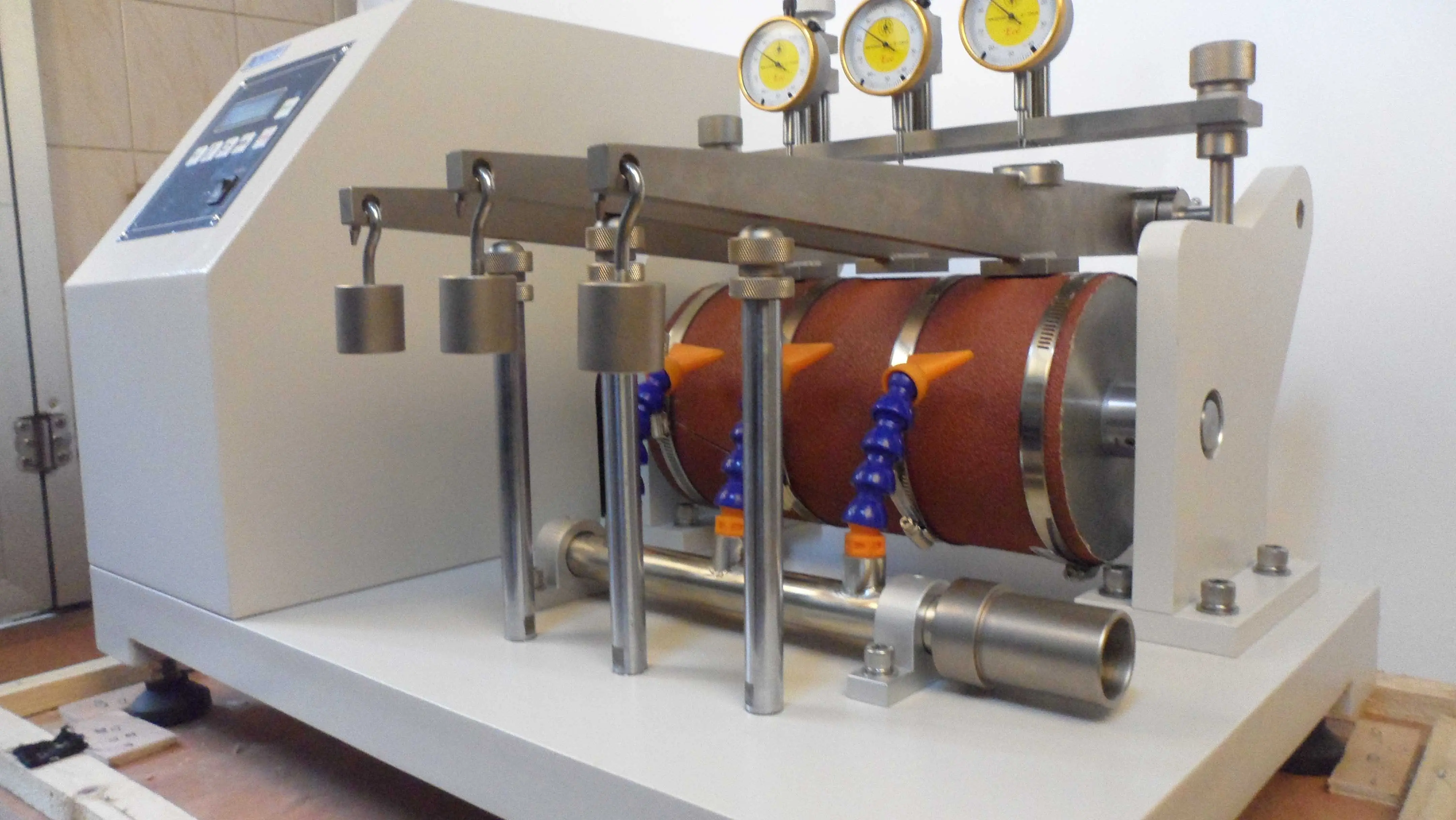

Rubber Abrasion Testing Machine Abrasion Resistance Test of Shoes ASTM D1630 NBS H014
Overview
To determine the abrasion resistance property for rubber or other compounds, sole and heel materials which are not less than 2.54mm in thickness. This machine has memory function so that users can set the number of tests by themselves. The current records will be kept not to change even if power failure or stop occurs. It also can be connected to a cleaner for easy cleaning.
Application
heel (of a shoe)

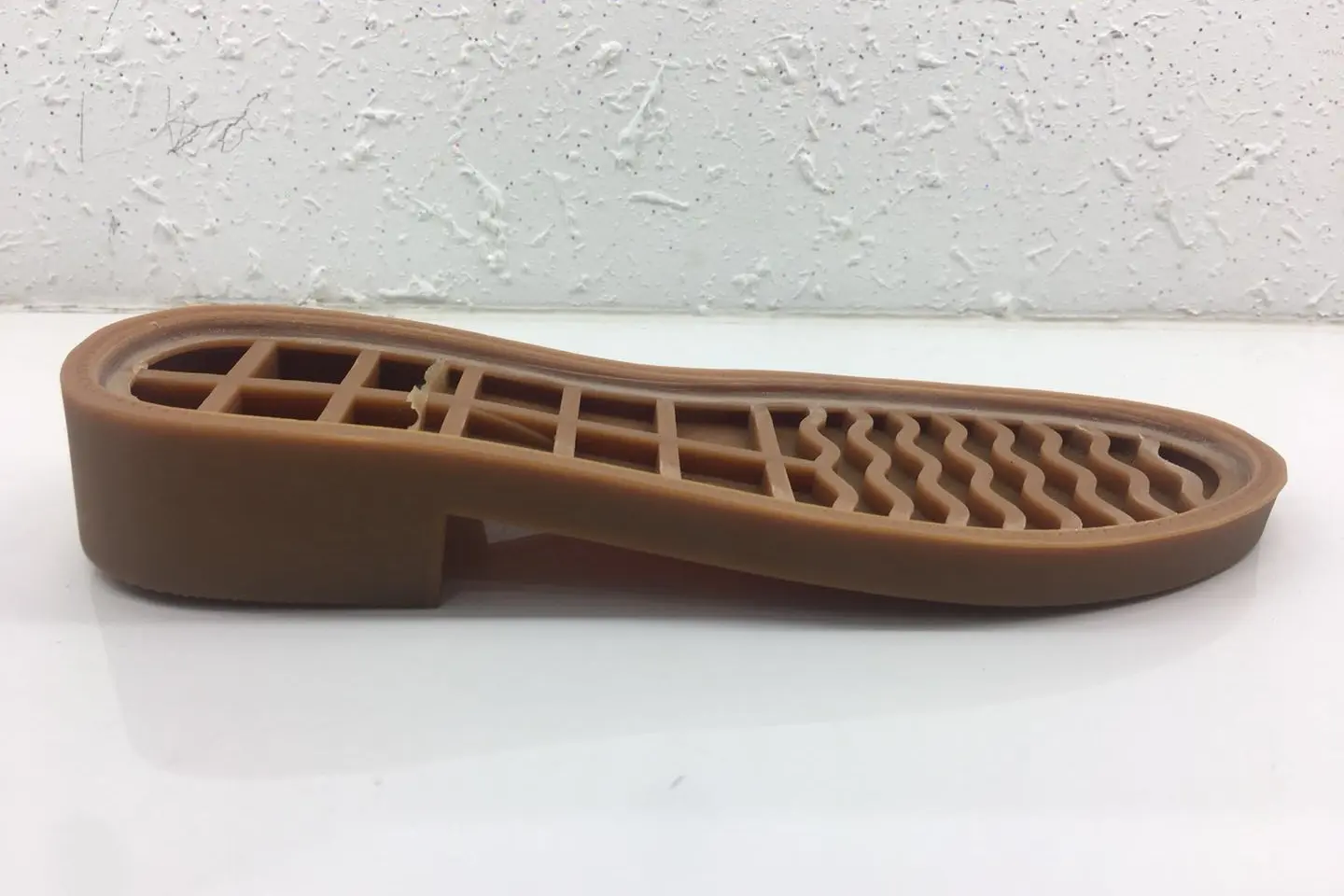

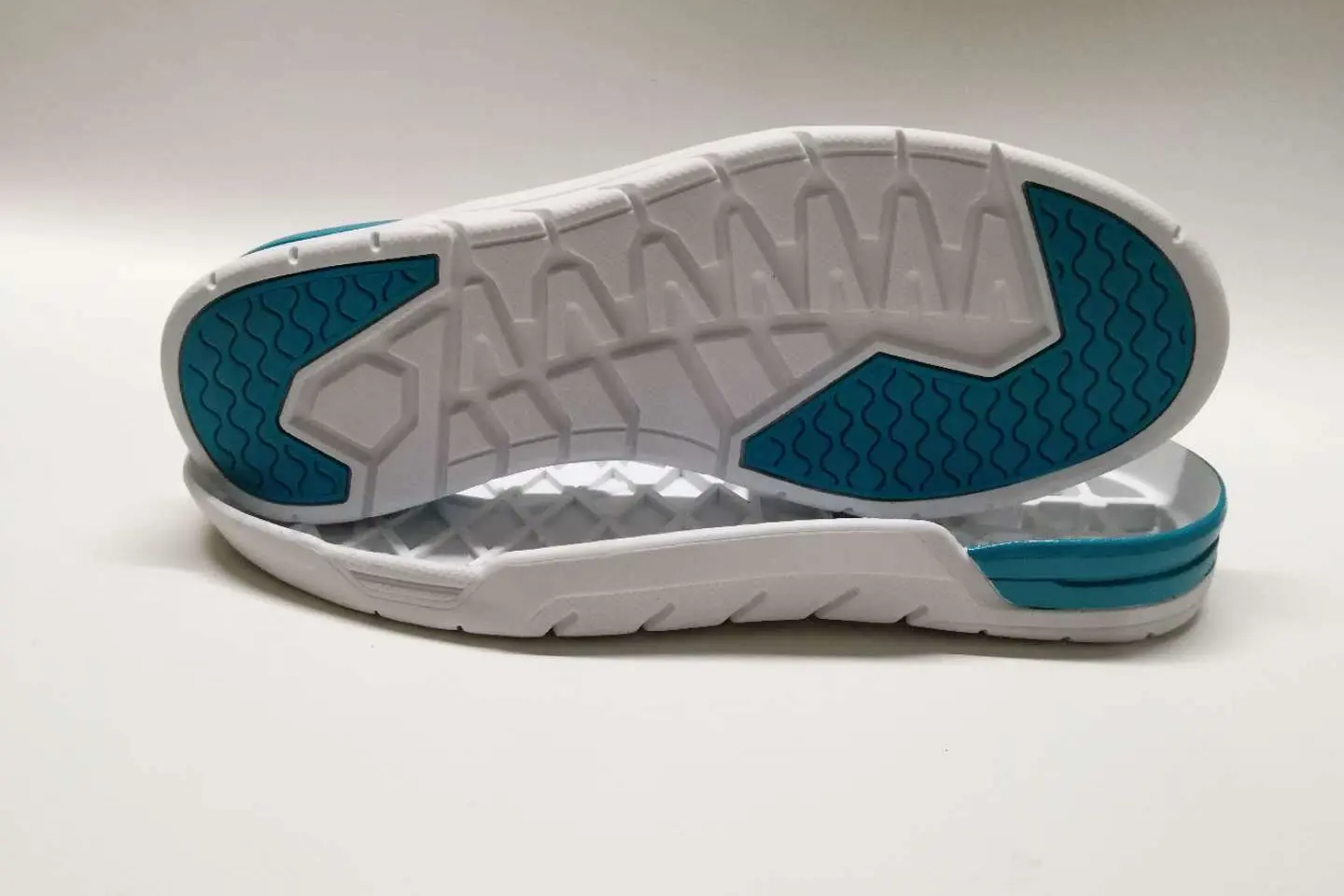

sole (of a shoe)
Standards
ASTM D1630
Key Parameters
|
Model |
H014 |
|
Load |
22 N |
|
Test speed |
45±55r/min |
|

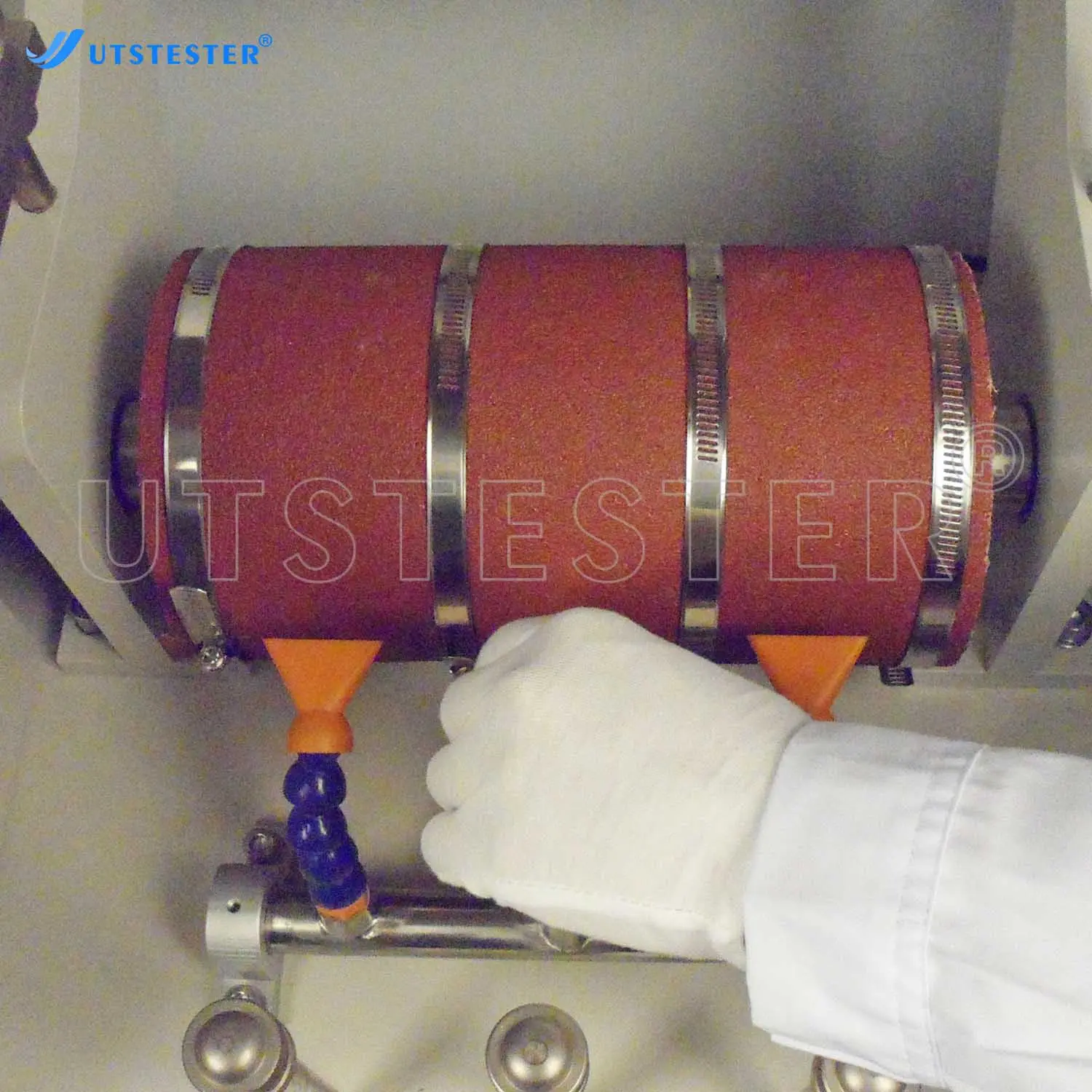

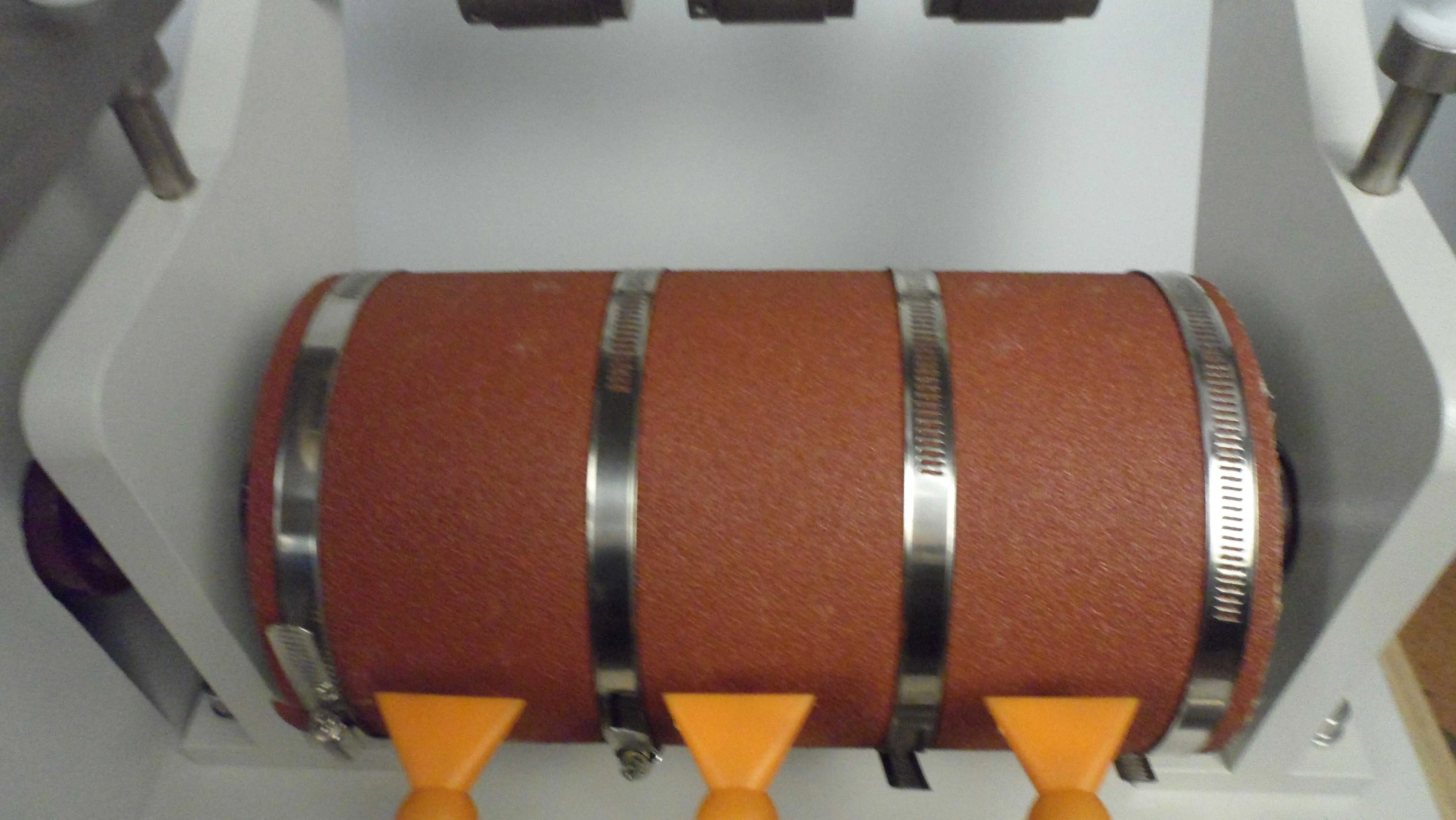

Roller diameter |
150 mm |
|
Sandpaper |
Grit 40# |
|
Working position |
3 |
|
Sample size |
25.4 x 25.4 x 6 mm |
|
Counter |
LCD, 0 - 99,999 |
|
Power supply |
1∮AC 220V 50/60HZ 3A( Specified by user) |
|
Dimensions ( L x W x H ) |
720 x 490 x 500 mm |
|
Weight |
80 kg |
Product Details

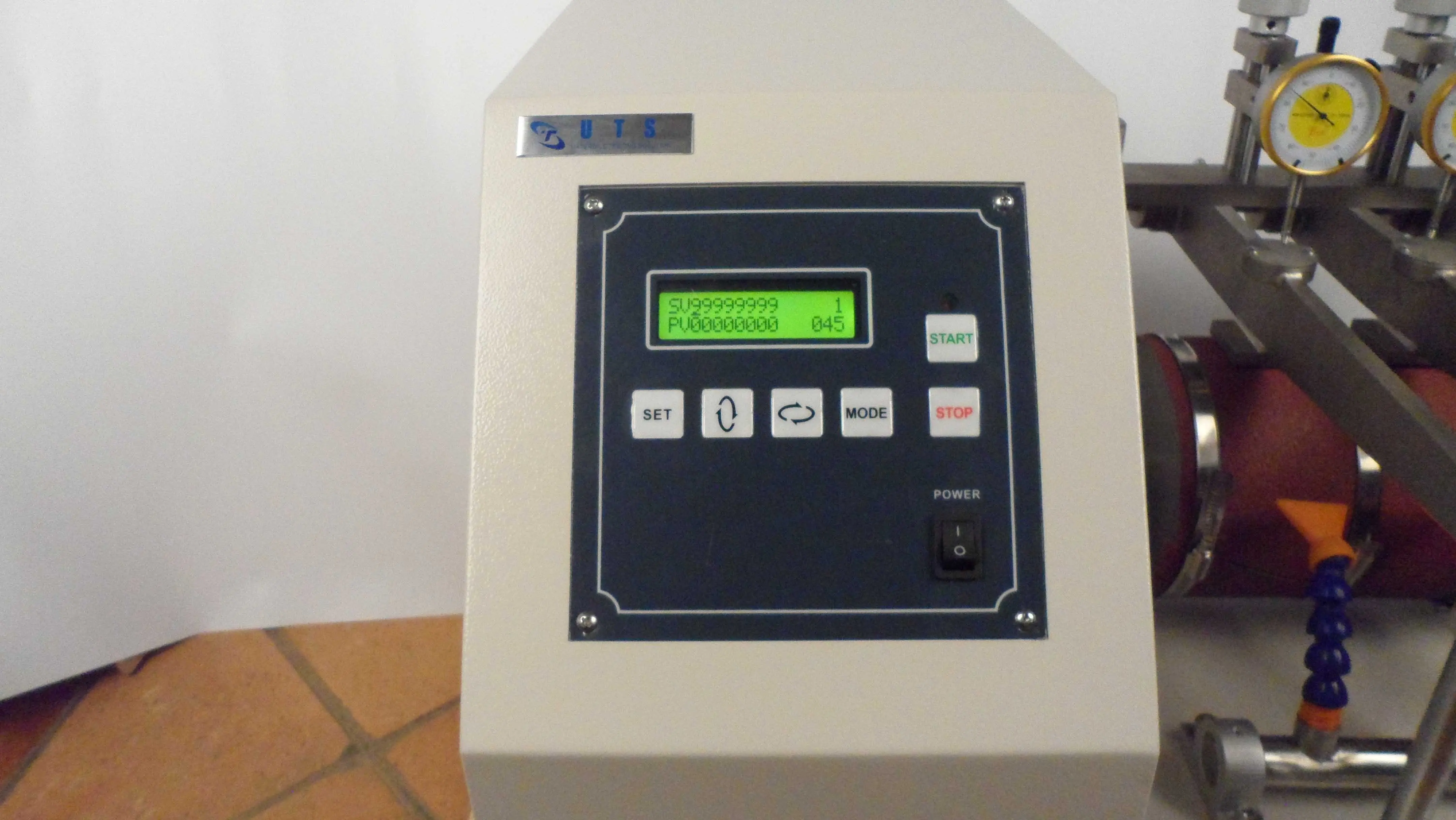

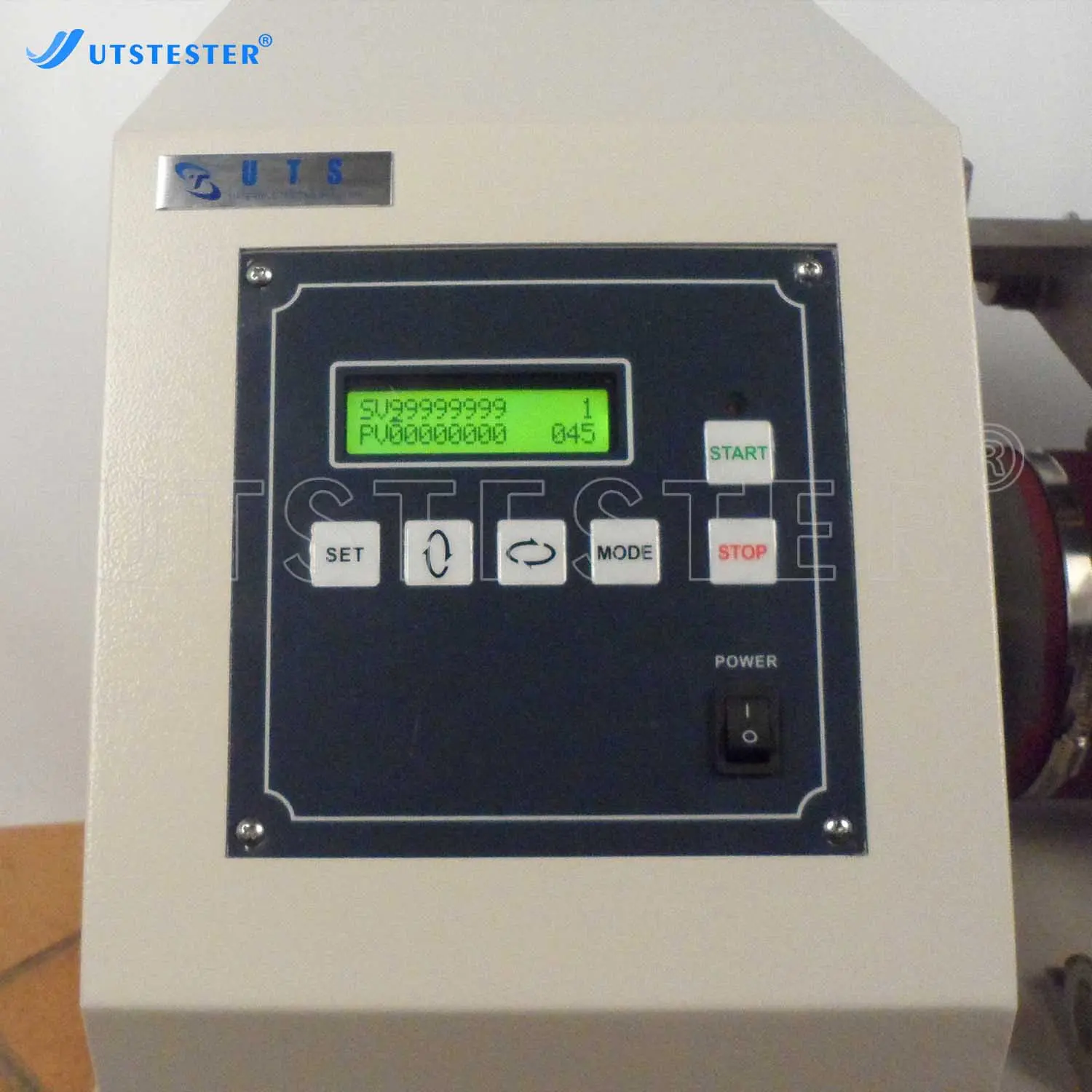

Control panel

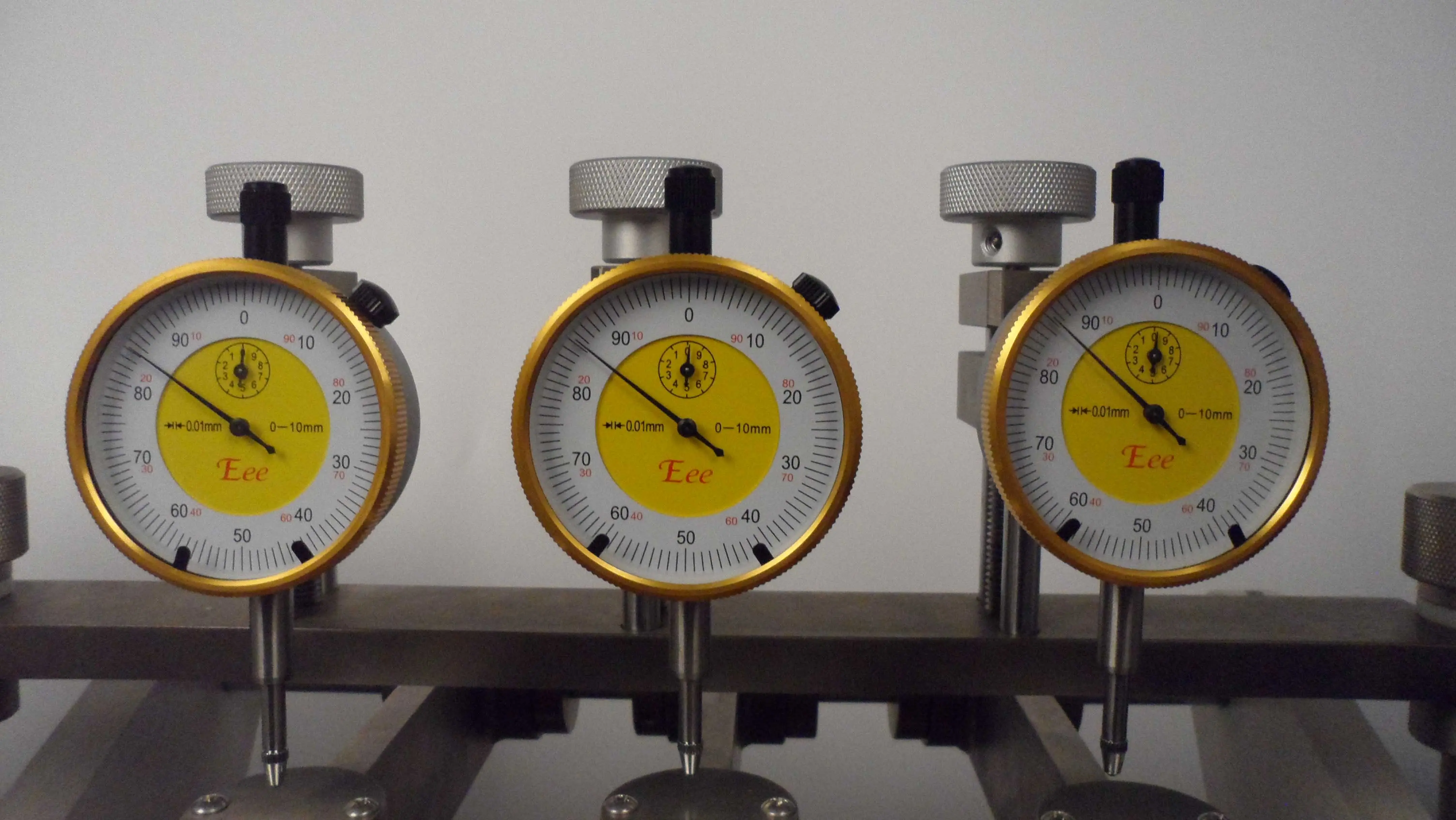

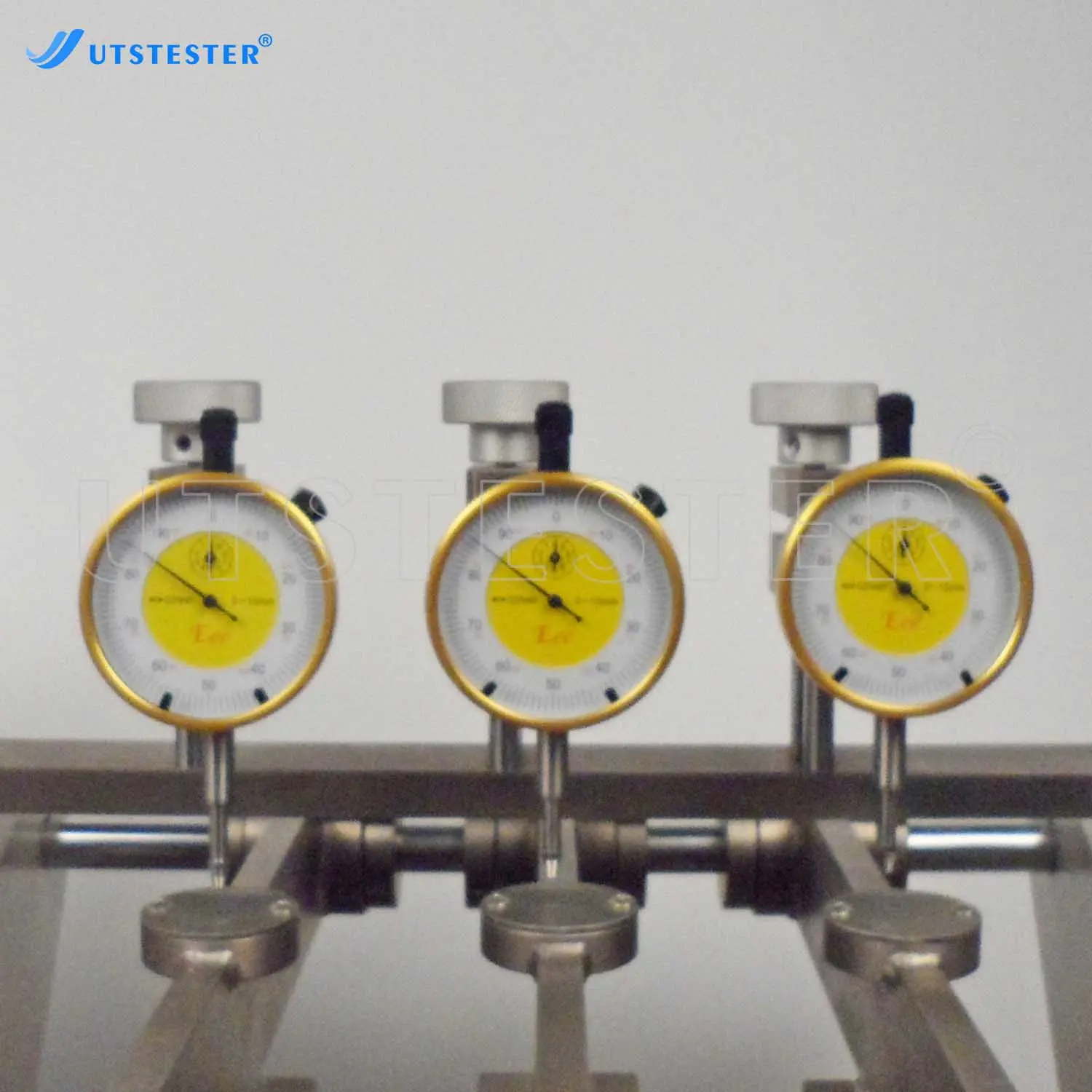

Dial gauge

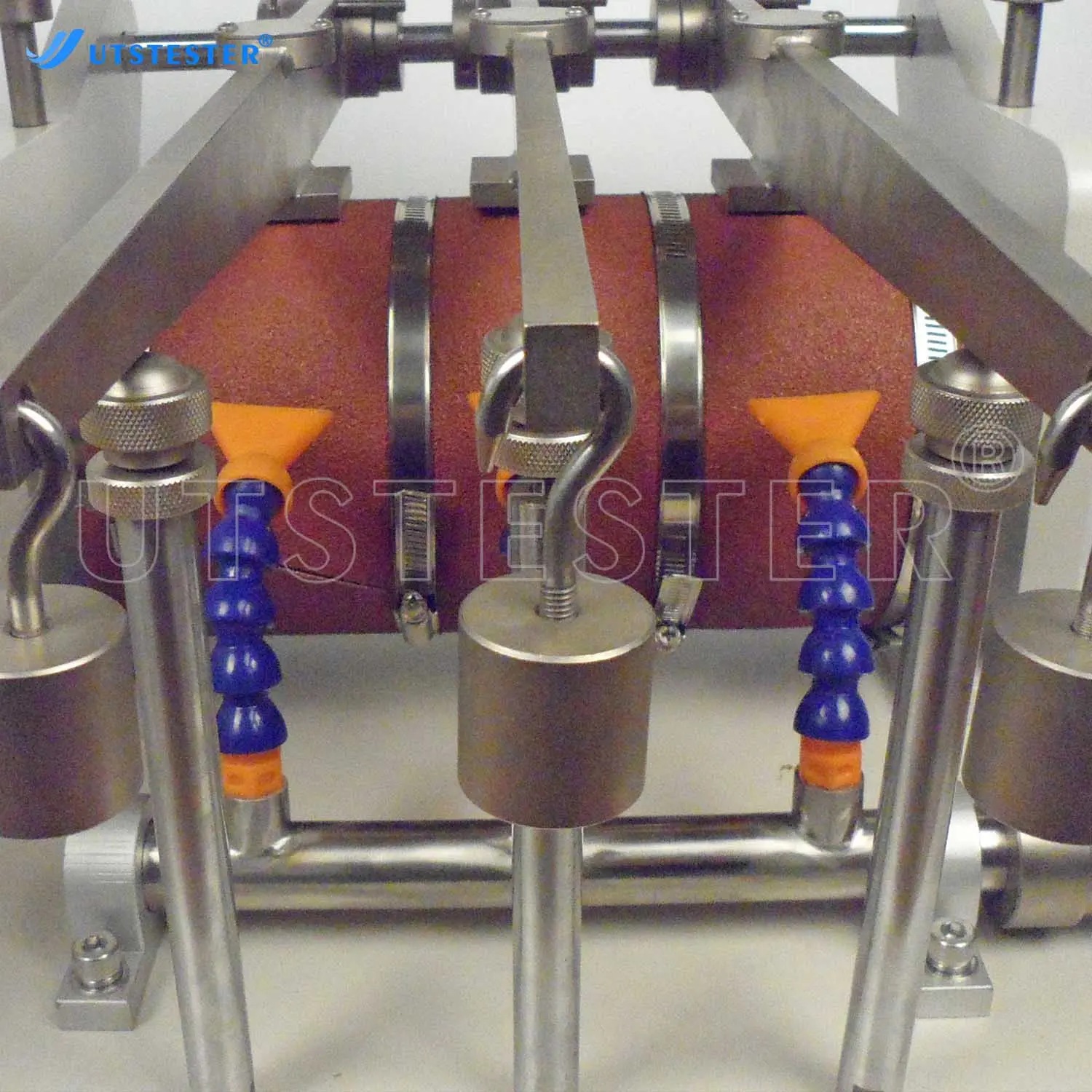

Specimen holder

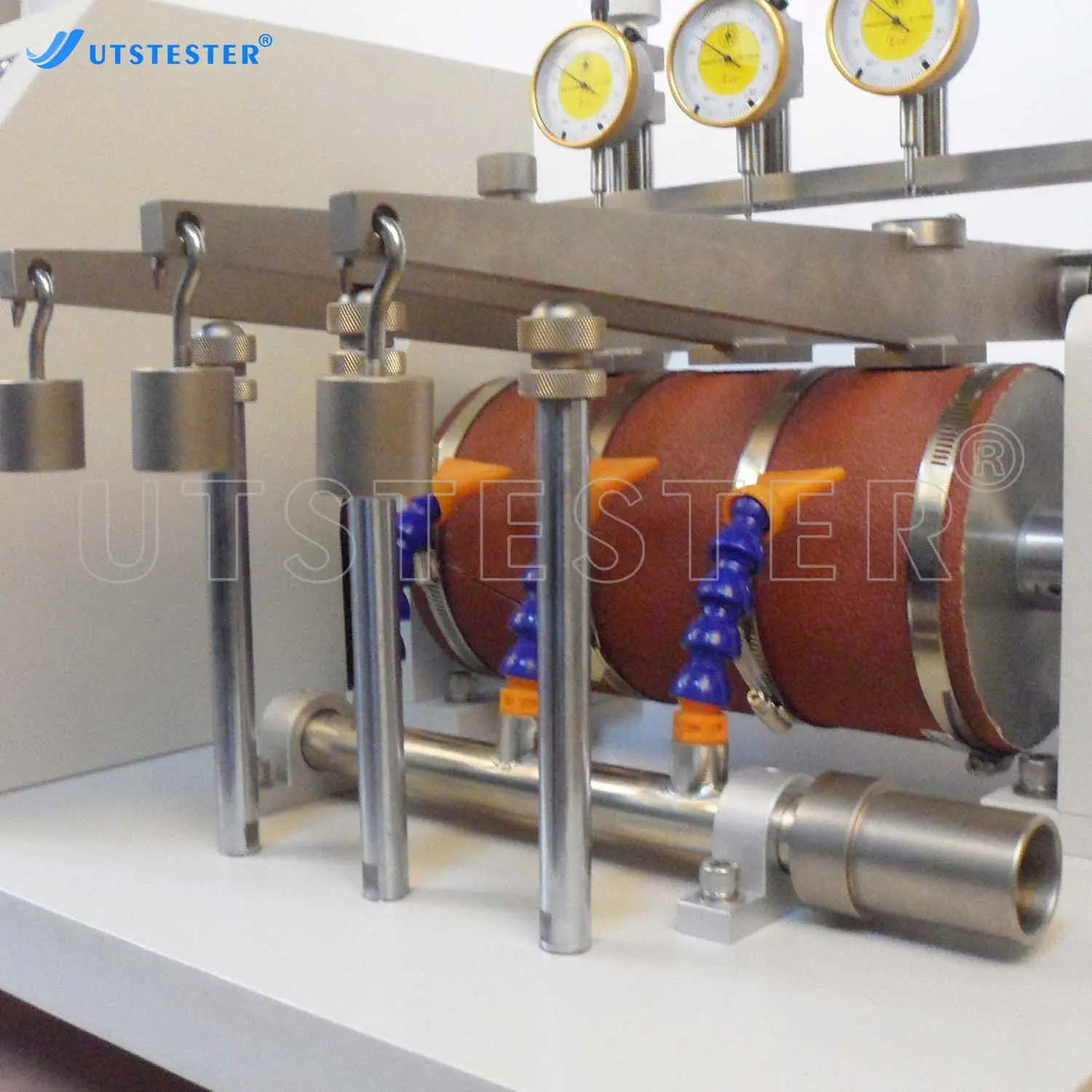

Weight
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
