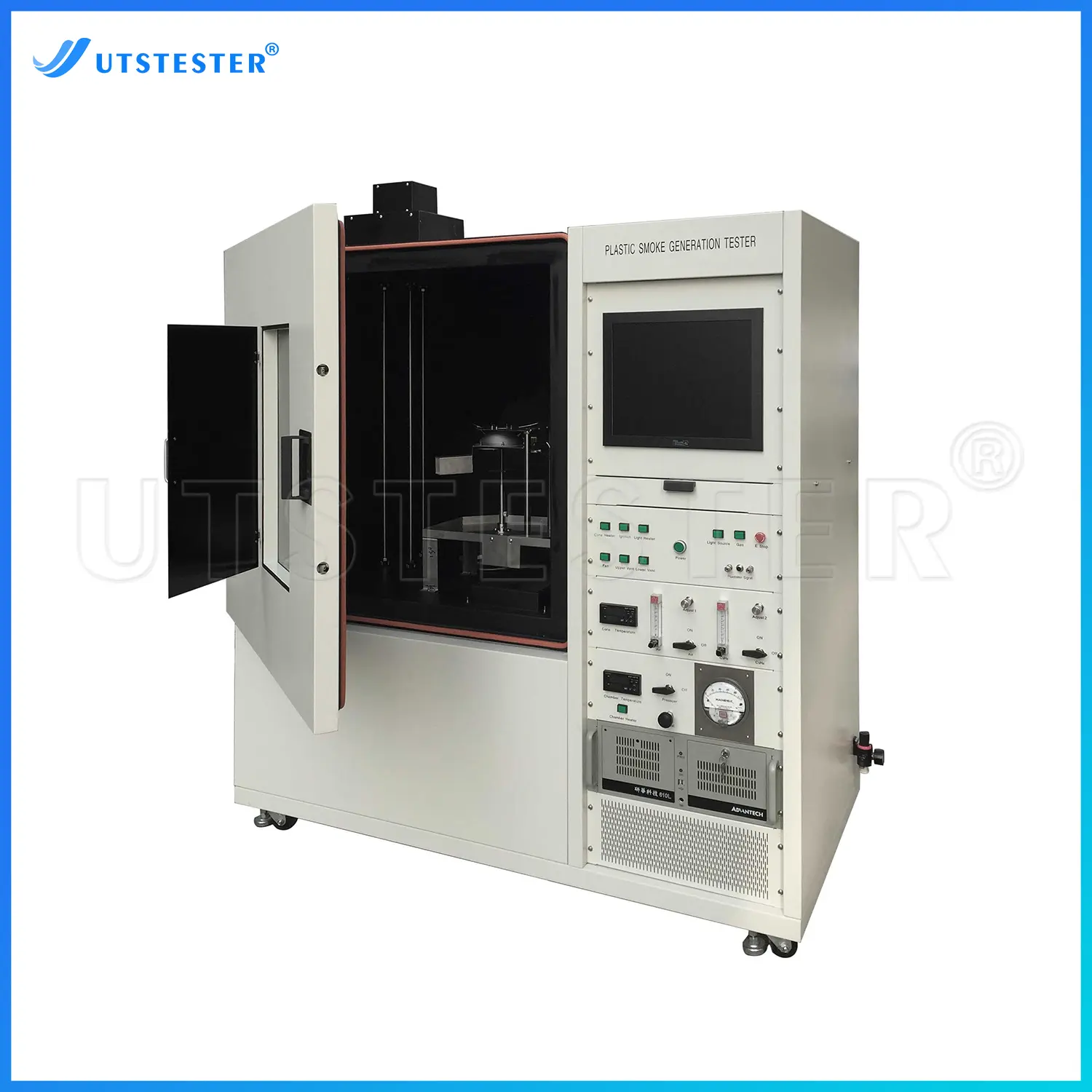

Plastic Smoke Density Measuring Instrument Nbs Smoke Density Tester M102
Plastic And Film Packaging Test Equipment

Plastic Smoke Density Measuring Instrument Nbs Smoke Density Tester M102

1. The inner and outer walls of the box are treated with teflon coating, which can resist the corrosion of strong corrosive gases and greatly extend the service life of the box;
2. The box adopts the design of full door
3. Install auxiliary heating device on the outer wall of the cabin of the test box. The temperature inside the box can be set according to different standards, which can shorten the temperature balance time of the box.
4. The explosion-proof aluminum foil device is installed inside the box, which can reduce the personal risk of the tester in case of accident;

    Overview

    This equipment is designed specially for testing the smoke density.

    Application

    企业微信截图_17551399611535

    Rubber

    企业微信截图_17551400532391

    Plastic

    Standards

    FAR 25.853, ISO 5659-2, ASTM E662, BS 6401, GB/T 8323

    Key Parameters

    Model

    M102

    Sensor range & precision

    0-3000g; precision is 0.1g

    Test chamber size

    914 × 914 × 610 mm



    Product Details

    M102 - 副本

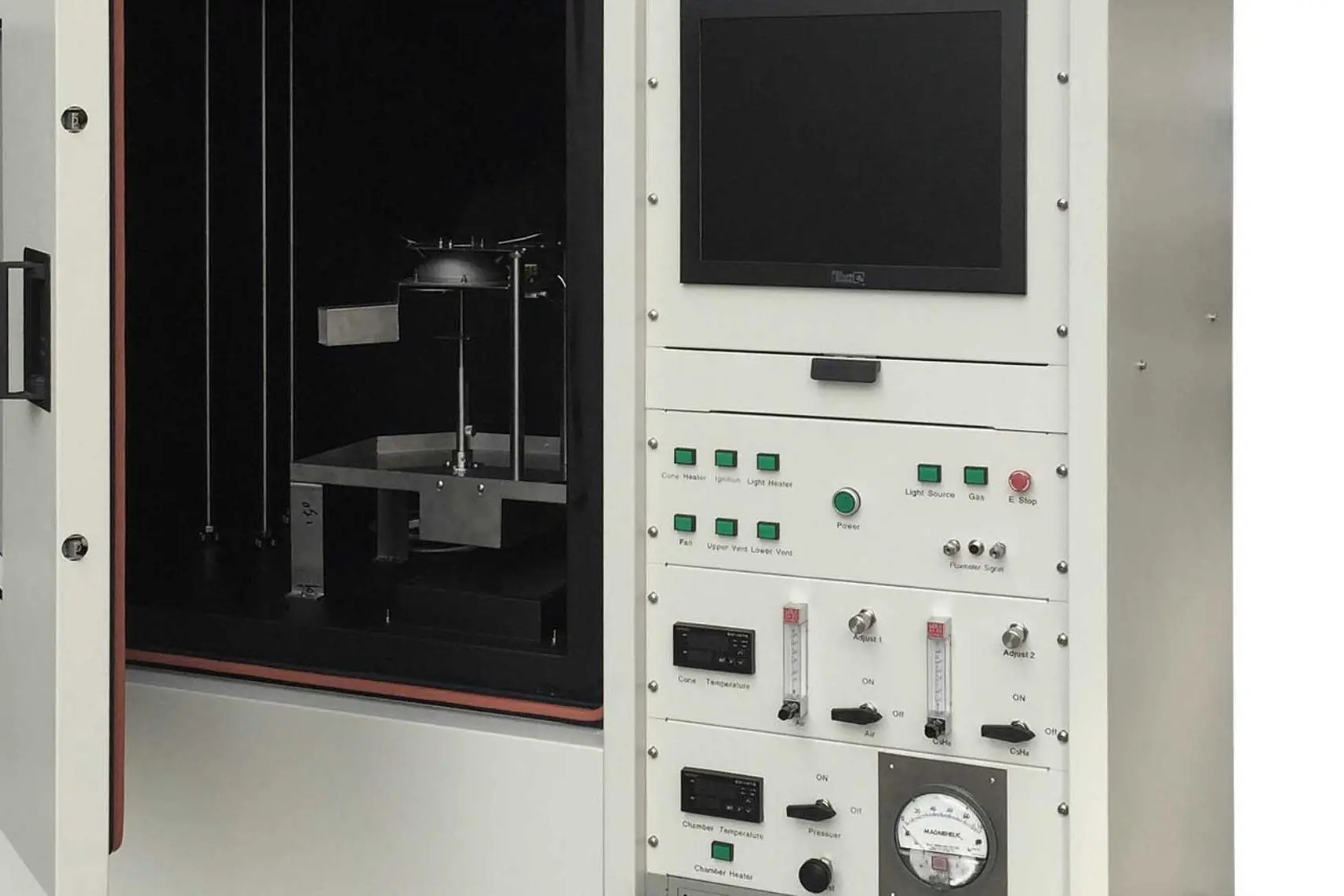

    Control panel

    M102

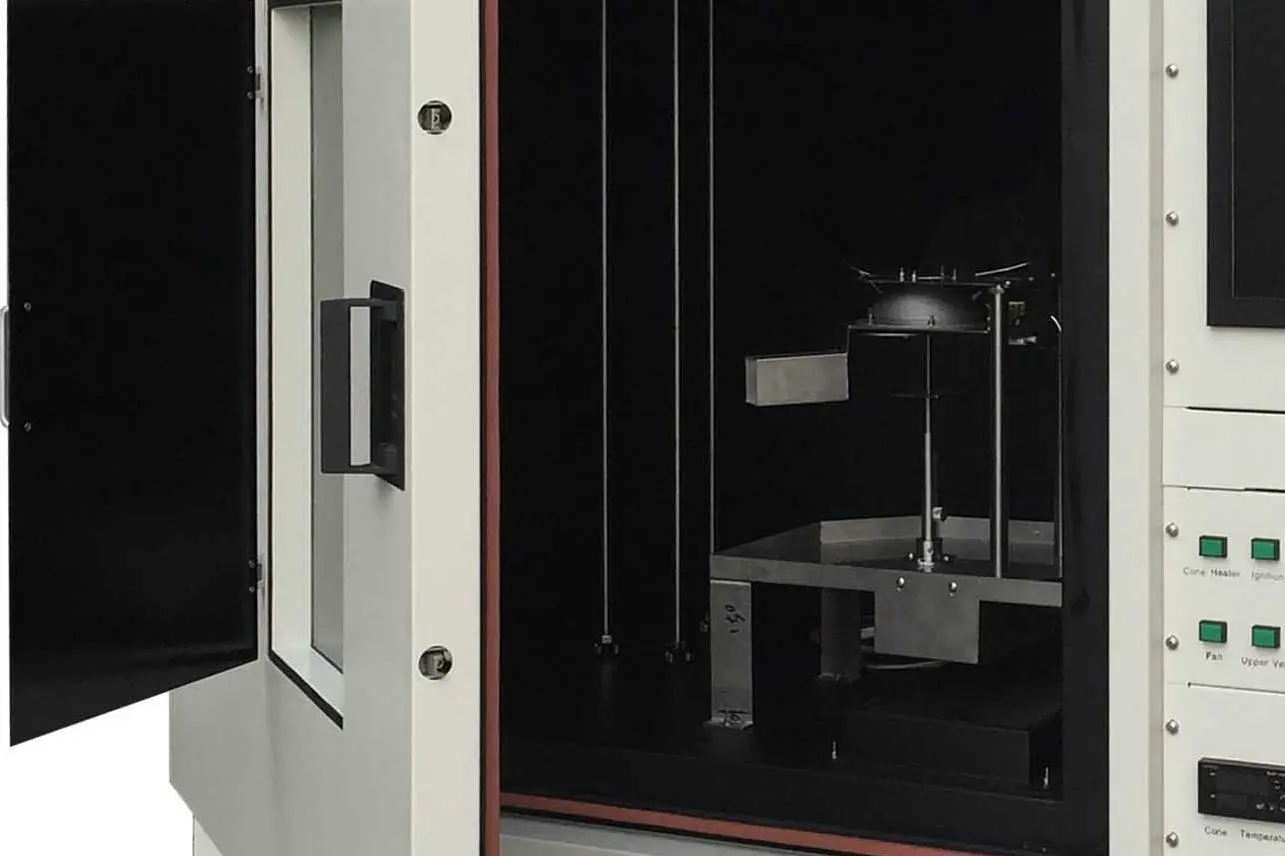

    Sample testing area

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

    Transportation

    image071evh

    Packing System

    1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
    2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
    3. Packing materials selected accorded with economic and safety requirements
    4. Compliance with environmental requirements.
