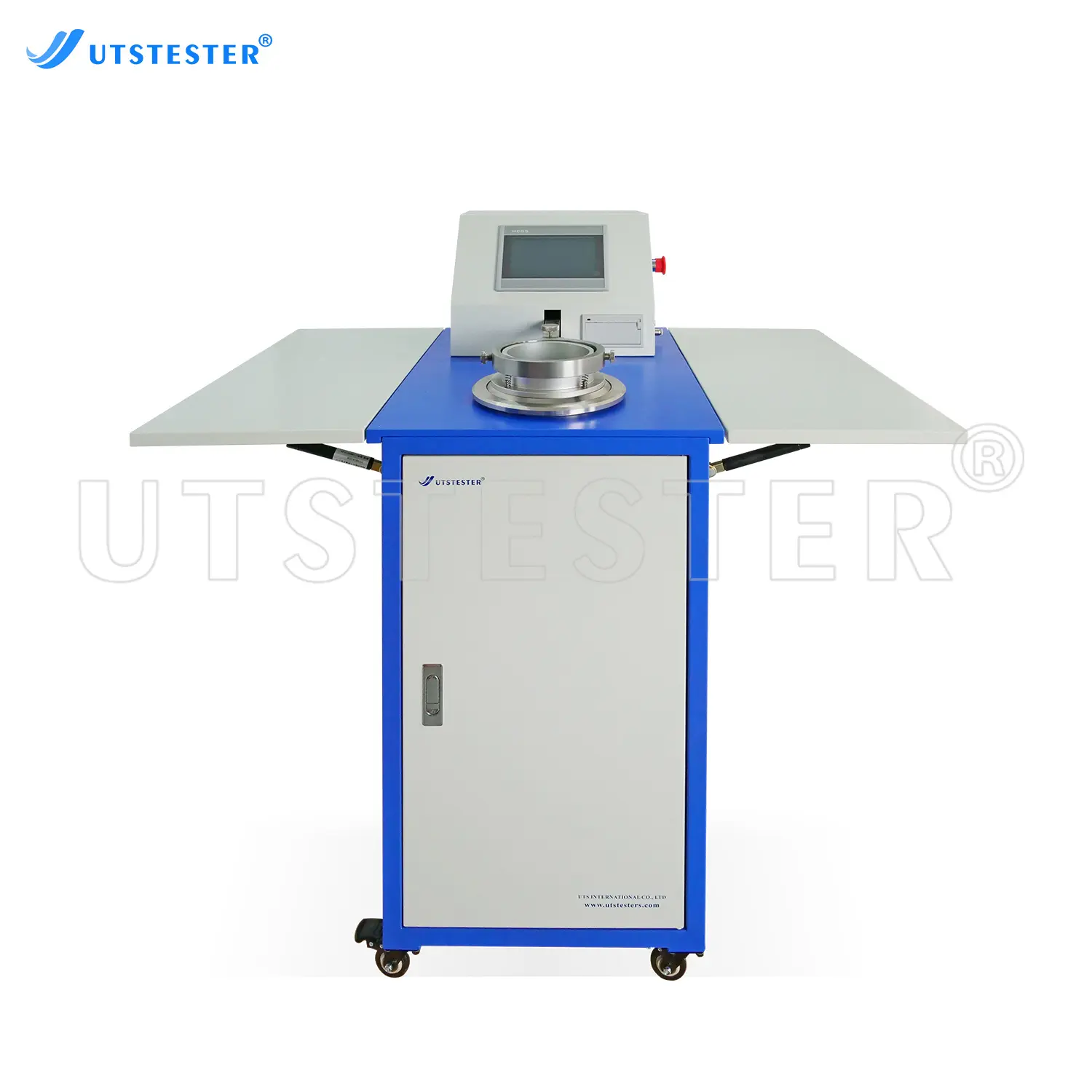

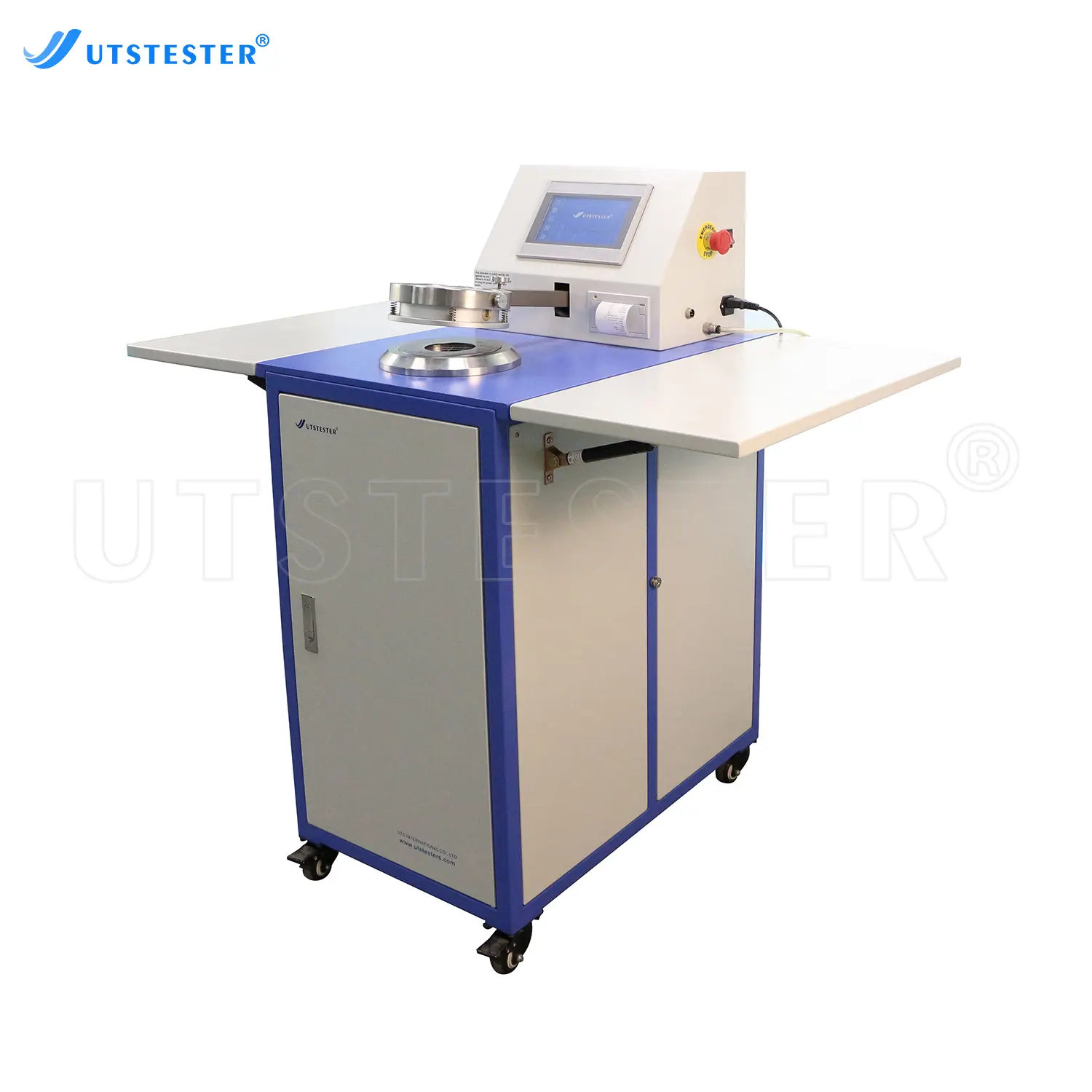

Permeability Testing Equipment Air Permeability Tester for Fabric ISO 9237 M027A
Overview
To test the air permeability of various woven fabrics, including industries fabrics, non-woven and other breathable fabric.
Application
non-woven
fabrics
fabrics
Standards
GB/T5453 GB/T13764 ISO9237 ISO7231 ISO5636 ASTM D737 DIN 53887 JIS L1096 BS5636
Key Parameters
|
Model |
M027A |
|||||||||||
|
Operation display |
Touch screen |
|||||||||||
|
Pressure difference range |
1-4000Pa |
|||||||||||
|
Permeability range |
0.1~12000mm/s |
|||||||||||
|
Measuring error |
||||||||||||
|
Fabric thickness |
≤12mm |
|||||||||||
|
Testing area |

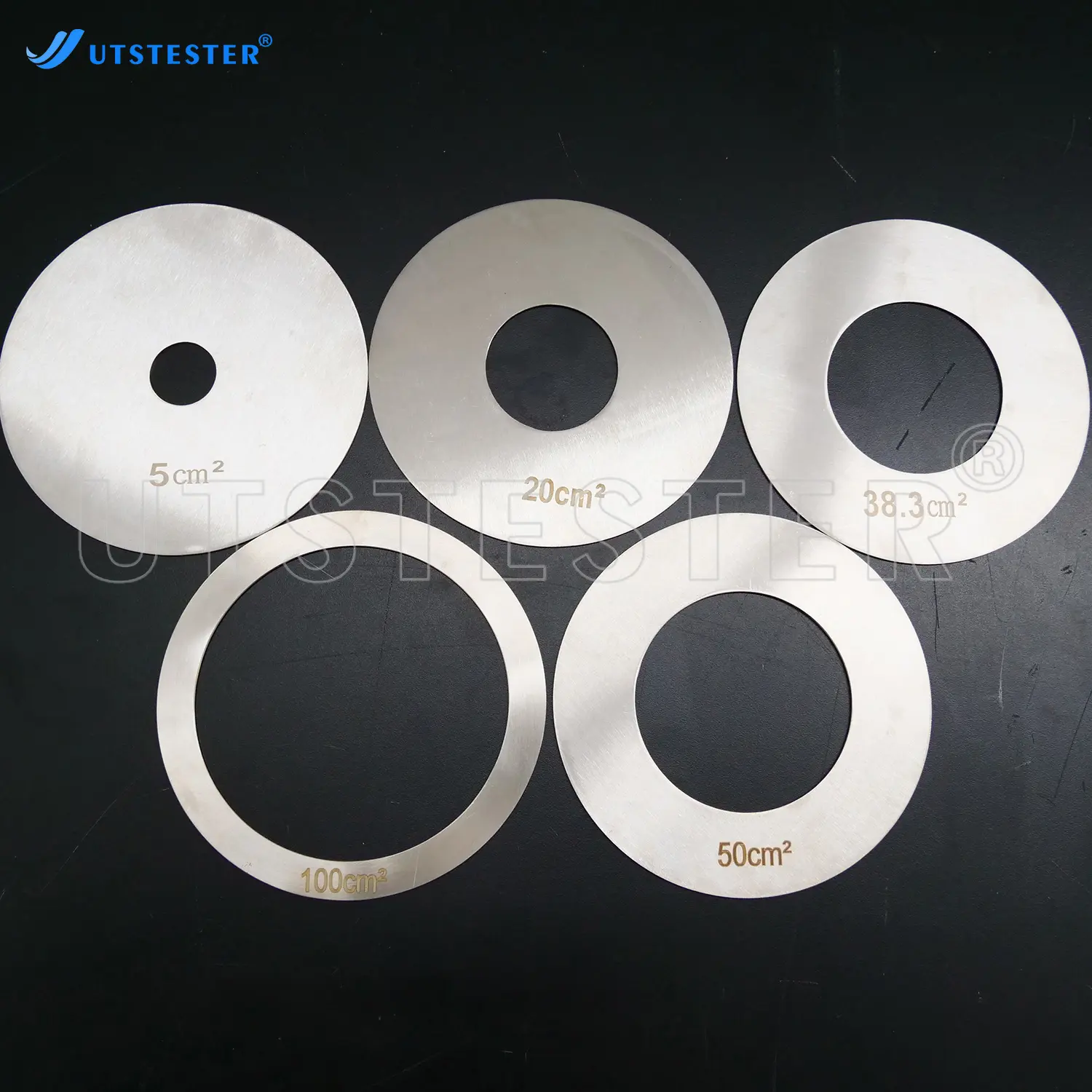

5cm2, 20cm2, 50cm2, 100cm2 Ф50mm (≈19.6cm2), Ф70mm(≈38.5cm2) |
|||||||||||
|
Nozzle parameter |
No. |
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Φ (mm) |
0.8 |
1.2 |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
16 |
20 |
|
|
Power supply |
AC 220V 50/60HZ, 2KW |
|||||||||||
|
Dimensions |
700 x 520 x 1100mm (L x W x H) |
|||||||||||
|
Weight |
93kg |
|||||||||||
Product Details

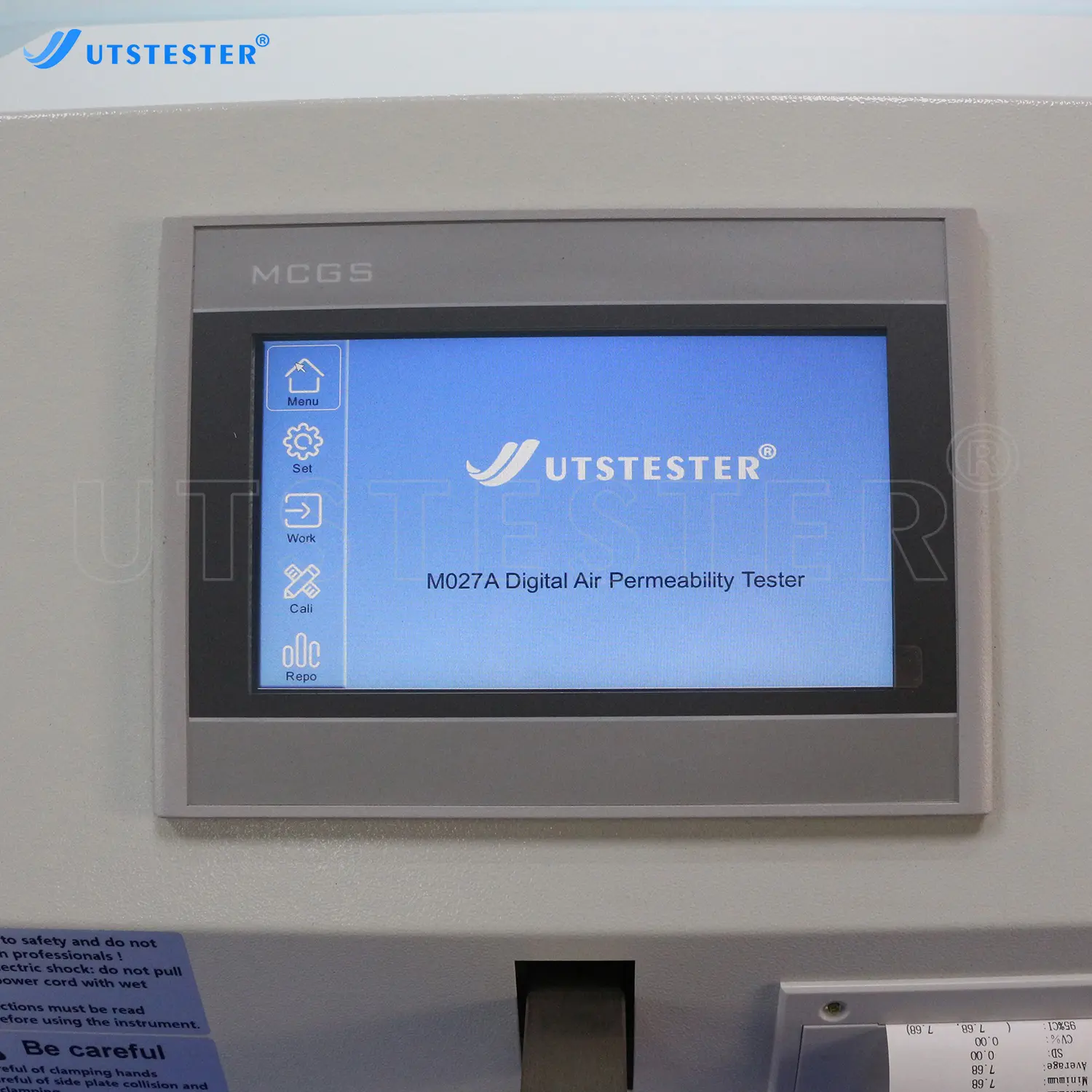

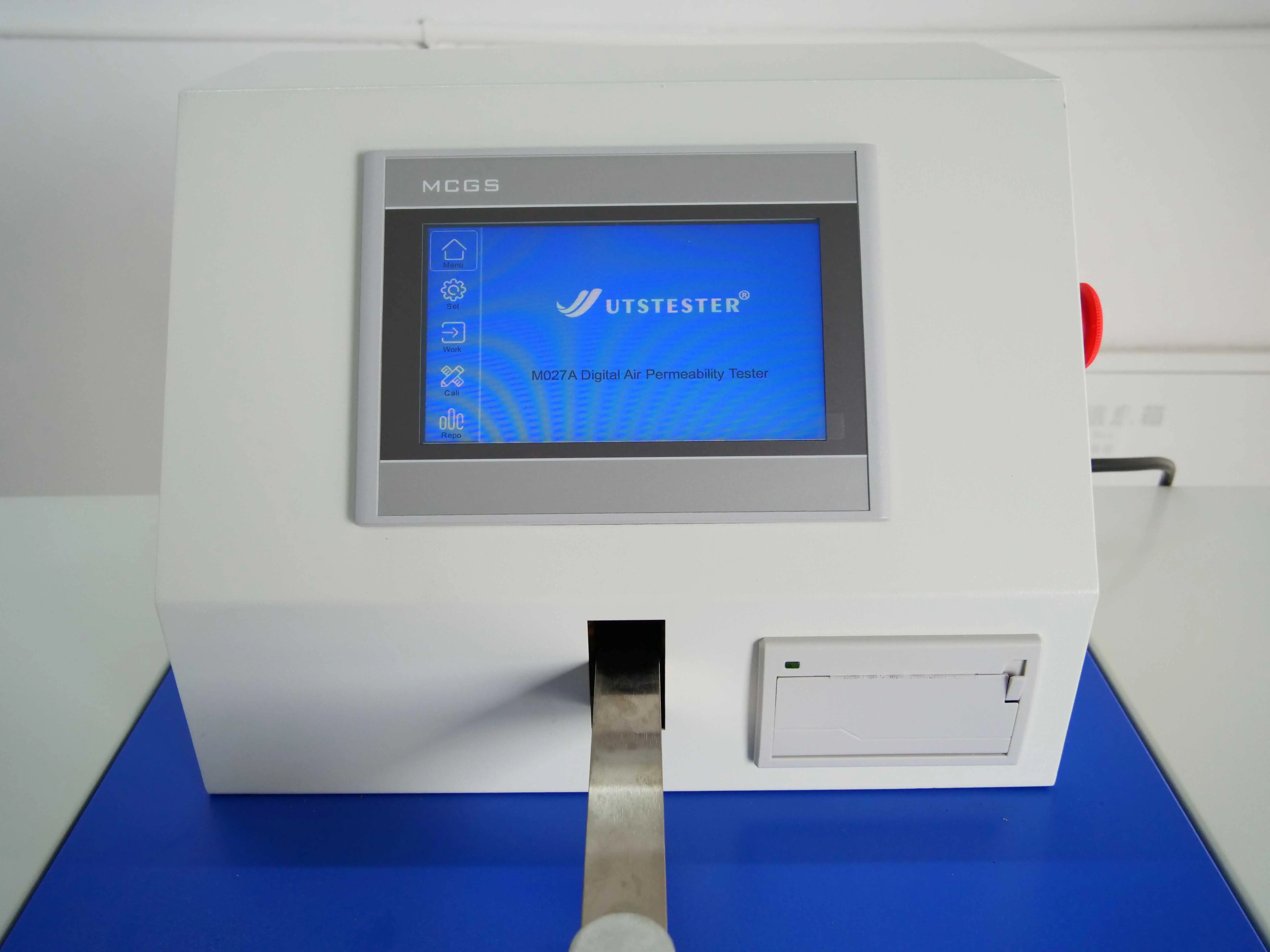

Display and operation panel

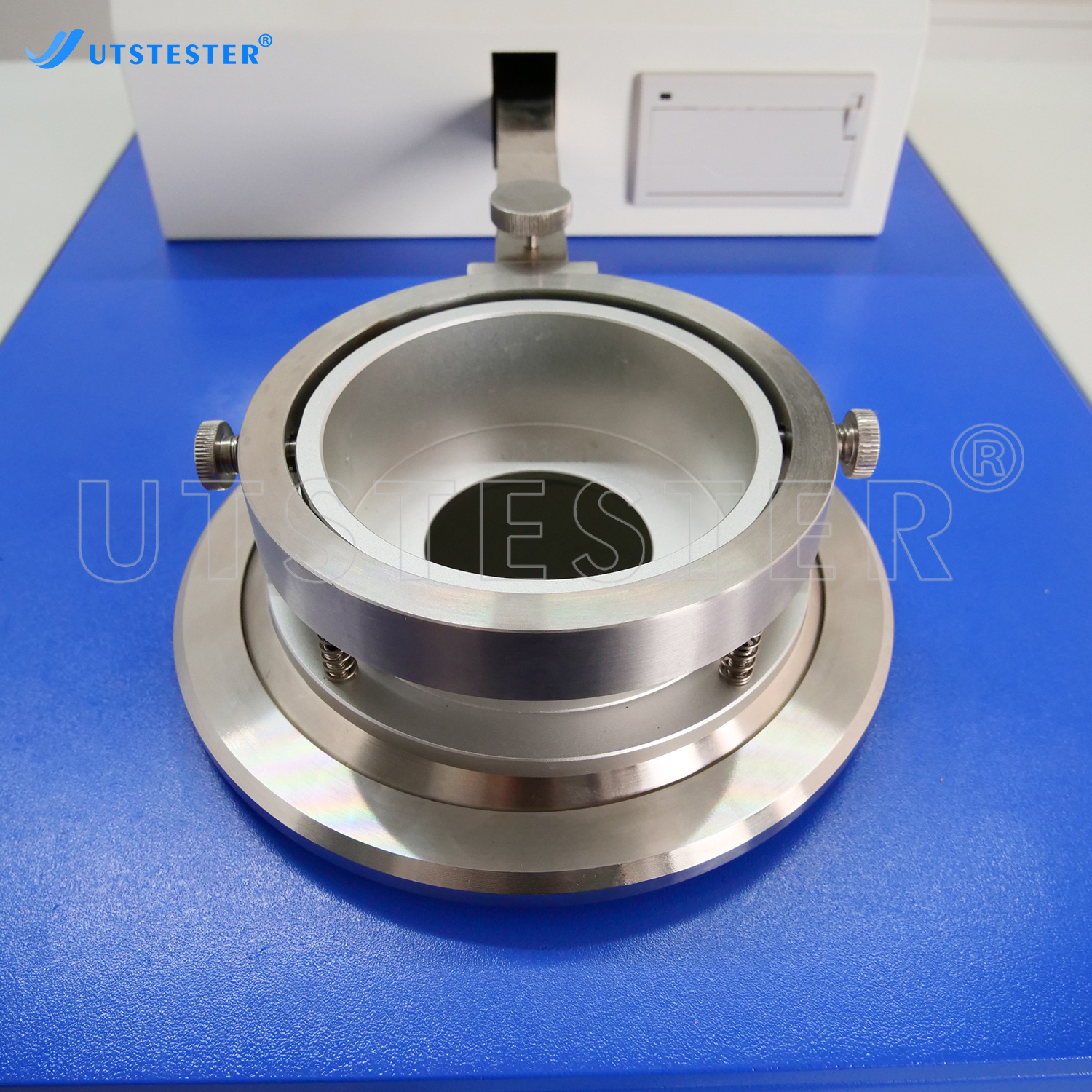

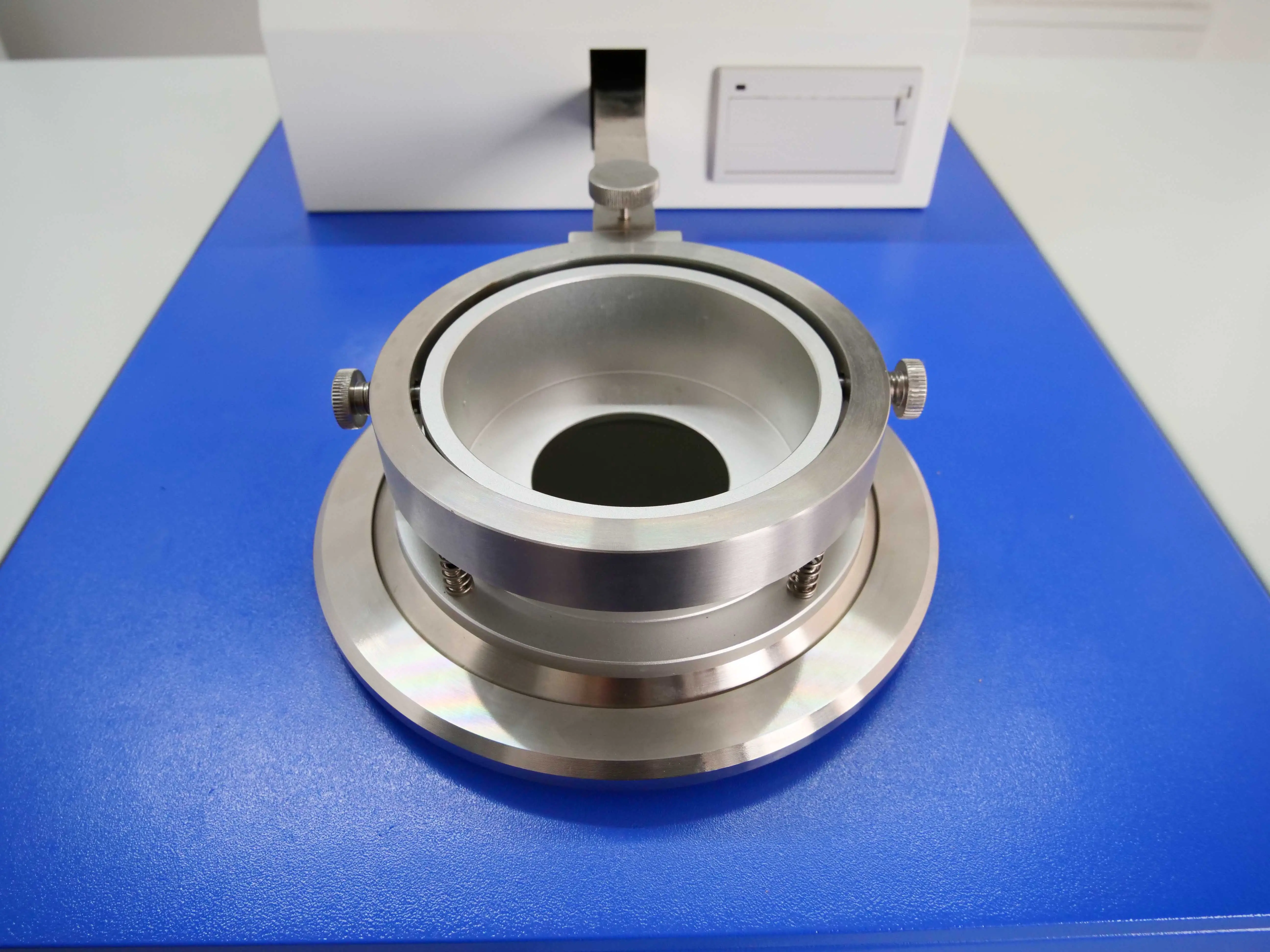

Sample fixture

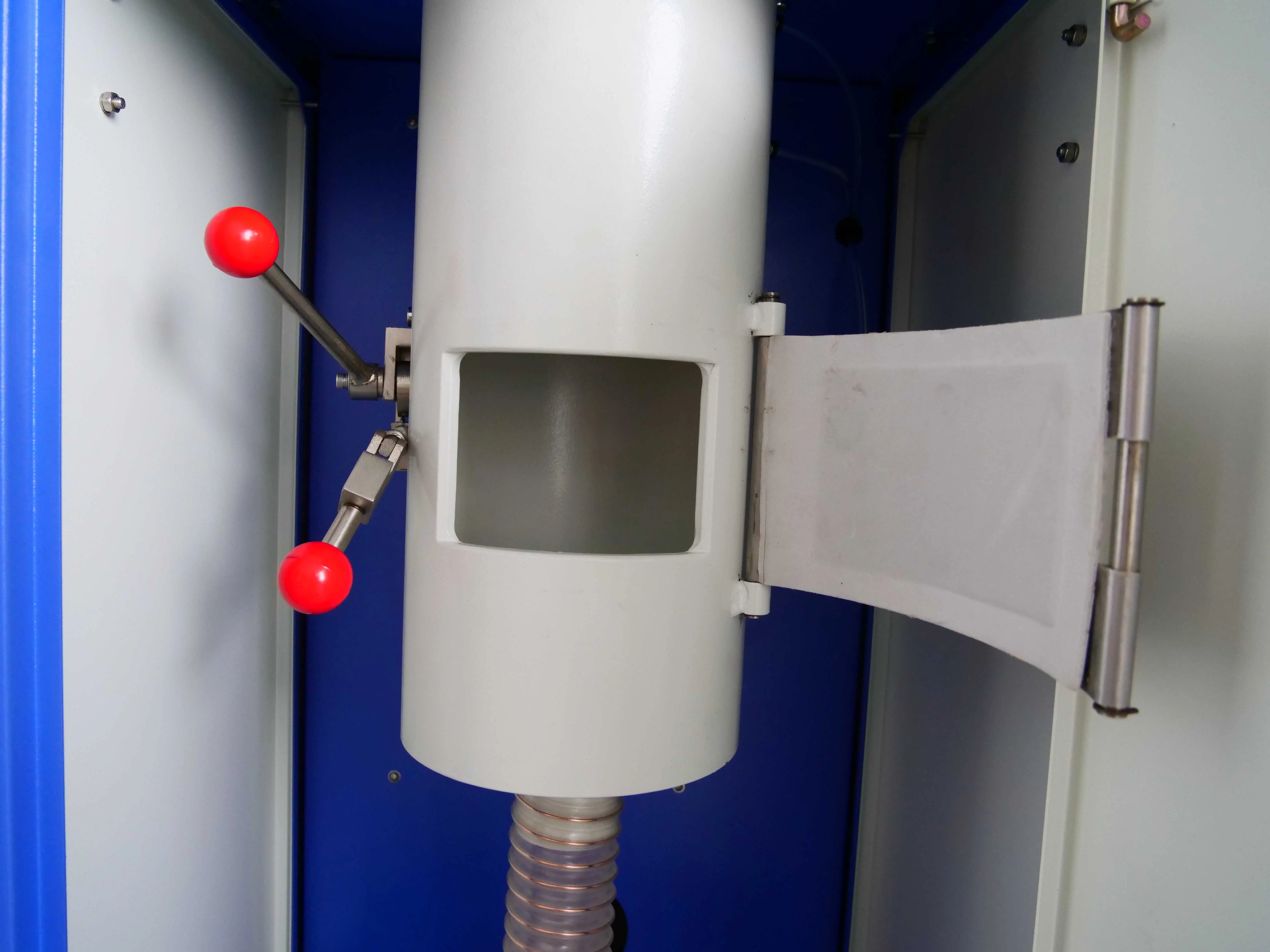

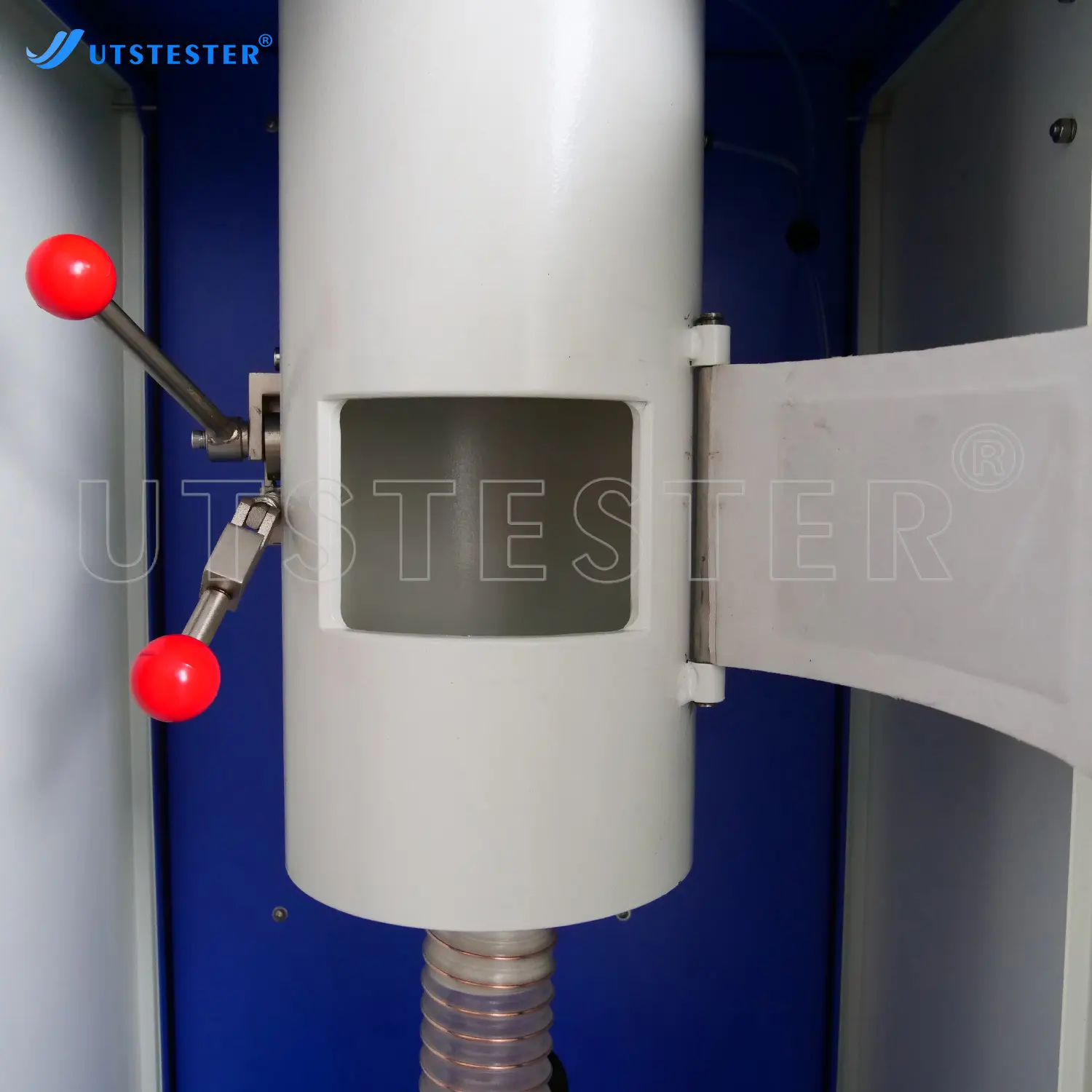

Flow device door
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
