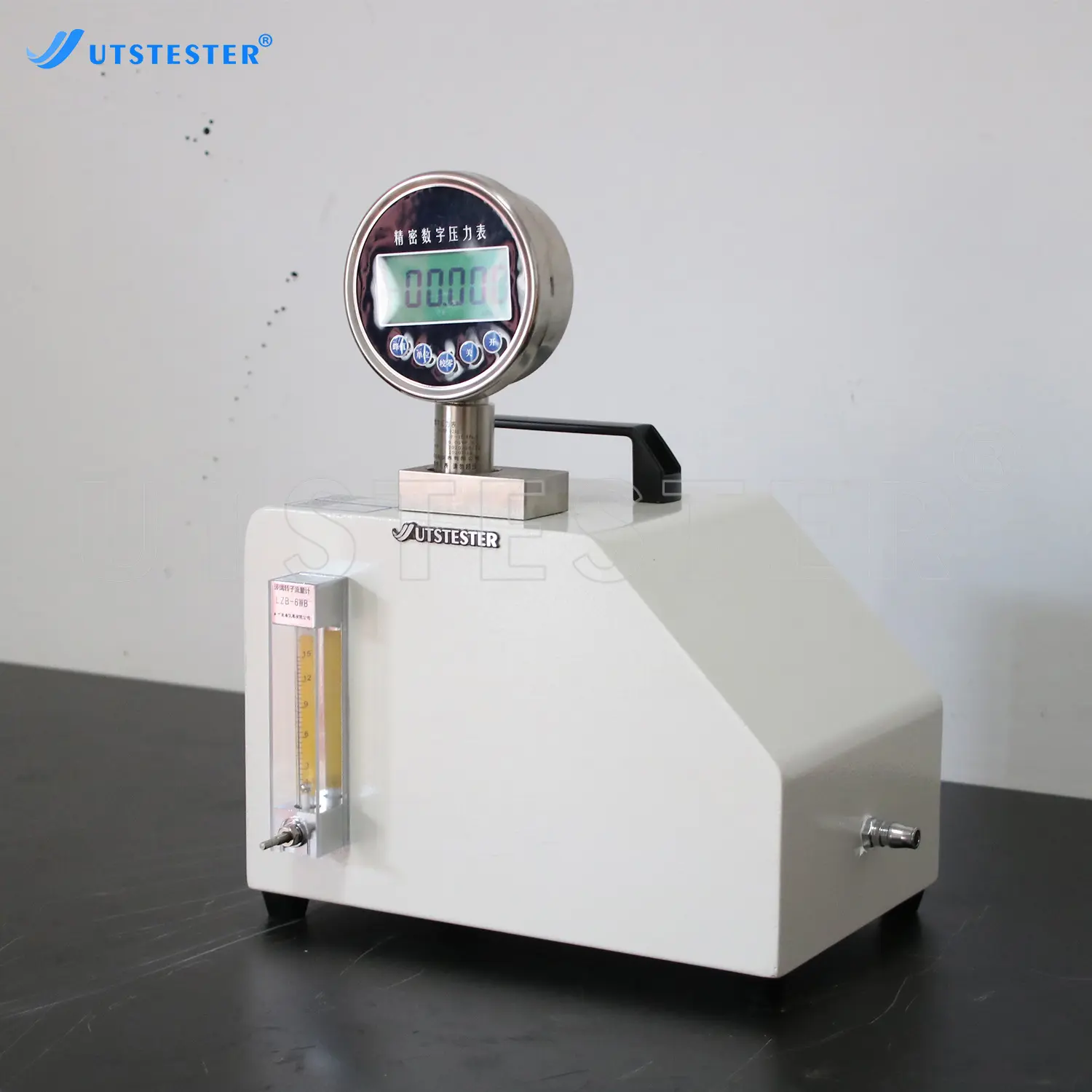

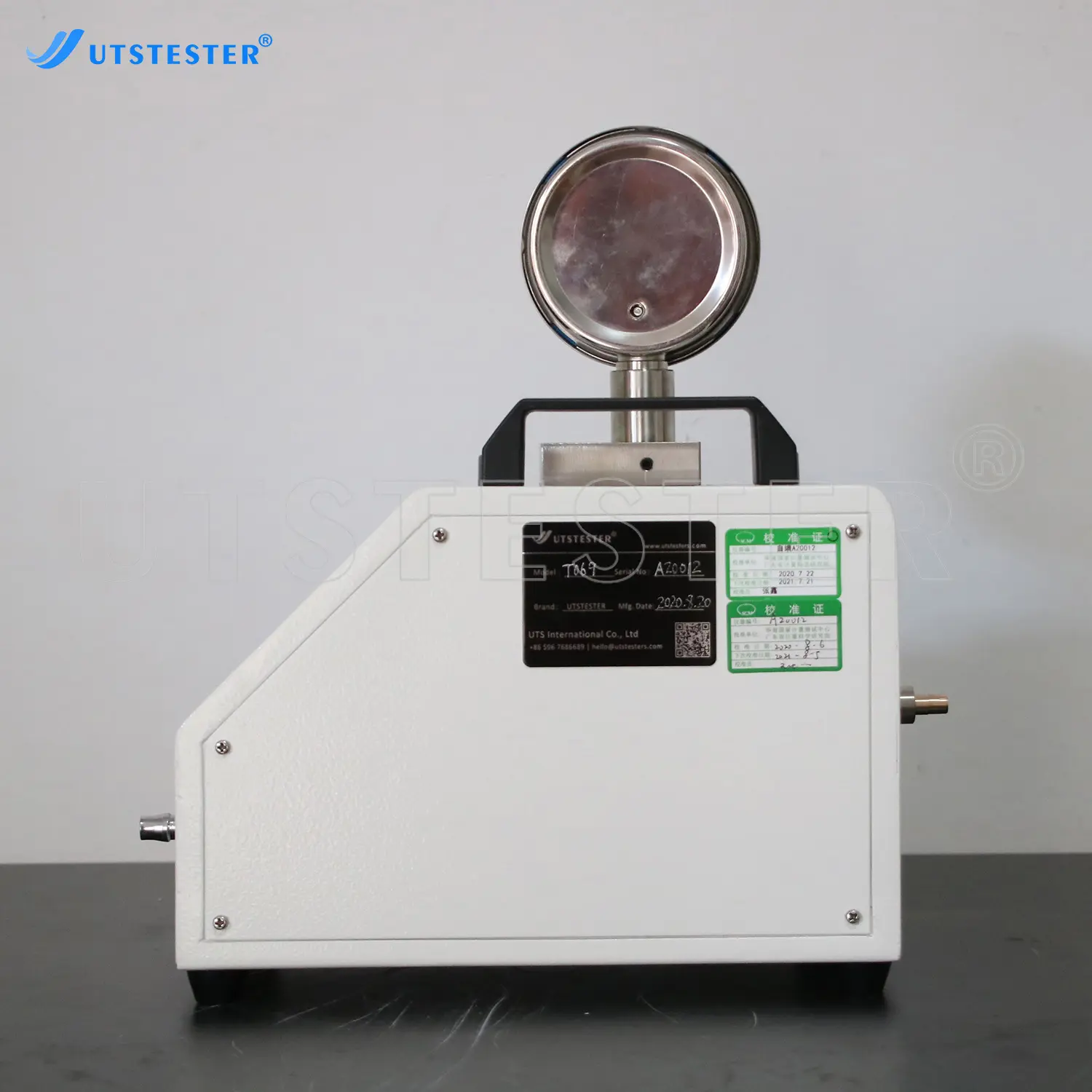

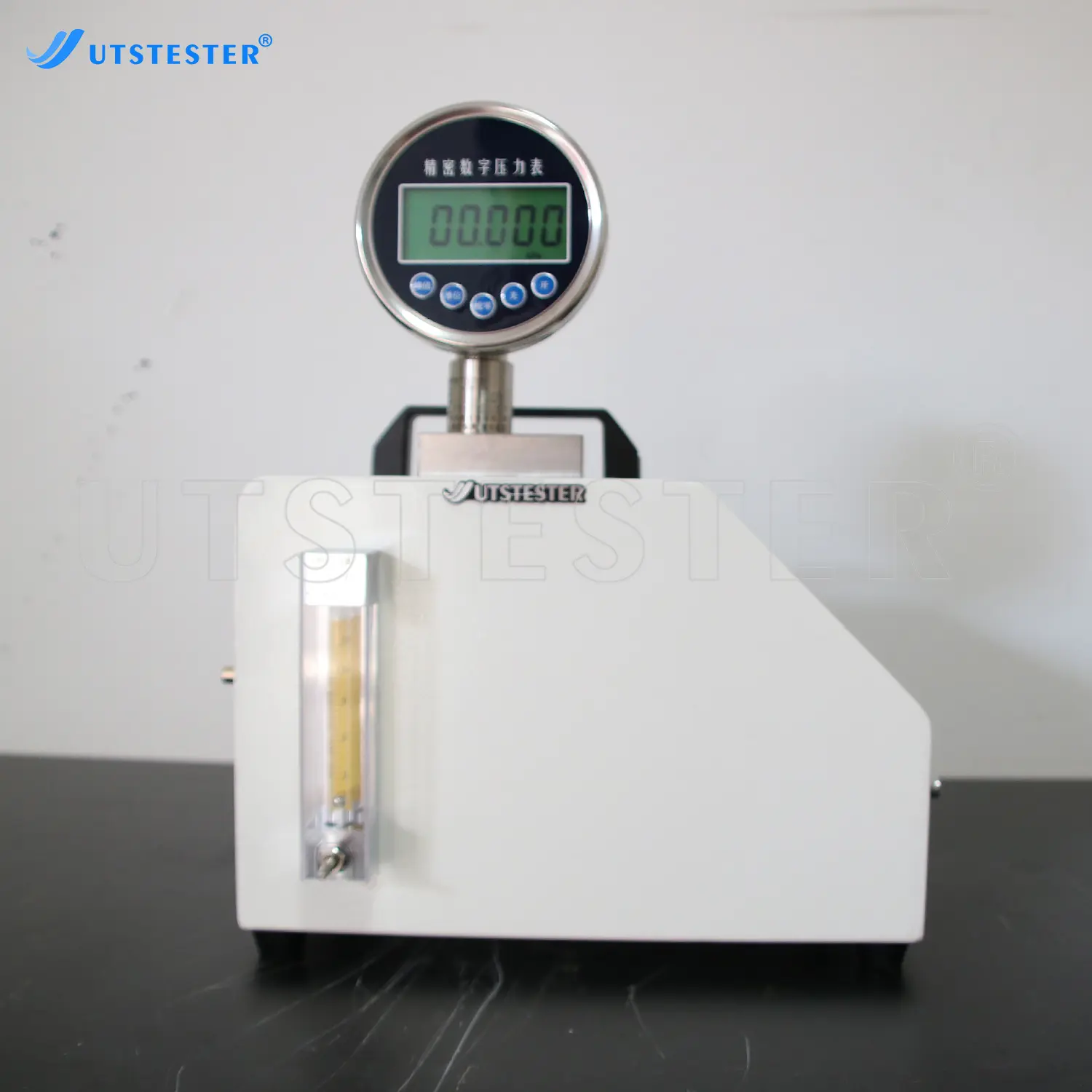

Pen-Cap Air Flow Tester to Test The Safety of The Caps T069
Overview
To test the safety of the caps for writing and marking instruments which are designed or clearly intended for use by children up to 14 years of age.
Caps for writing and marking instruments which are not designed or intended for use by children, e.g. jewellery pens, expensive fountain pens, professional technical pens, are not be test by this method .
Application
Children's pen
Children's pen
Standards
ISO 11540, BS 7272-1, GB/T 24110
Key Parameters
|
Model |
T069 |
|
Testing air flow |
8 L/min |
|
Air supply |
≥25 l/min |
|
Flow gauge accuracy |
±0.2 l/min |
|
Pressure gauge accuracy |
±0.01 Kpa |
|
Elastomeric tubing |
Wall thickness: 0.75 mm±0.25 mm |
|
Hardness: 55±10 Shore A |
|
|
Dimensions (L x W x H) |
450 x 200 x 330mm |
|
Weight |
6Kg |
Product Details

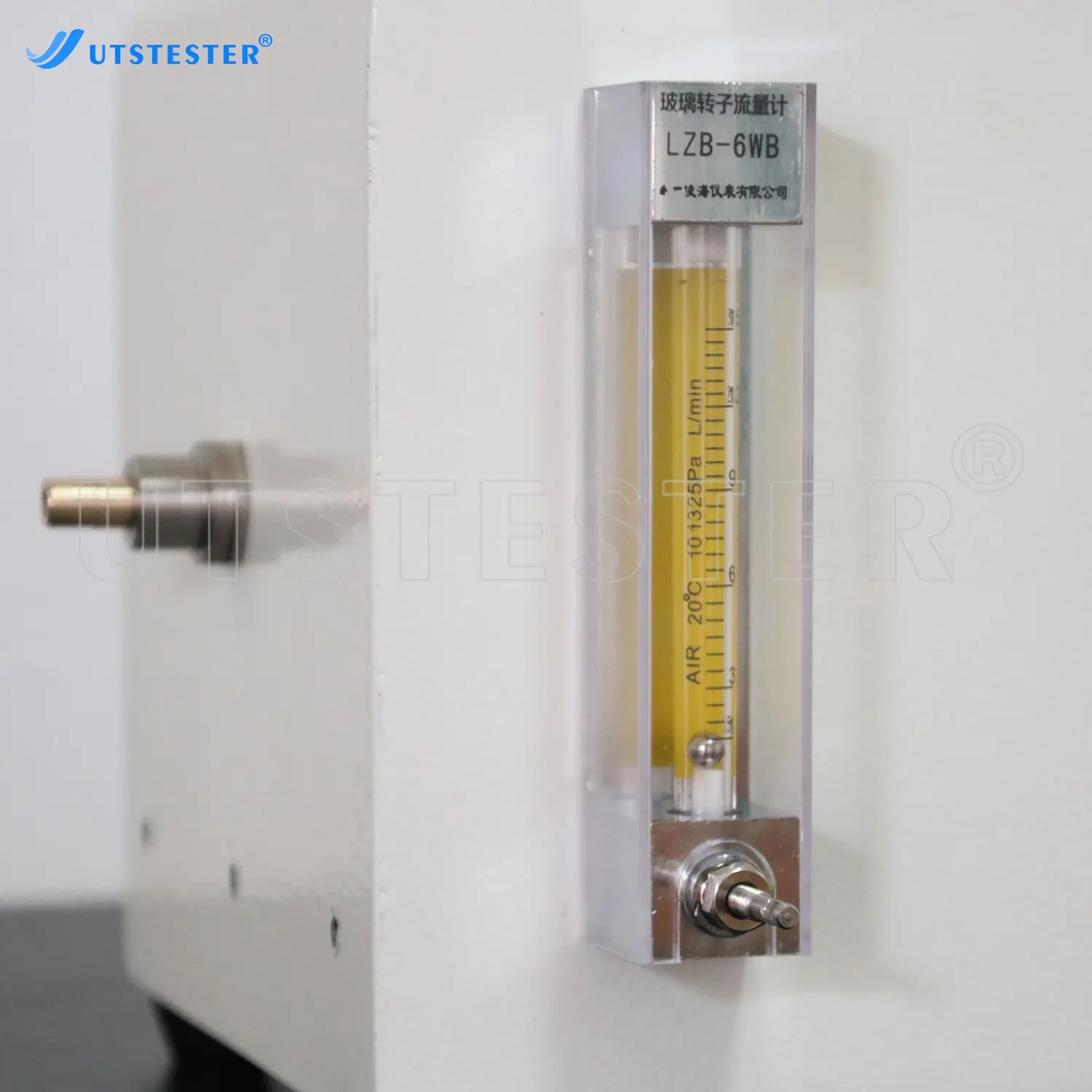

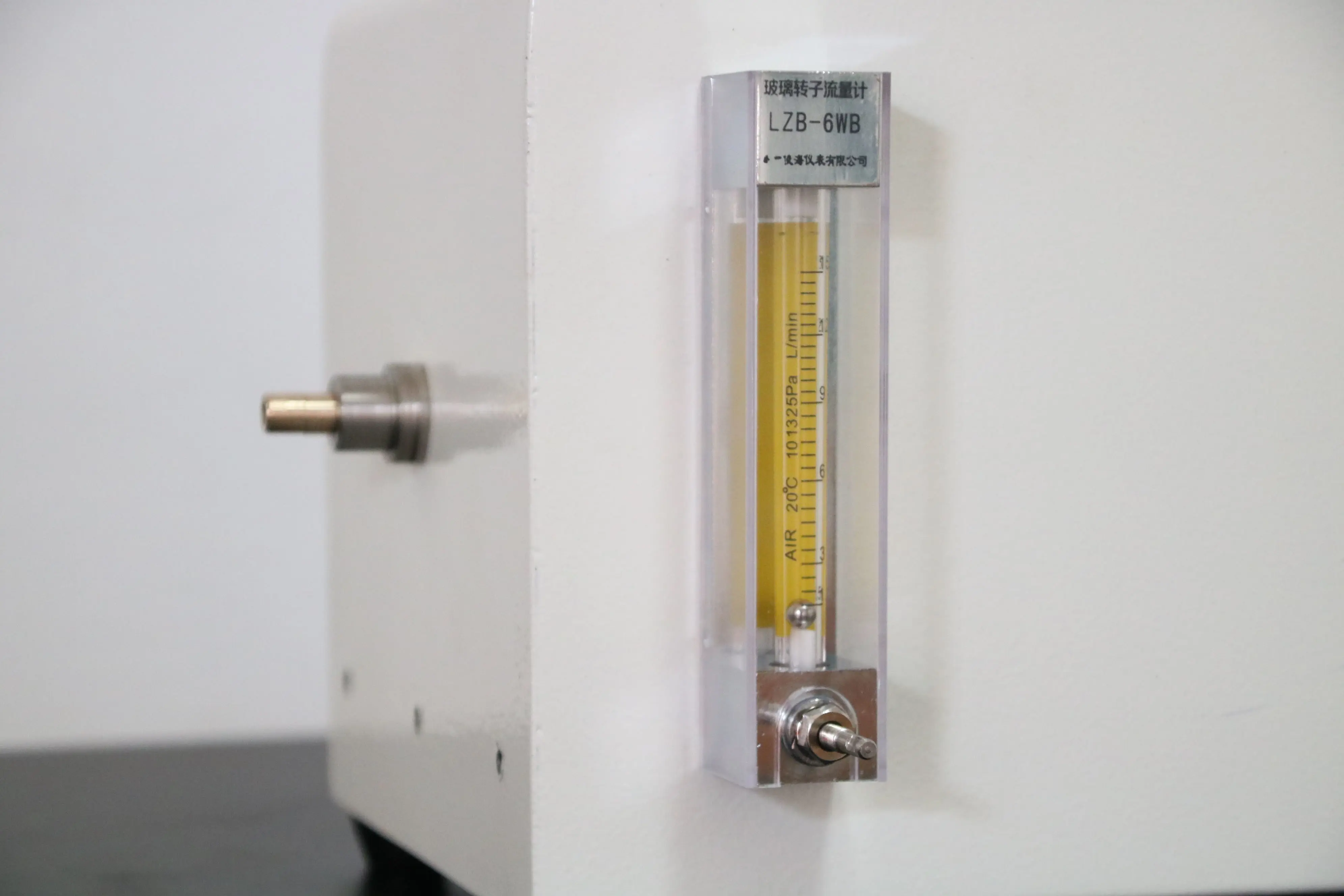

Flow meter

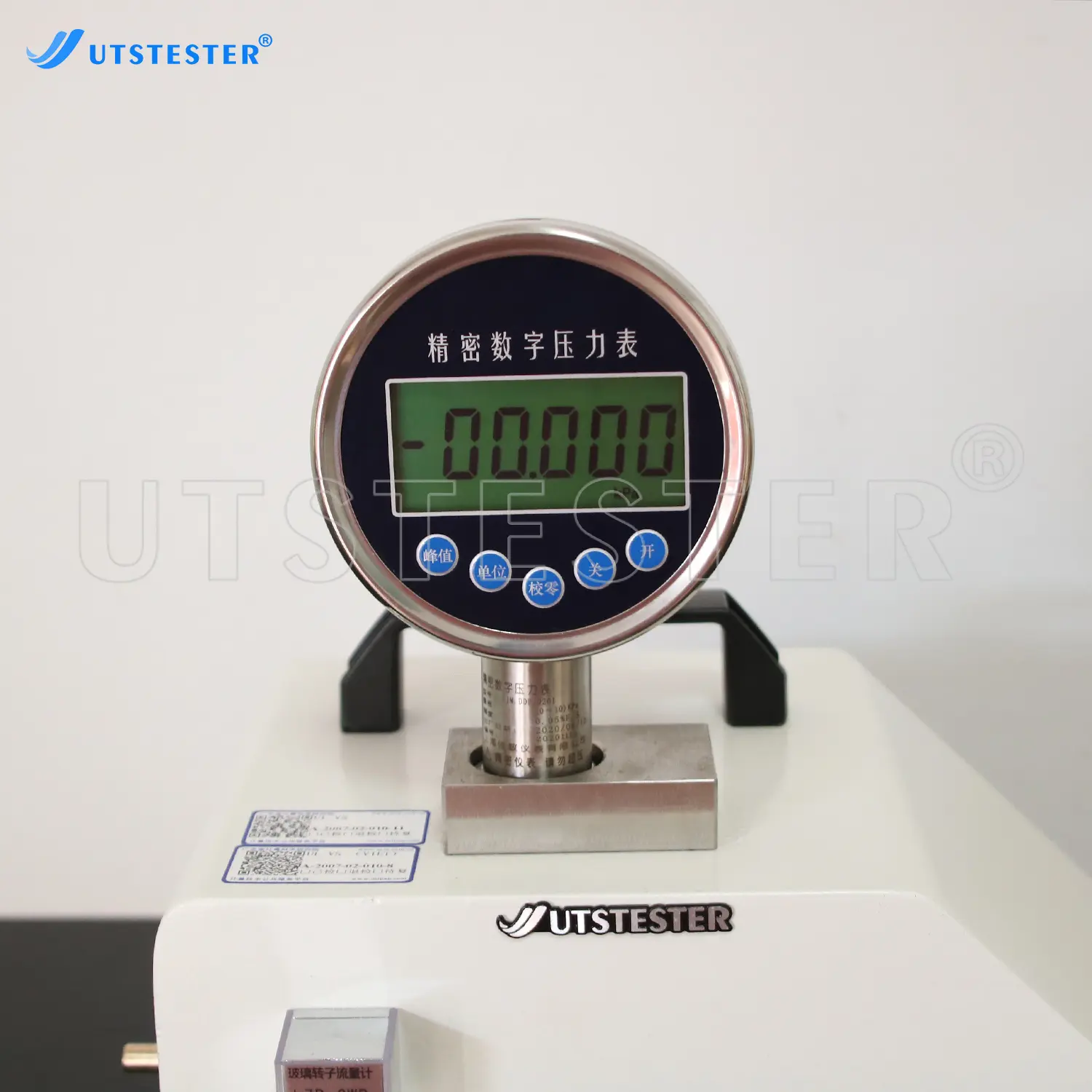

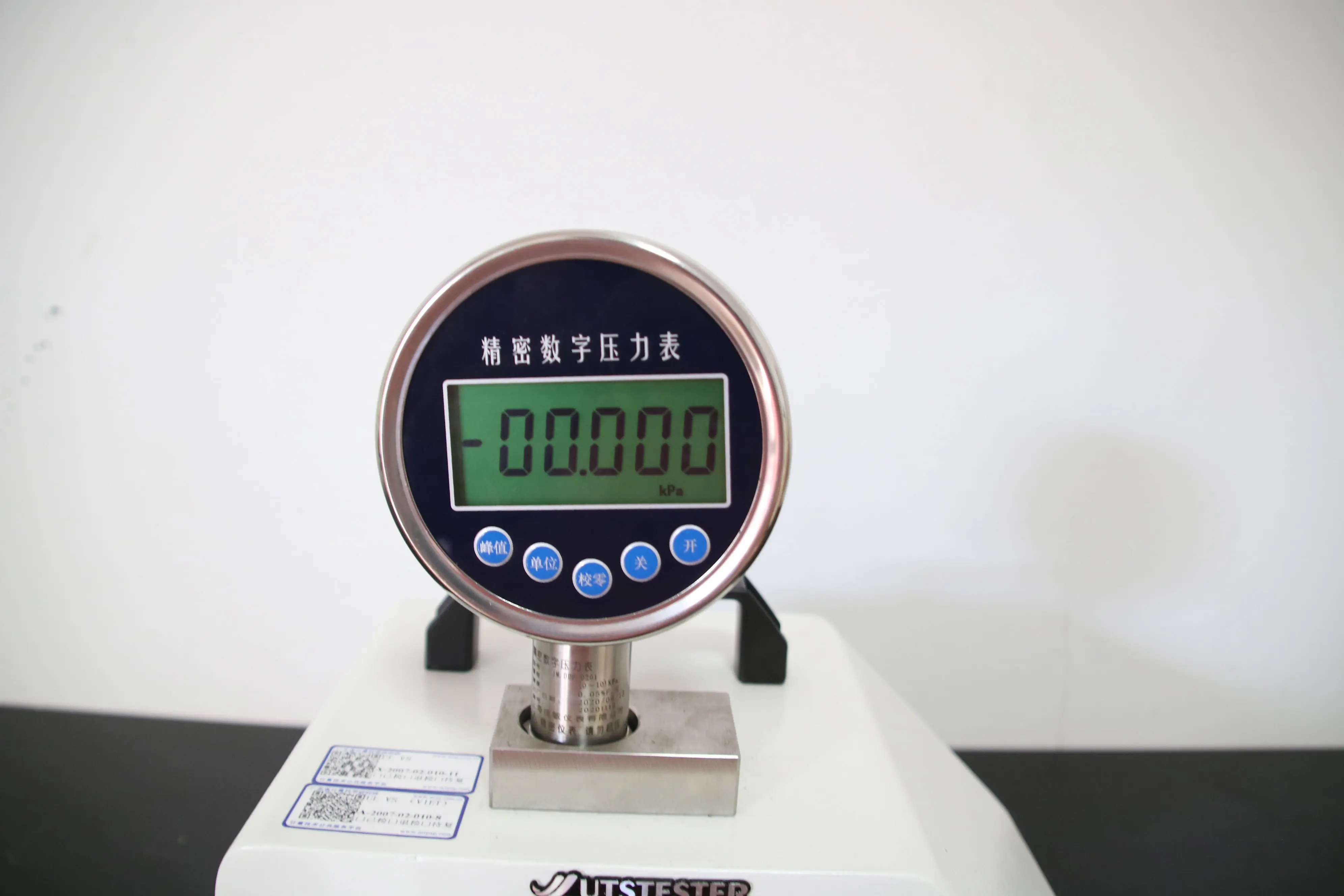

Pressure gauge
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
