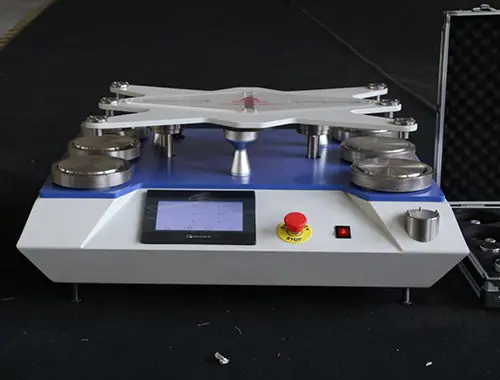

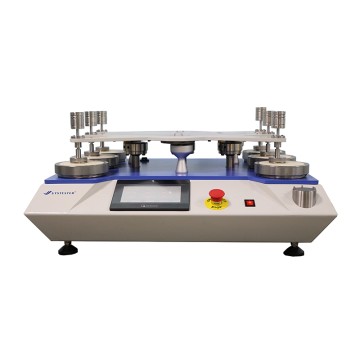

M008A Martindale Abrasion and Pilling Tester

The Martindale is designed for multiple abrasion and pilling tests for various textile structures, including non-woven fabric, carpets, leather, socks, gloves, collars, cuffs, wood, high pressure laminates, painted surfaces, etc. The touch screen controller, with the most common functions accessible in one or two touches, makes this the easiest Martindale in the market to use.

4, 6, 8, 9 working positions and 2 counting Methods of count up & count down are available.

product details

product Tags

Features

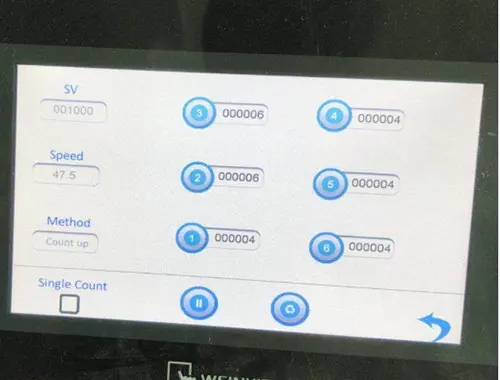

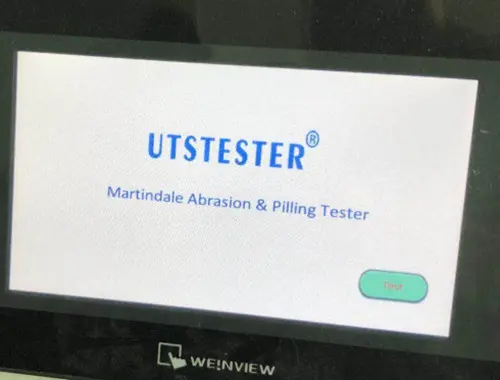

• Touch screen controller with individual station counters.

• Light weight motion plate and storage rack.

• Multiple speeds can be used for custom tests.

• 4, 6, 8, or 9 position base uses the least bench space of large martindales.

• Test head choices include standard abrasion, pilling.

• Motion according to 24mm and 60mm Lissajous track.

• Alarm after test finished.

Standards

Abrasion: ISO 12947, ASTM D4966, IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096, GB/T 21196.2, GB/T 13775.

Pilling: ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525, GB/T 4802.2.

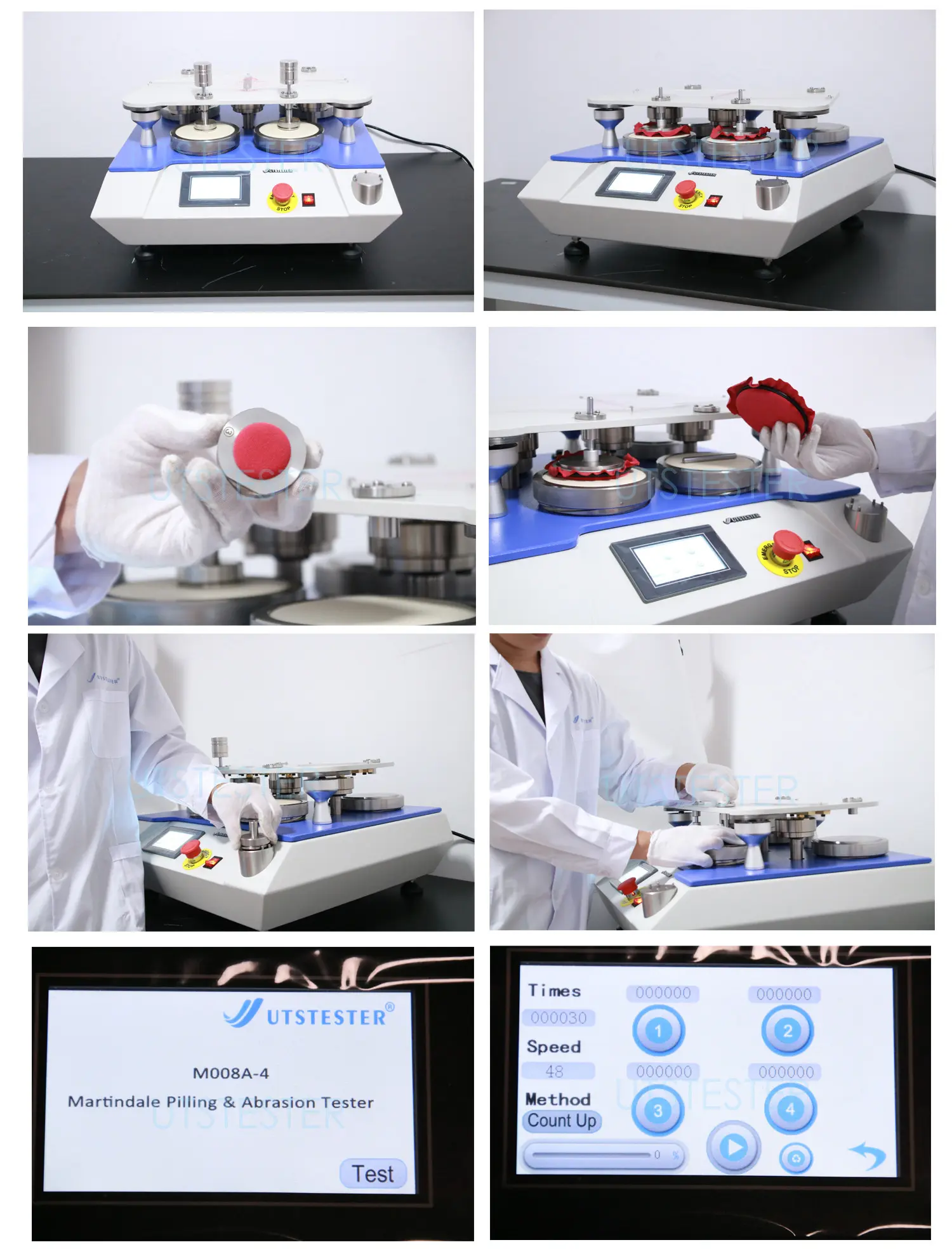

Product Demo

Key Parameters

Model		M008A-4	M008A-6		M008A-8			M008A-9
Working positions		4	6		8			9
Counting range		0~999999 times
Test load	Abrasion test	Sample holder: (198 ±2)g Load for Funishings: (597±5)g
		Sample holder: (198 ±2)g Load for Garment material: (397±5)g
	Pilling test	Stainless steel load: (155 ± 1) g Stainless steel disc: (260 ± 1)g
Effective friction diameter of grinding block		A) Abrasion Holder : Φ(28.65 ± 0.05)mm
		B) Pilling Holder : Φ(90 ± 0.10)mm
Rotational speed		47.5±2.5r/min(20-70 r/min adjustable)
Weight of loading hammer		2.5kg±0.5kg
Rubbing/pilling stroke		60 ±0.5mm
		24 ±0.5mm
Power supply		1Phase AC 220V 50/60Hz 500W
Dimensions(L x W x H)(cm)		60×55×33		78×62×33		78×62×33	78×62×33
Weight(kg)		77		107		120	130

Standard Accessory

Load for abrasion test	1set
Load for pilling test	1set
Standard woven felt discs	1set
Standard abradents fabric	1set
Backing foam	1pack
Pen	1pc
Steel ball	3pcs
Power line	1pc
