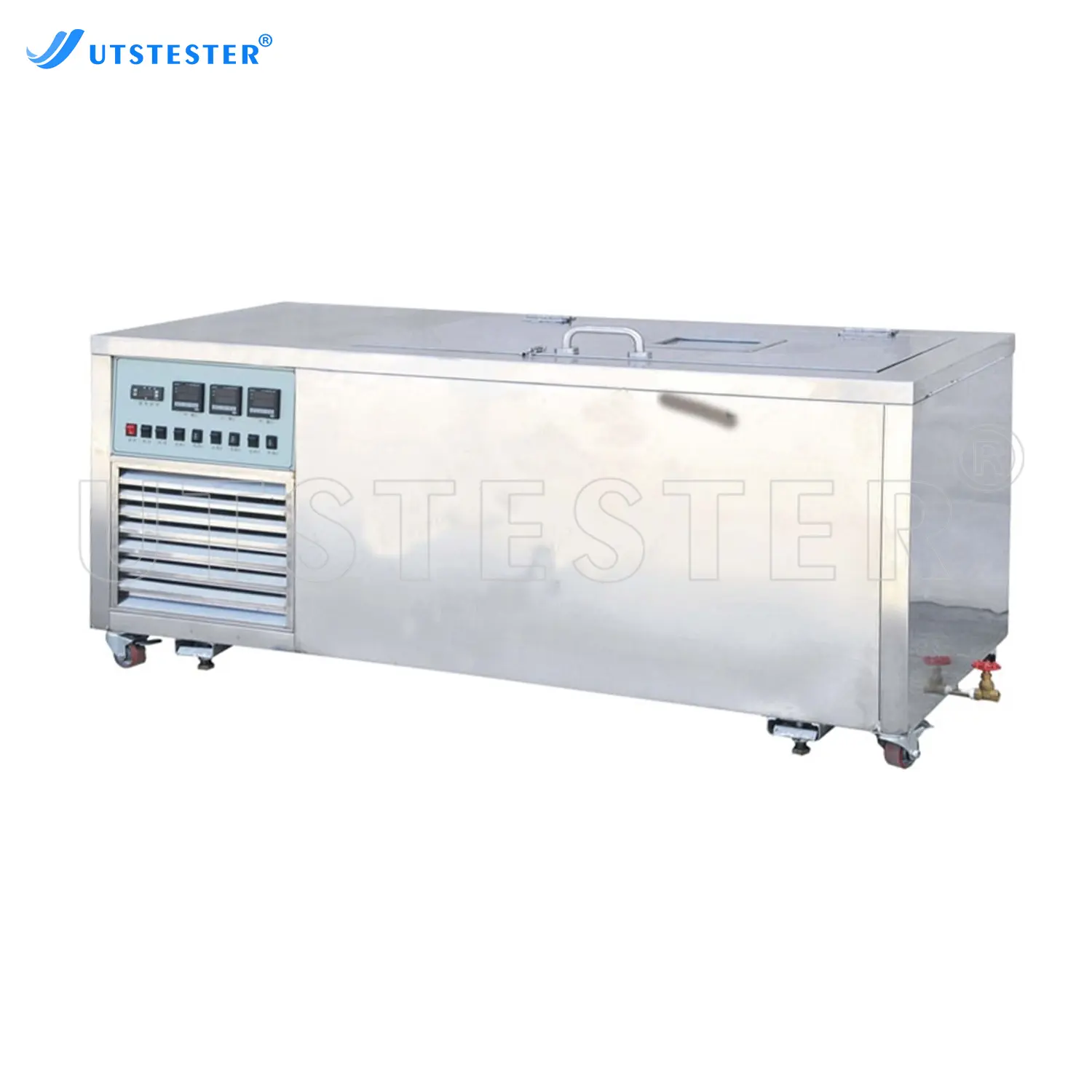

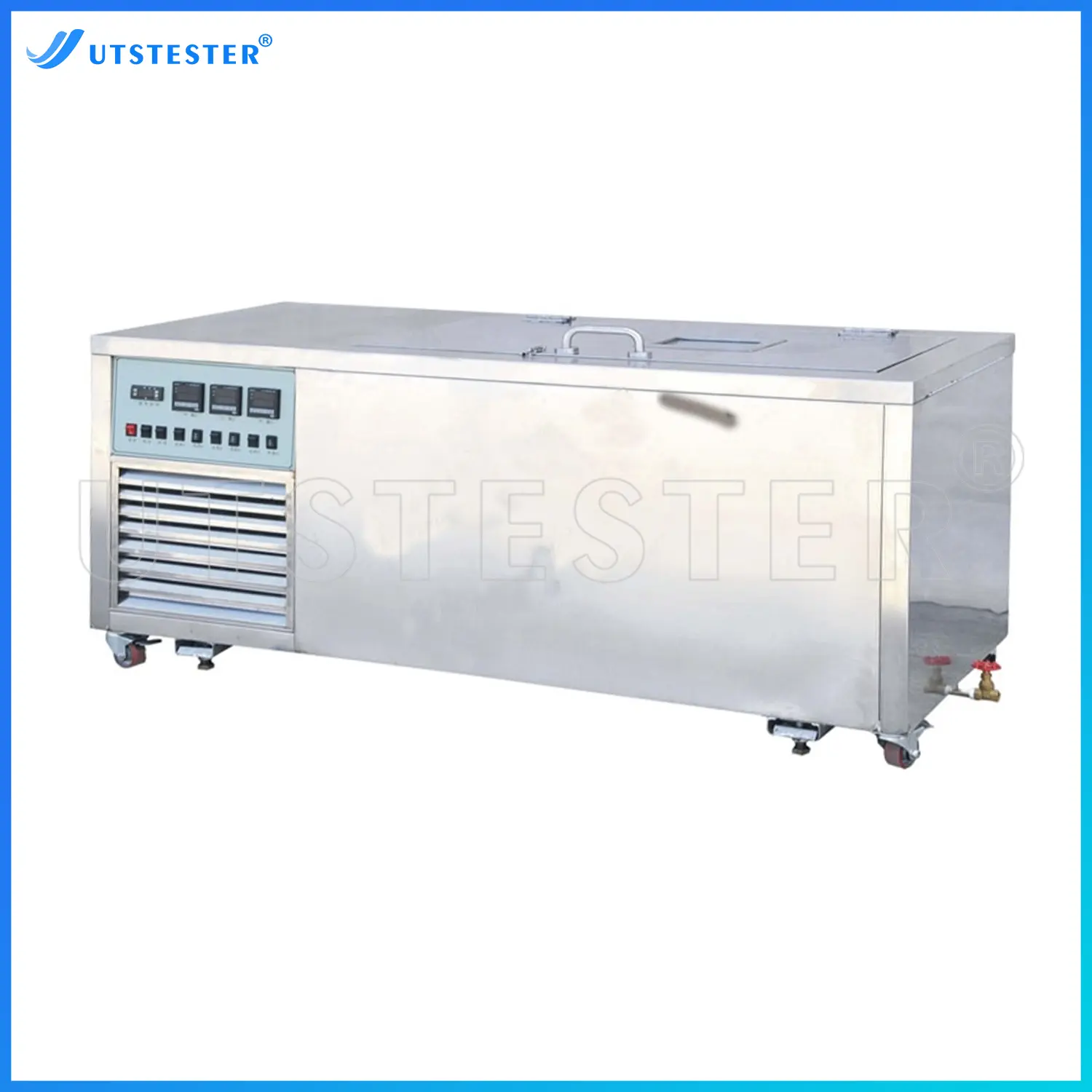

Low Temperature Flexing Tester Low Temperature Cold Machine H017D
Overview
Low temperature cold machine dedicated to testing the finished shoes, rubber, sole, synthetic leather, plastic shoes such as simulation of low temperature environment test in order to understand the demands of all kinds of materials or finished shoes to adapt to the cold climate or cold terrain area of the ability of the instrument are all made of SUS rust steel quality, can be equipped with a variety of different test fixture device, in order to achieve the different requirements of various test standard.
Application
Rubber
Shoe sole
Standards
SATRA TM92, SATRA TM55, SATRA TM60, ASTM D1052
Key Parameters
|
ROSS whole bottom sole/sample sheet fixture set |
|
|
The winding Angle |
90 ° |
|
Grips station quantity |
3 station assembly |
|
Flexing speed |
100cpm |
|
Sample size |
150 x 25mm |
|
Bally flexing fixture set |
|
|
The specimen size |
70 x 45 ㎜ |
|
The winding Angle |
22.5 ° |
|
Number of test pieces |
4 pieces
|
|
Flexing speed |
100±3cpm |
|
Whole shoes flexing fixture set |
|
|
Bending Angle |
adjustable from 5 to 70 degrees
|
|
Speed |
adjustable from 5 to 150cpm |
|
Counter |
LCD,0-999,999
|
|
Maximum number of test pieces |
2 shoes (1 pair of finished shoes) |
|
Low temperature chamber parameters |
|
|
Temperature range |
- 30 ℃ to room temperature.
|
|
Temperature accuracy |
±2° |
|
Time range |
99H99Min. |
|
Material |
SUS 304 stainless steel. |
|
Volume |
255*115*95cm. |
|
power |
2KW |
|
Weight |
320kg.
|
Product Details
Control panel

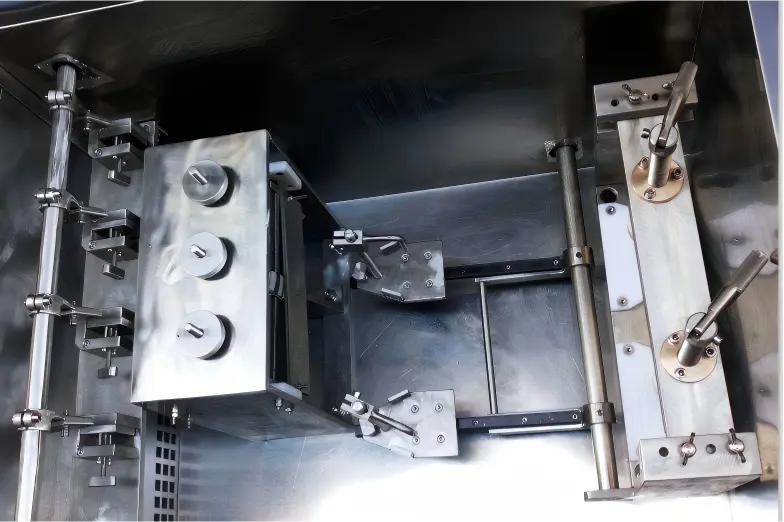

Sample Test
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
