Limited Oxygen Index Tester ASTM D 2863 of Fire Test Apparatus M099B
Overview
Limited Oxyen Index Tester for the determination under the test conditions specified in oxygen and nitrogen gas mixture just to maintain a minimum sample combustion oxygen concentration required. This tester equipped with imported paramagnetic oxygen sensor and imported mass flow controller to make sure the measurement accuracy and durability. For the assessment of the performance of a homogeneous combustion of solid materials, laminates, foams, films and films under specified conditions.
Application

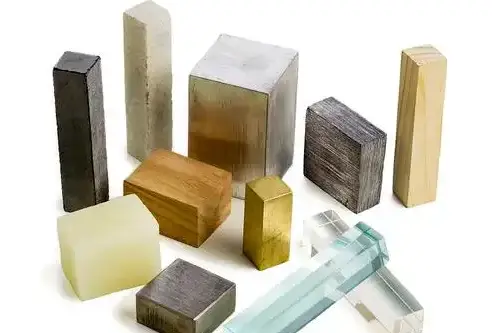

Solid materials

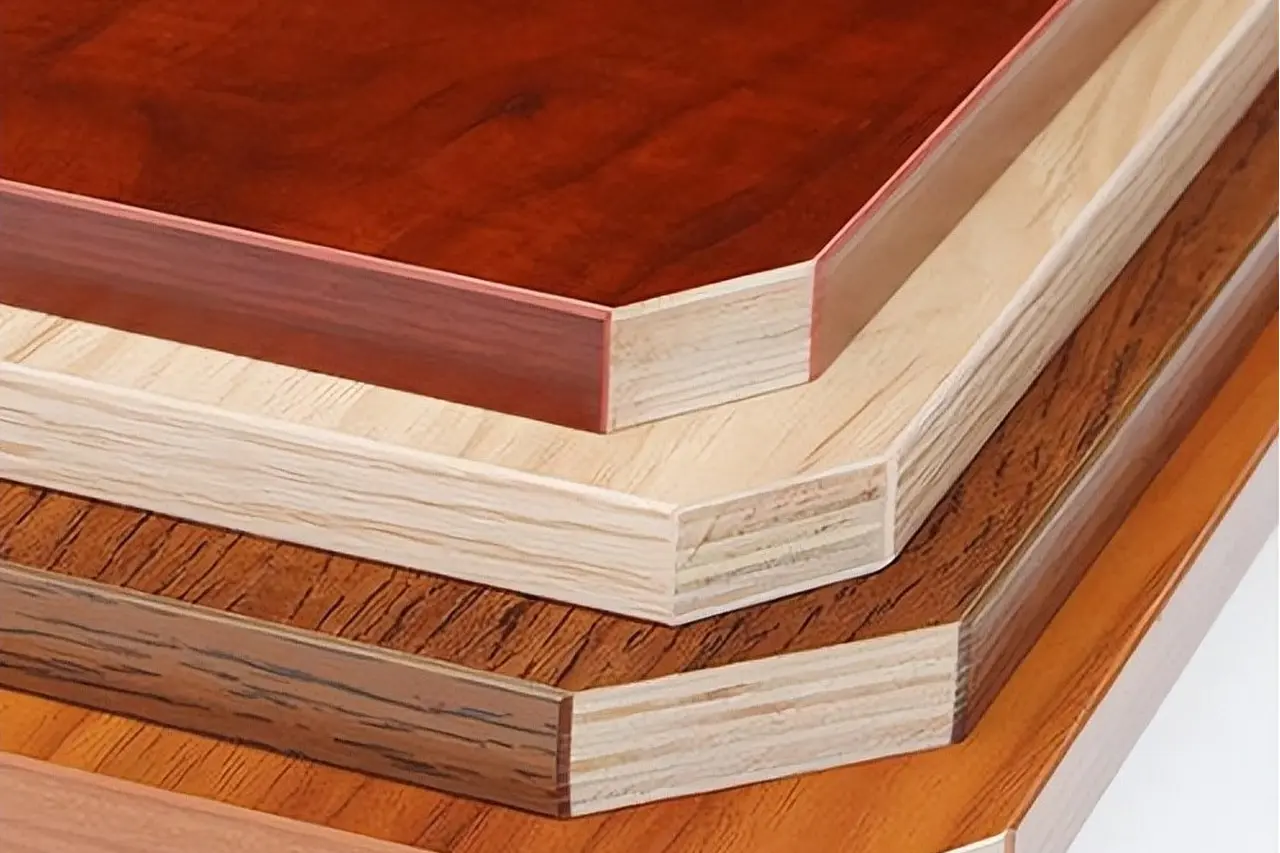

Laminates

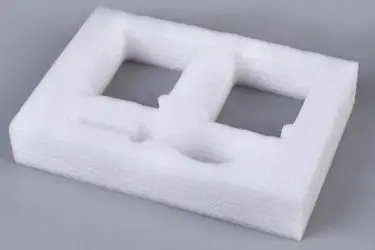

Foams

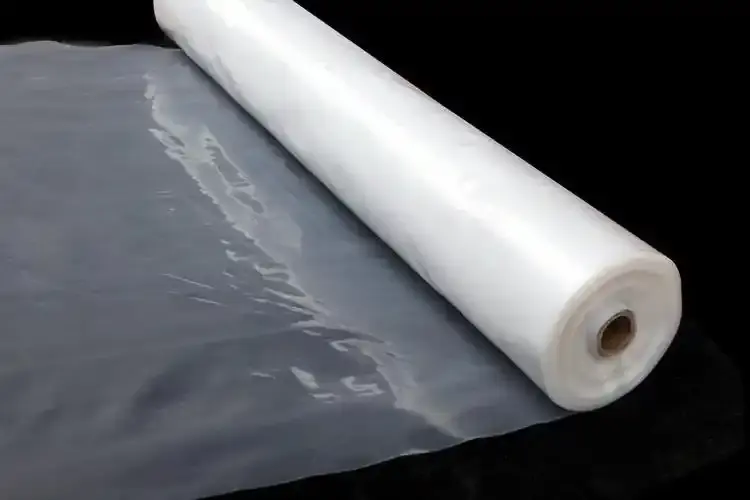

Films
Standards
GB/T 2406.2-2009, ISO 4589-2-2006, ASTM D2863, EN45545
Key Parameters
|
Model |
M099B |
|
Measuring range |
0 ~1 00 % |
|
Resolution |
0.1% |
|
Control accuracy |
±0.2% (16%-50%) interval |
|
Response time |
＜ 1 S |
|
Oxygen concentration setting |
0%-100 % touch screen direct setting |
|
Oxygen concentration range |
0-100% British imported paramagnetic oxygen sensor, no need to replace |
|
Oxygen concentration resolution |
0.1 |
|
Oxygen flow range |
0-20L/min |
|
Nitrogen flow range |
0-20L/min |
|
Gas flow resolution |
0.01 liters |
|
Measurement accuracy |
±0.2% 10%-50% accuracy |
|
Test time |
0.1s~999.9s |
|
Afterflame recording time |
0.01s~999.9s |
|
Test method |
Periodic ignition, continuous ignition optional Computer software can be set |
|
Outer dimension (W*D*H) |
499* 600 * 600mm |
Product Details

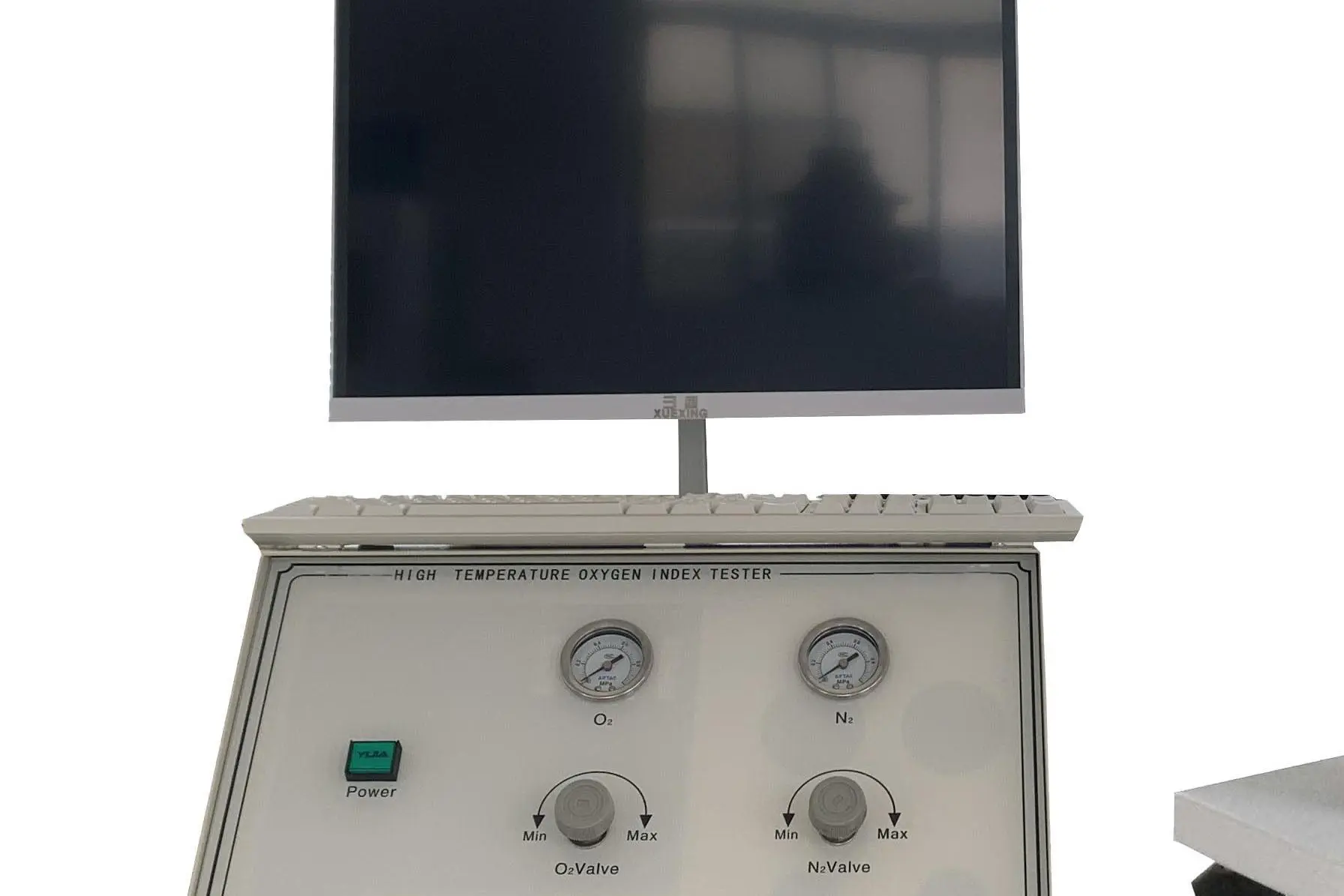

Control panel

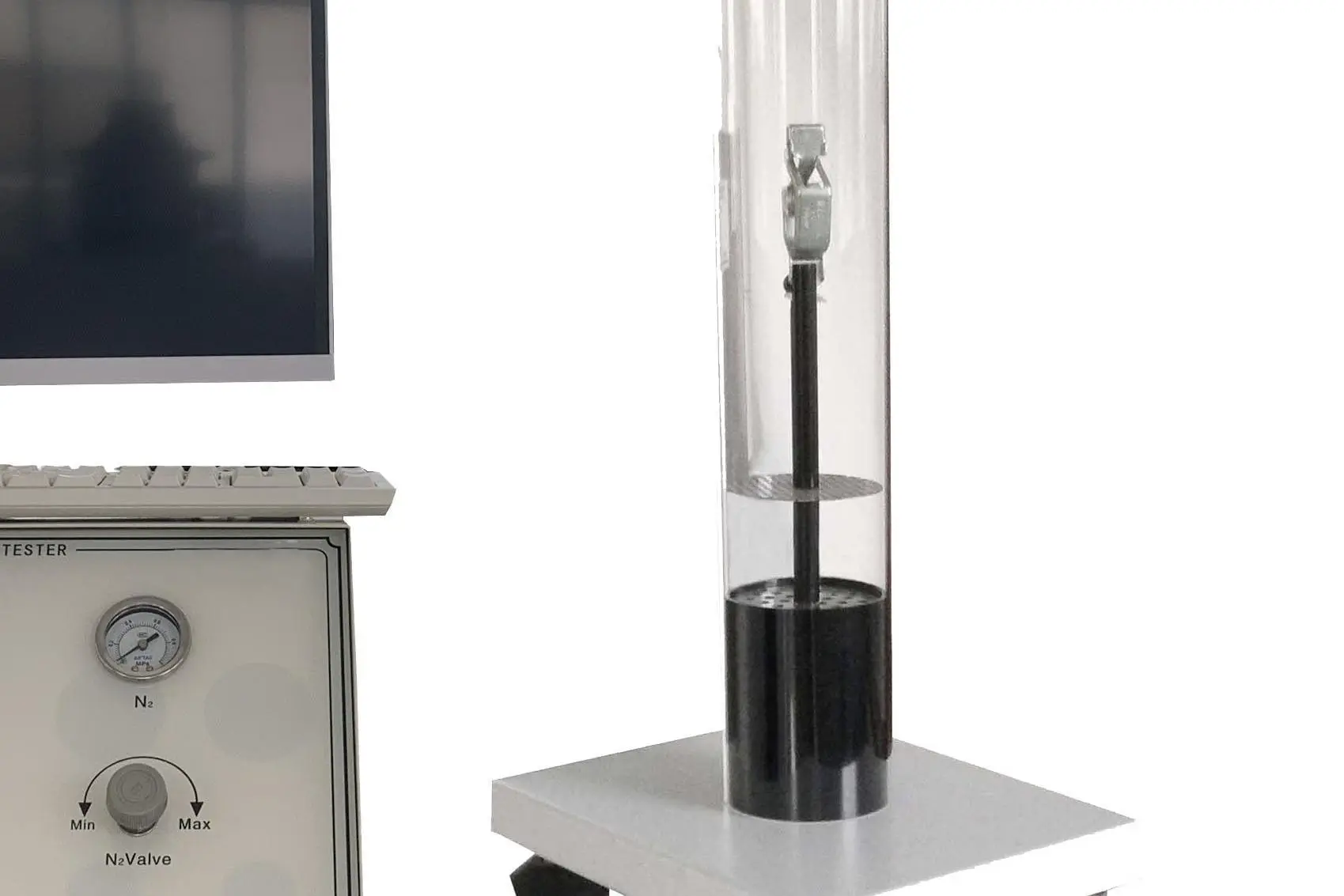

Sample testing area
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
