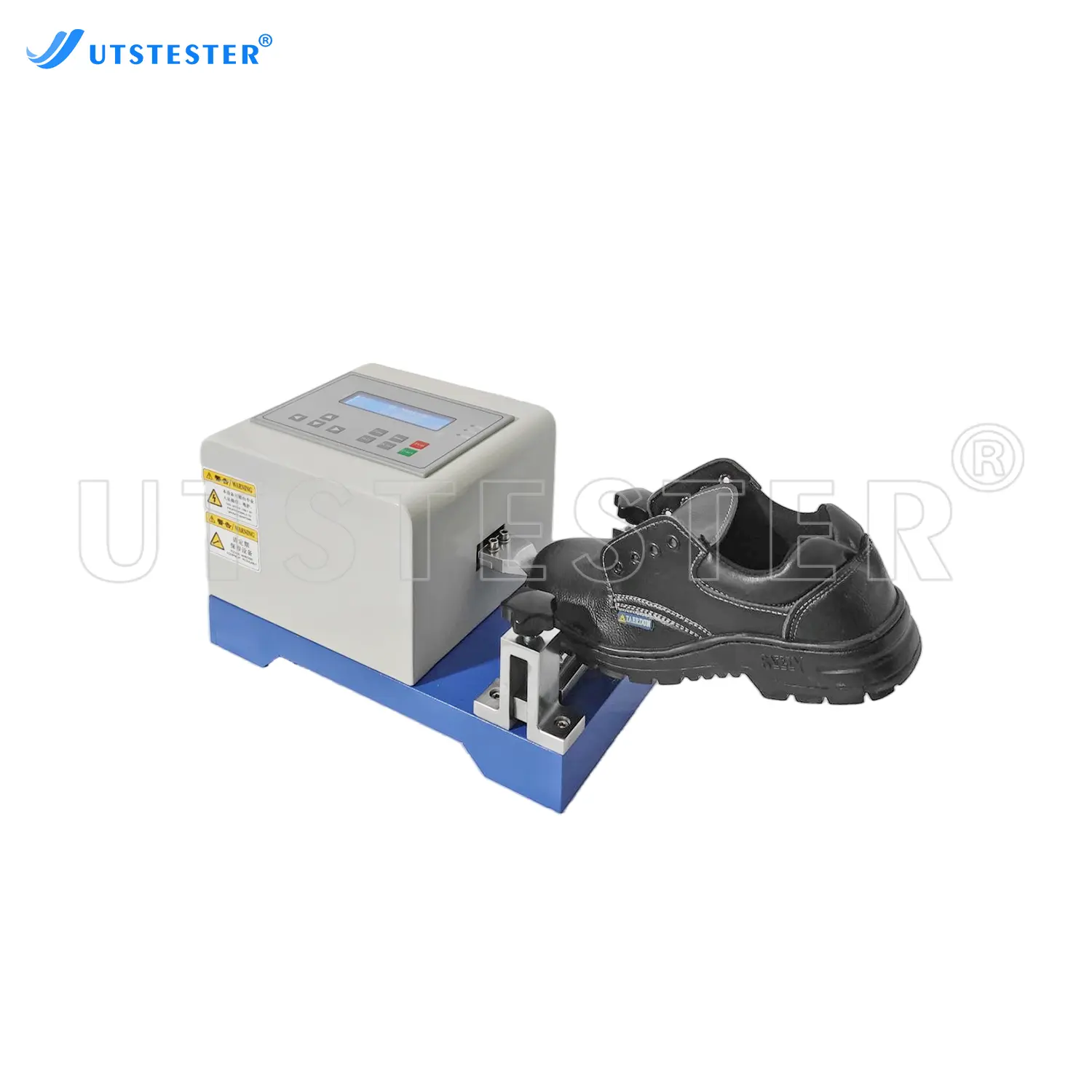

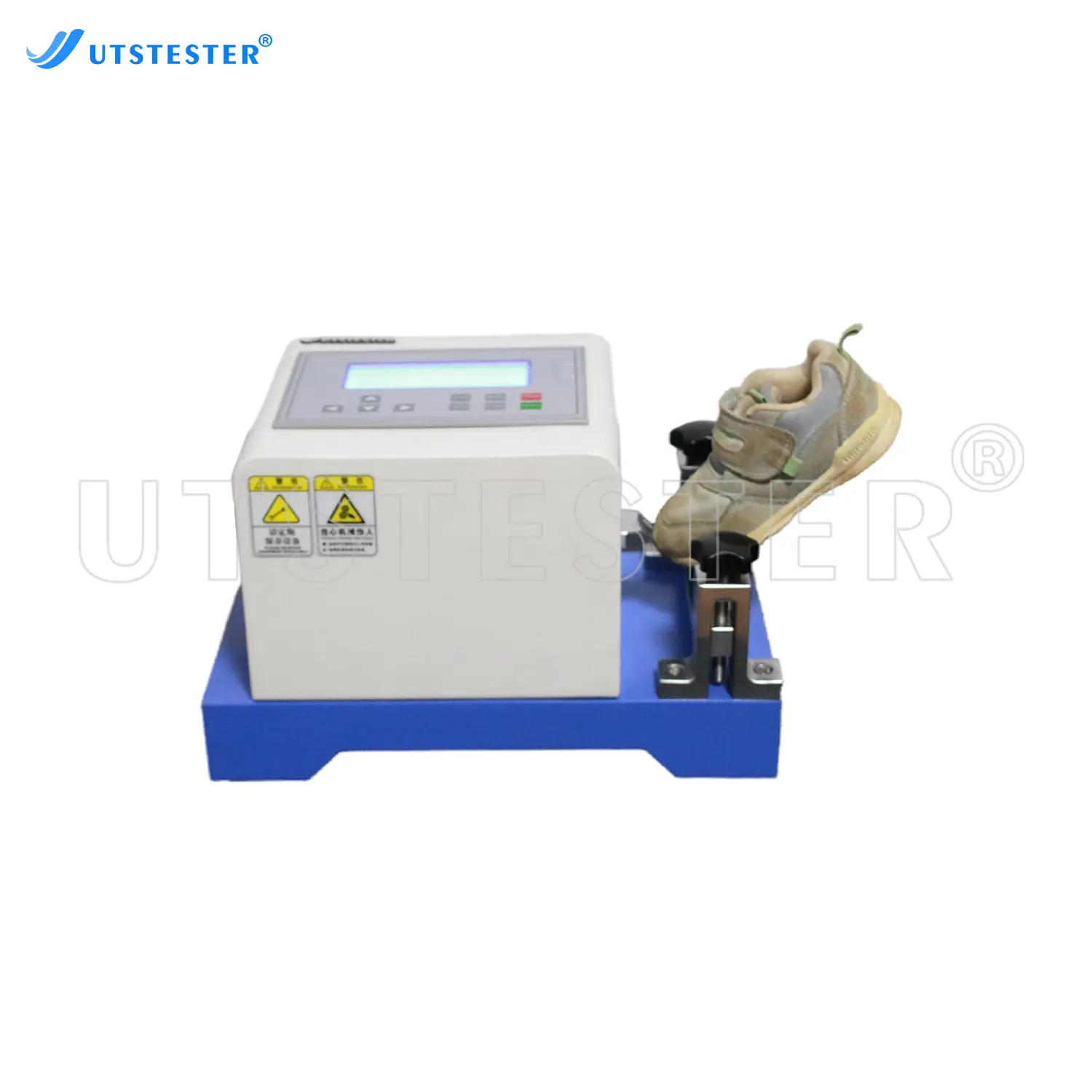

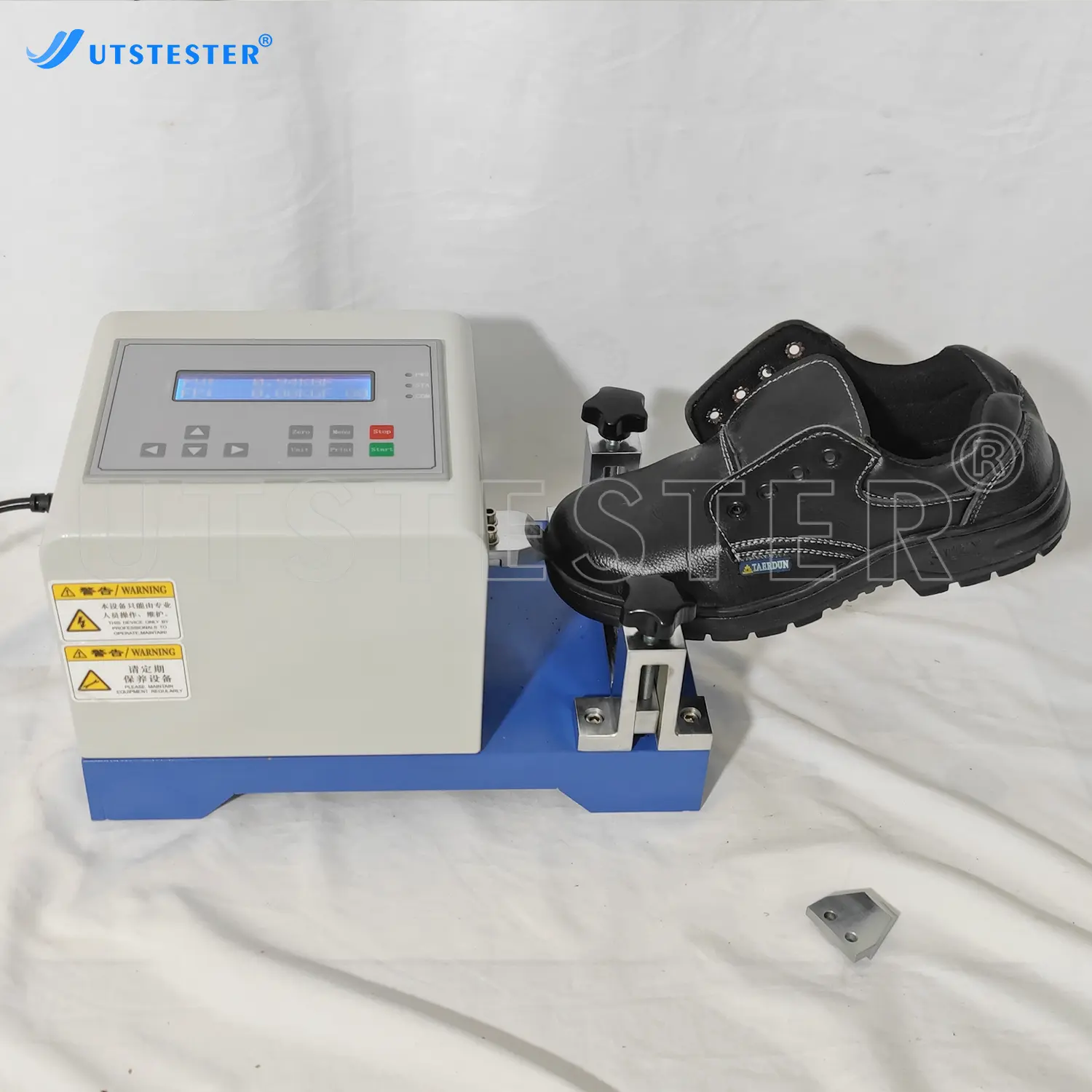

Leather Shoes Peeling Strength Tester Shoes Sole Bond Peeling Strength Tester H066B
Overview
Extend the finished shoes sole head edge part into the connection to the force transducer fixed arc blade knife block, the sole shoe heel part level or by a slight Angle on the blade after a fulcrum, using the lever principle, through a gradual increase in the finished shoe fulcrum part on the force to separate the finished shoe soles and uppers, soles and shoe just to assess the size of the finished product on the top of the shoe sole and shoes uppers of the adhesion strength between somehow.
Application
Shoes
Finished shoes
Standards
GB/T3903.3、BS 4676、SATRA TM404
Key Parameters
|
Model |
H066B |
|
Total arc length |
22 ± 1 mm |
|
Toe adhesion force |
0 to 450N |
|
Heel adhesion force |
0 to 900N |
|
Testing range |
100kg |
Product Details

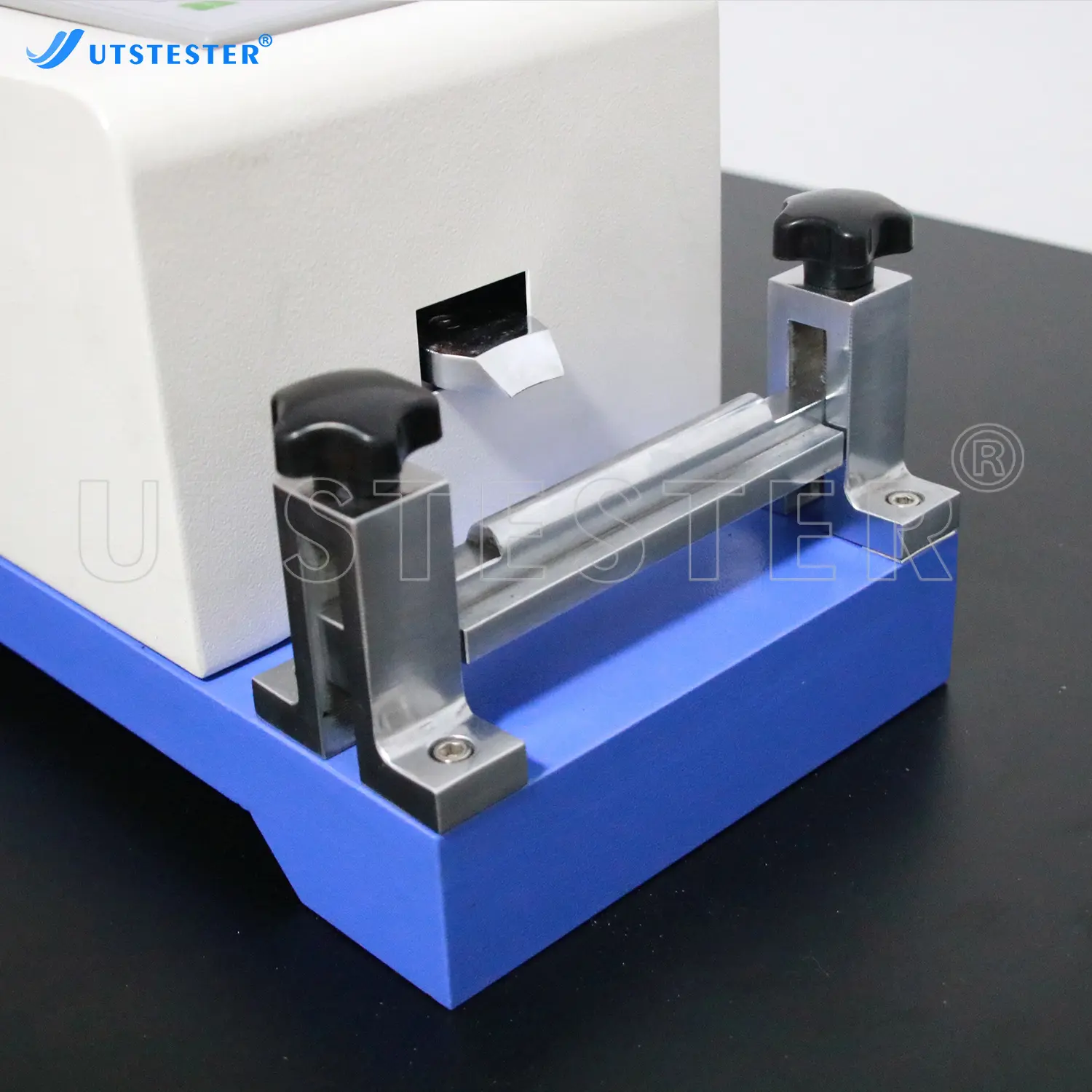

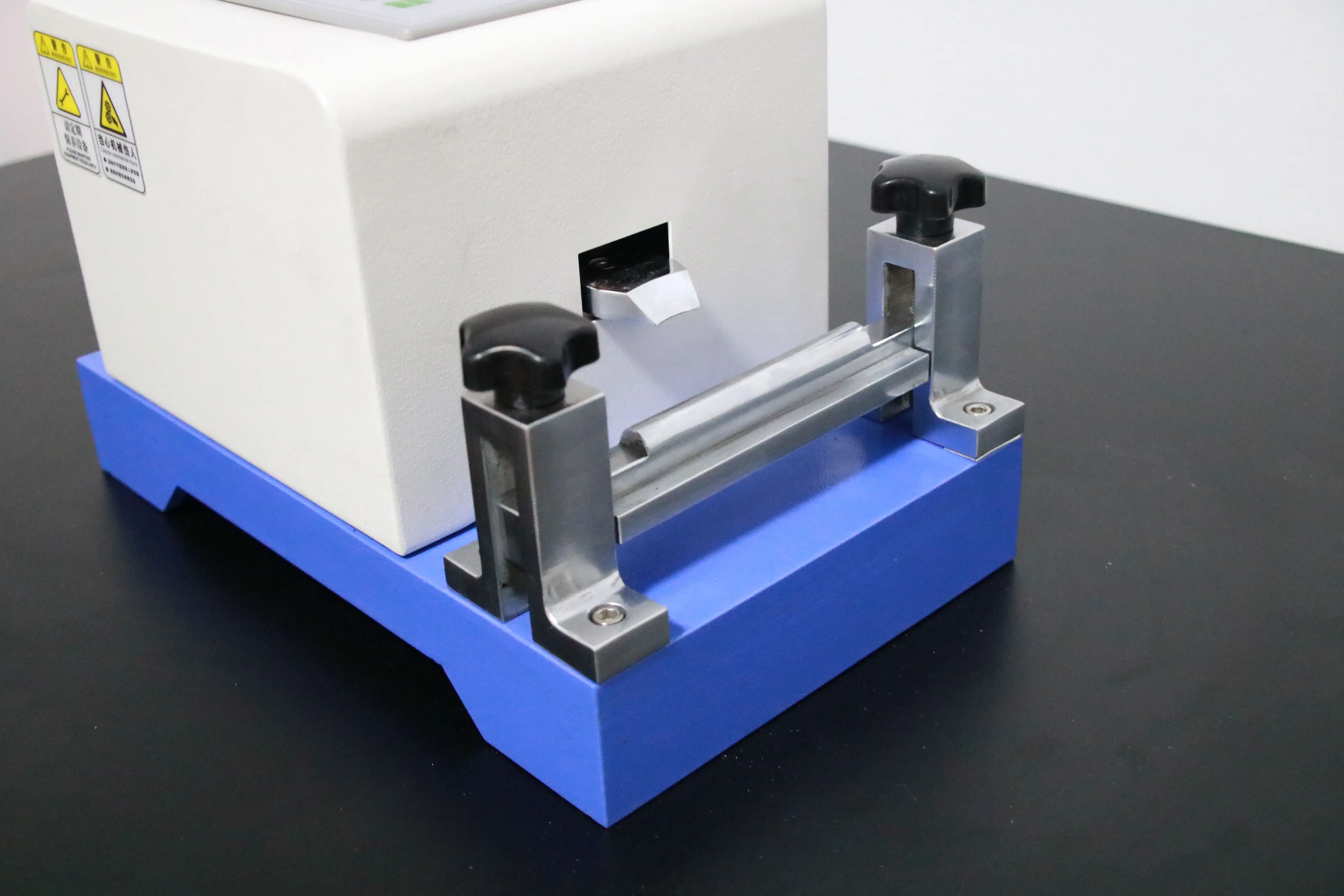

Shoe Holder

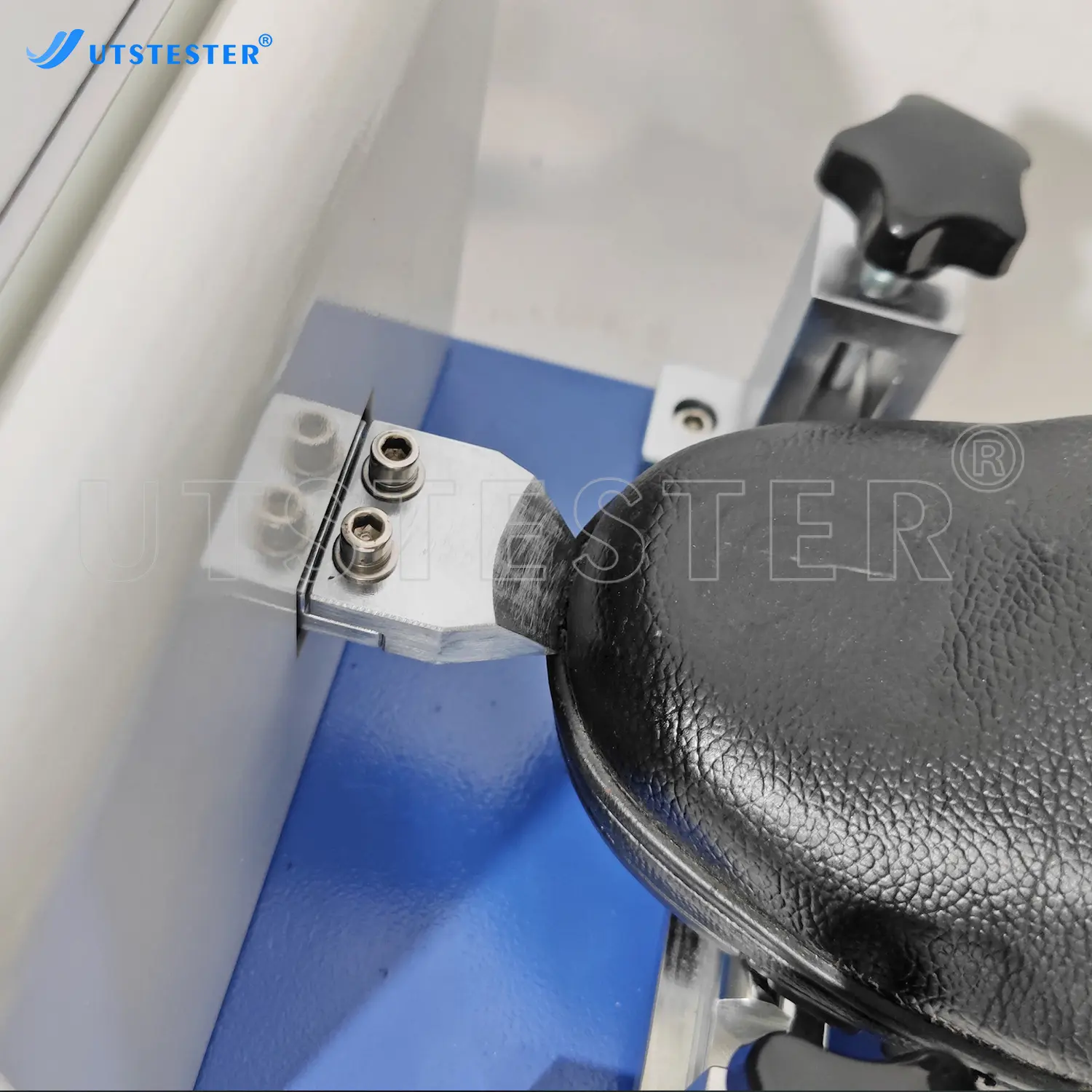

Fixed Arc Cutter

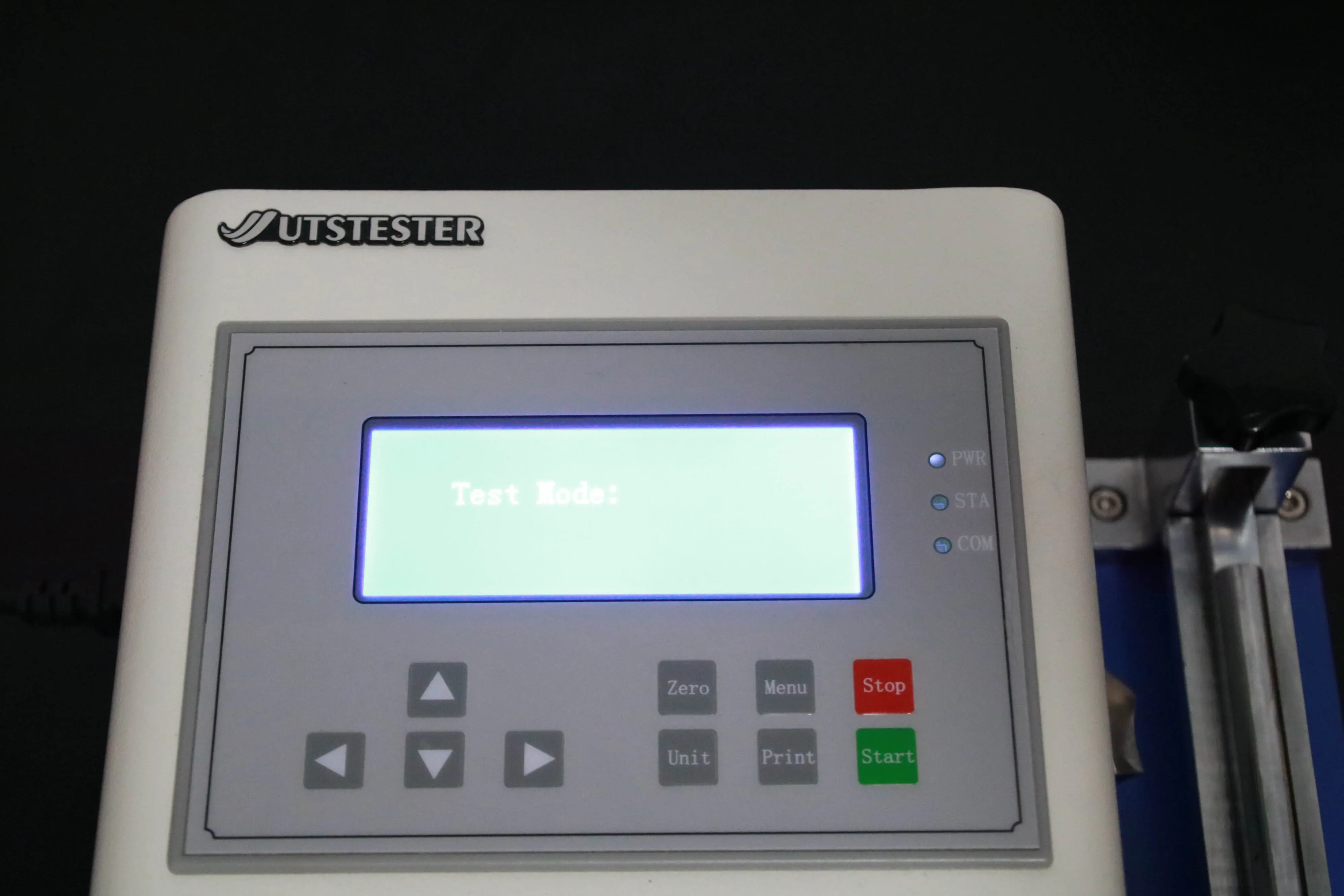

Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
