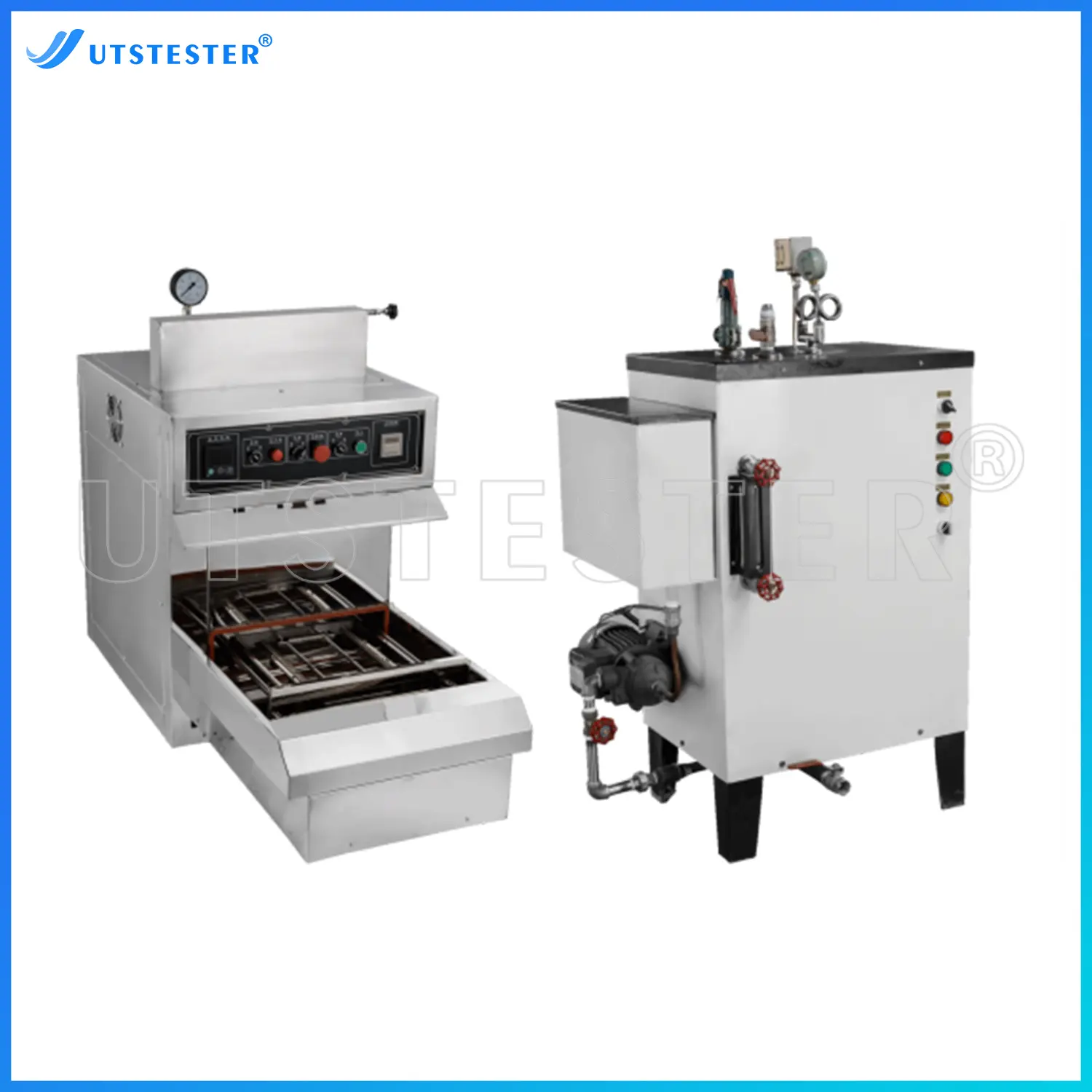

Laboratory Ht Steamer Stenter - Horizontal Type Mini Stenter with Steamer D018A-2

Sample preparation (Needle plate shelf) - Automatic feedstock - Automatic count - Auto return of material and finish test.

product details

Production Processes

Packing System

Overview

D018A-2 Laboratory Mini Stenter with steamer, is applicable for garment, dyeing and finishing, chemical and other industries. It is similar with D018A-1, with added function of steaming.

It is used to conduct dry, stereotypia, resin treatment baking, pad dyeing baking and thermal fixation tests. So as to obtain correct resin treatment recipe, test dyeing and finishing color changing situation, as well as verify the test results of medicament. Also can be used to fulfill hand-feel sample plate production to get right color and texture sample plate.

Application

Dyeing and finishing

Garment

Chemical industry

Printing and dyeing

Key Parameters

Model	D018A-2
Sample size	350 x 400mm (Effective size 300 x 350mm)
Temperature range(For drying, sizing and curing)	20-250℃, heated air circulation, digital temperature auto control, accuracy +/-2%
Heat preservation time control	1-99 minute settable. Auto stop once test finished and alarm.
Display mode	LCD digital display
Saturated steam baking	Steaming process, steaming heating temperature 102 +/-℃
High temperature steam machining	Electric heat is mixed with steam, temperature range 100 to 250℃
Fan	Stainless steel wind wheel, fan motor power 180W
Wind door above machine	Exhaust of moisture outlet and cooling heat dissipation exhaust port
Needle plate	Double direction tensile needle plate of cloth plate
Steaming	External steamer to steam
Power supply	3∮AC 380V 50/60HZ 6KW
Stenter Dimension	1540 x 700 x 1050 mm(L x W x H)
Stenter Net Weight	180 kg

Product Details

Sample Testing Area

Control Panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
