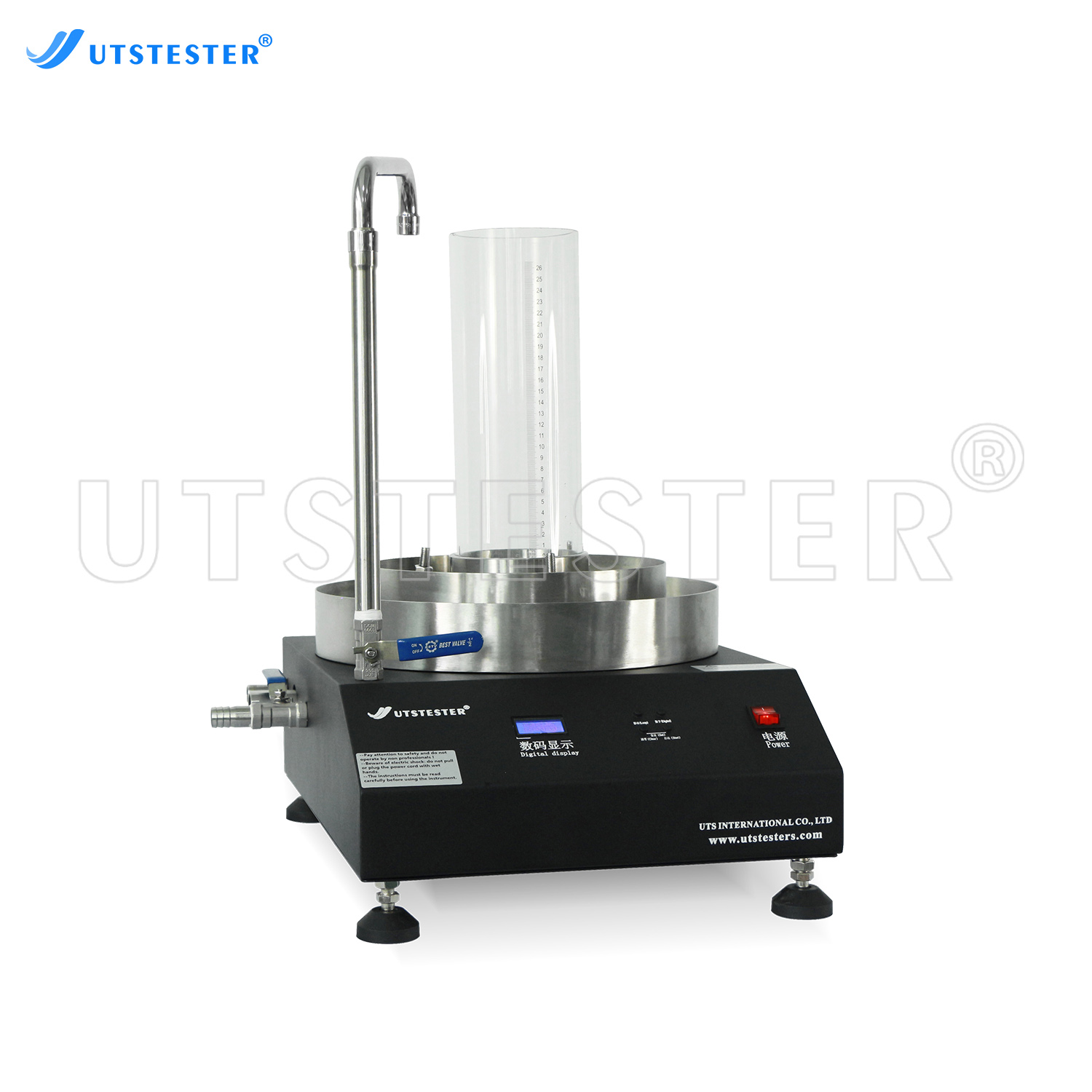

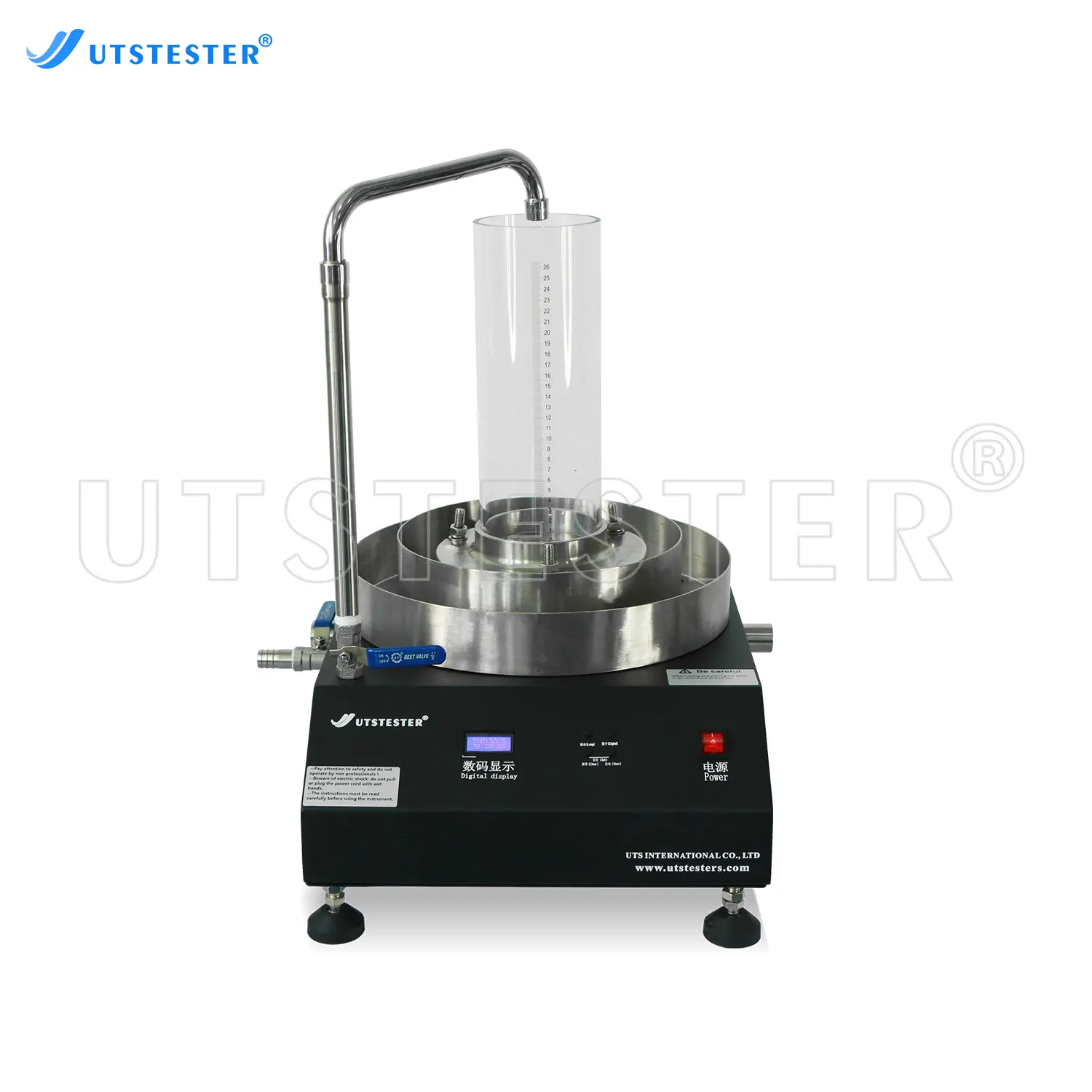

Laboratory Geosynthetic Testing Vertical Geotextile Water Permeability Tester MA05
Overview
This instrument is used to determine the water permeability of various types of geotextiles, and its performance is in line with the requirements of GB/T15789-1995 "Geotextile Water Permeability Determination Method" standard.
Application

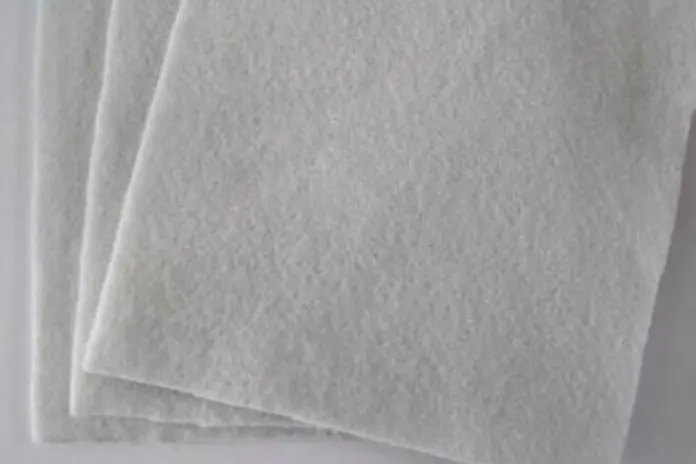

Geotextiles
Geotextiles
Composites
Standards
ISO 11058, JTG E50 SL/T235
GB/T 15789 geotextiles and related products -- determination of vertical permeability characteristics without load
Key Parameters
|
Model |
MA05 |
|
Maximum head pressure difference |
250mmH₂O(2450pa) |
|
Water level graduation value |
1mm |
|
Inner diameter of the gripper |
50±0.5mm |
|
Sample thickness |
≤20mm |
|
Time controller |
0 ~ 99.99 seconds |
|
Measuring cylinder |
1000ml (dividing degree :10ml) |
|
Water level graduation value |
1mm |
|
Thermometer range |
0 ~ 50 ℃ (precision of 0.1 ℃) |
|
Power source |
AC220V 50Hz 100W |
|
Overall dimension |
400 * 500 * 850mm |
|
Weight |
45kg |
Product Details
Water outlet

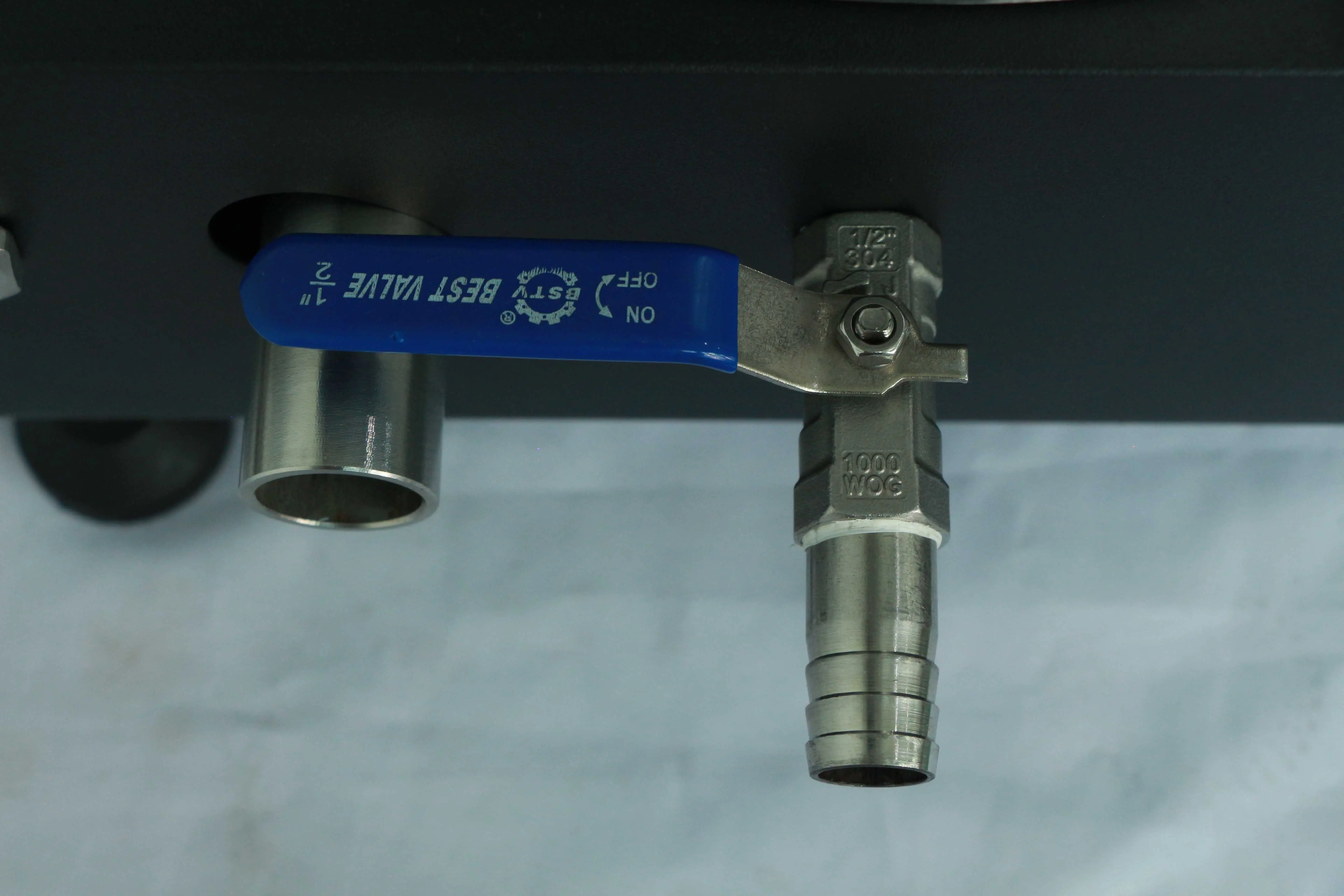

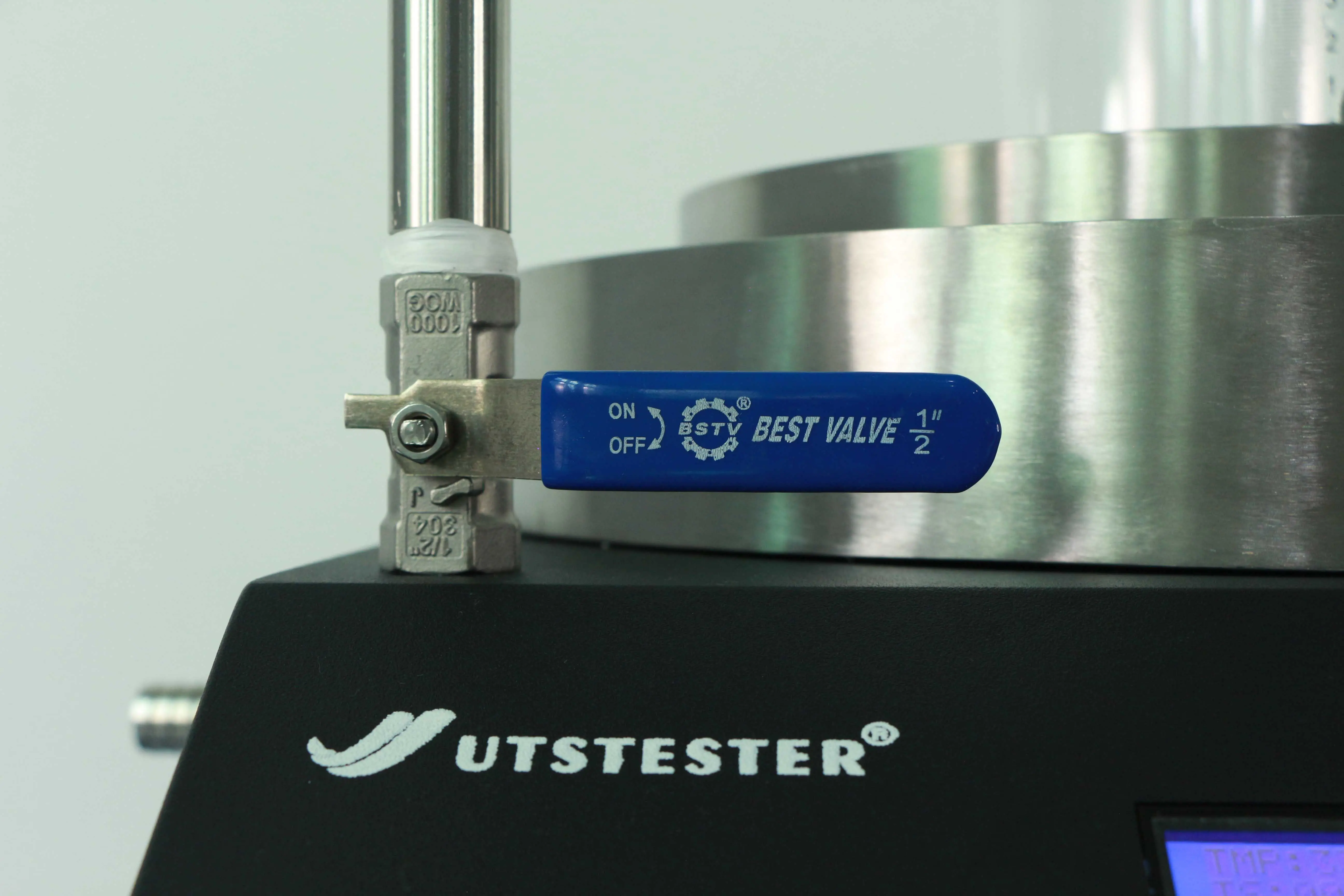

flow control switch

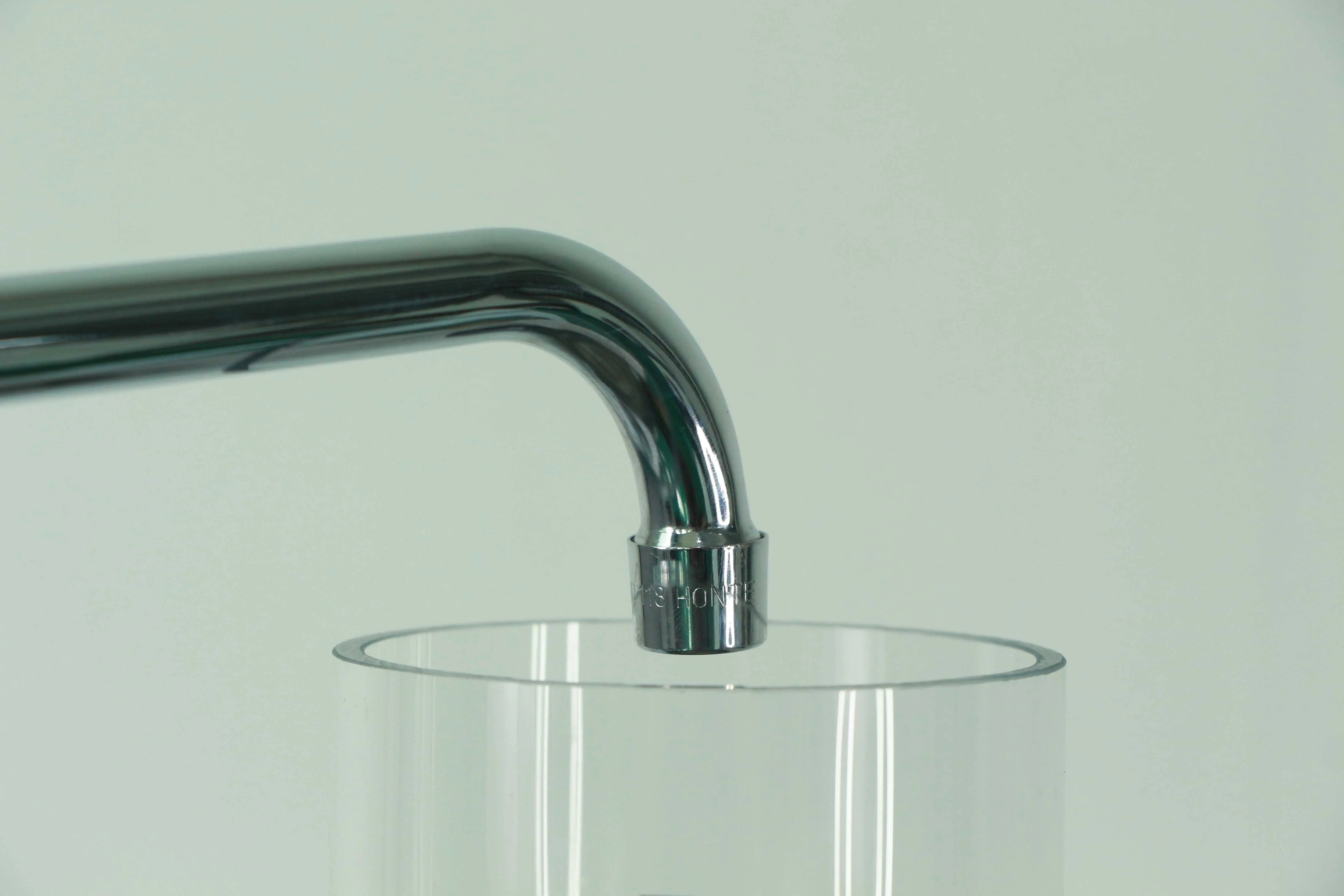

spout

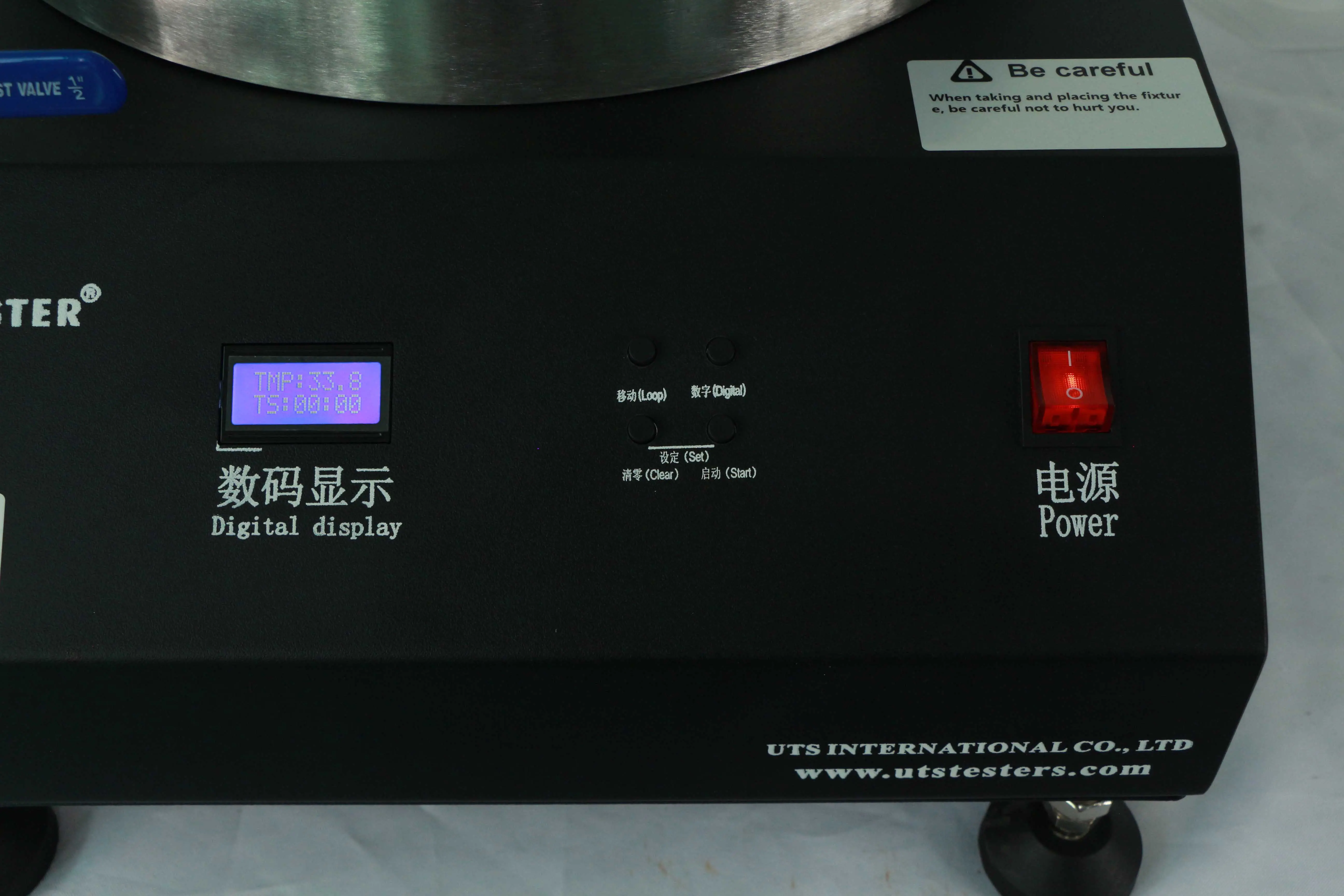

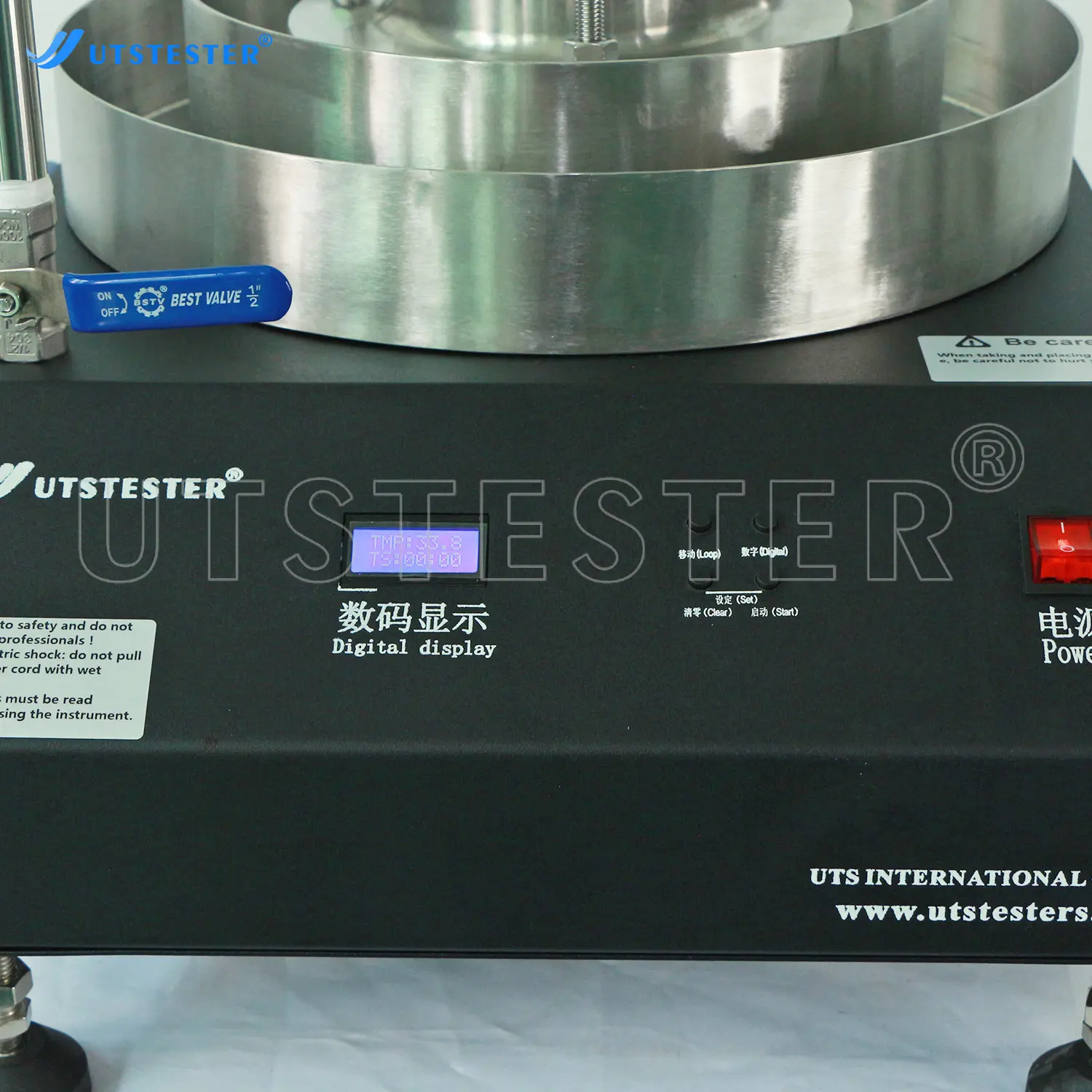

Display

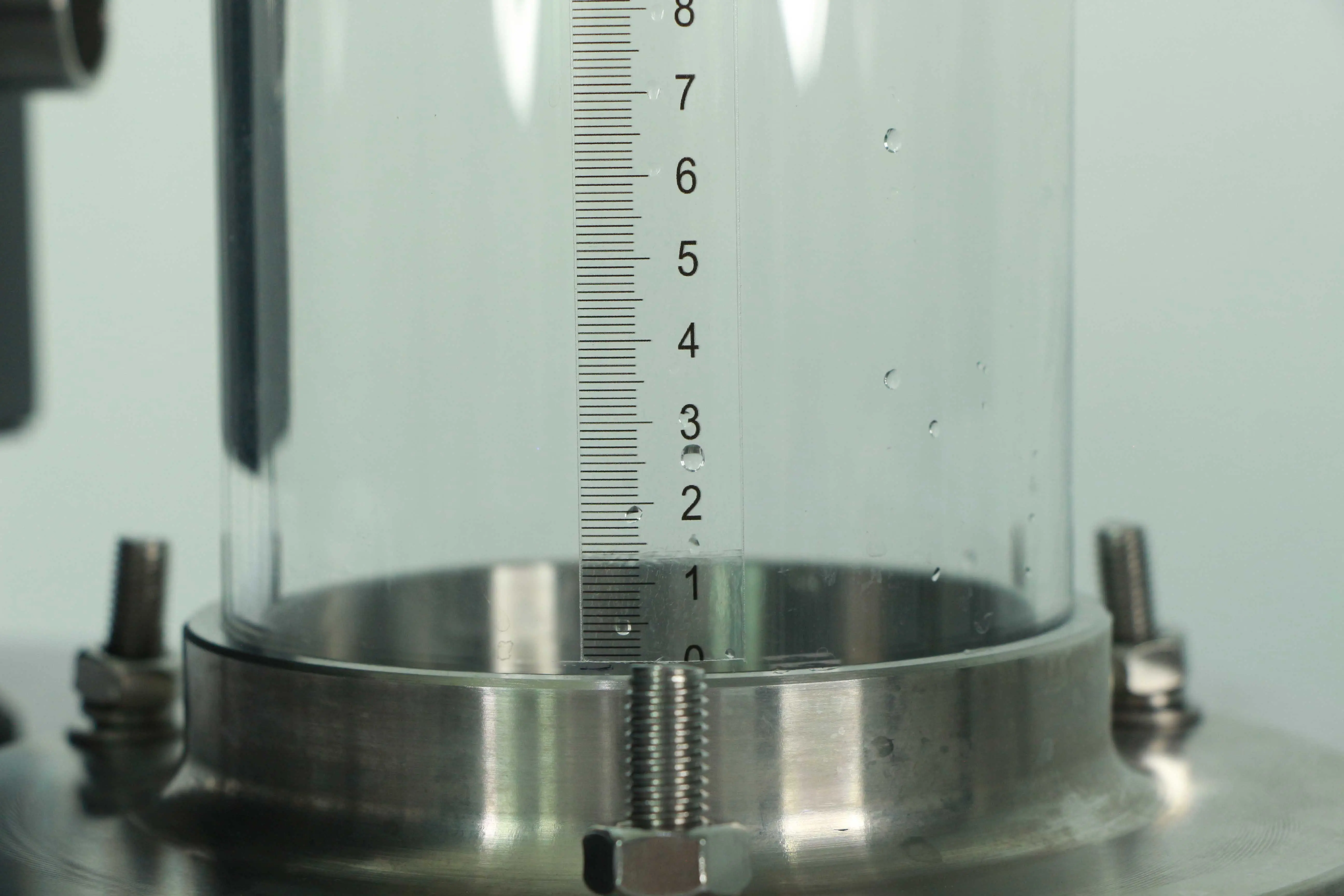

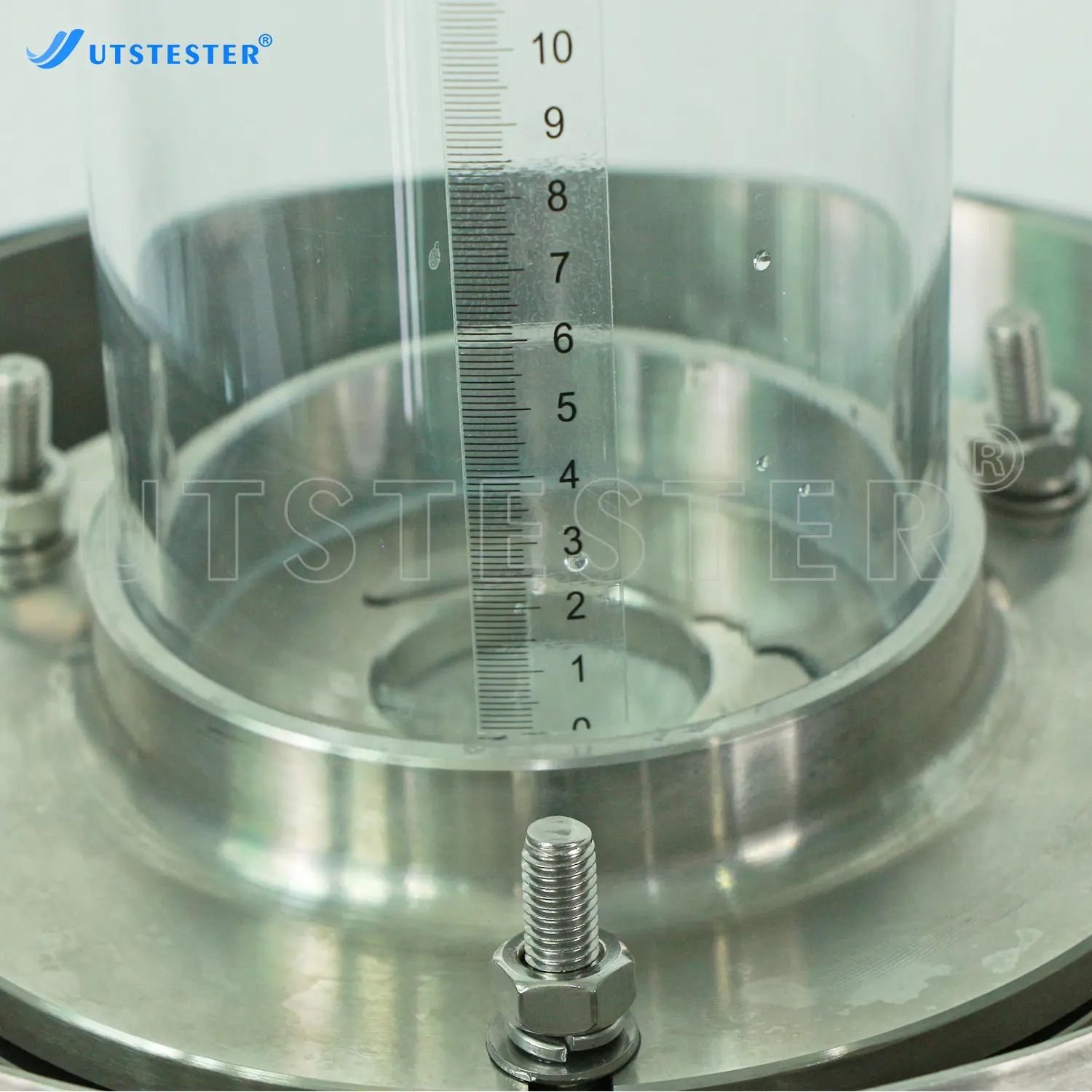

water level gauge

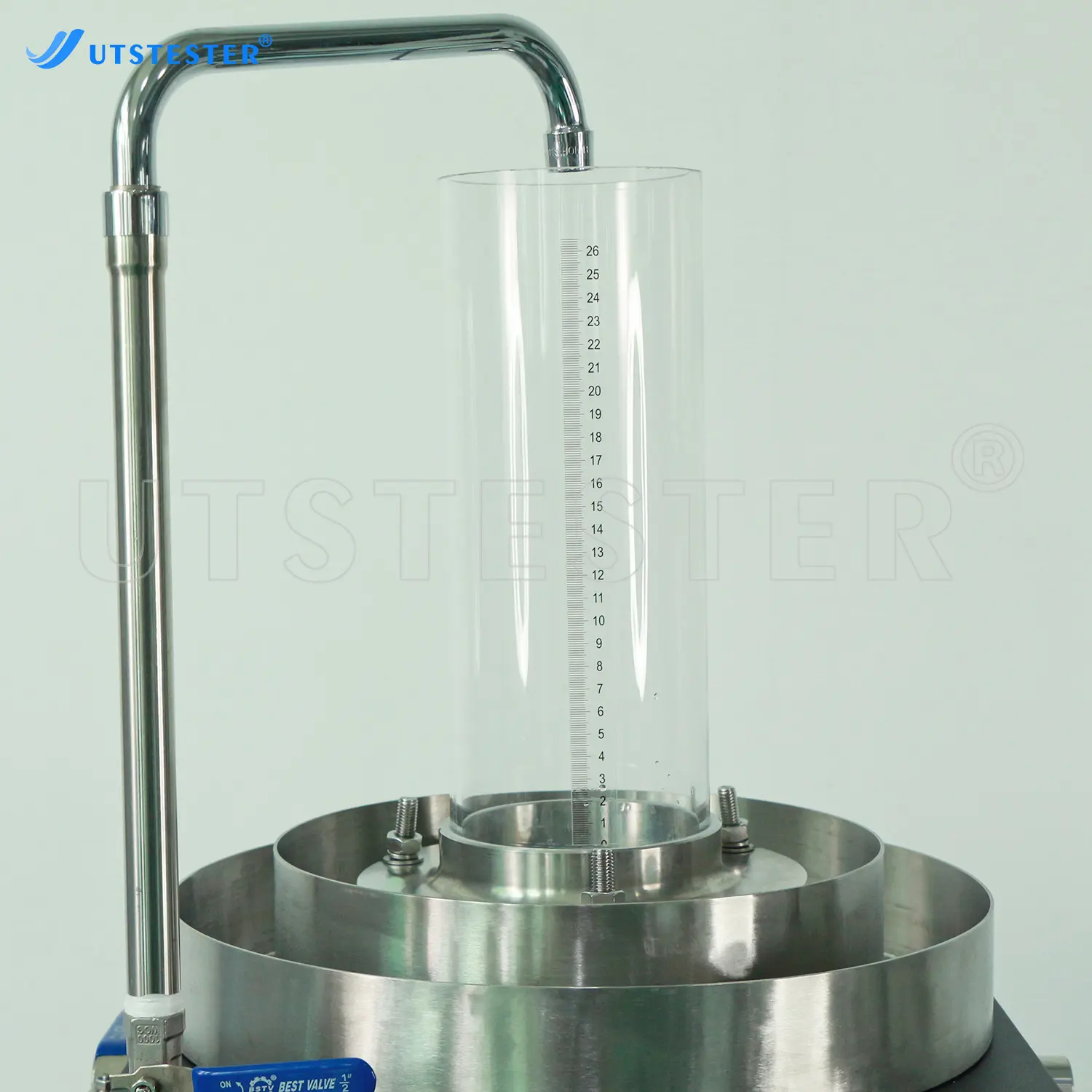

inner and outer container
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
