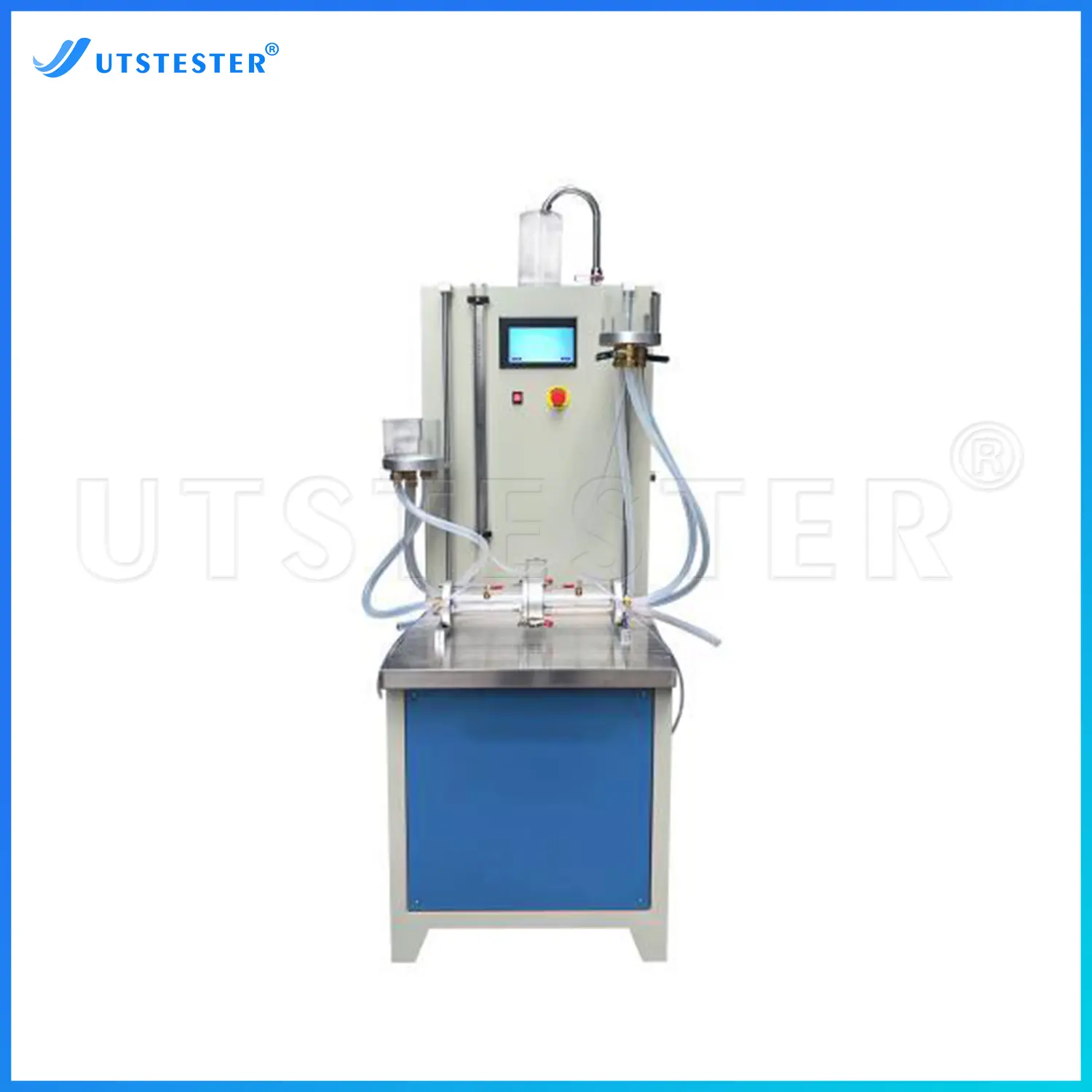

Laboratory Geosynthetic Testing Geosynthetics Vertical Permeability Tester MA05D
Overview
Suitable for various geographical fabrics and composite industrial fabrics with water permeability performance under the constant water head for vertical penetration performance test.
Application
Geotextile
Geotextile
Geotextile
Standards
GB/T15789-2016 A method JTG E50-2006 T114-2006 Vertical Performance Test (Hengshui Heiter) ISO 11058 Clause 6
Key Parameters
|
Model |
MA05D |
|
Operating interface |
7.8 -inch touch color screen Chinese interface |
|
Maximum water difference |
250mm |
|
Blesser inner diameter |
51mm±0.2mm |
|
Test the thickness |
0.1～20mm |
|
Thermometer |
0-100℃±0.1℃ |
|
Time controller |
0-999.9 seconds to set at any, control accuracy 0.1S |
|
Water head measurement accuracy |
3% |
|
Dimensions |
650×700×1550mm |
|
weight |
105kg |
Product Details
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
