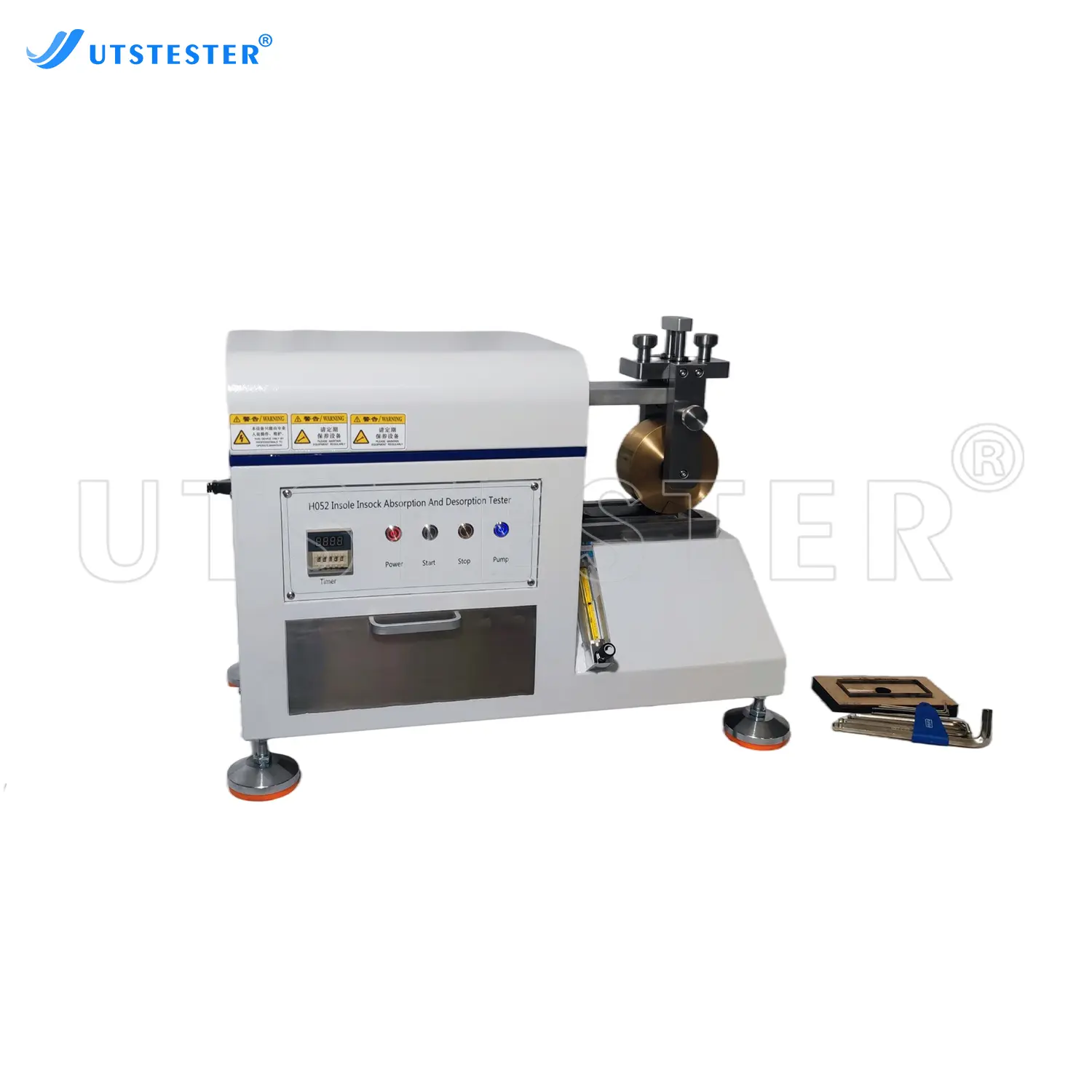

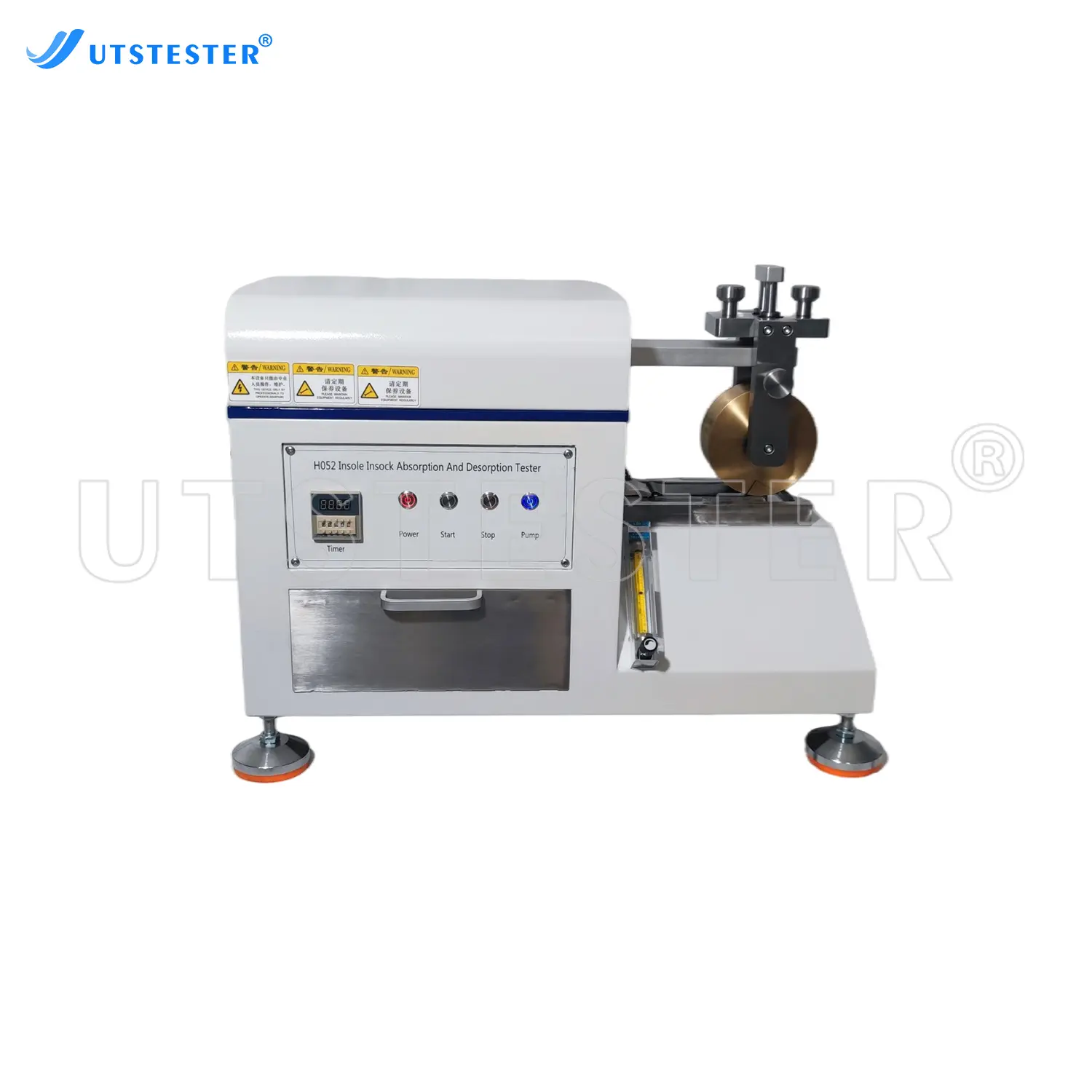

Laboratory Equipment for Insole Insock Absorption and Desorption Tester H052
Overview
This machine is used for testing the dynamic waterproof performance of leather materials.
To determine the water resistance of heavy leathers, including determination of the penetration time, water absorption, area of penetration and water penetration rates as required. It is applicable to all types of heavy leathers.
Application

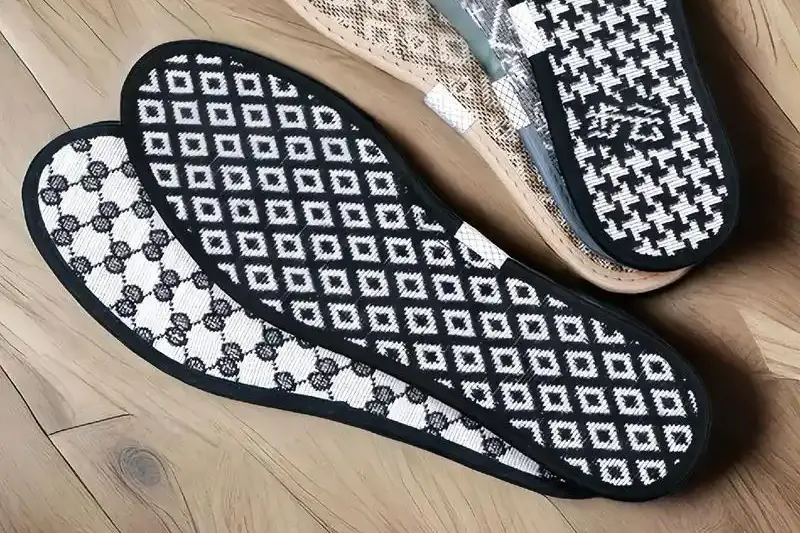

Insole

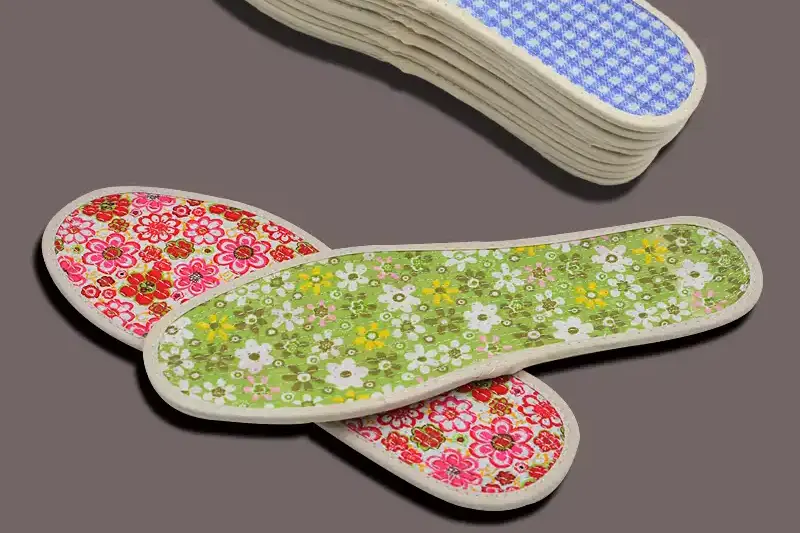

Insole
Standards
EN ISO 20344 section 7.2 ; EN ISO20347 section 5.7.3; EN 12746-A
GB/T20991 section 7.2; AS/NZS 2210.2 section 7.2; ISO5404
Key Parameters
|
Model |
H052 |
|
Roller |
Diameter: (120±1)mm Width: (50±1)mm Material: Brass |
|
Sample size |
(110±11)mm×(40±1)mm |
|
Speed |
20±1 times/min |
|
Stroke |
50 ± 2 mm |
|
Press Load |
80 ± 5N |
|
Counter |
0-9999h59m59s |
|
Compressing force |
80±5N |
|
Water flow speed |
(7.5±2.5)ml/min (outlet) |
|
Power supply |
1 Phase, 220V, AC, 50HZ |
|
Dimensions(W x D x H) |
45 x 56 x 72.5cm |
|
Weight |
98kg |
Product Details

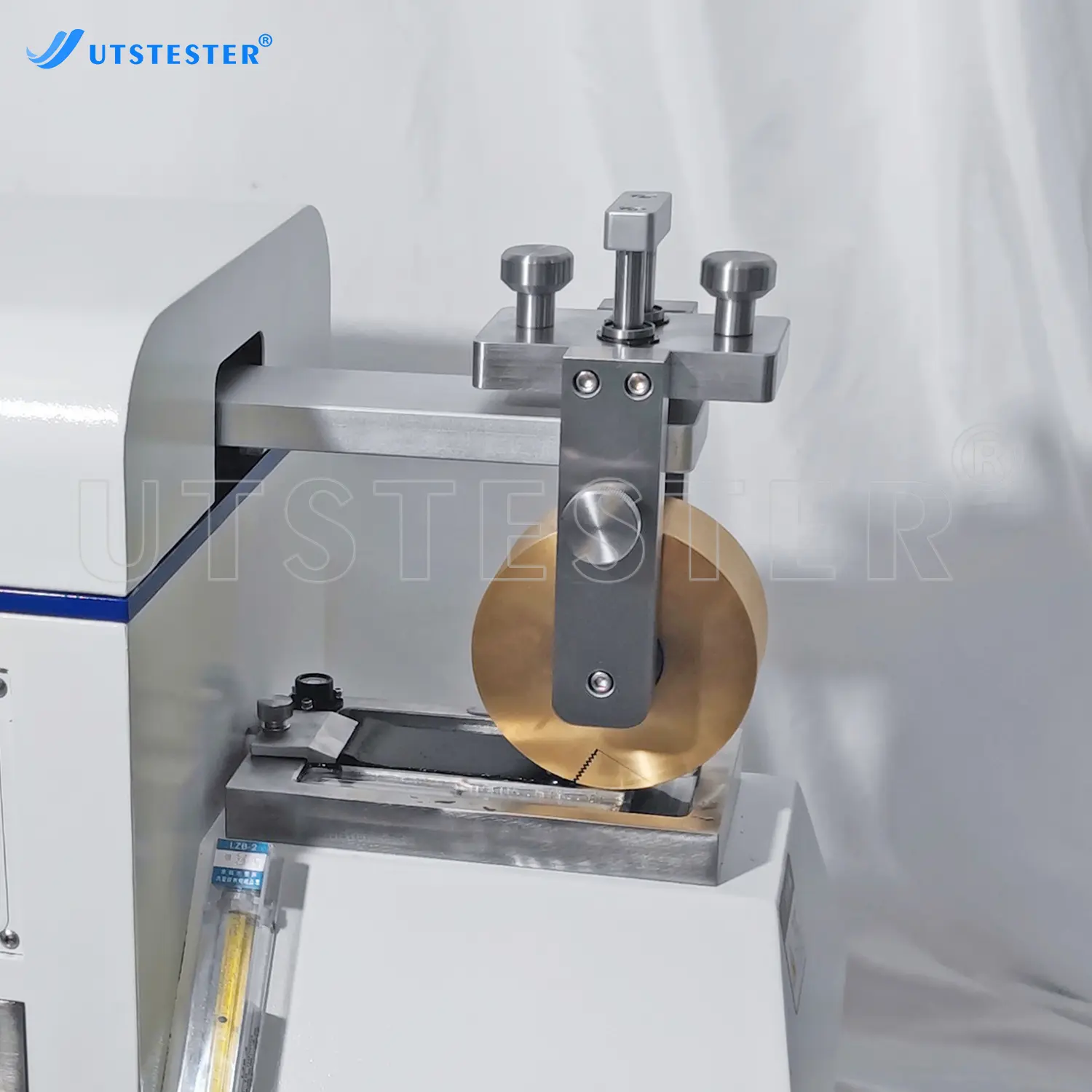

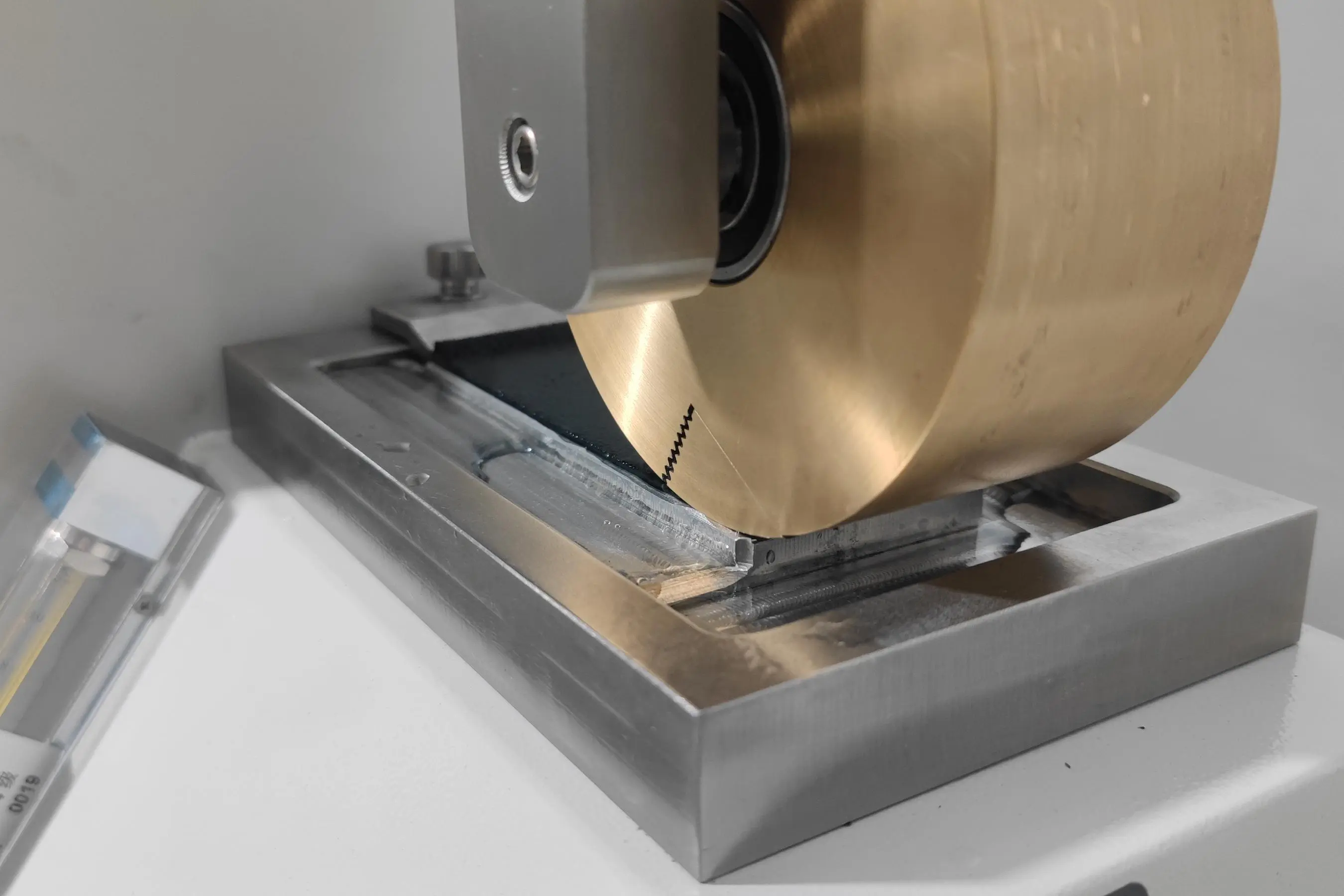

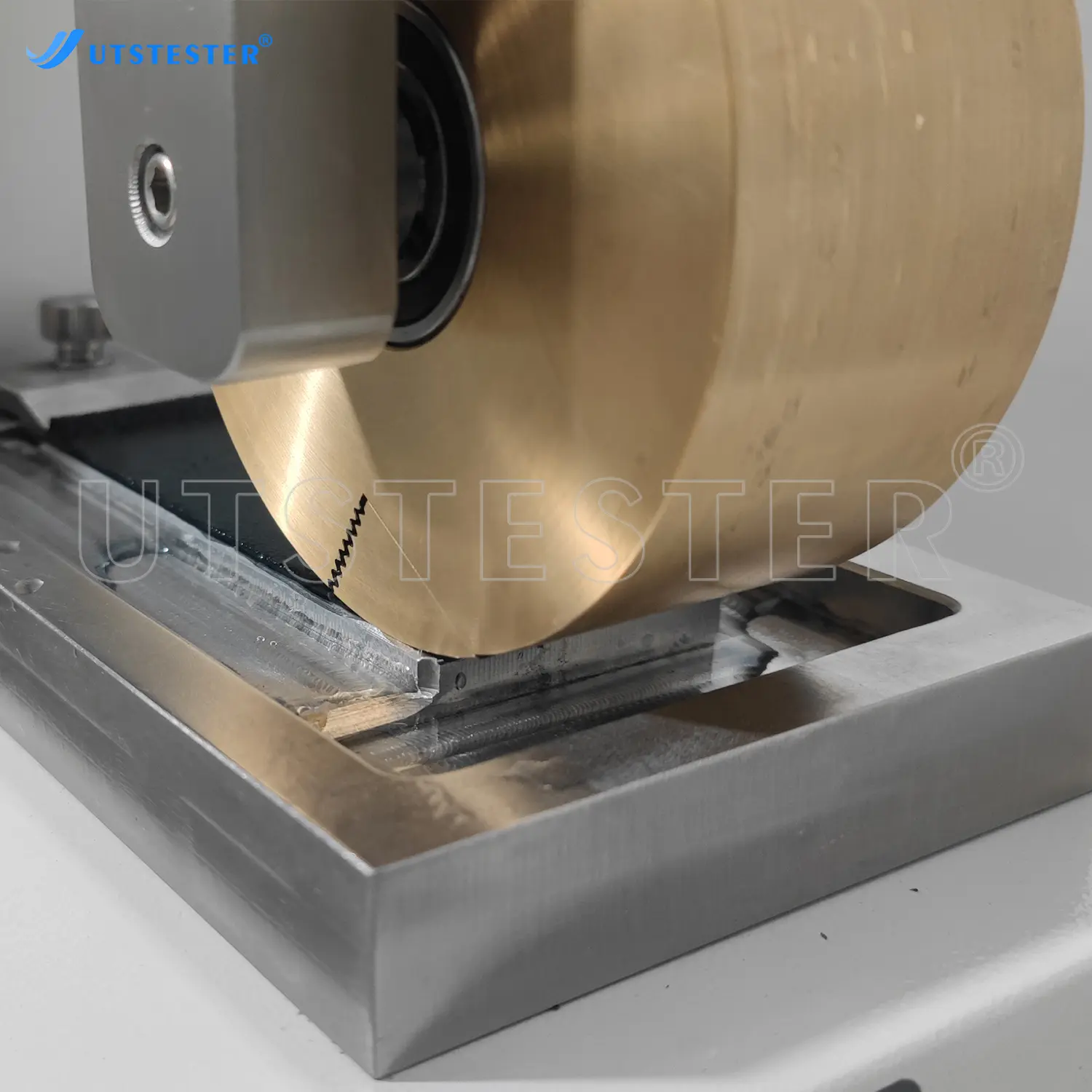

Brass roller

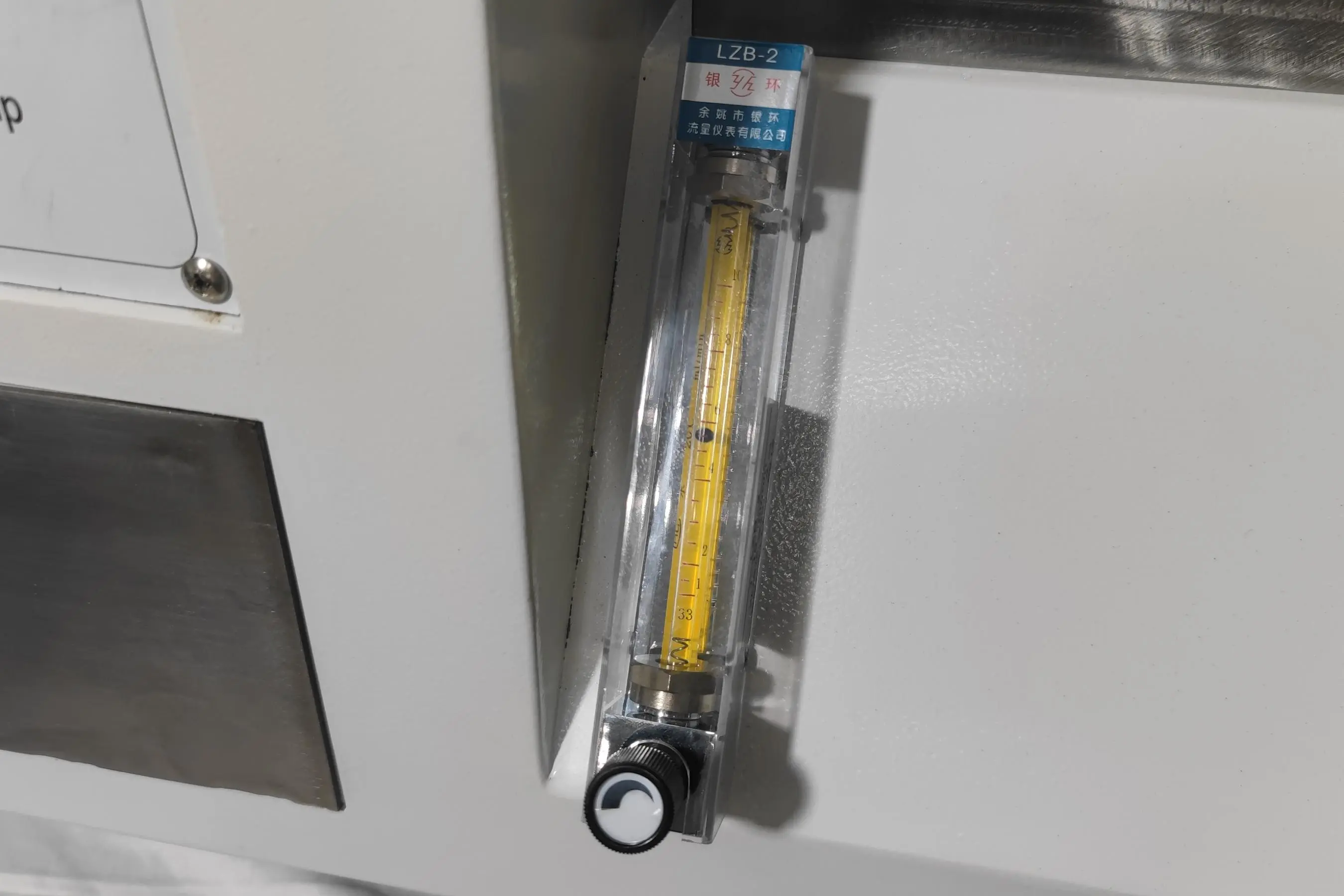

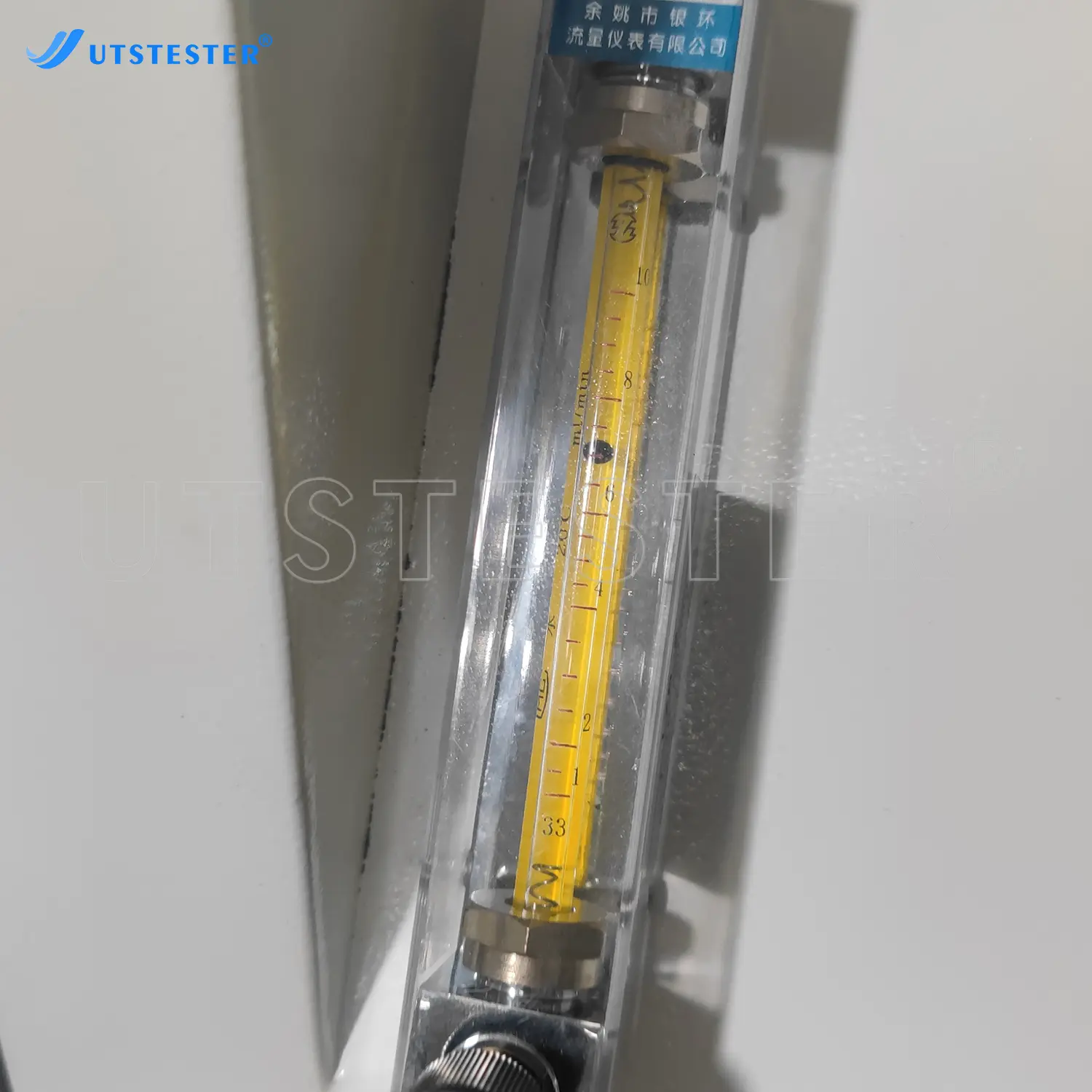

Flow meter
Water Inlet

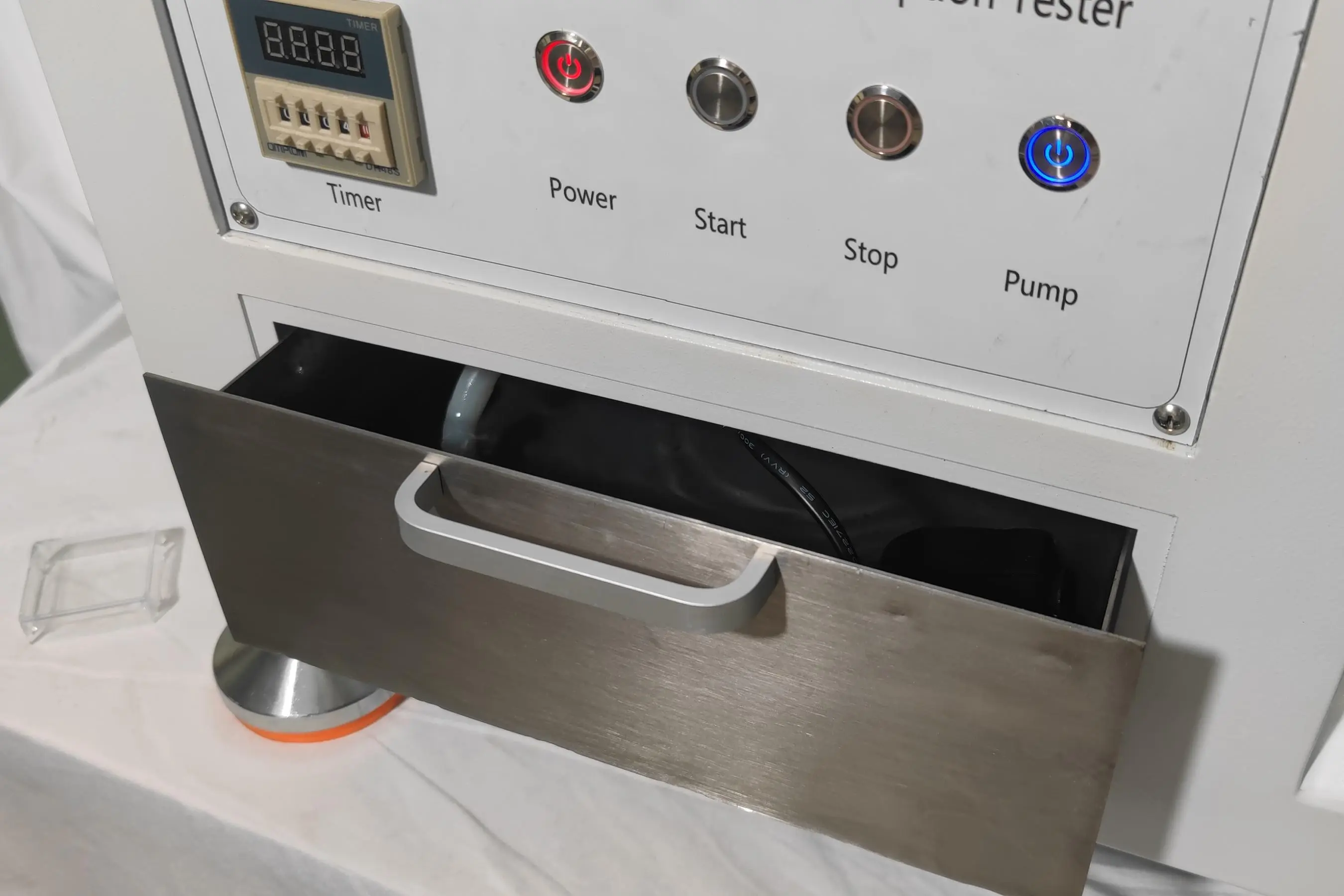

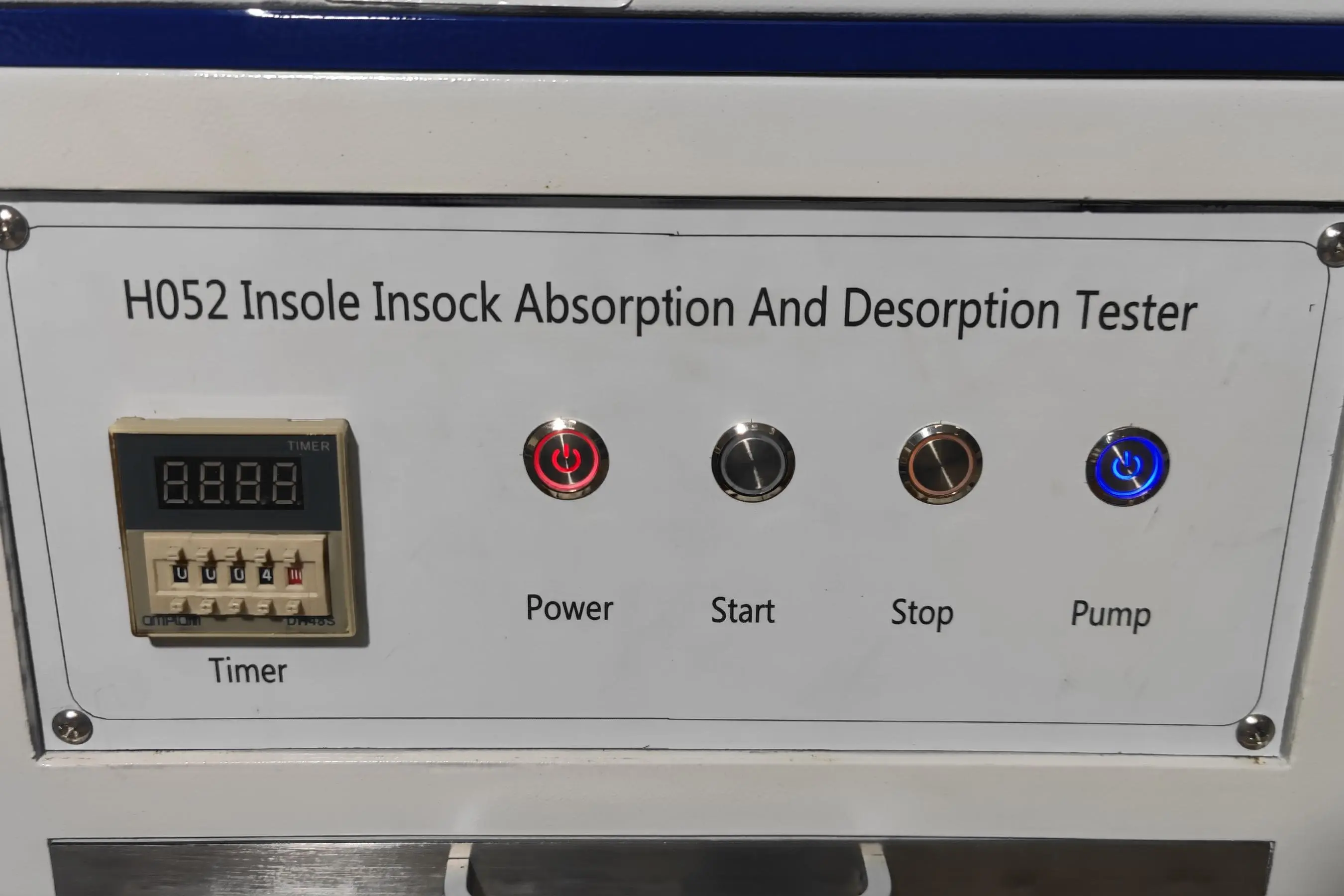

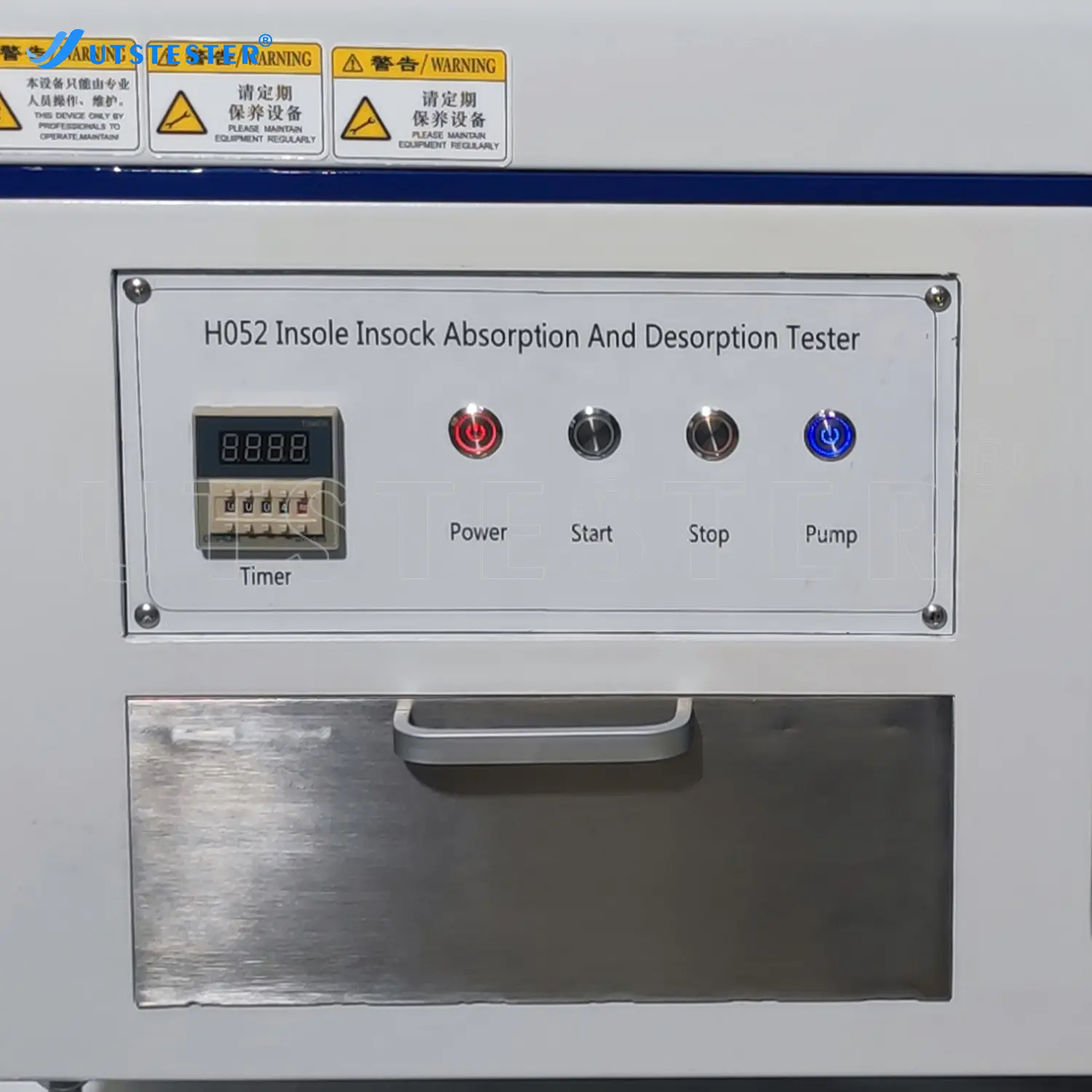

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
