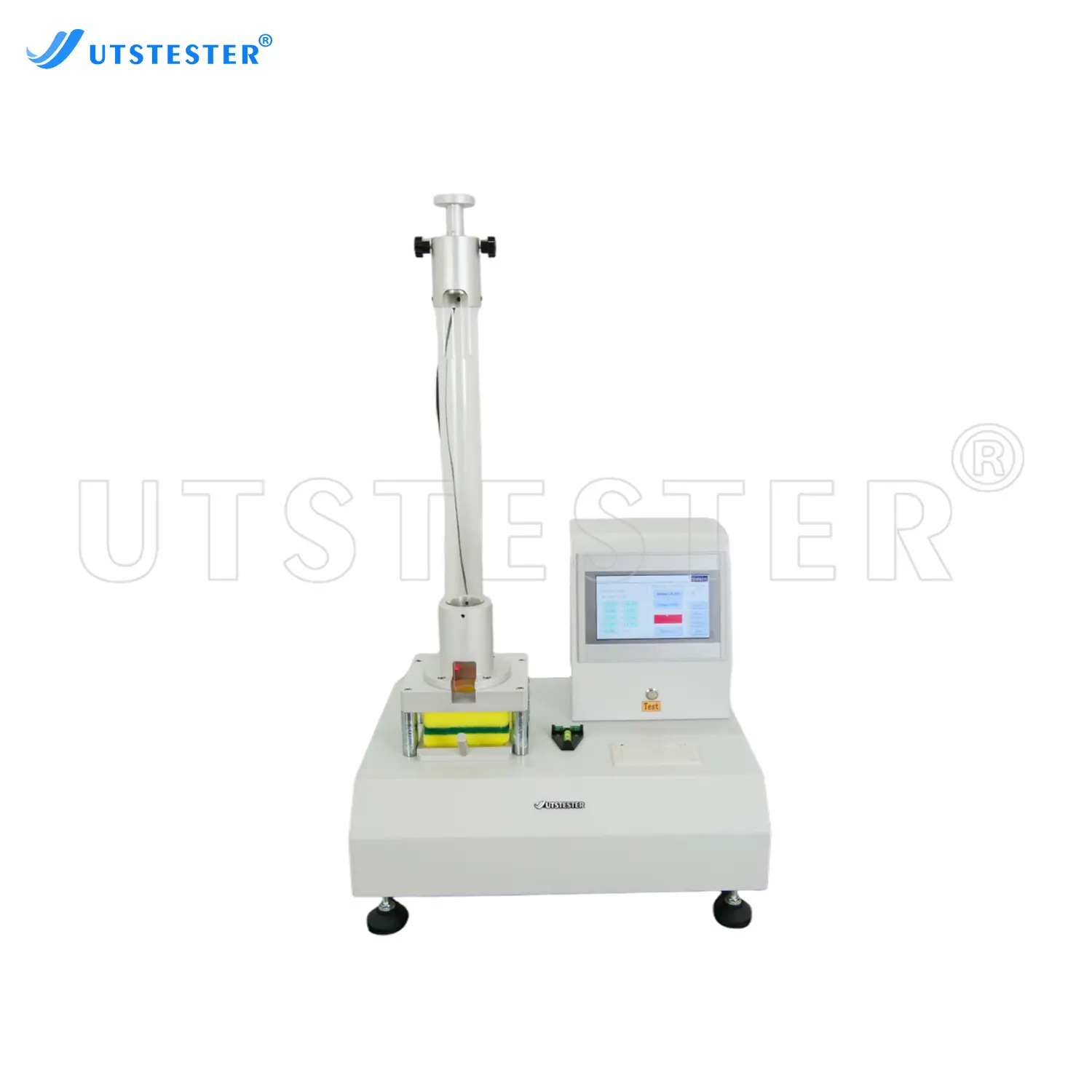

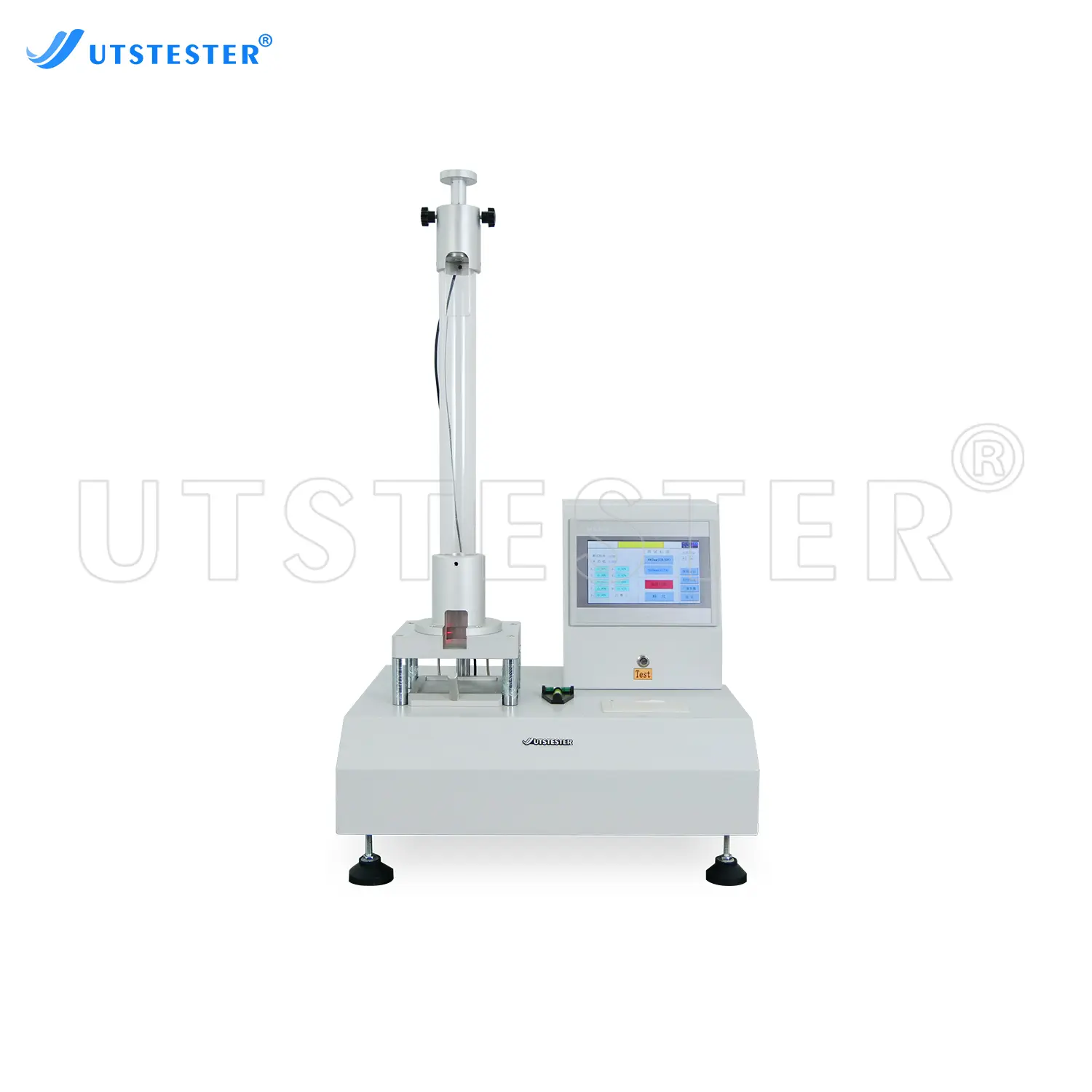

Laboratory Equipment for Accurate Microcomputer Sponge Resilience Tester H090B
Overview
The machine is designed and manufactured in accordance with GB/T6670-2008, and meets ASTM D3574 and ISO8307 test standards. At the same time, it conforms to the test method of SES N3296 for ethyl carbamate foam used in automobile seat. It is suitable for measuring the rebound energy of soft polyurethane foam. The instrument through the given diameter and quality of the steel ball in the specified height of the free fall on the foam sample, calculated the ball rebound height and steel ball drop height ratio of percentage both springback rate, with springback rate of foam elastic energy. The machine uses microprocessor to control, liquid crystal Chinese display, and can print test data. The machine has the characteristics of safety, reliability and high measurement precision.
Application
Foam sponge
Foam sponge
Standards
GB/T6670-2008，ASTM D3574，ISO8307
Key Parameters
|
ITEM |
COMMENT |
|
Model |
H090B |
|
Ball drop distance |
460±0.5%mm (GB) 500±0.5%mm (US standard) |
|
Steel ball quality |
GB/EN steel ball quality: 16.3g; 500mm ASTM steel ball mass: 16.8 soil 1.5g;460mm |
|
Bounce rate accuracy |
<0.5% |
|
Tested sample size |
100 mm(length)×100 mm(width)× 50mm (height) |
|
Calculate the average bounce rate automatically |
|
|
Dimensions(approx.) |
800*460*360mm |
|
Weight |
20kg |
Product Details

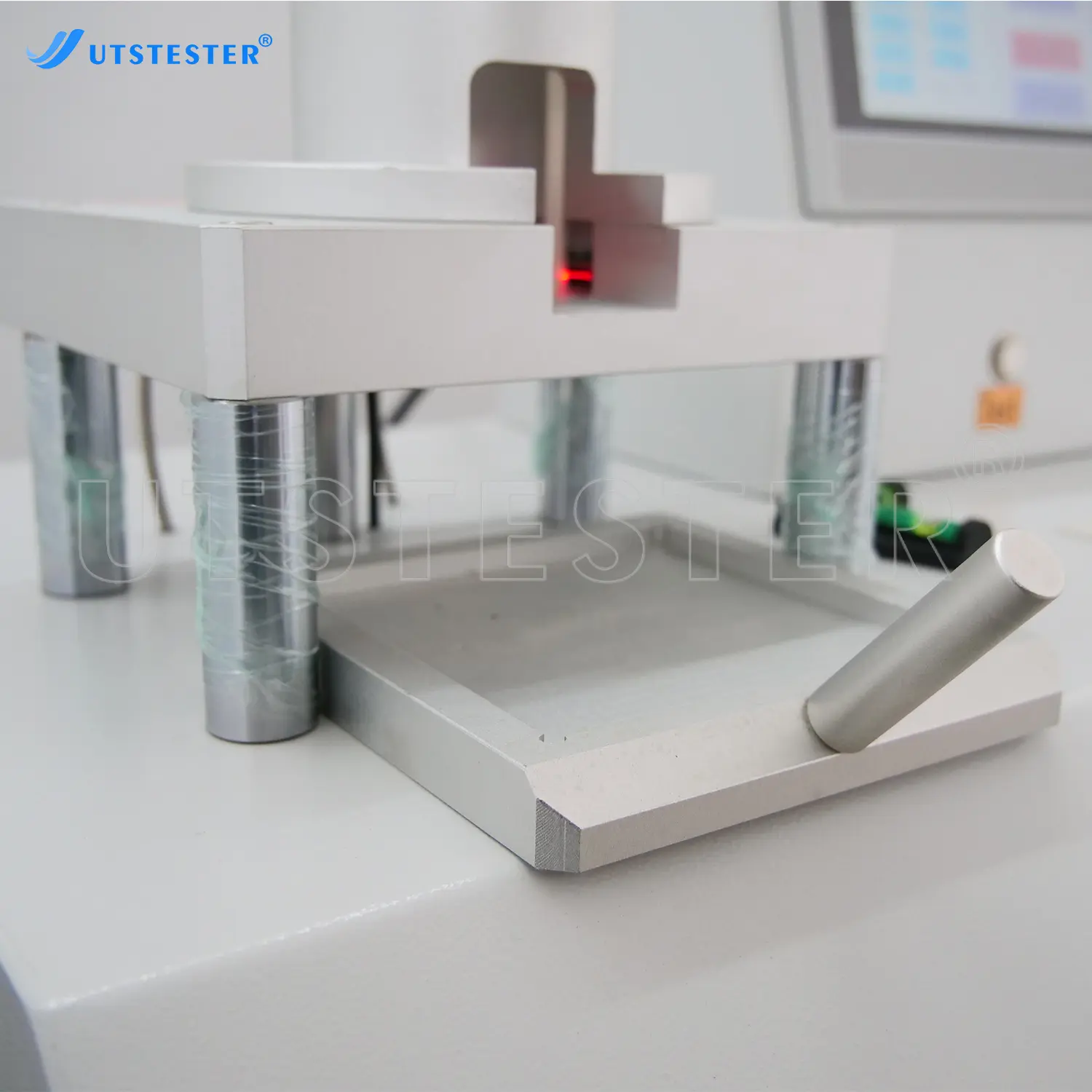

Sample holder

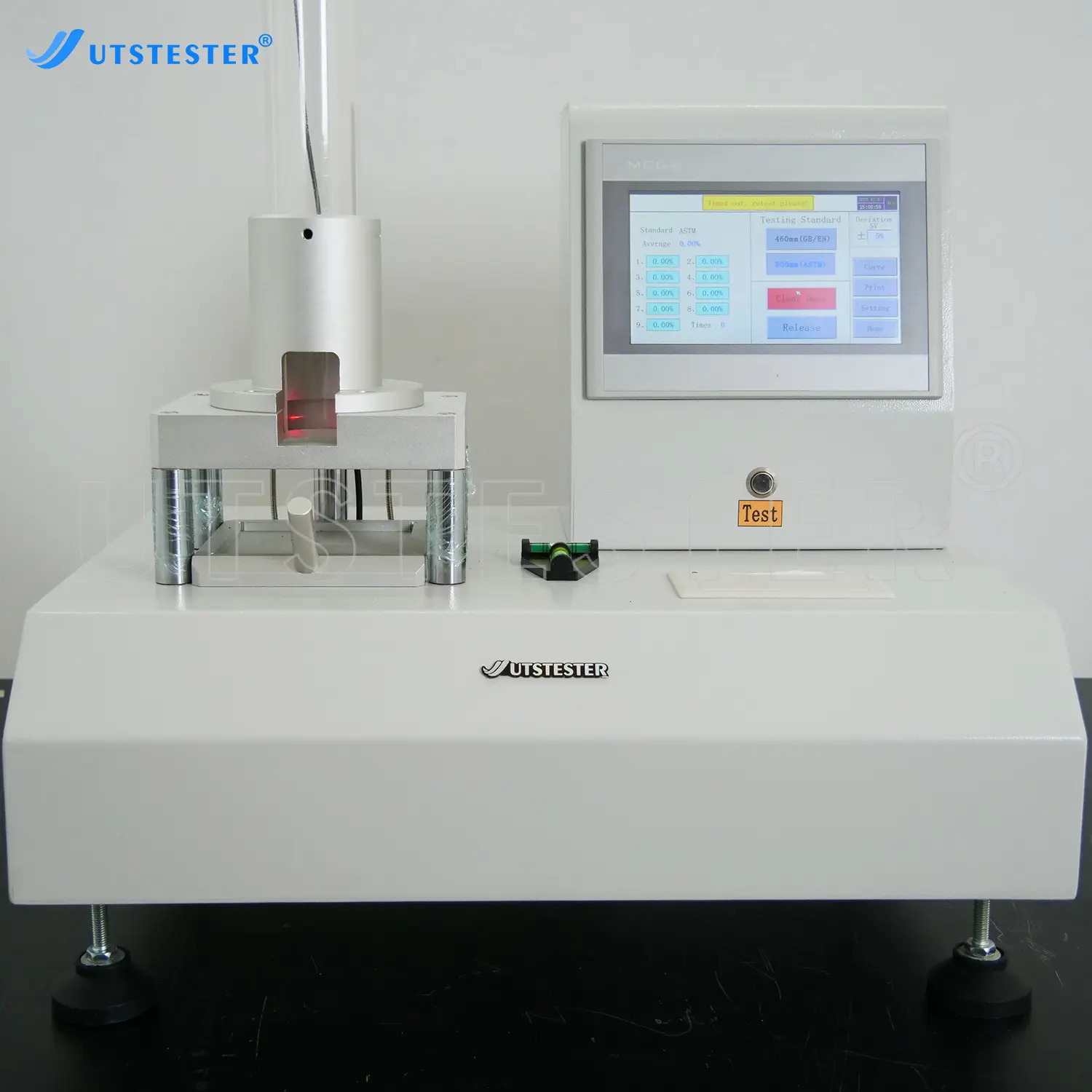

Control panel
Magnetic bar
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
