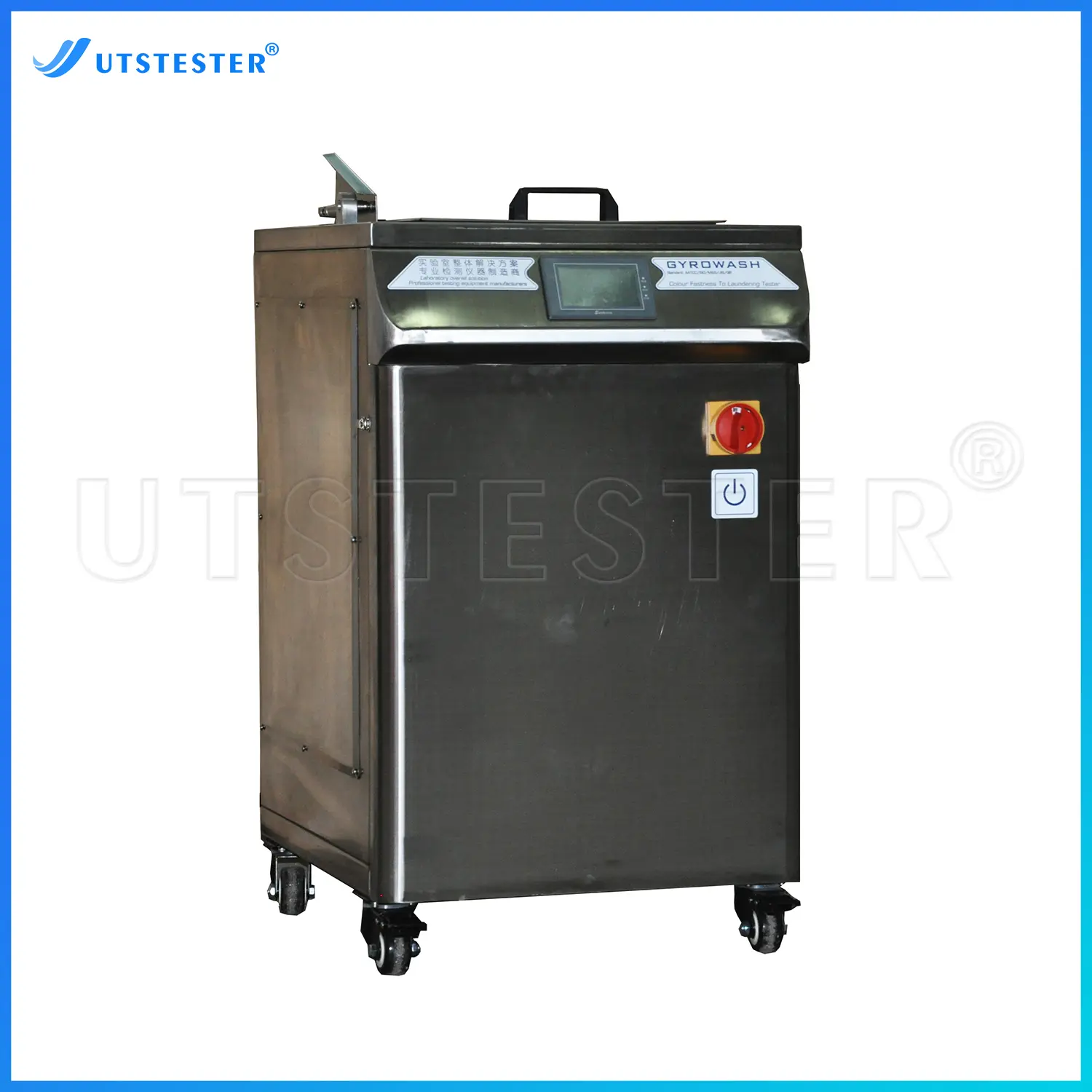

Lab Testing Equipment Washing Colorfastness Tester ISO105 D007C
Overview
D007 Laundry / Washing Colorfastness Tester is to determine the washing and dry colorfastness resistance property for dyed textile or dyed yarn after washing. The all stainless steel construction stands up to the hard environment of wet labs, which is reliable and durable. Equipped with an easy opening door and quick-lock retention bars for the containers to ease loading and unloading.
Application
SILK
HESSIAN
GARMENT
FABRICS
Standards
ISO105-C01, C02, C03, C04, C05, C06, C08, C09, C10, D01, E03, E12; AATCC 3, 61, 62, 86, 132, 151, 190; JIS L0860, JIS L0844, JIS L0879; M&S C4A, C5, C37, P3B; BS 1006 NEXT 2,3,5; IWSTM 7,115,177,193, 240, 241; FTMS 191 Method 5610/5622; GB/T 5711, GB/T3921-1 to 5, GB/T12490 ;
Key Parameters
|
Model |
D007C-8A |
D007C-8B |
D007C-8AB |
D007C-12A |
D007C-12B |
D007C-12AB |
|
Working position |
8 |
12 |
||||
|
Model |
D007C-20A |
D007C-20B |
D007C-20AB |
D007C-24A |
D007C-24B |
D007C-24AB |
|
Working position |
20 |
24 |
||||
|
Washing cups |
A(AATCC cup volume): 1200±50ml B(ISO cup volume): 550±50ml |
|||||
|
Display |
Touch screen |
|||||
|
Test speed |
40±2 r/min |
|||||
|
Steel ball |
Diameter 6mm, SUS 304 |
|||||
|
Steel disc |
Diameter 32mm, thickness 3.2mm, weight 20±3g, SUS 304 |
|||||
|
Sample size |
40mmx100mm |
|||||
|
Counting |
0~999min |
|||||
|
Distance between bottom of beaker and center of axis |
40±5mm |
|||||
|
Temperature |
Room temp. To 95 ℃, settable |
|||||
|
Heating methods |
Electrical heating tube |
|||||
Product Details
Test cups

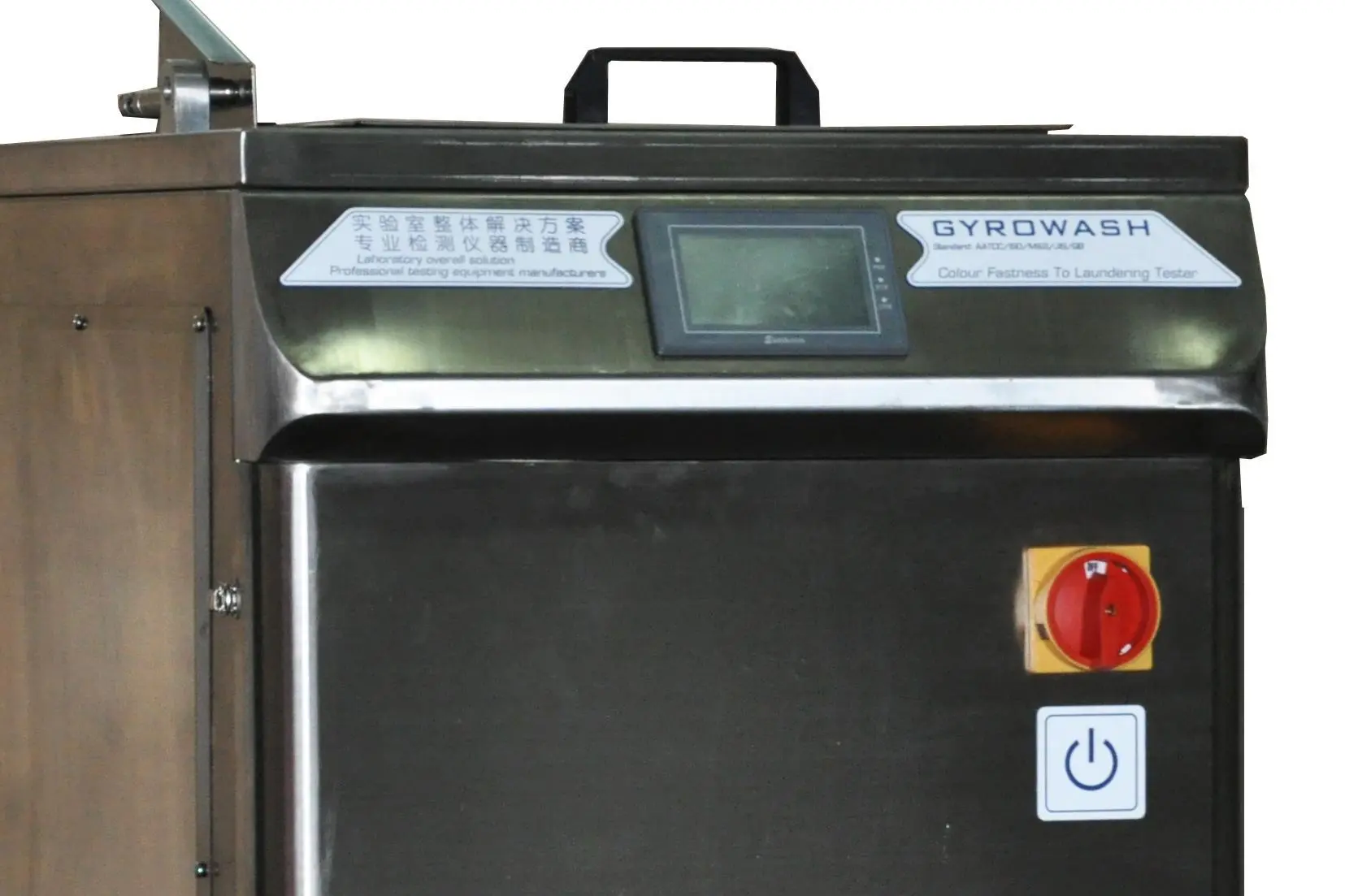

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
