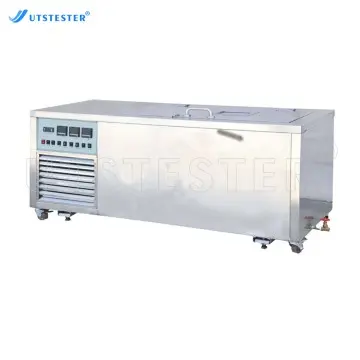

Low Temperature Flexing Tester Low Te...

Textile Laboratory Equipment Low Temp...

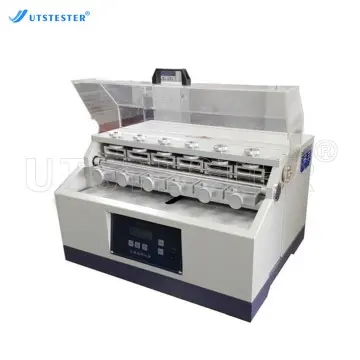

Lab Equipment Manufacturers Ross Flex...

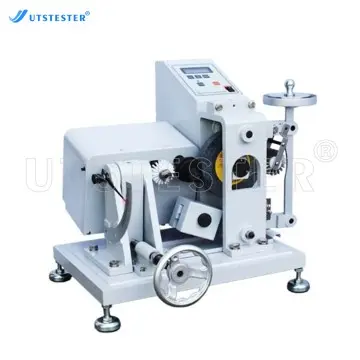

Textile Lab Equipment From China Akro...

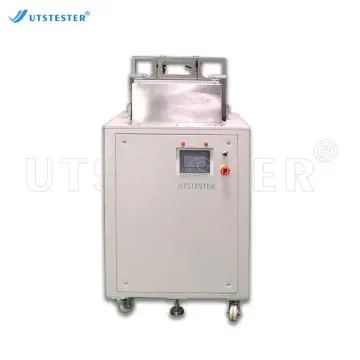

Satra TM77 Shoe Bending Waterproofnes...

Textile Testing Equipment Manufacture...

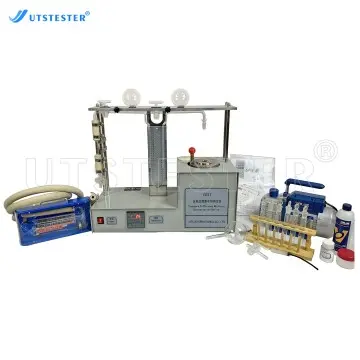

Micromoisture Measuring Apparatus(Dif...

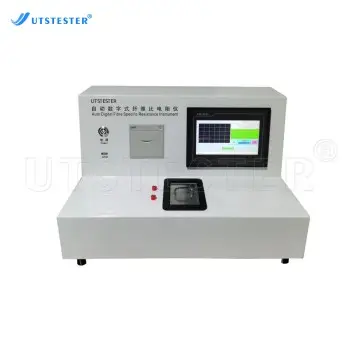

Lab Instruments Automatic Digital Fib...

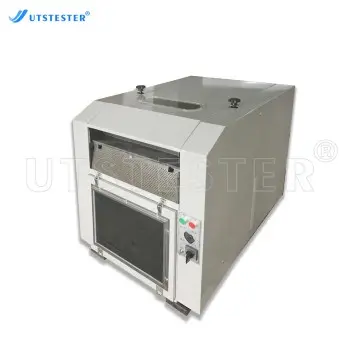

Cotton Trash Analyzer Raw Cotton Anal...

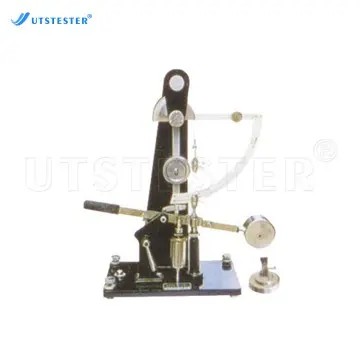

Textile Lab Equipment Fibre Bundle St...

0102030405

D035 Electronic Lab Scale Coating Machine(1).jpg

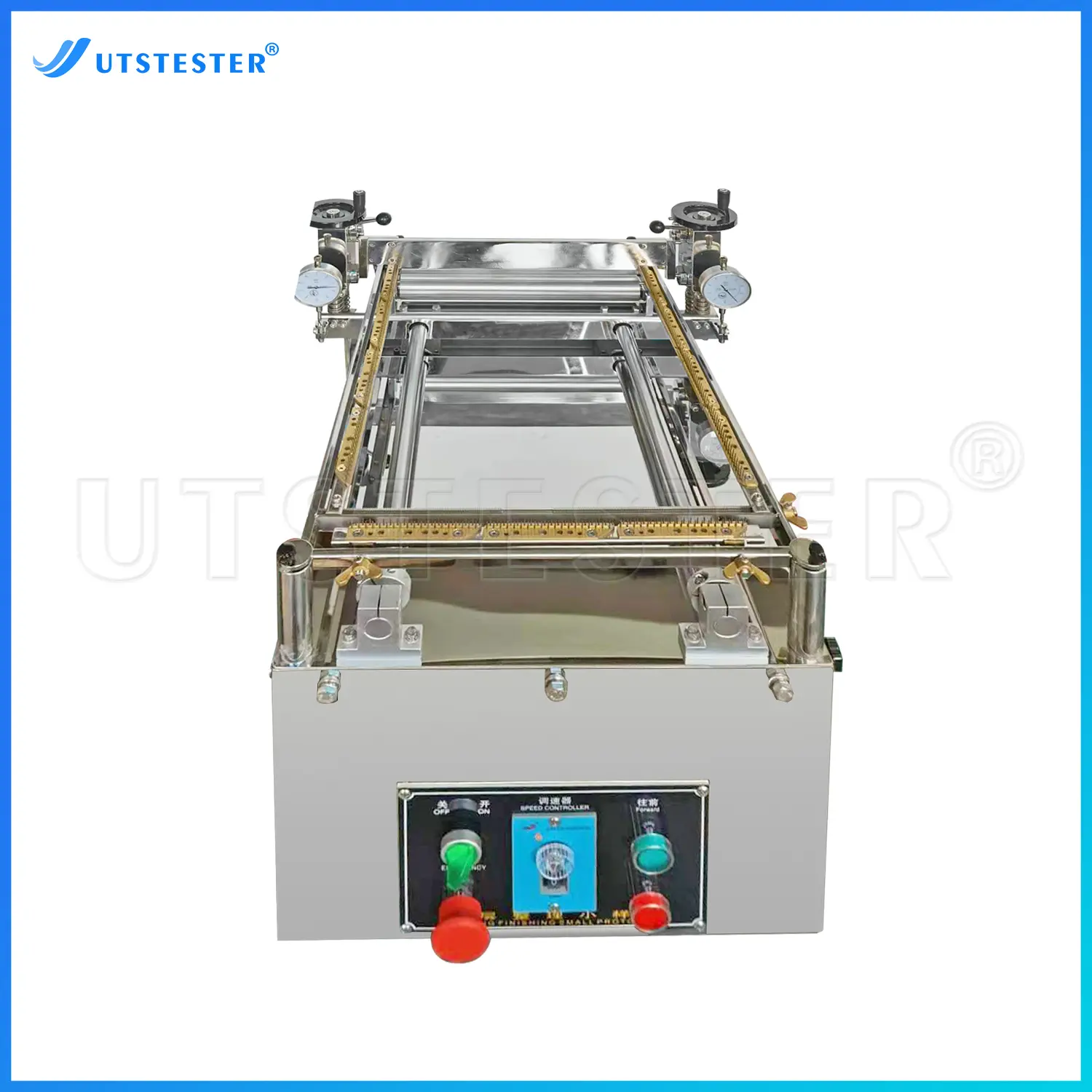

D035 Electronic Lab Scale Coating Machine(2).jpg

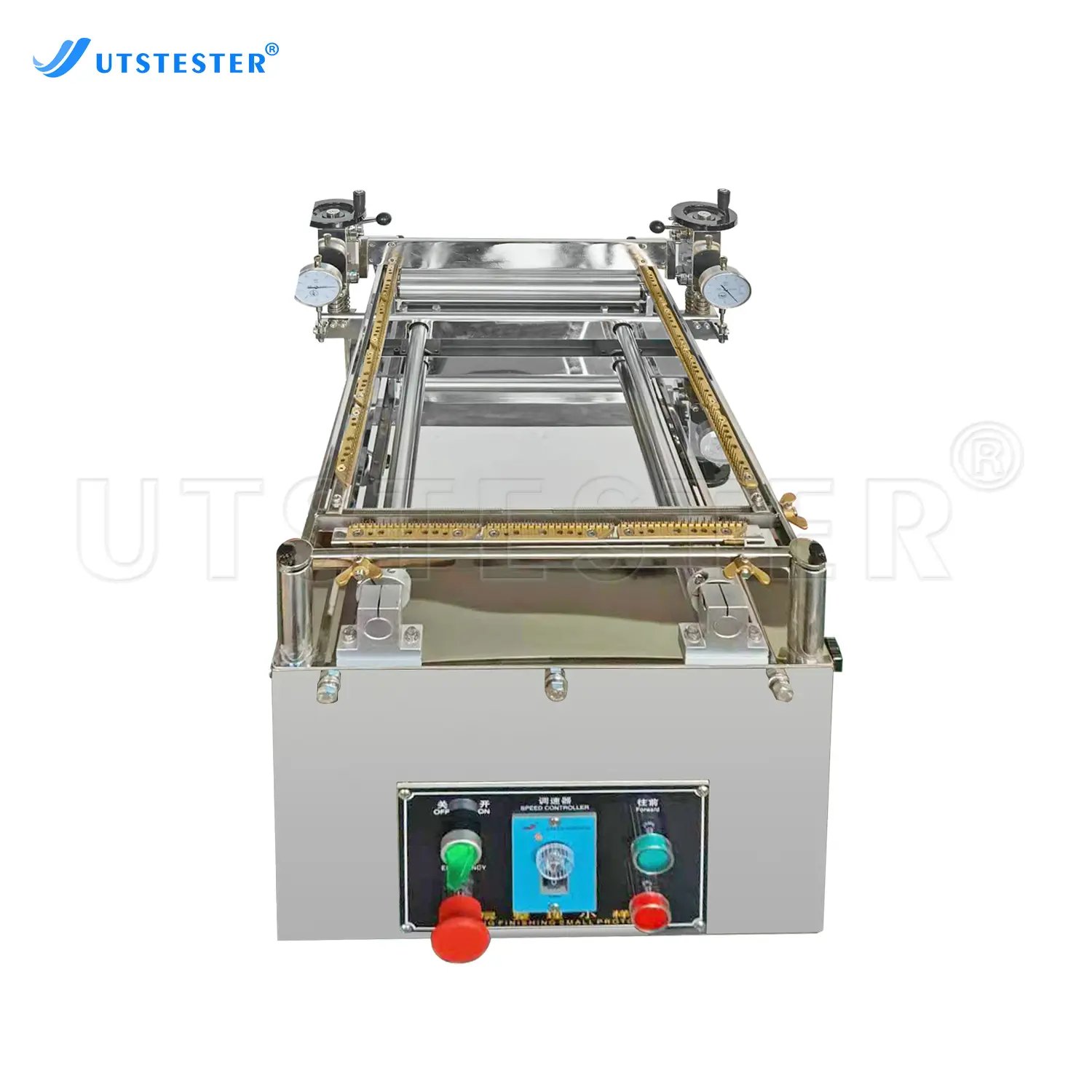

Lab Testing Equipment Electronic Lab Scale Coating Machine D035

This machine is suitable for finishing the coating of all kinds of textiles and other materials, to ensure the uniformity and stability of coating on different flat materials, and to continuously coating the smooth and flawless test samples.

product details

Production Processes

Packing System

Overview

It is convenient to change the coating parameters by changing the position of the high and low of the coating knife, the front Angle of the coating knife and the position of the square idler.

Application

Coating Textiles

Coating Fabrics

Standards

Key Parameters

Model	D035A	D035B
Coating Type	Electronic	Manual
Maximum Coating area	500 x 300mm	580 x 330mm
Efective Coating area	370 x 300mm	450 x 330mm
Driving way	Electric ball screw, imported linear sliding guide rail, linear sliding bearing guide rail pair.Move in a straight line	Manual
Motor	220V gear motor, 0.4KW, speed ratio 1:7.5	NONE
Speed regulation	Digital display two-way speed regulation	NONE
Coating roller	Dia. 40 x Length 300mm Material: High quality stainless steel	Dia. 40 x Length 330mm Material: High quality stainless steel
Scraper	High quality stainless steel, coating front rake angle 30 degree Length 300 x 60mm	High quality stainless steel, coating front rake angle 30 degree Length 330 x 60mm
Size	570 x 650 x 560mm	620 x 650 x 1130mm
Weight	65kg
Material	SUS 304
Coating thickness	0-5mm, resolution 0.01mm
Coating parameters	Changing scraper’s high and low position, Circular roller position, to easy change coating parameters

Product Details

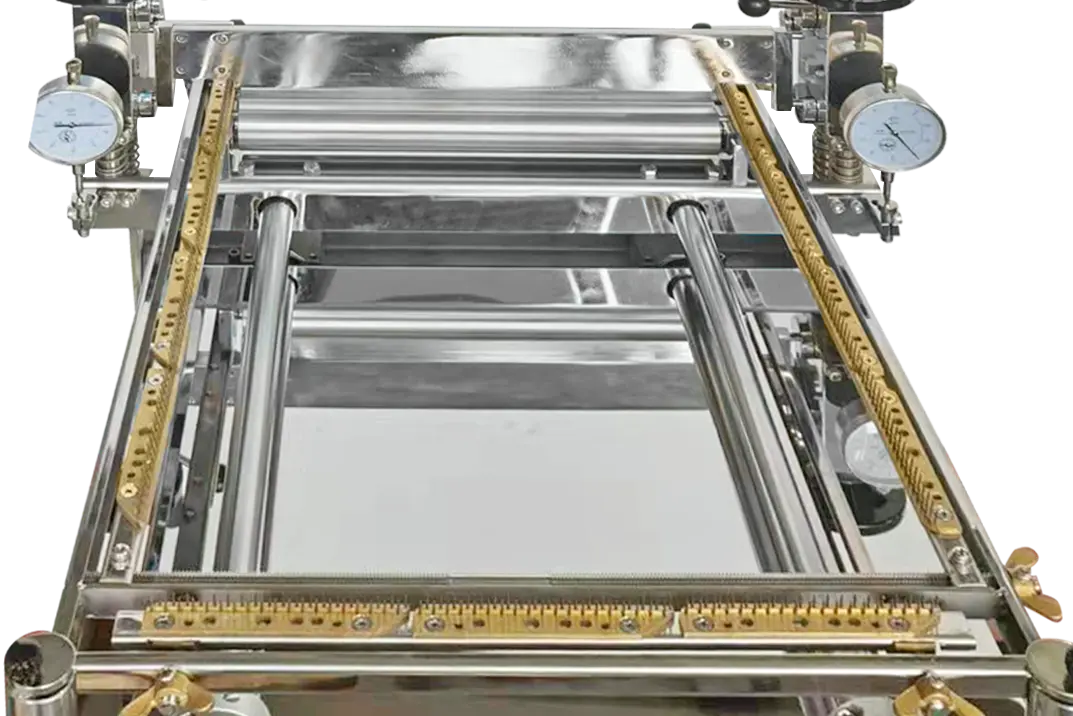

Sample Testing Area

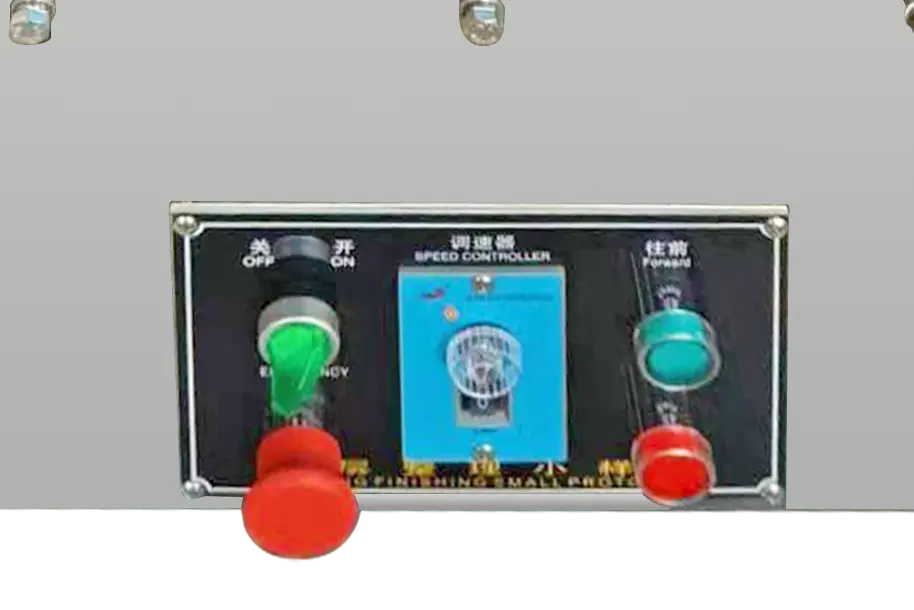

Control panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
