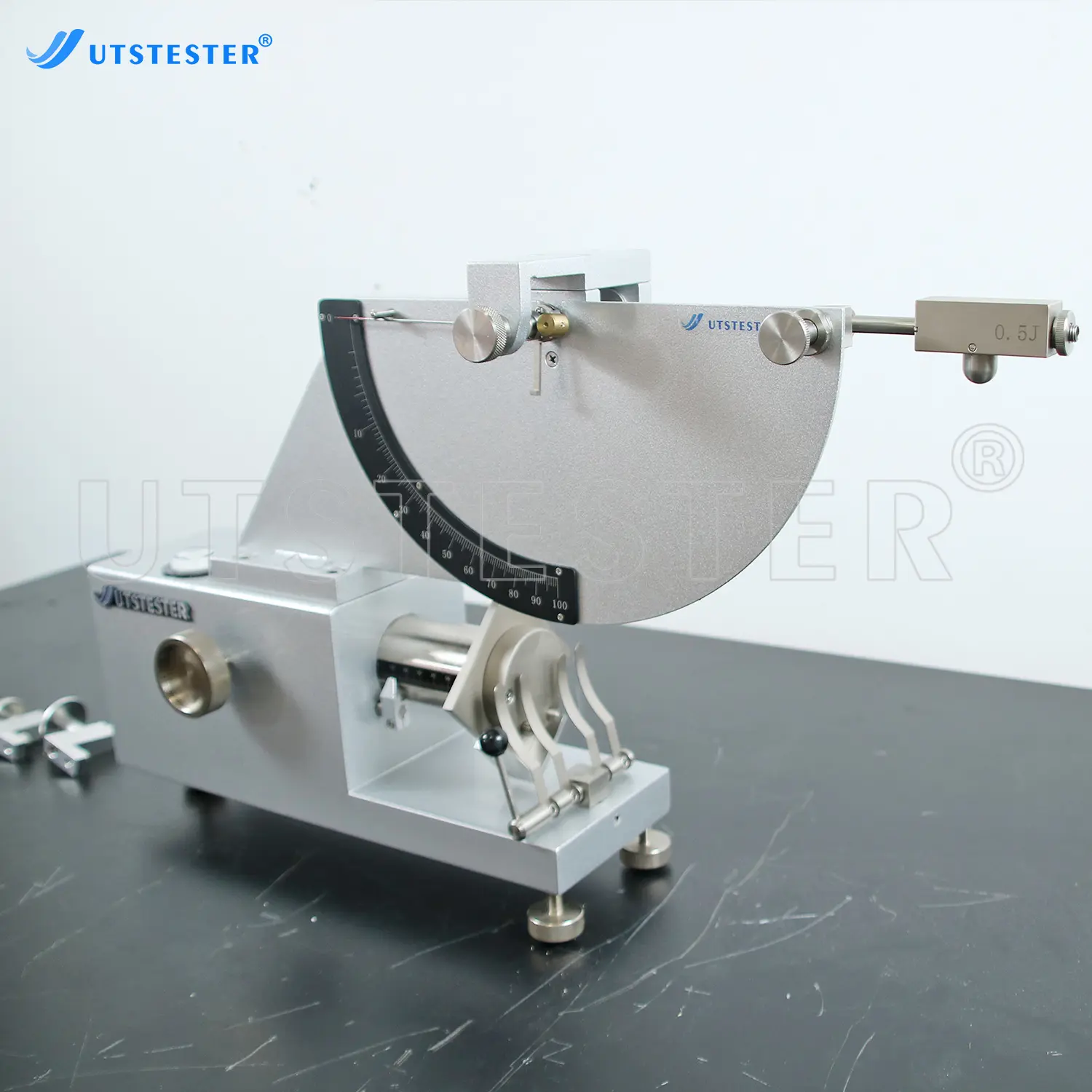

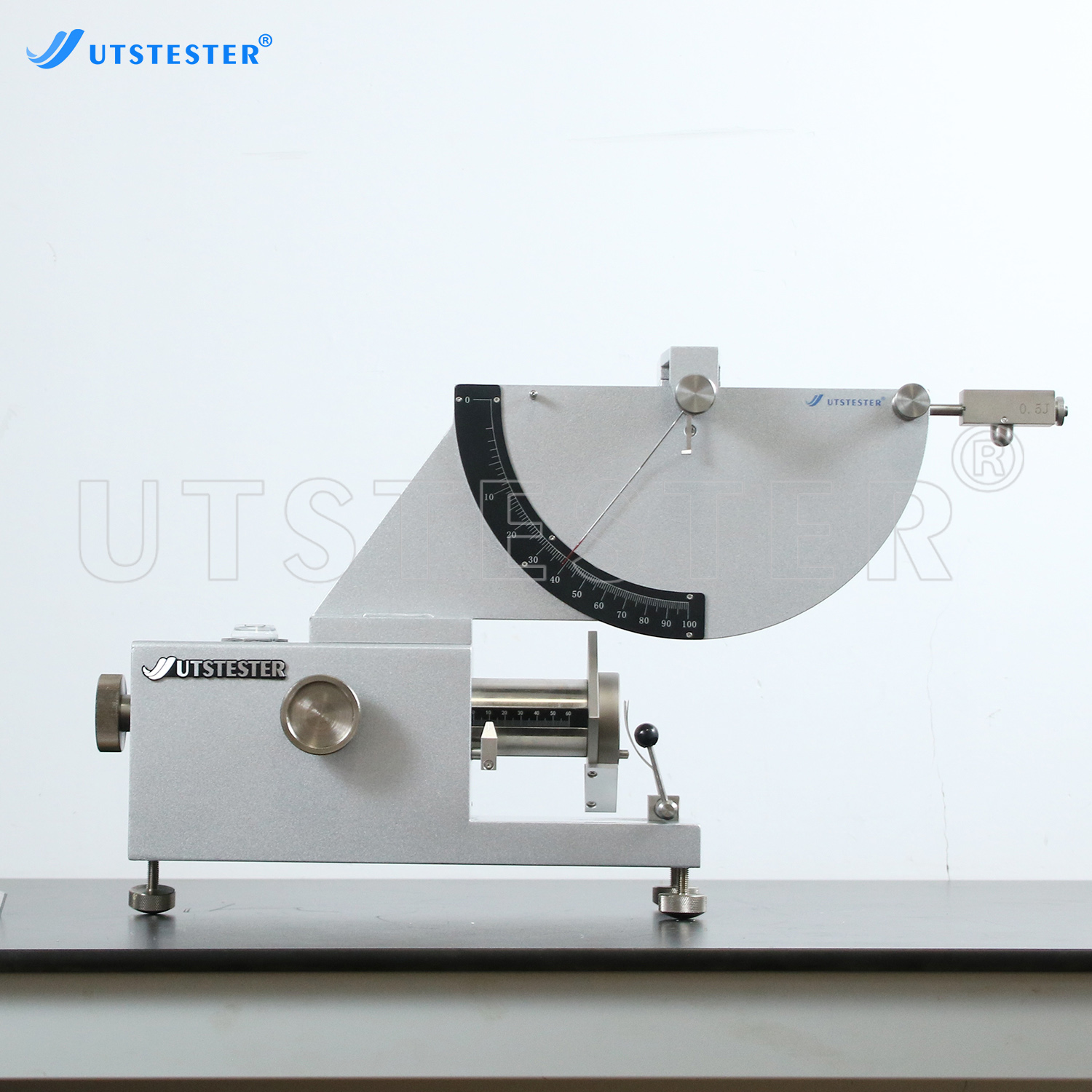

Lab Equipment Schob Type Pendulum Rebound Tester Rubber Resilience Test Machine H029
Overview
Schob Type Pendulum Tester for evaluating impact resilience and penetration of rubber by means of a pendulum rebound, as described in ASTM D7121, “Standard Test Method for Rubber Property-Resilience Using Schob Type Rebound Pendulum.”
Application
Tire
Sole
Conveyor belts
Standards
ASTM D 7121, ISO 4662, DIN 53512, DIN53573, GB/T 1681
Key Parameters
|
Model |
H029 |
|
Impact energy |
0.5 J , 0.2 J |
|
Indicating range |
0~100% |
|
Minimum indicating scale |
1% |
|
Pendulum length |
200±0.5 mm |
|
Drop angle |
90° |
|
Impact speed |
1.40 – 2.04 m/sec |
|
Adjustable range of thickness of sample |
Moving axis position available to move 0～60 mm |
|
Moving axis minimum scale |
1 mm |
|
Elastic material test striker |
Impact energy 0.5J |
|
Hemisphere Dia. 15mm |
|
|
Flexible cellular material test striker |
Impact energy 0.2J |
|
Shape A, Hemisphere Dia. 30mm |
|
|
Shape B, Cylinder Dia. 40mm, and round end radius 40mm |
|
|
Dimensions |
62×12×33 cm |
|
Net weight |
38kg |
Product Details

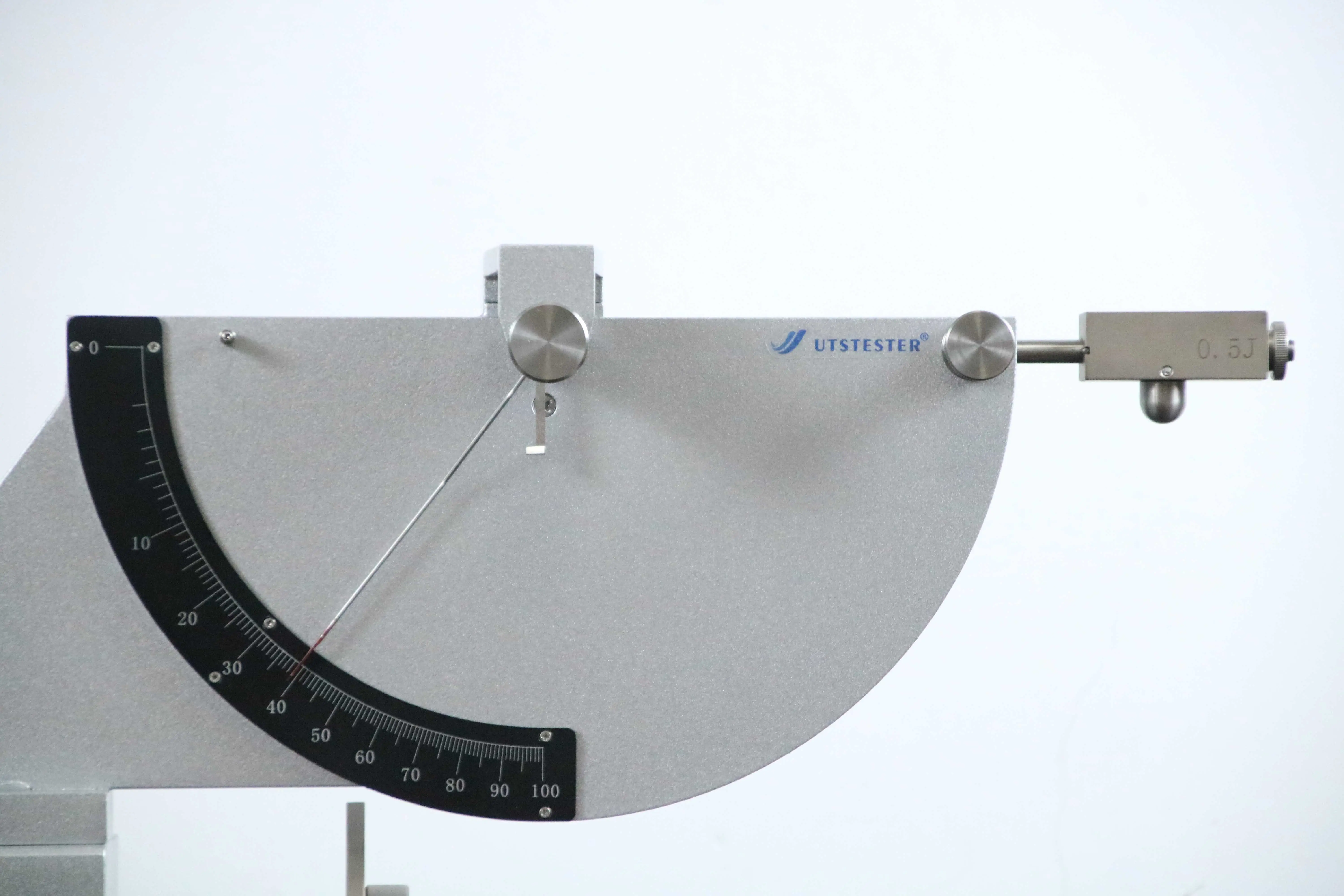

Arc Dial

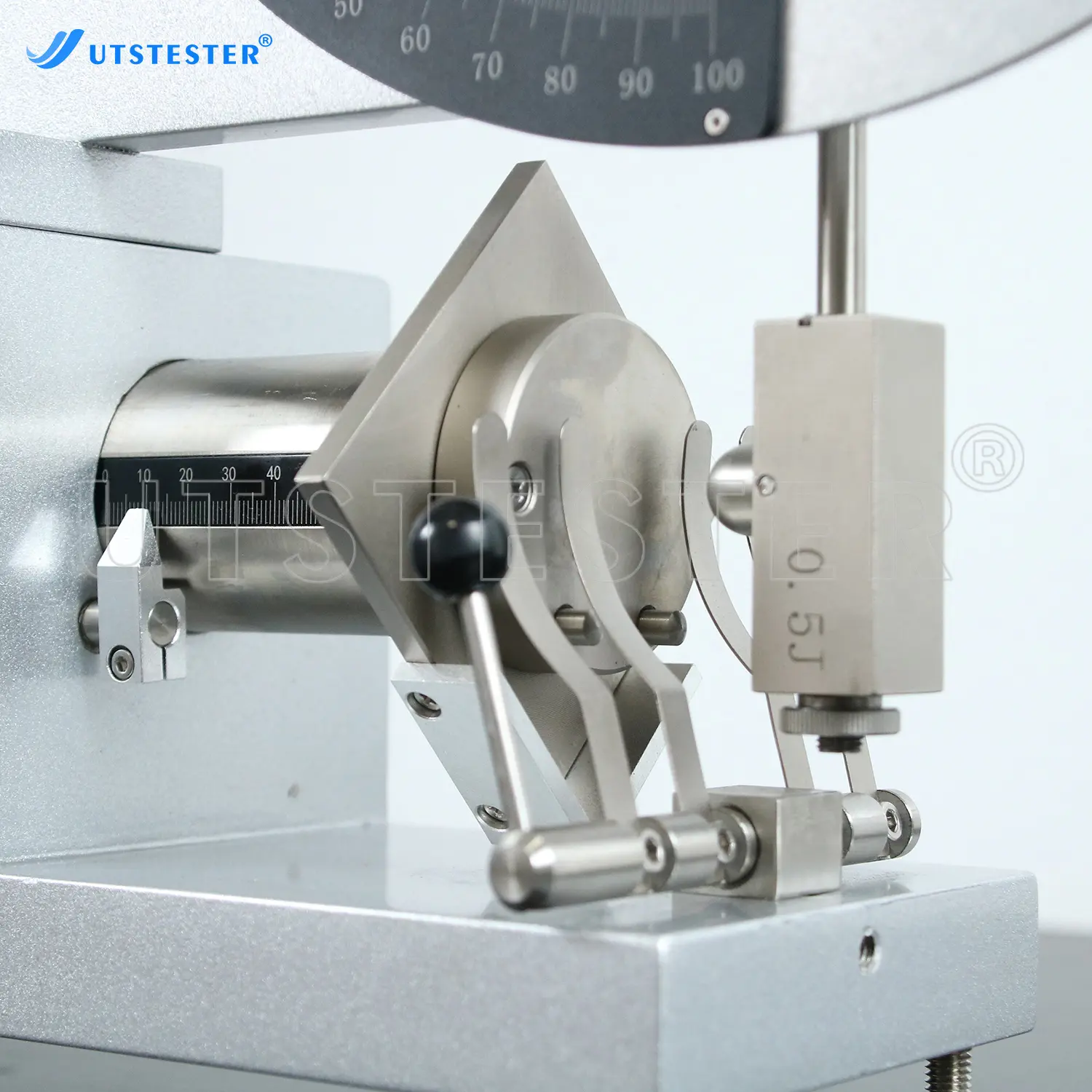

Bowed Clamping Piece

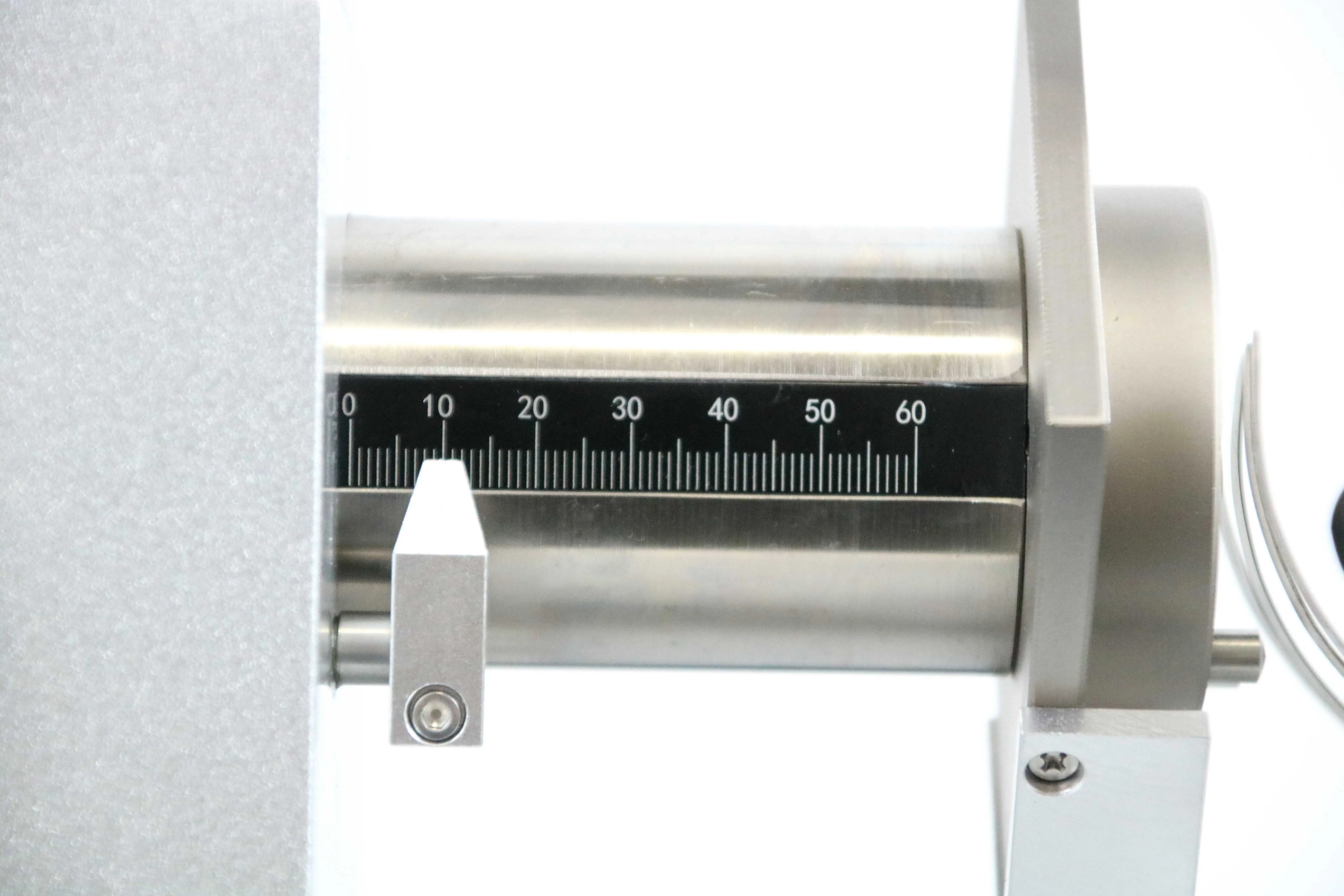

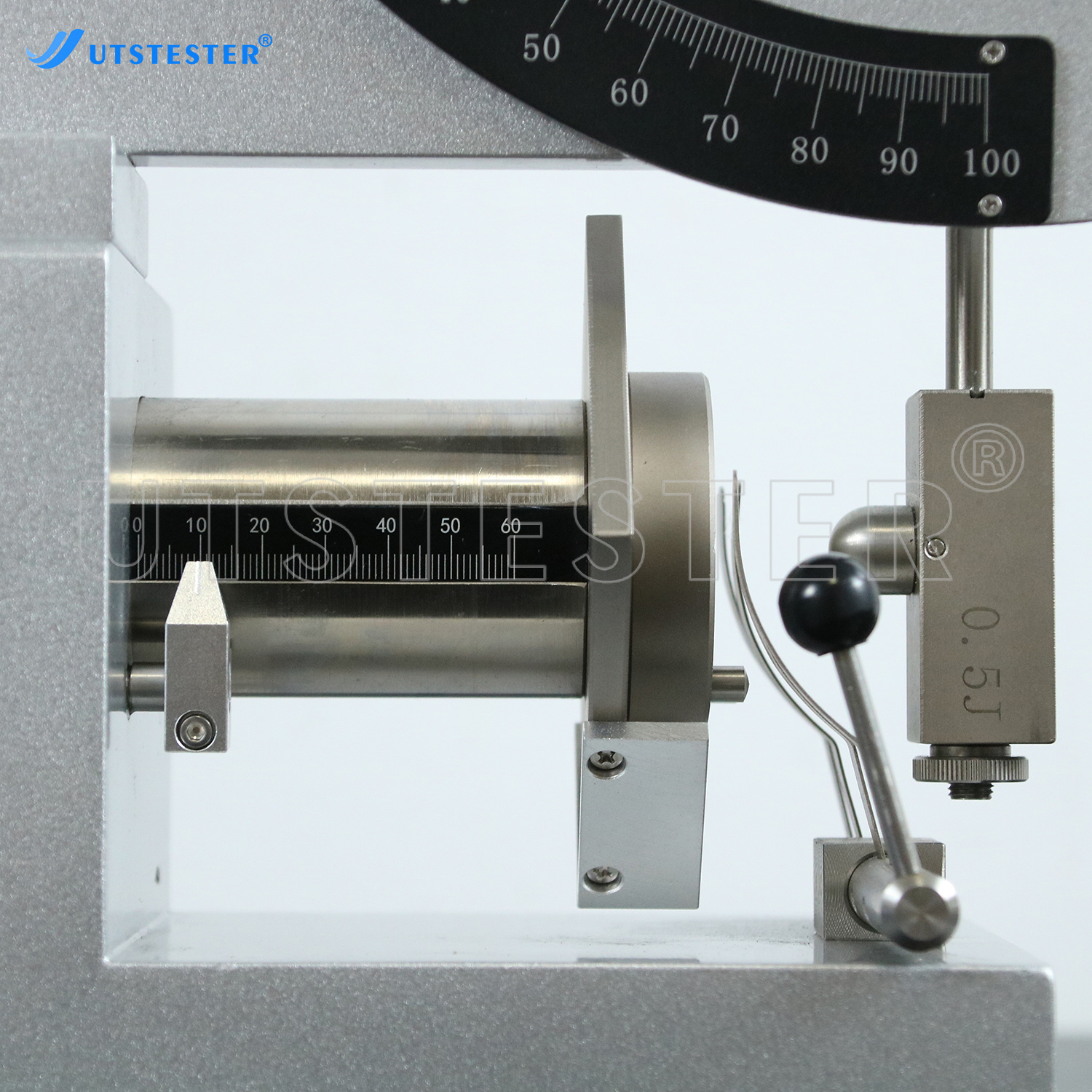

Moved Axle
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
