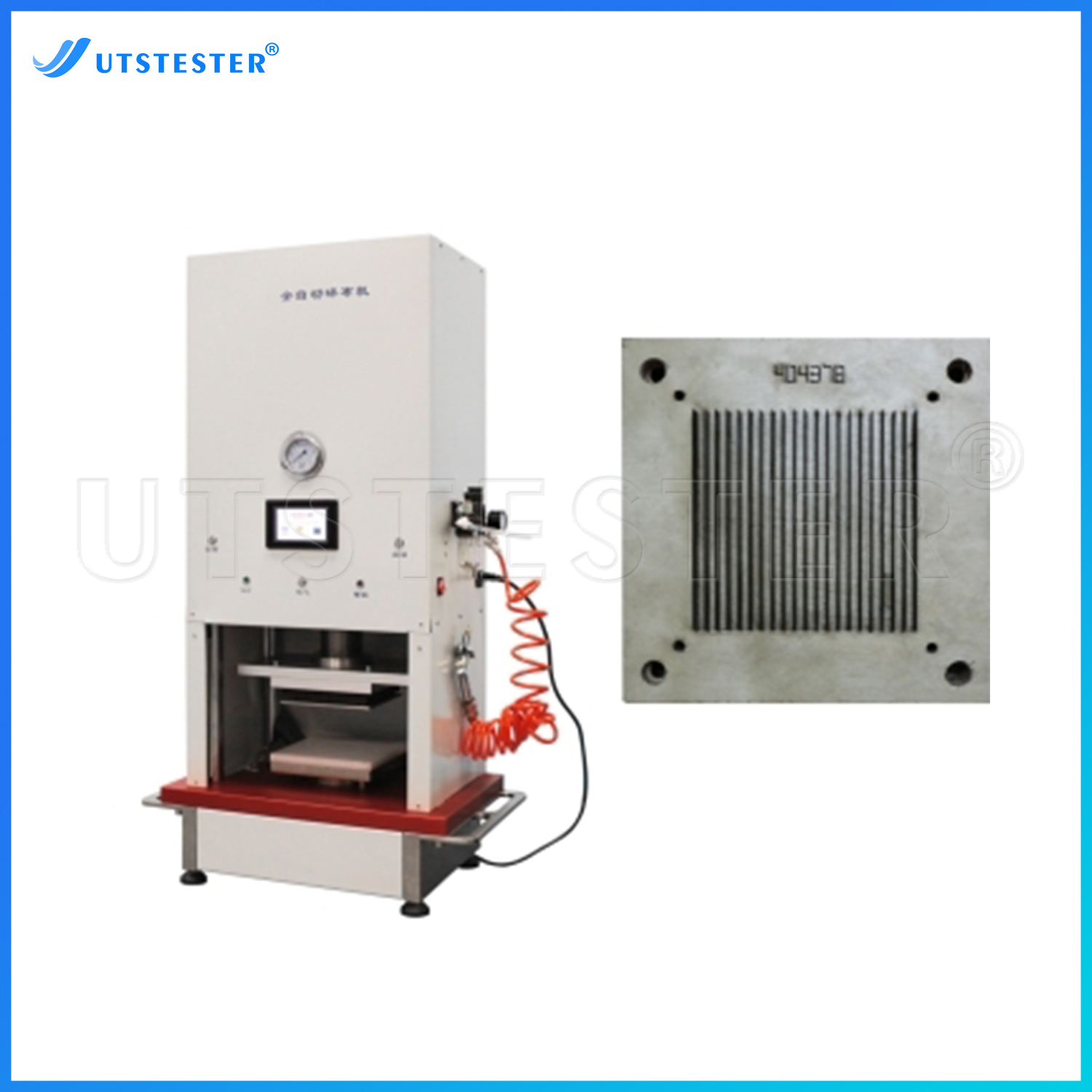

Lab Equipment Manufacturers Fully Automatic Rag Machine M129

1. Two working modes, suitable for different sample preparation needs.
2. The two cylinders of gas and oil are combined and pressurized to work quietly and without noise.
3. Multiple safety protections: two-hand button switch; infrared sensor; die installation status prompt; lower template installation status prompt; screen soft switch.
4. It can be connected to an external air compressor alone or to a centralized air supply device.
5. Pressurization speed and time are adjustable to adapt to the needs of different samples.
6. With the DM series die, samples of different sizes and sizes can be prepared.
7. Special cleaning air gun to prevent sample cross-contamination.
8. The initial angle and rotation angle can be set.

product details

Production Processes

Packing System

Overview

In the field of laboratory textile and clothing, rubber, plastic, leather, toys, and paper testing and sample preparation, samples required for testing physical properties, chemical items, etc. can be prepared.

Application

Textile and clothing

Rubber

Leather

Plastic

Toys

Paper

Standards

Key Parameters

Model	M129
Pressure plate diameter	20×20cm
Air pressure	4kg/cm²
Sample preparation size	According to different test requirements, samples of different sizes and sizes can be prepared with the knife mold. The sample preparation size is 5mm×5mm.
Sample preparation efficiency	one complete sample preparation process: about 20 seconds; sample preparation weight: determined according to the sample material and die; when preparing a 5mm×5mm textile sample, about 20g can be prepared at one time, while meeting the requirements Formaldehyde, pH value, banned azo, ingredient quantification, pesticide residues and other test items are required.
working pressure	10 tons, and the working air source pressure is not less than 0.5MPa
Adjustable rotation angle	30°～180°
Overall dimensions	500×400×1200mm
Weight	200kg

Product Details

Sample test area

Control Panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
