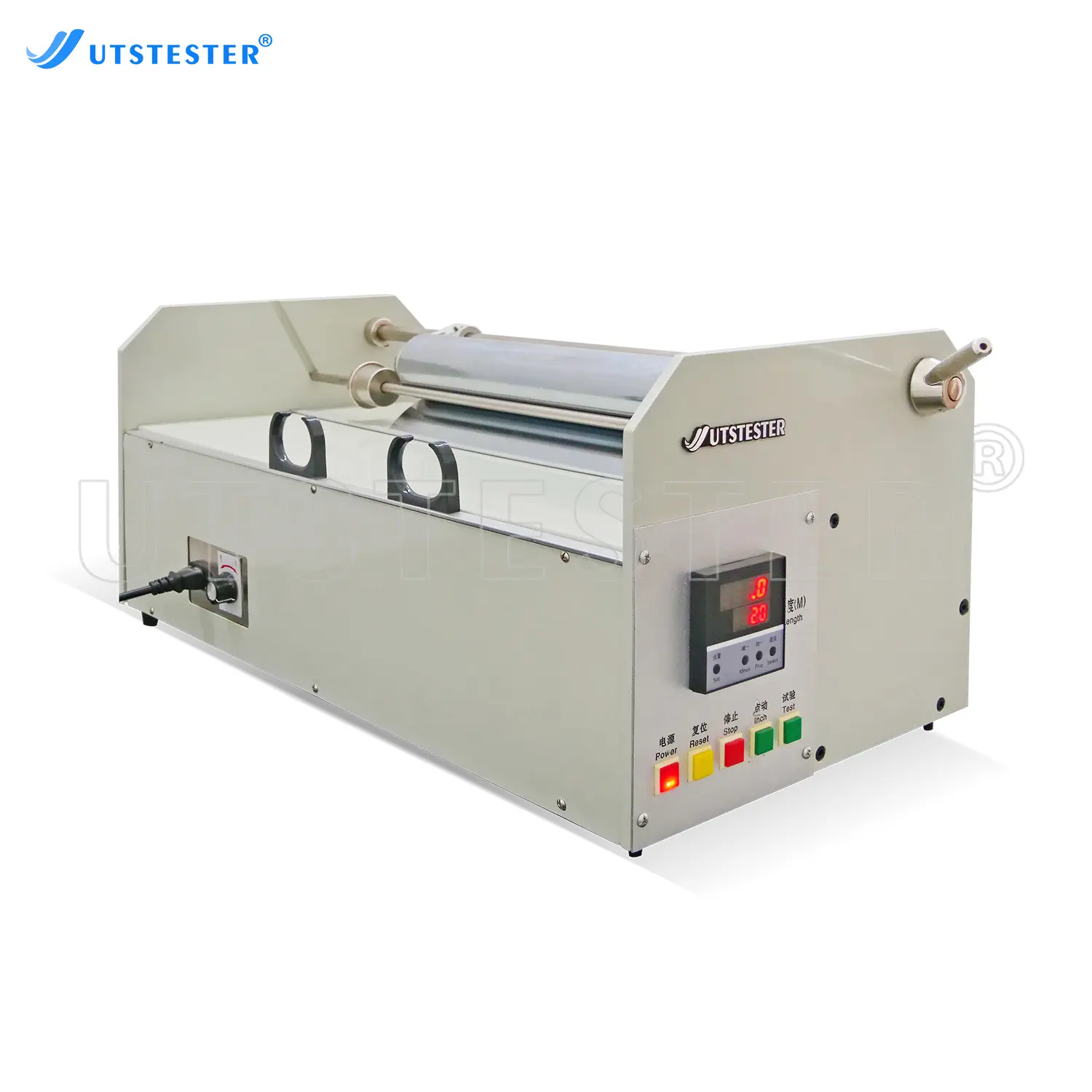

Lab Equipment Electronic Sliver and Roving Reel Measurement of Sliver Roving Uniformity Y007B
Yarn and FiberTesting

Lab Equipment Electronic Sliver and Roving Reel Measurement of Sliver Roving Uniformity Y007B

1.The sample length can be preset through the dial, and the test is accurate.
2.If it is matched with an electronic balance and a special textile printer, it can perform data processing.

    Overview

    This instrument is used to shake cotton, wool, silk and other slivers and rovings into a certain length for testing their uniformity.

    Application

    企业微信截图_17170611267667 拷贝

    cotton

    企业微信截图_17328699741331

    wool

    企业微信截图_1732870115938

    slivers

    企业微信截图_17328700252120

    silk

    Standards

    JJF(Textile)-001-2015

    Key Parameters

    Model

    Y007B

    Circumference of Measuring Wheel

    0.5m

    Rolling drum width

    430mm

    linear velocity of the meter wheel

    a50m/min

    b5m/min

    Working positions

    aCoarse yarn: one head end

    bCotton sliver: two head ends

    Preset Length

    999.9 meters

    Length Display

    999.9 meters

    ways of drive

    separate motor drive

    Dimension

    700×350×300mm ( L x W x H )

    Weight

    50kg

    Product Details

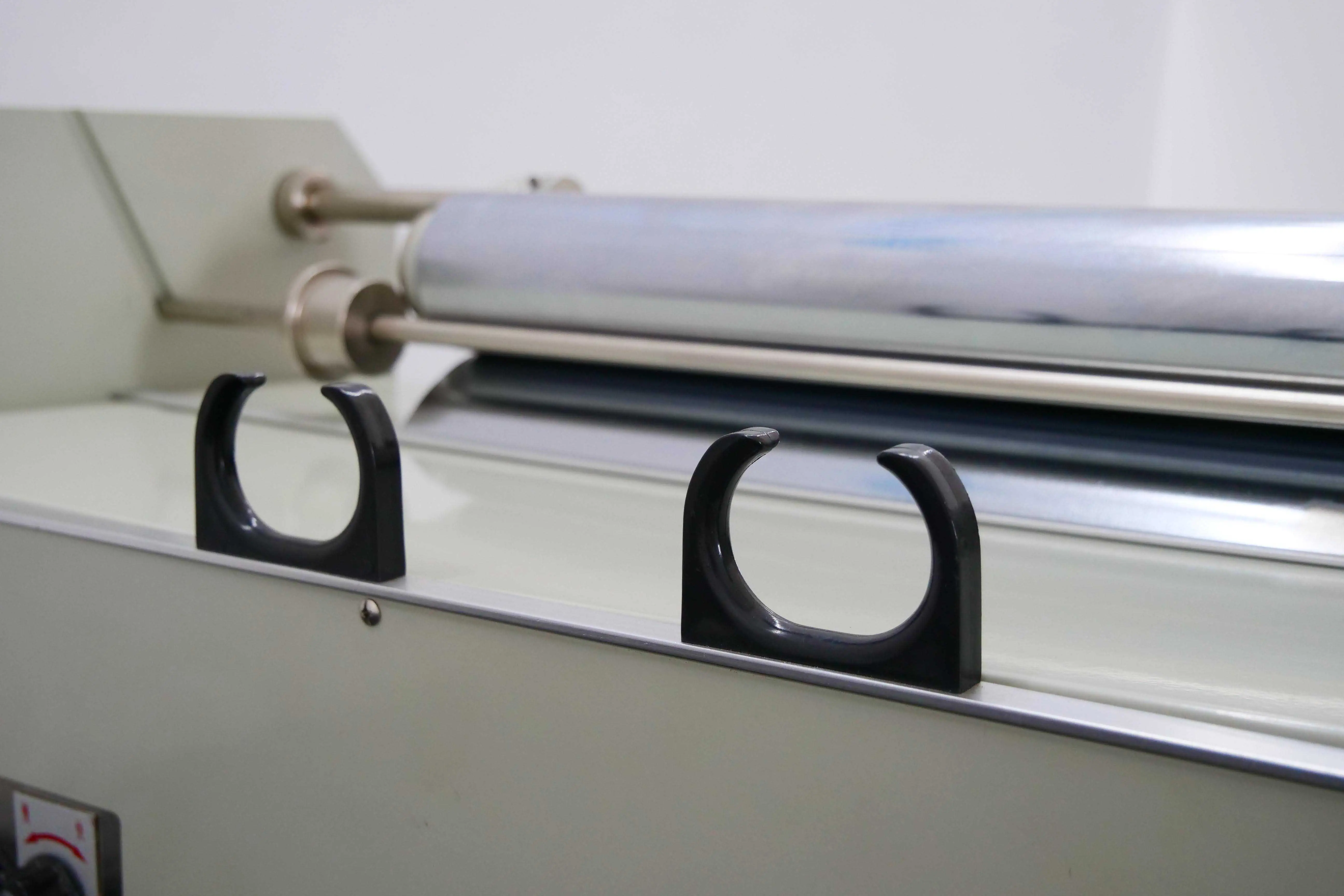

    P1035971

    Guide bar hook

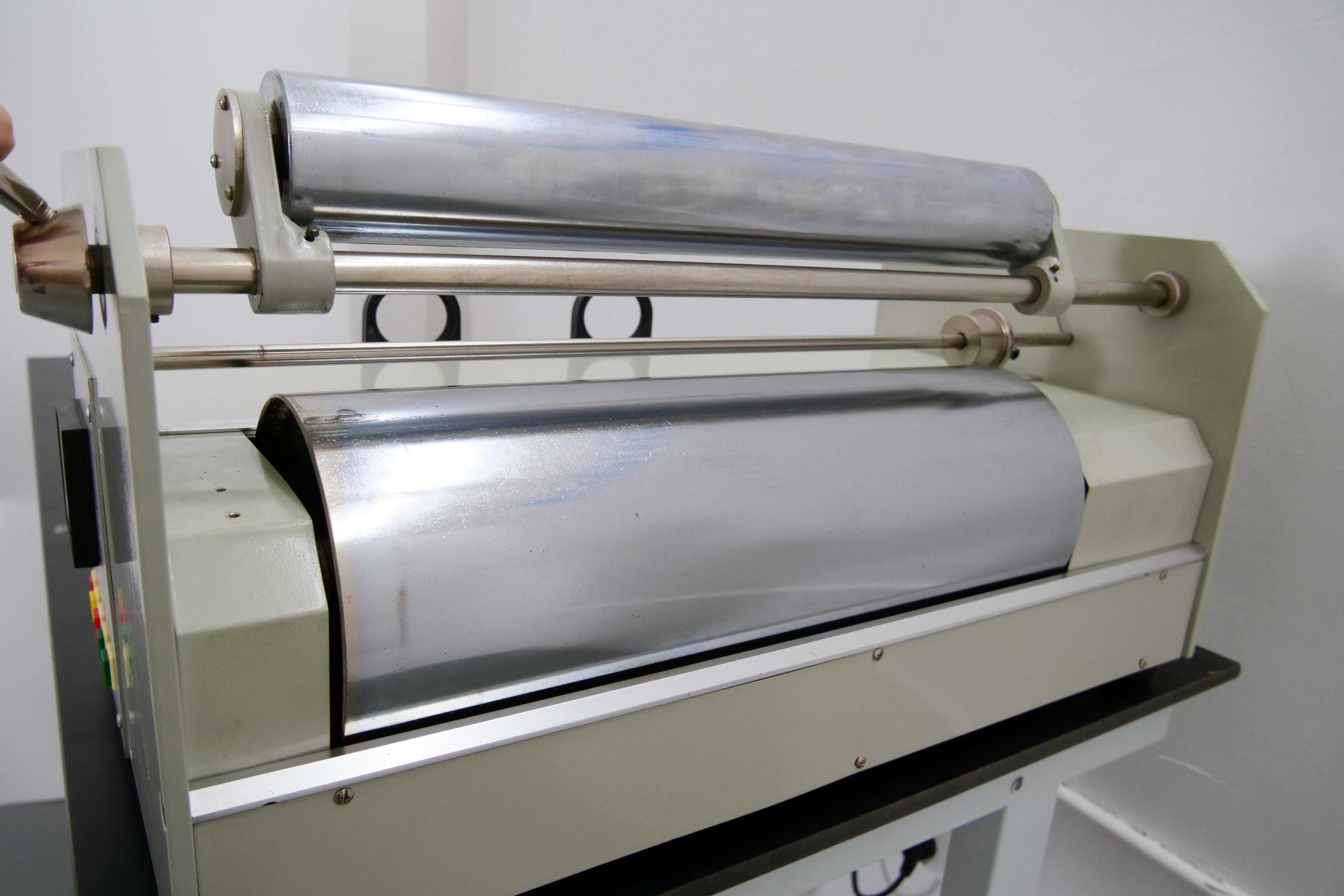

    P1035966

    Blackboard clip

    P1035963

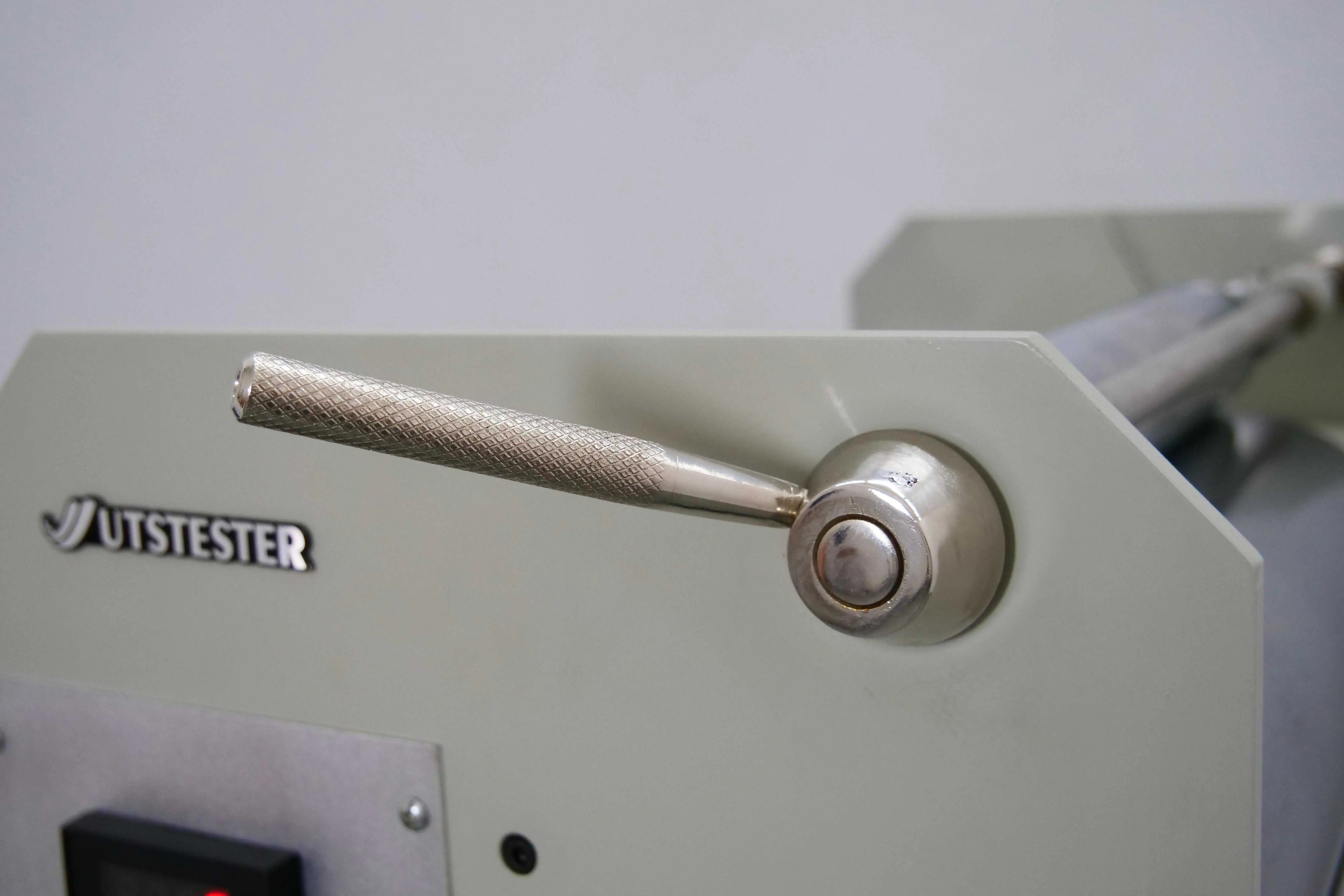

    Handle

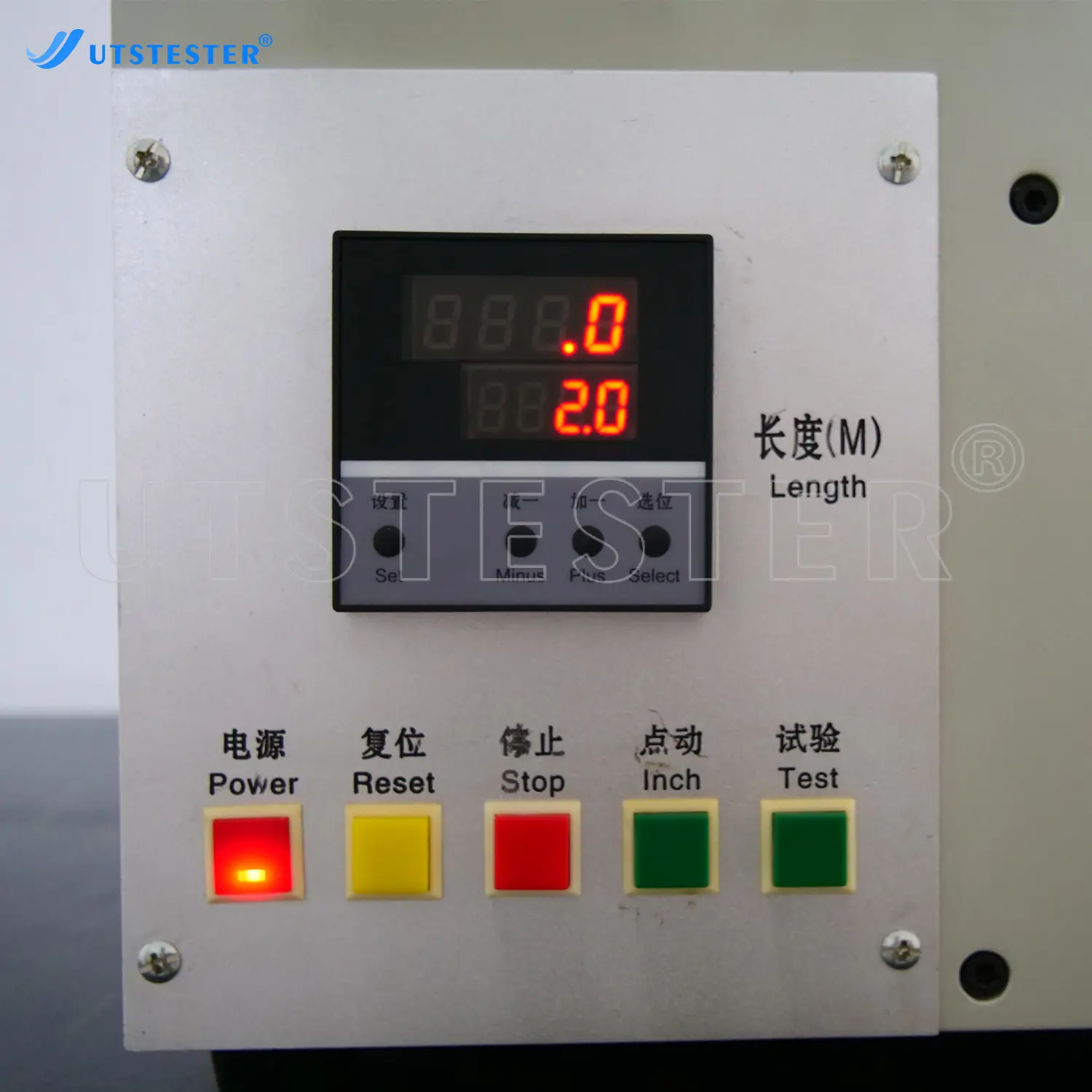

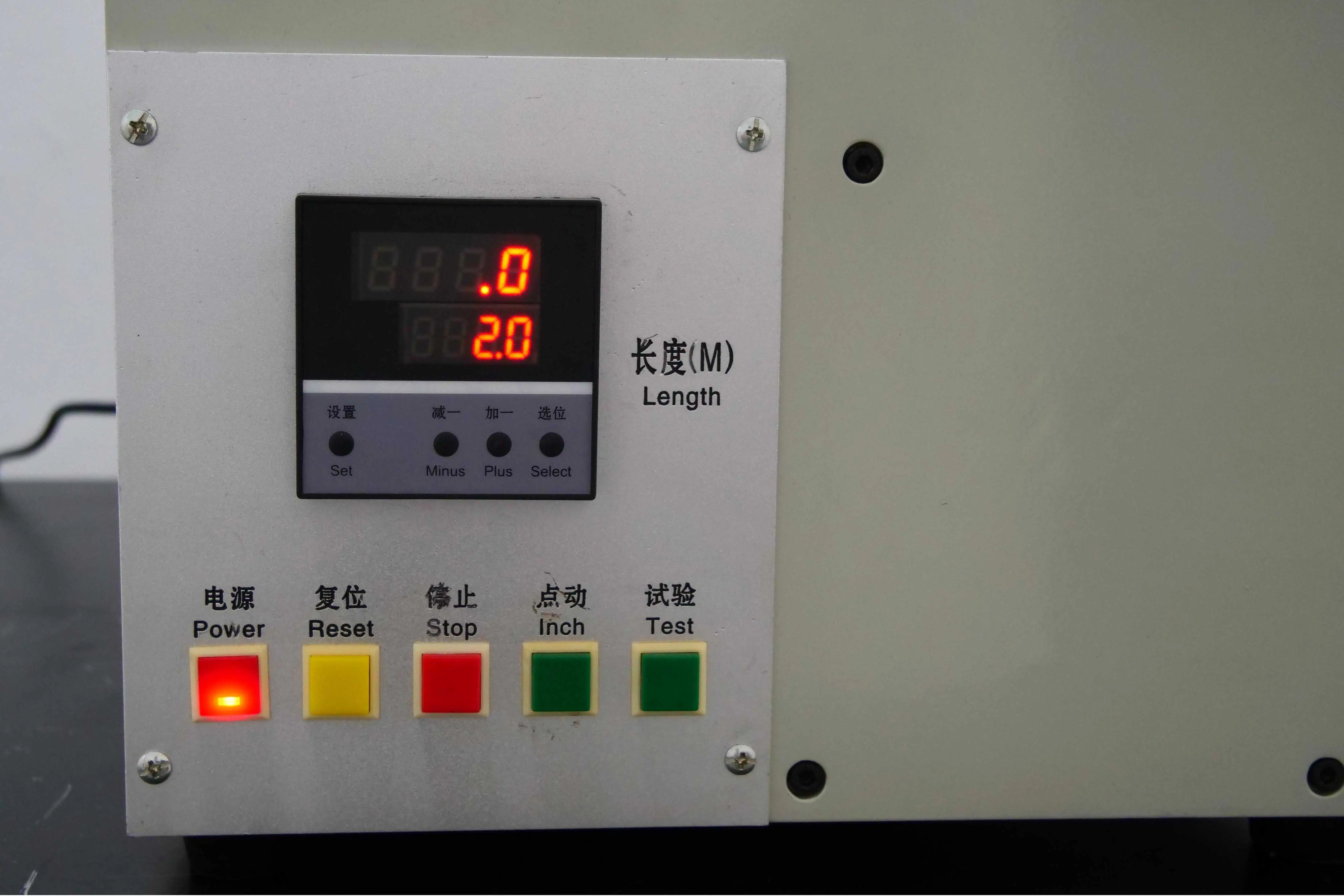

    P1035935

    Control panel

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

    Transportation

    image071evh

    Packing System

    1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
    2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
    3. Packing materials selected accorded with economic and safety requirements
    4. Compliance with environmental requirements.
