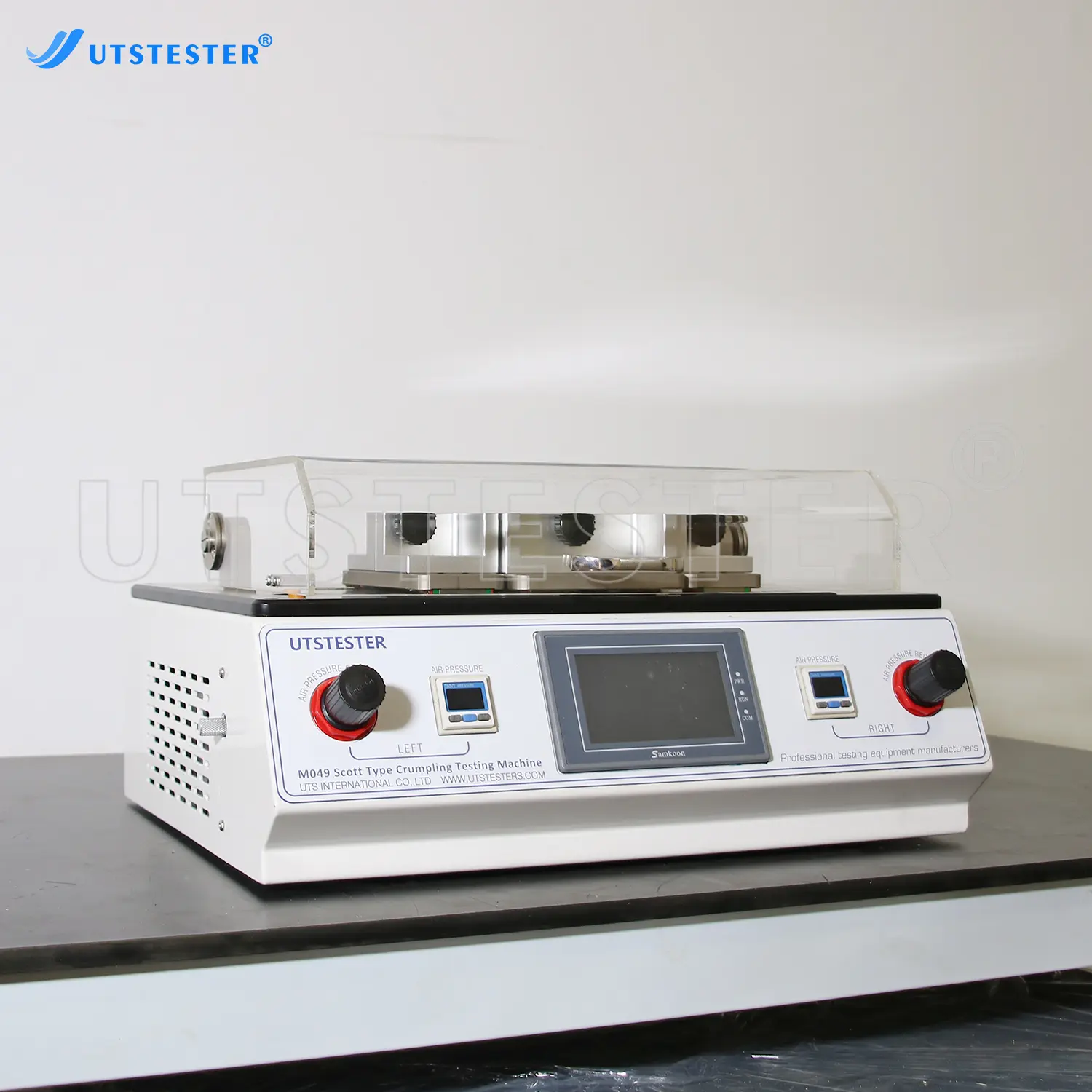

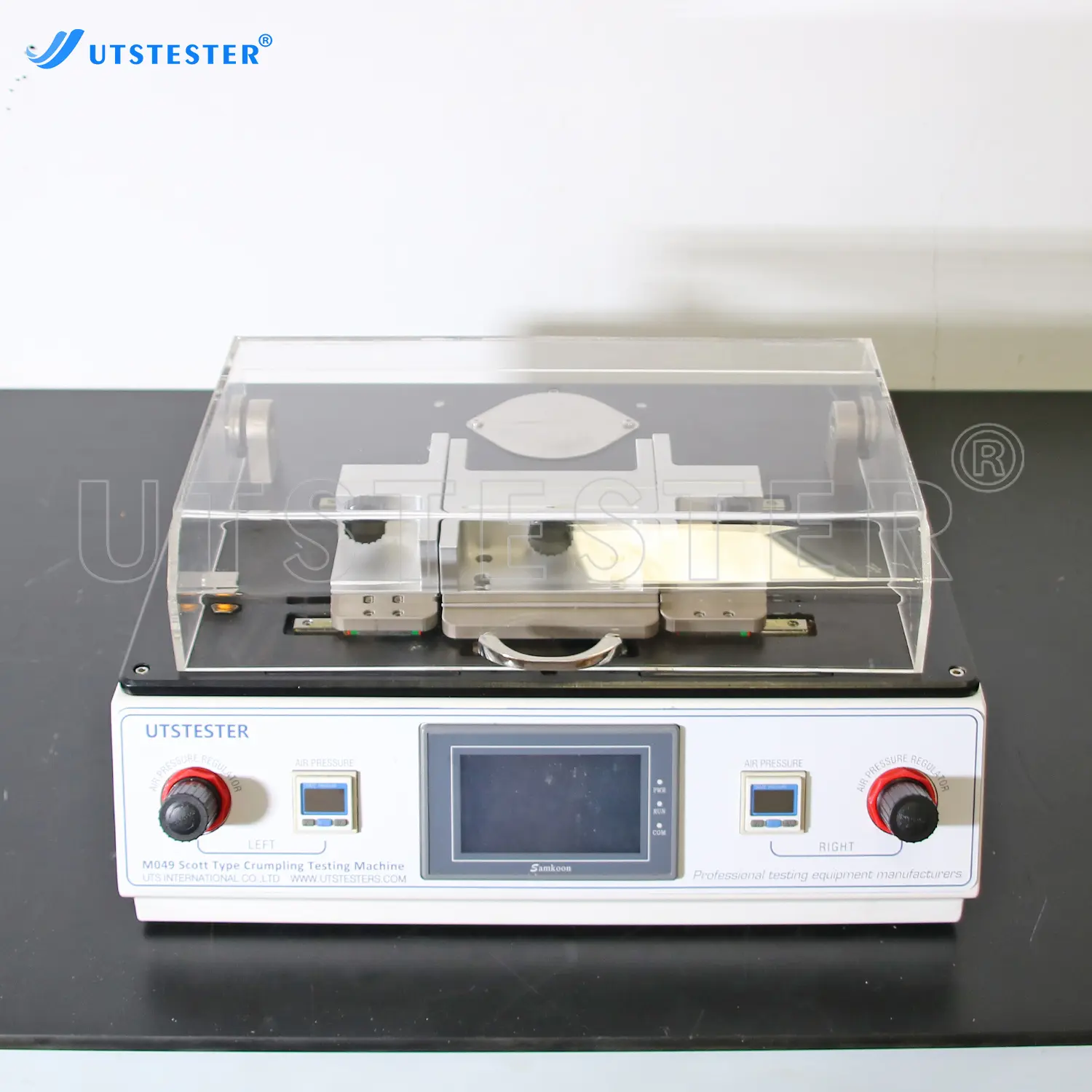

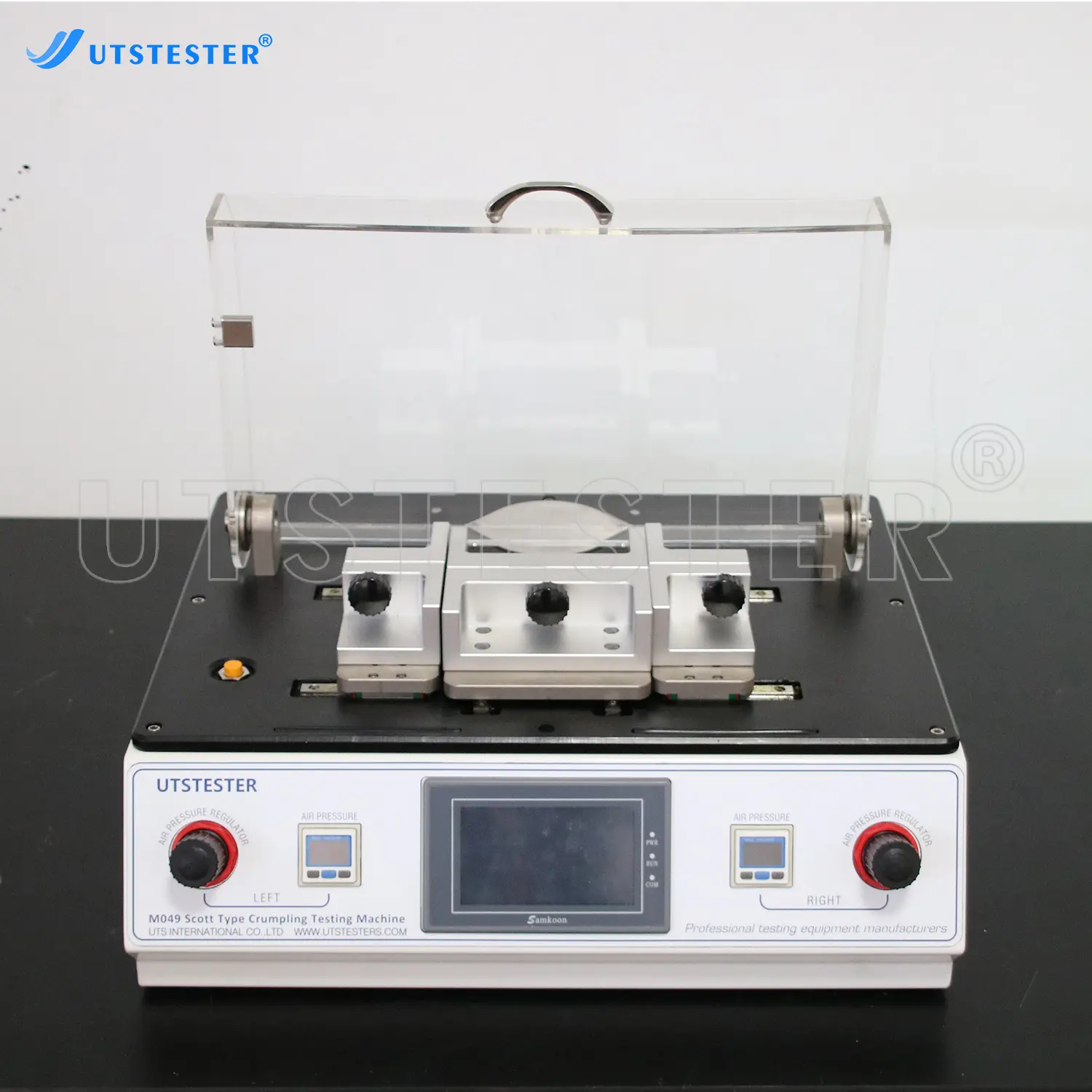

Lab Equipment Crumpling Resistance Instrument for Fabric Scott Type Crumpling Testing Machine M049
Overview
This tester is suitable for testing the rubbing resistance of coated fabric and artificial leather.
This tester is suitable for plain cloth or twill cloth as the base, adding plasticizer and other additives in the polyvinyl chloride resin by calendering or coating and other methods made of PVC artificial leather and knitwear and machine woven fabric as the base, by dry polyurethane coating process.
Application
artificial leather
coated fabric
Standards
JIS K6404-6, JIS L1096, GB/T 8948, GB/T 8949
Key Parameters
|
Model |
M049 |
|
Sample |
30mm x 120 mm |
|
Testing speed |
120±2r/min |
|
Fixture interval |
30mm |
|
Testing stroke |
50mm |
|
Fixture |
1kgf(9.8N) |
|
Working position |
2 |
|
Counter |
0~9999 times, settable |
|
Air pressure |
6kgf/cm^2 |
|
Power Supply |
1∮ AC 220V 3A |
|
Dimensions ( L x W x H ) |
58x45x45cm |
|
Weight |
≈60Kg |
Product Details

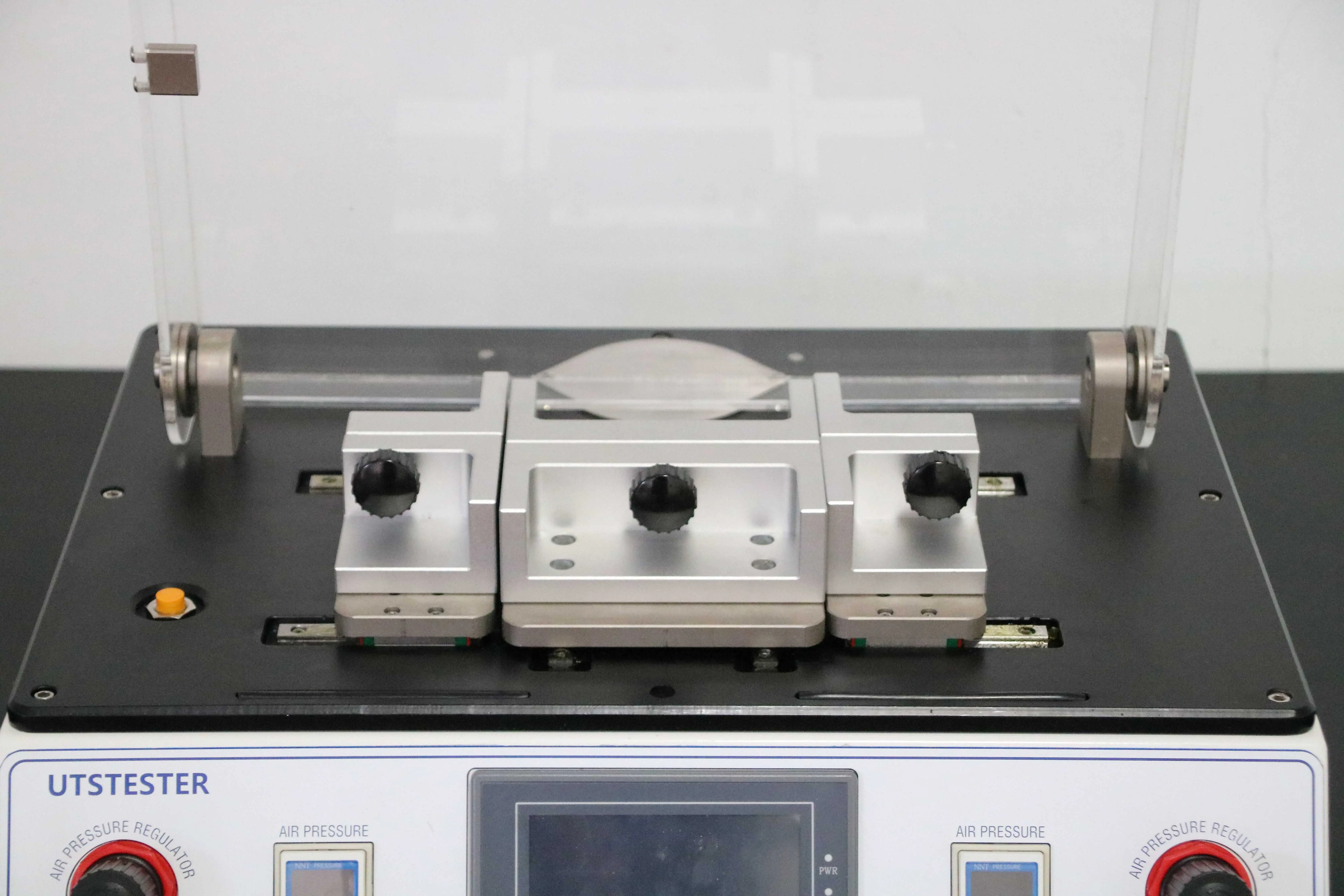

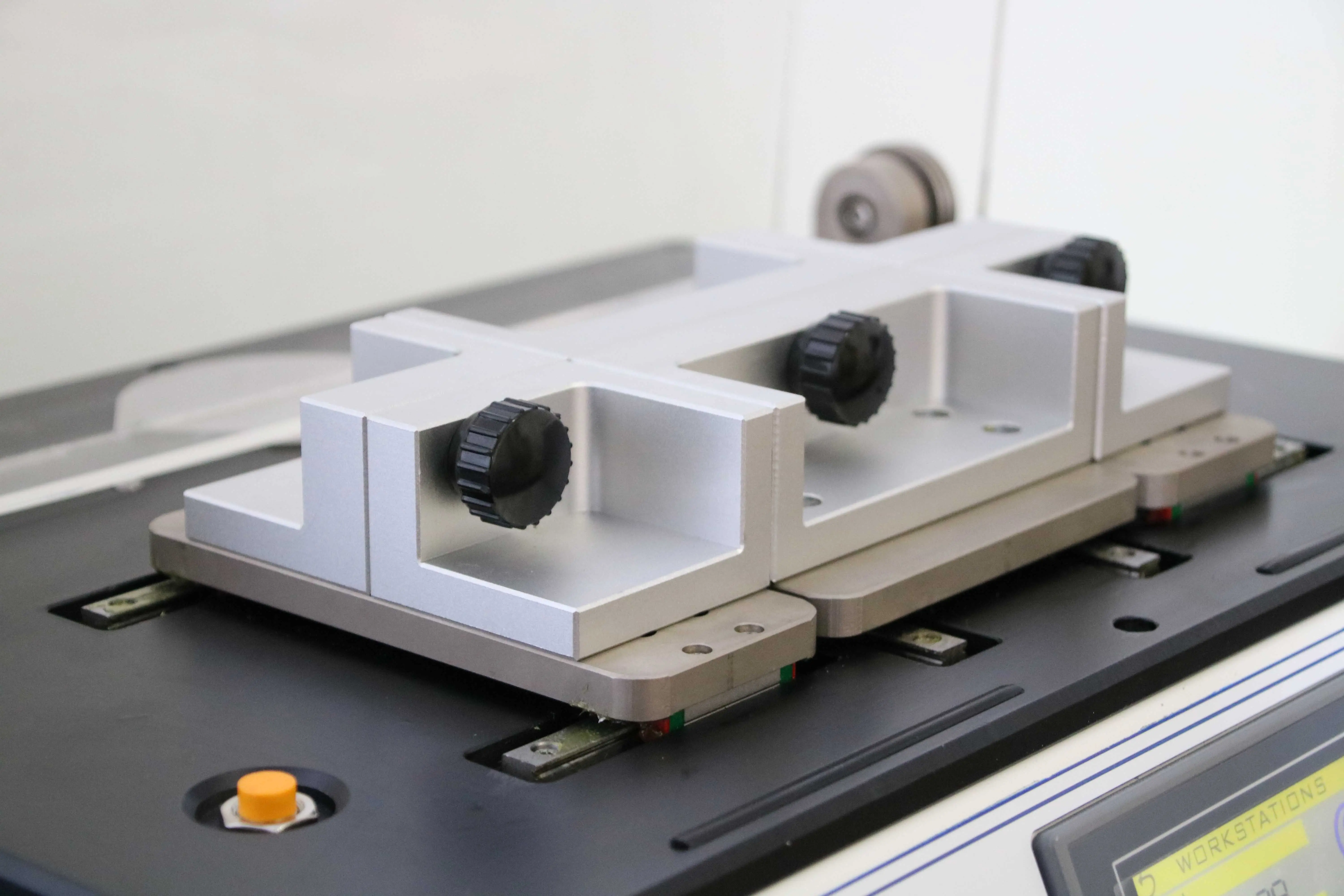

Left loading fixture

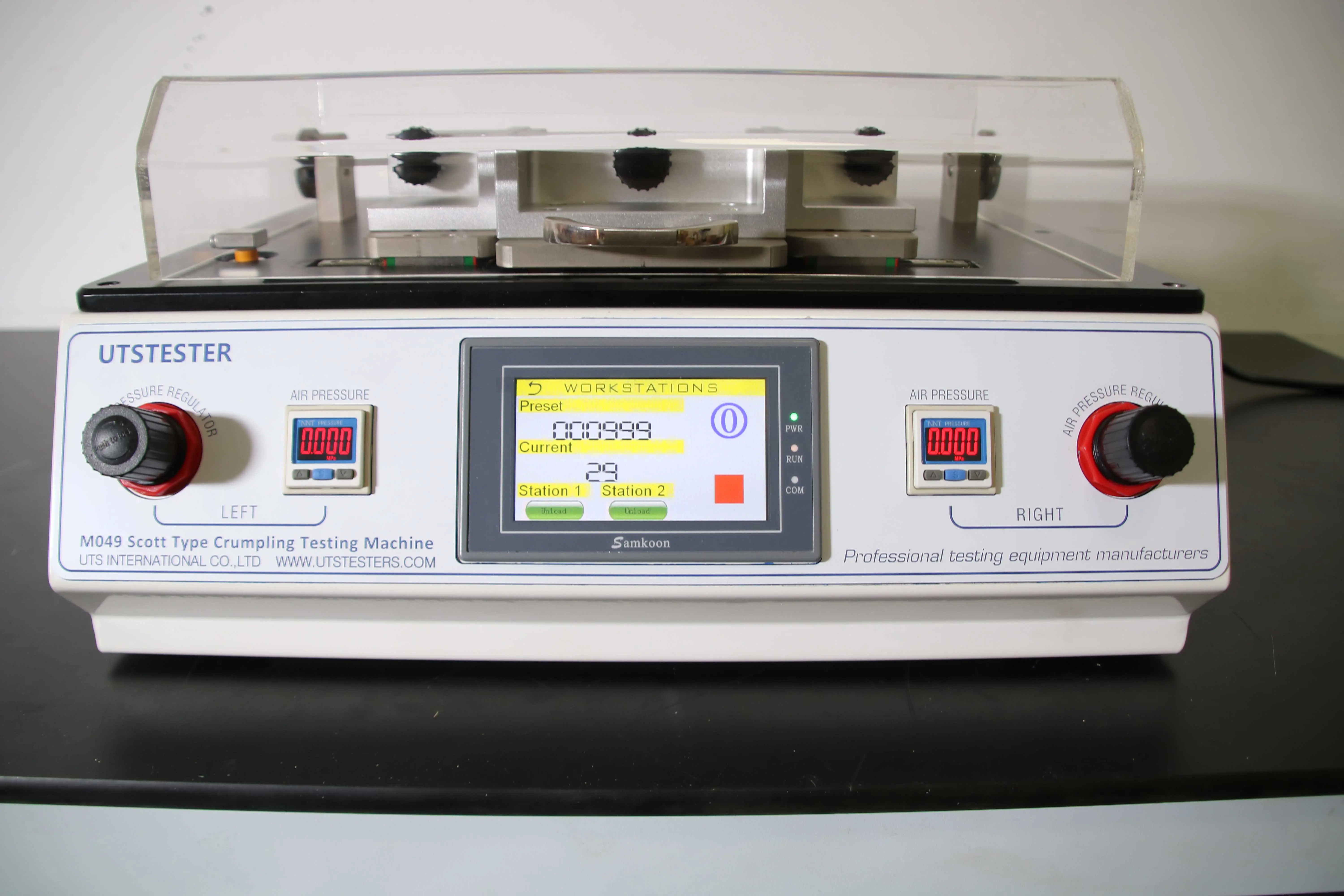

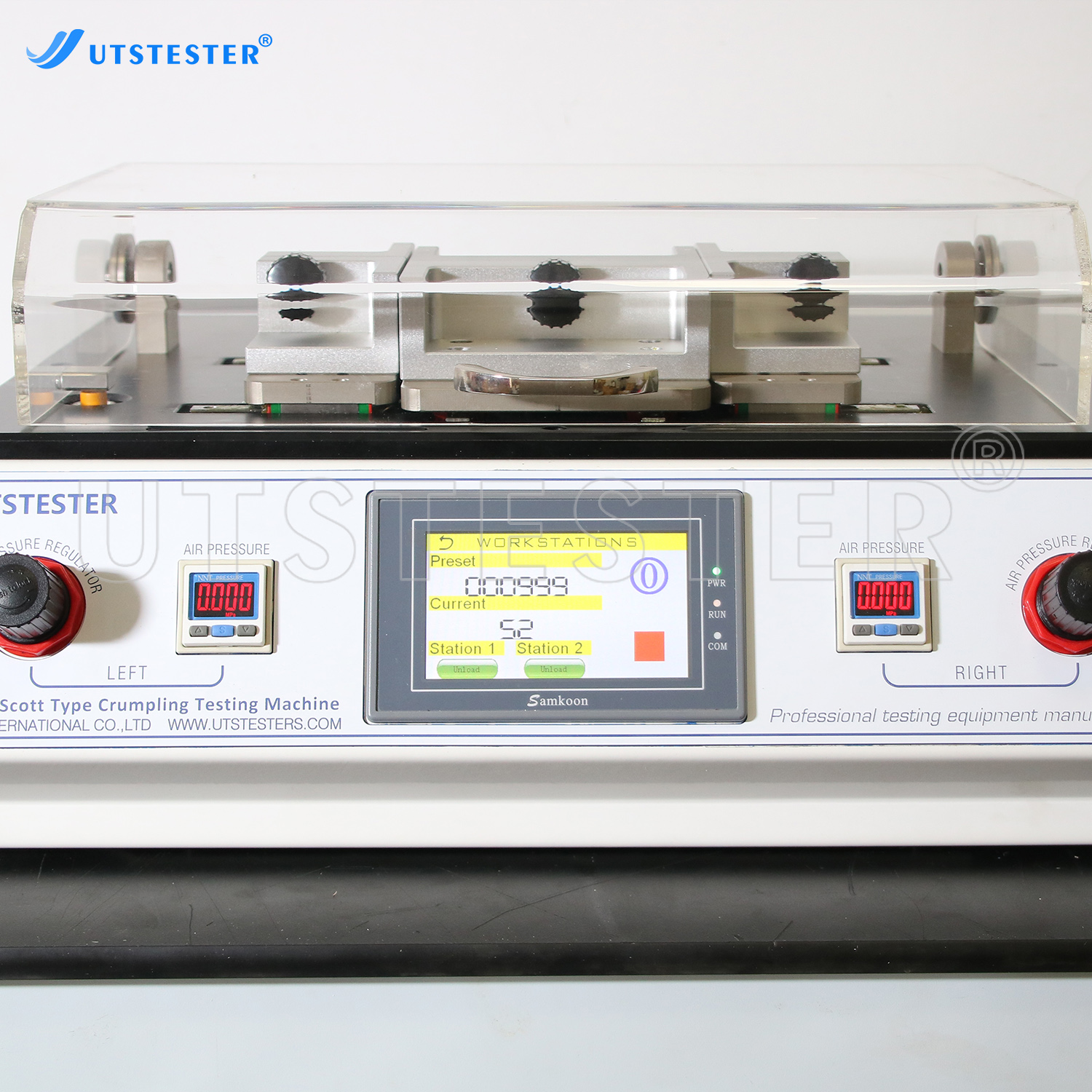

Control panel

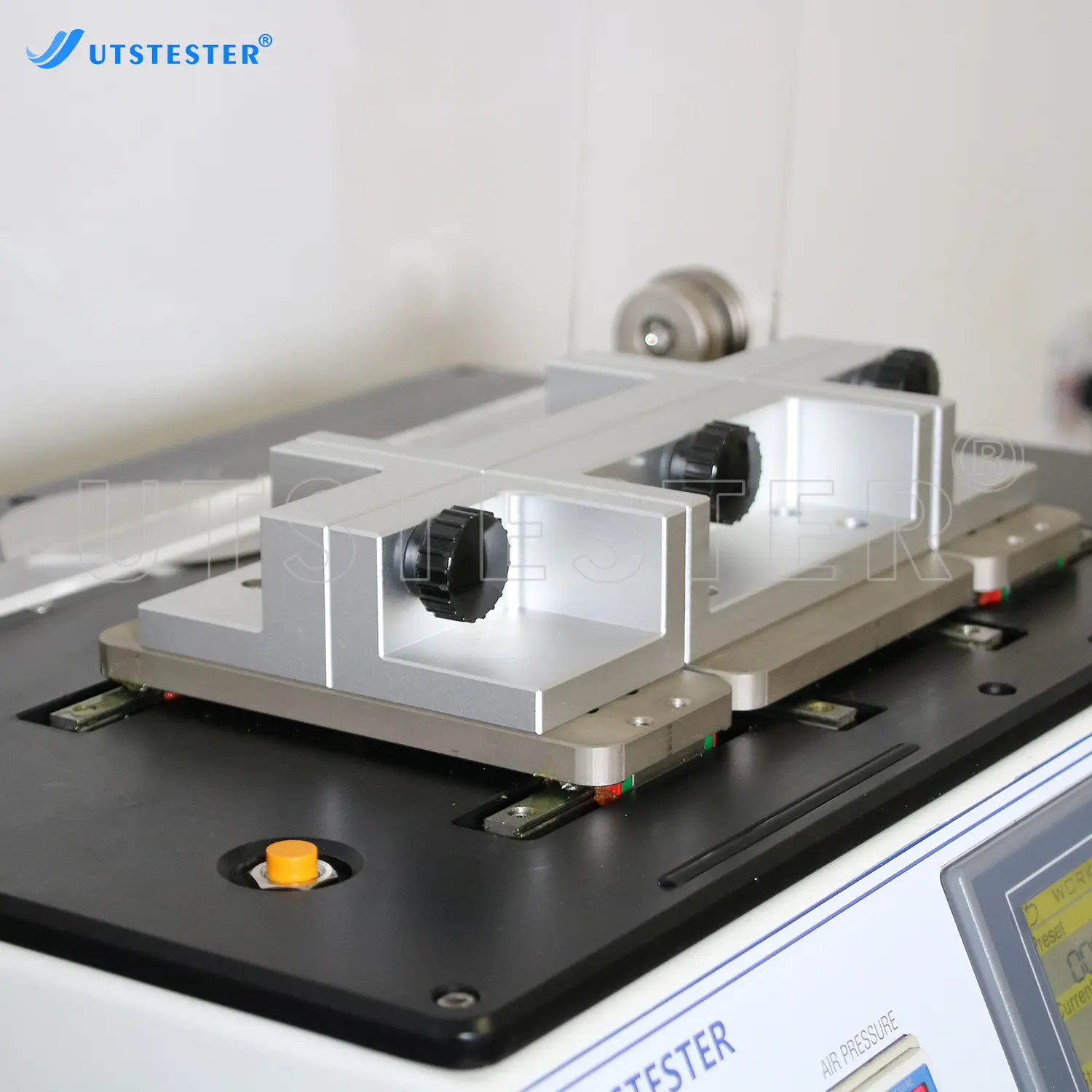

Moving jig
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
