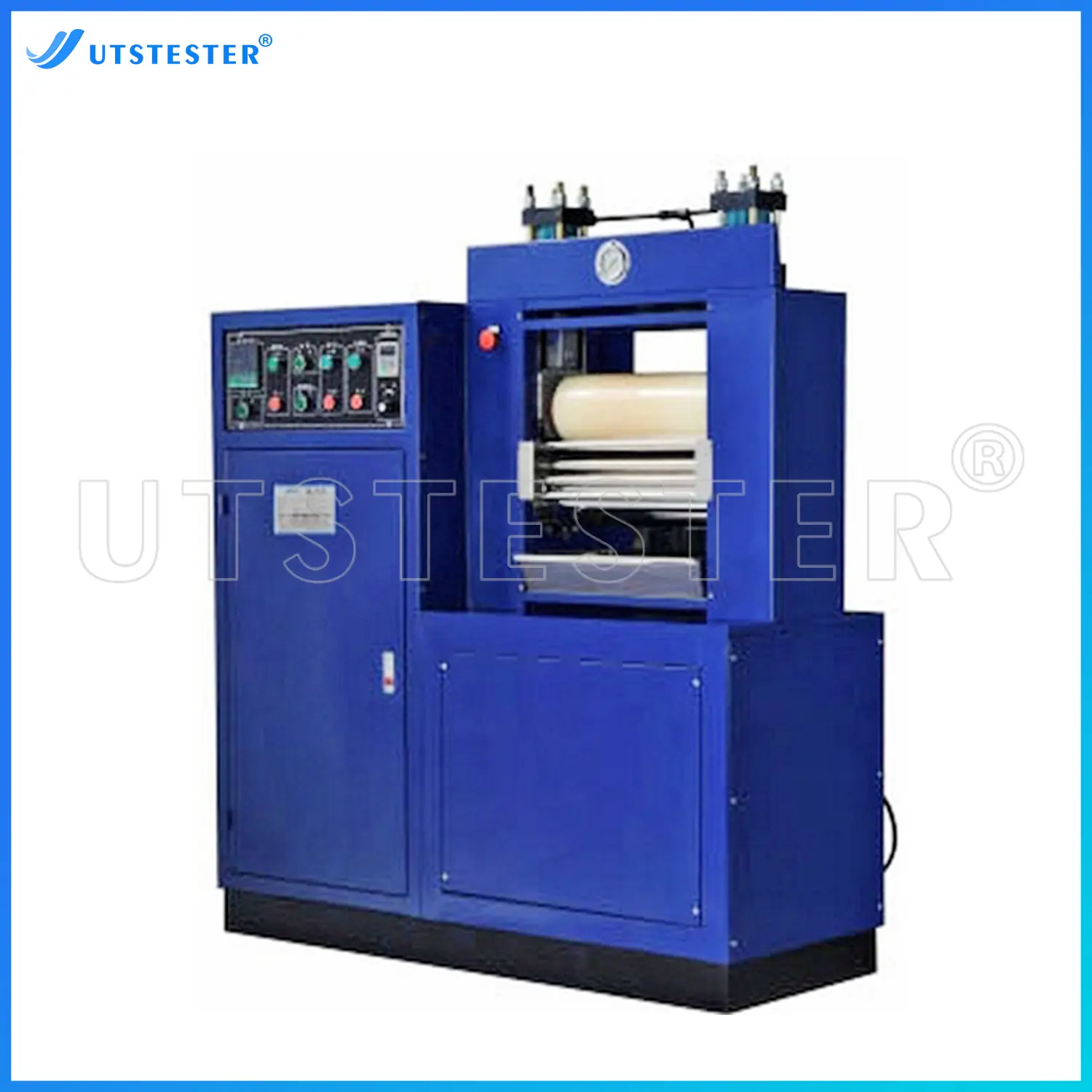

Lab Dyeing Equipment Calendering Machine for Textile Dyeing and Finishing Process D025
Overview
UTS Calendering Machine is a laboratory equipment for textile dyeing and finishing process. Applicable for pure cotton, chemical fiber, hessian, wool fabric, blended fabrics to do calendering process. Up and bottom rollers make fabrics produce different gloss and smooth by heating, abrasion and pressure.
Application
Textiles
Fabrics
Standards
Standards
Key Parameters
|
Model |
D025
|
|
Working Temperature |
Room temp to 180℃ |
|
Working speed |
0-6m/Min |
|
Pressure mode |
Hydraulic maximum lineal pressure 5T. |
|
The upper roller |
Nylon Roller , ￠150×400mm, Max temp. Upto 180℃ |
|
The lower roller |
|
|
Safety Devices |
Manual switch, Shield, and Emergency Stop Switch |
|
Rollers Position |
Upper and lower Vertical rollers |
|
Maximum temperature resistant |
Nylon roller with cooling machine can up to 210℃ |
|
Power supply |
380V, AC, 3 Phase, 7KW |
|
Power Supply |
1430×600×1650mm |
|
Weight |
450kg |
Product Details
Roller
Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
