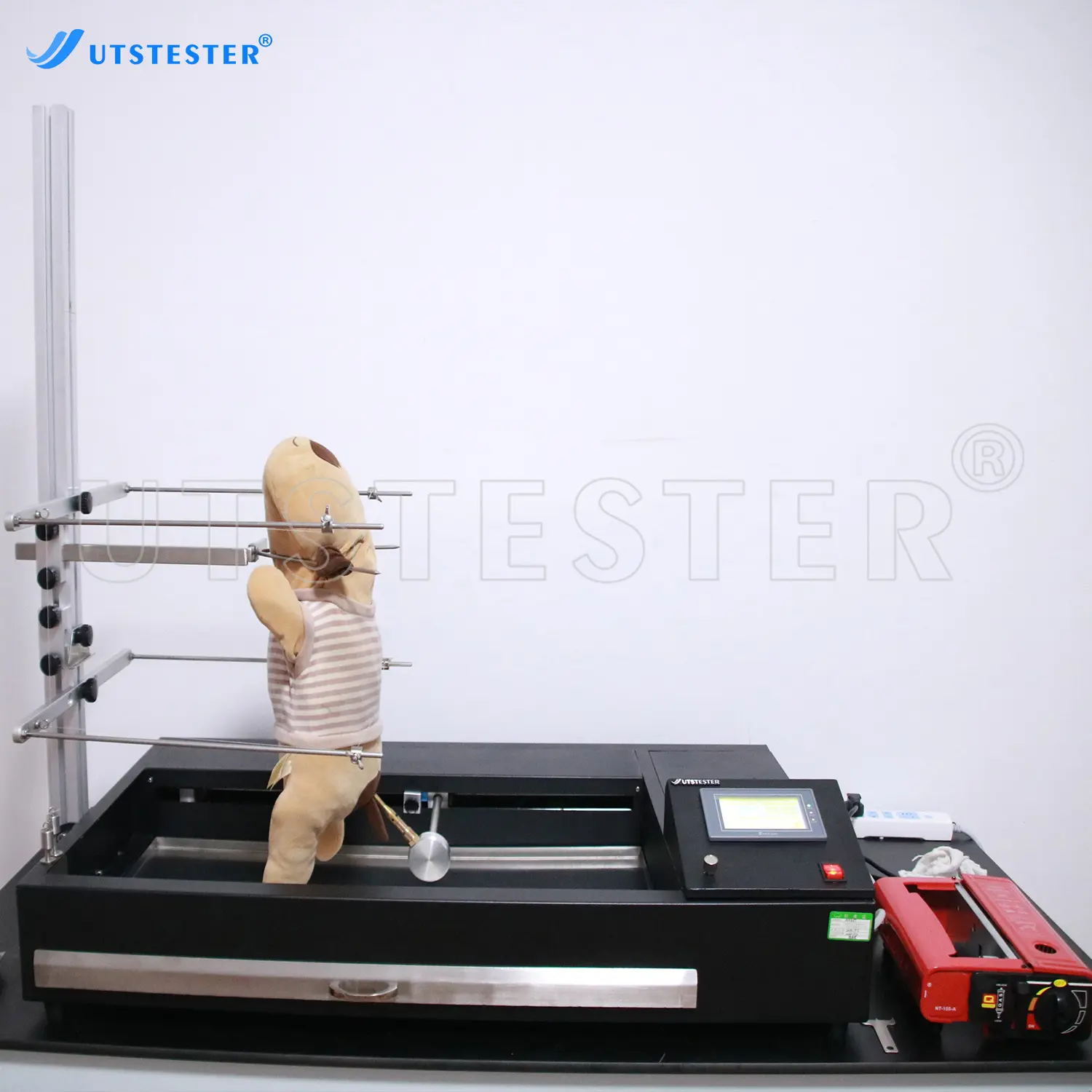

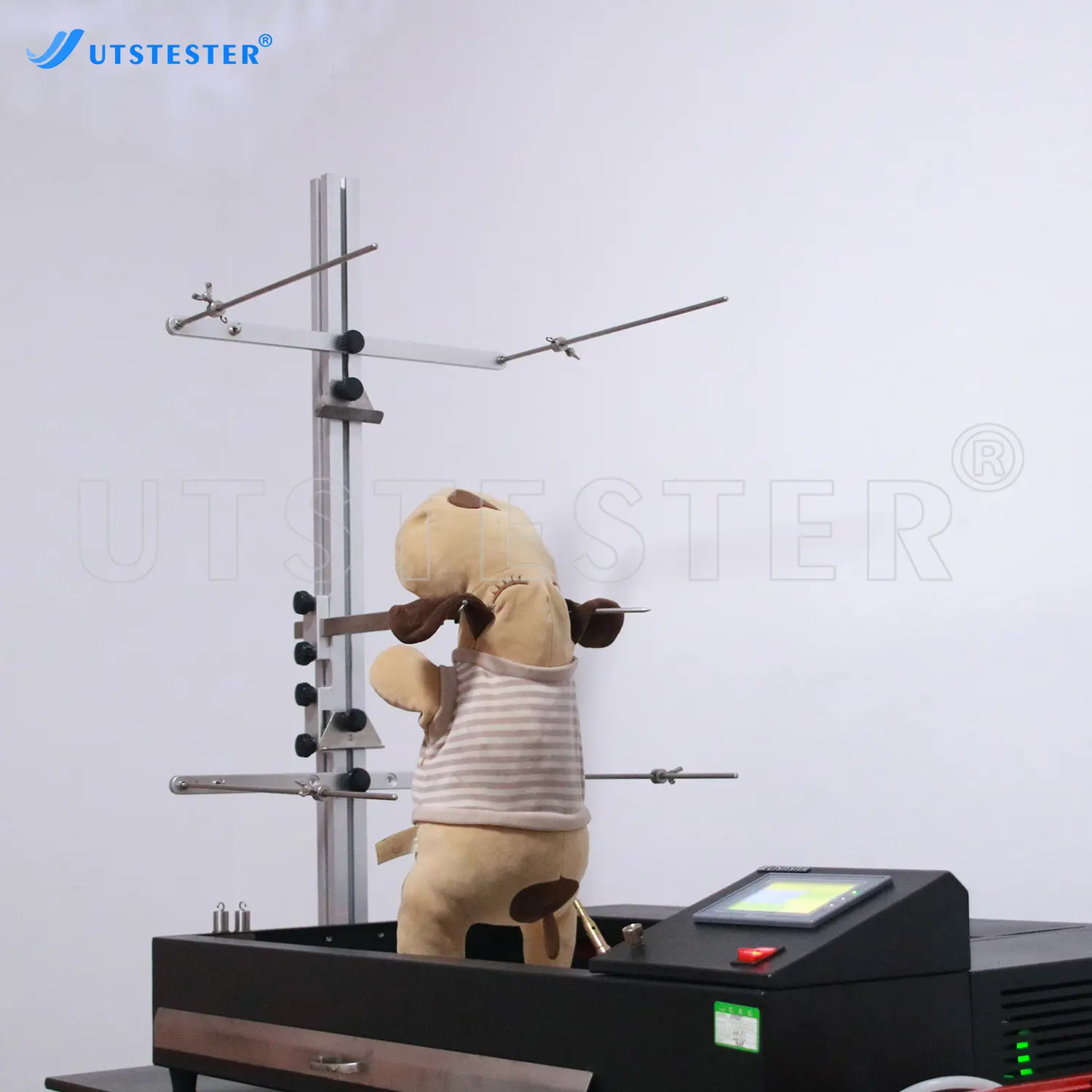

ISO 6941 Toys Flammability Tester Flammability Testing Machine T010
Overview
T010 Toys Flammability Tester is to test the flammability property for children toys or toys materials. Including below:
1. Toys to be worn on the head: beards, moustaches, wigs etc. made from hair, pile or material with similar features; moulded and fabric masks; hoods, head-dresses etc.; flowing elements of 2. Toys to be worn on the head, but excluding paper novelty hats of the type usually supplied in party crackers;
3. Toy disguise costumes and toys intended to be worn by a child in play;
4. Toys intended to be entered by a child;

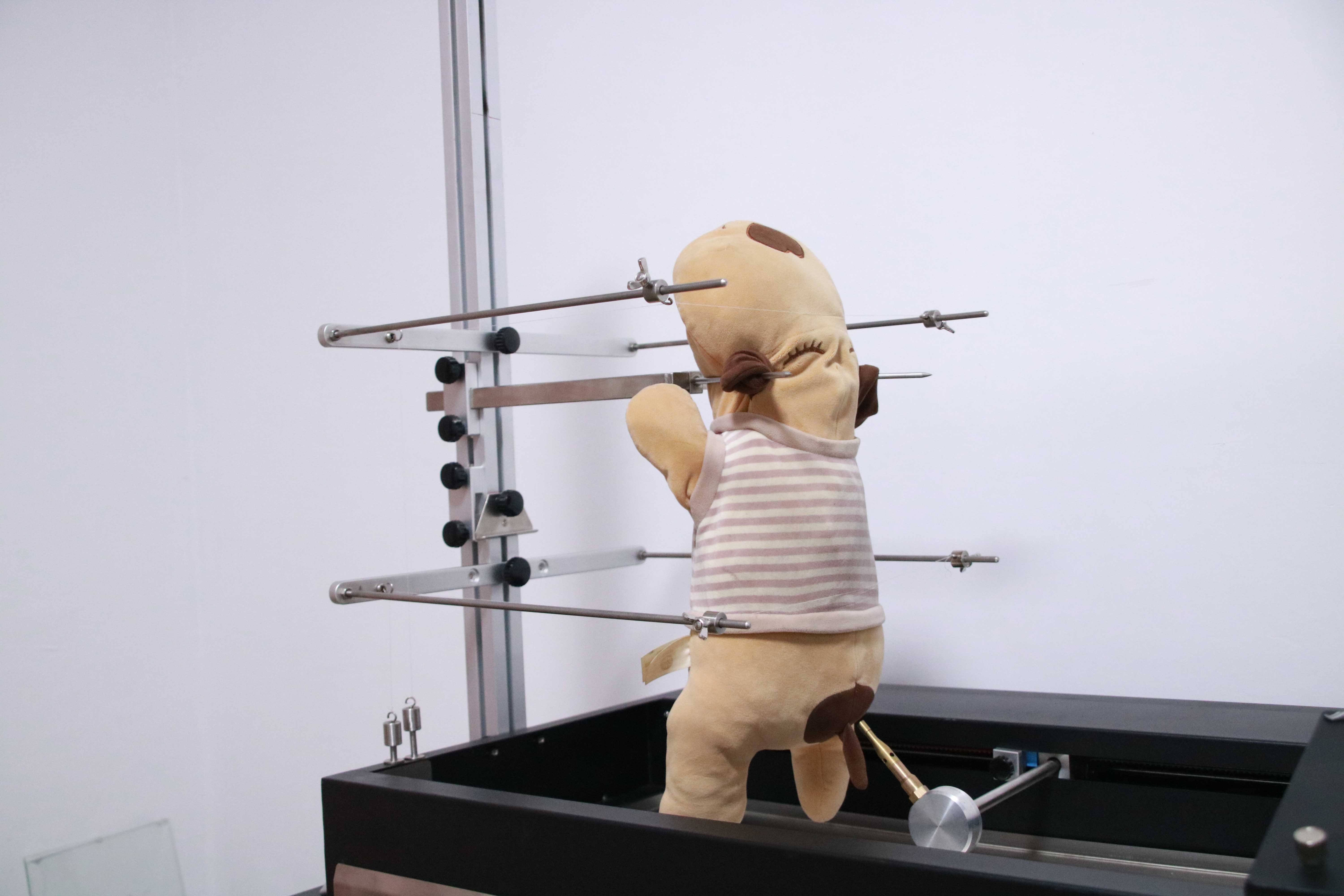

5. Soft-filled toys (animals and dolls etc.) with a piled surface or textile surface.
Application
Doll Clothing
Dolls

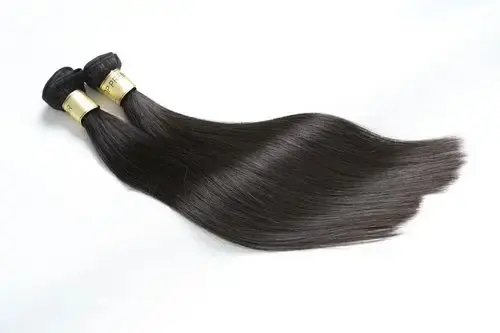

Wigs
Standards
EN 71-2
ISO 8124-2
GB 6675.3
ISO 6941
Key Parameters
|
Model |
T010 |
|

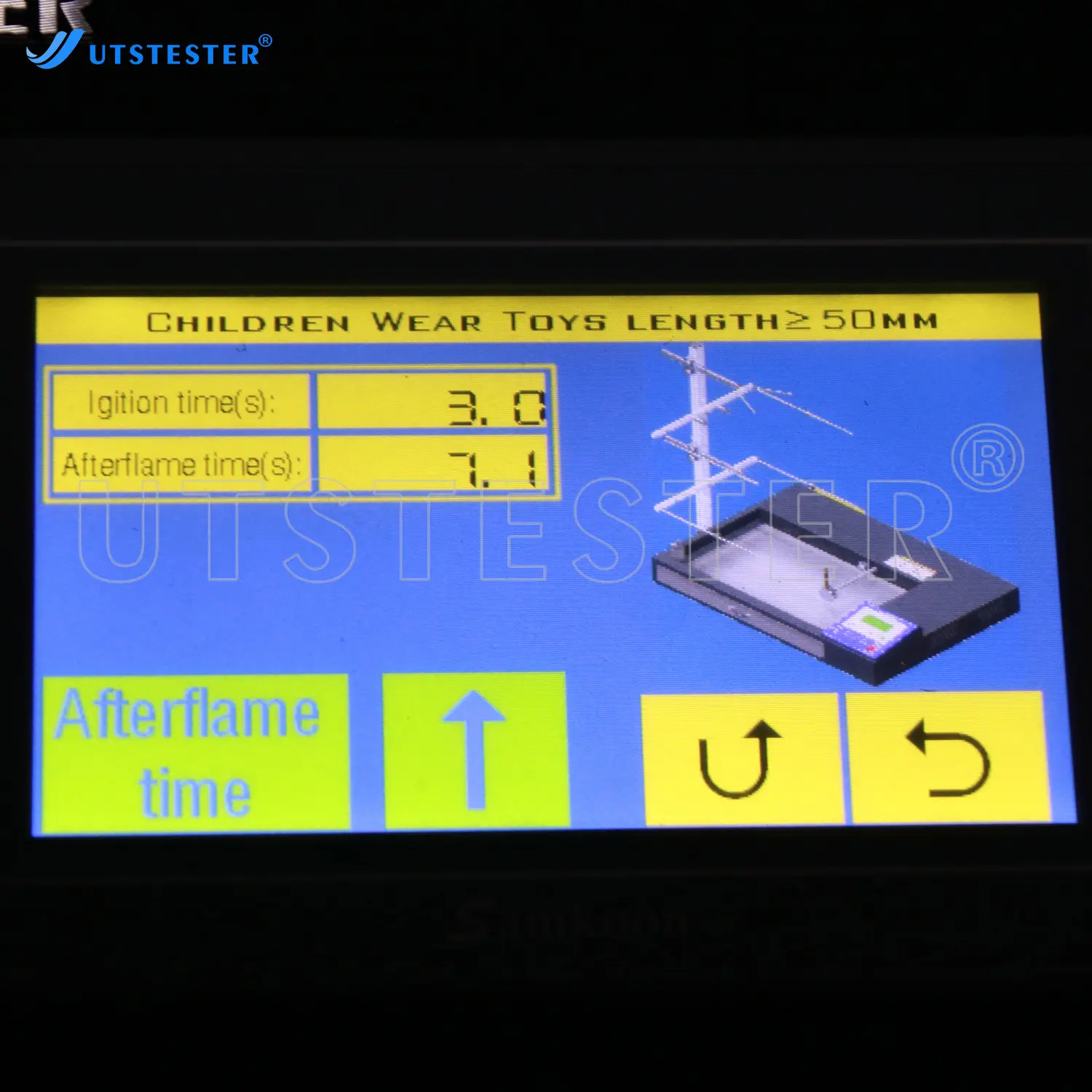

Ignition Time Setting Range |
0-99.9S (Precision: 0.1S) |
|
After Flame Time |
0-999.9S |
|
Burner |
According to ISO6941 Standard |
|
Burner Angle |
0°/45°/90°adjustable |
|
Test Flame Height |
20mm/40mm |
|
U shape fixture inner frame |
80mmx600mm |
|
U shape fixture tag line position |
First tag line distance from bottom of fixture 50mm, second tag line distance from first tag line 500mm |
|
Burning gas |
Butagas |
|
Dimensions |
900 x 630 x 870mm (L x W x H) |
|
Weight |
40kg |
|
Power Supply |
AC 220V 50/60Hz |
Product Details

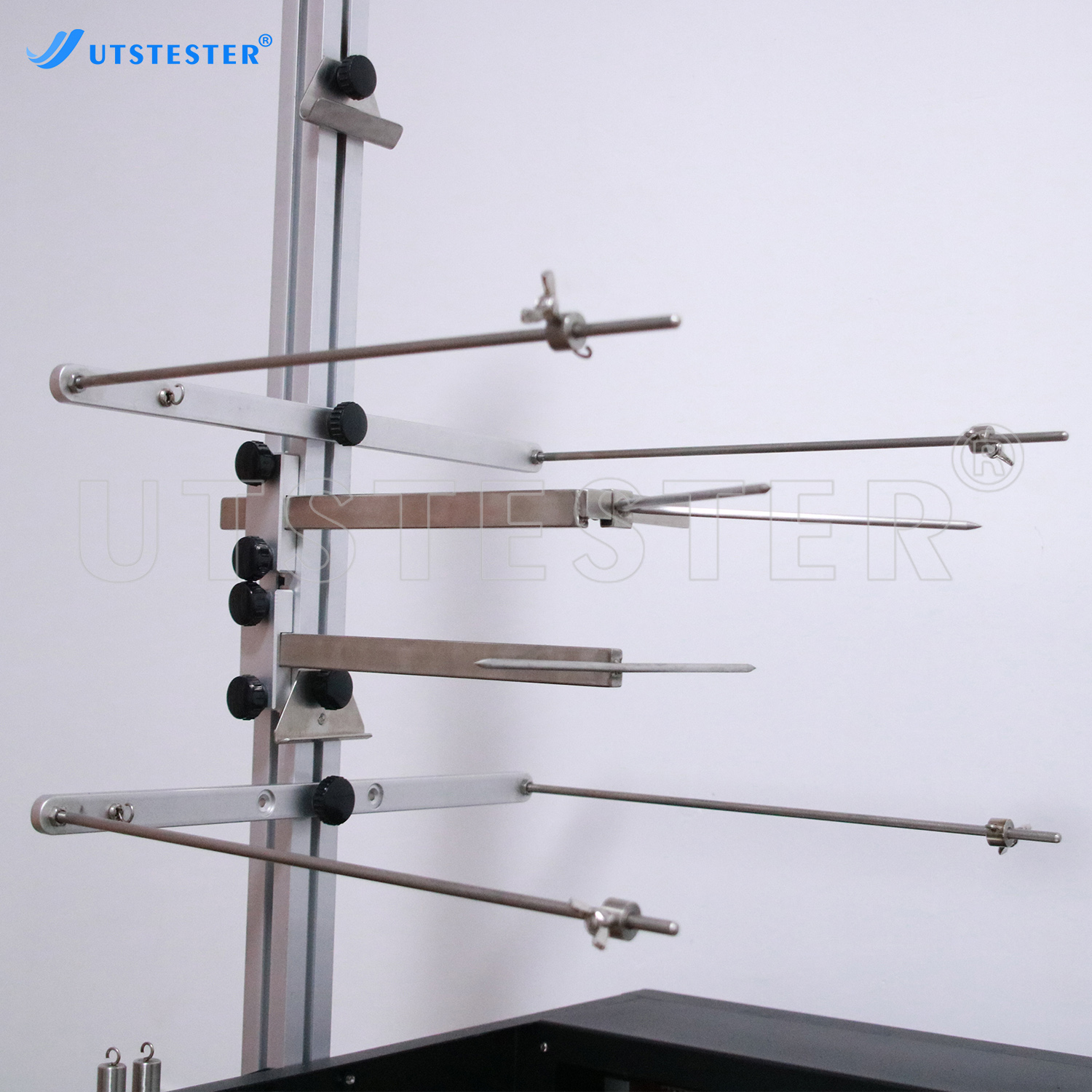

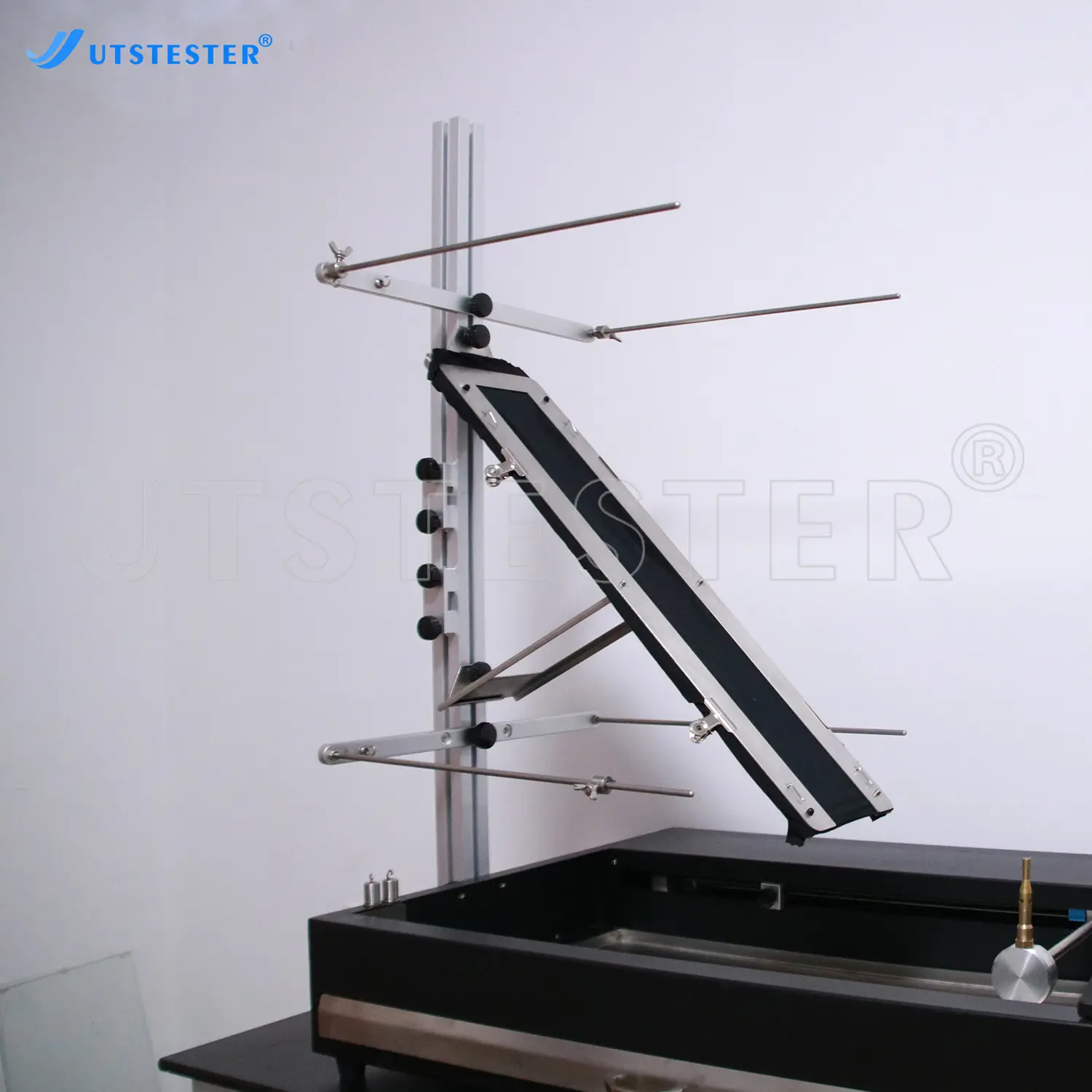

U-shaped sample rack

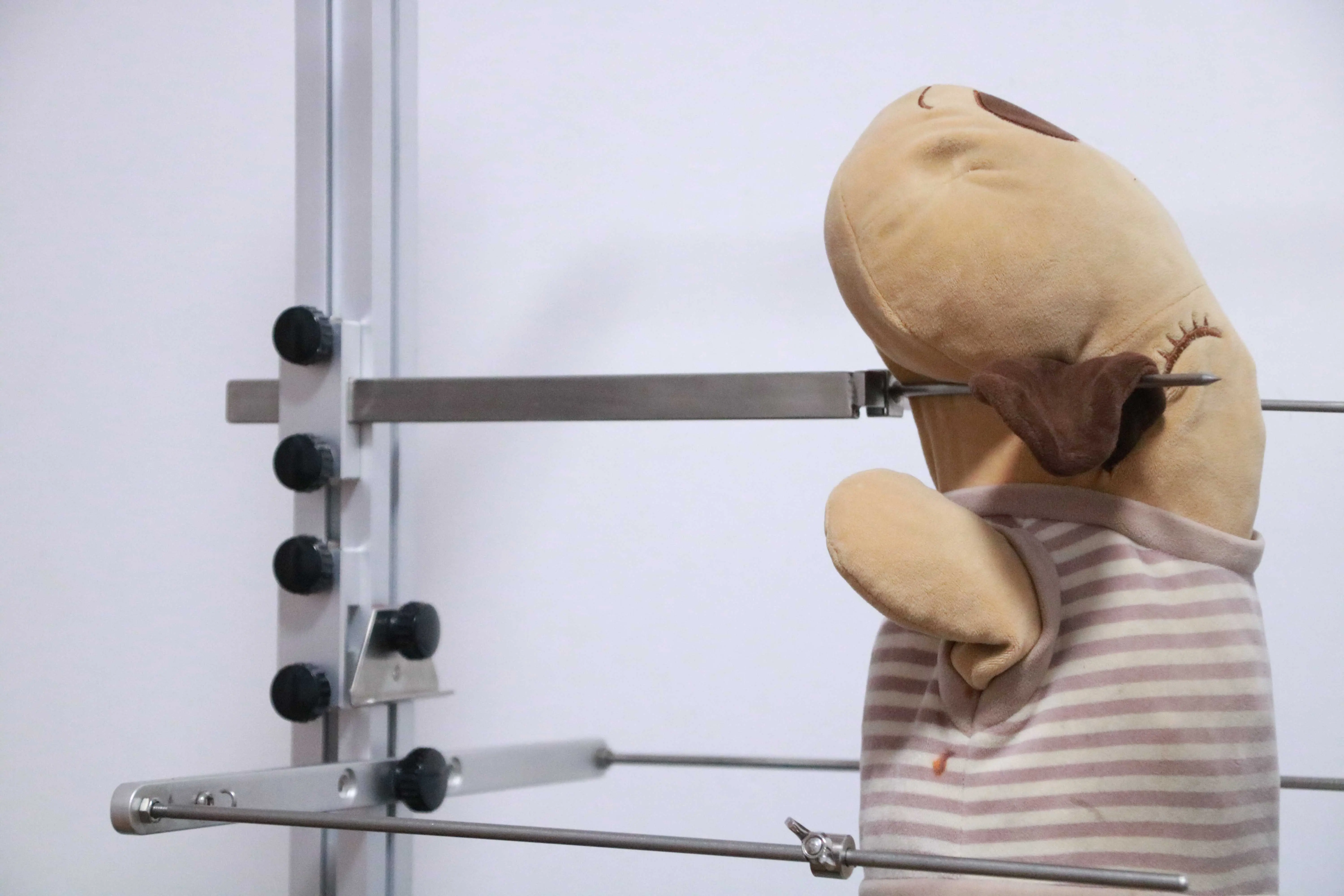

Mark the line hanging lever

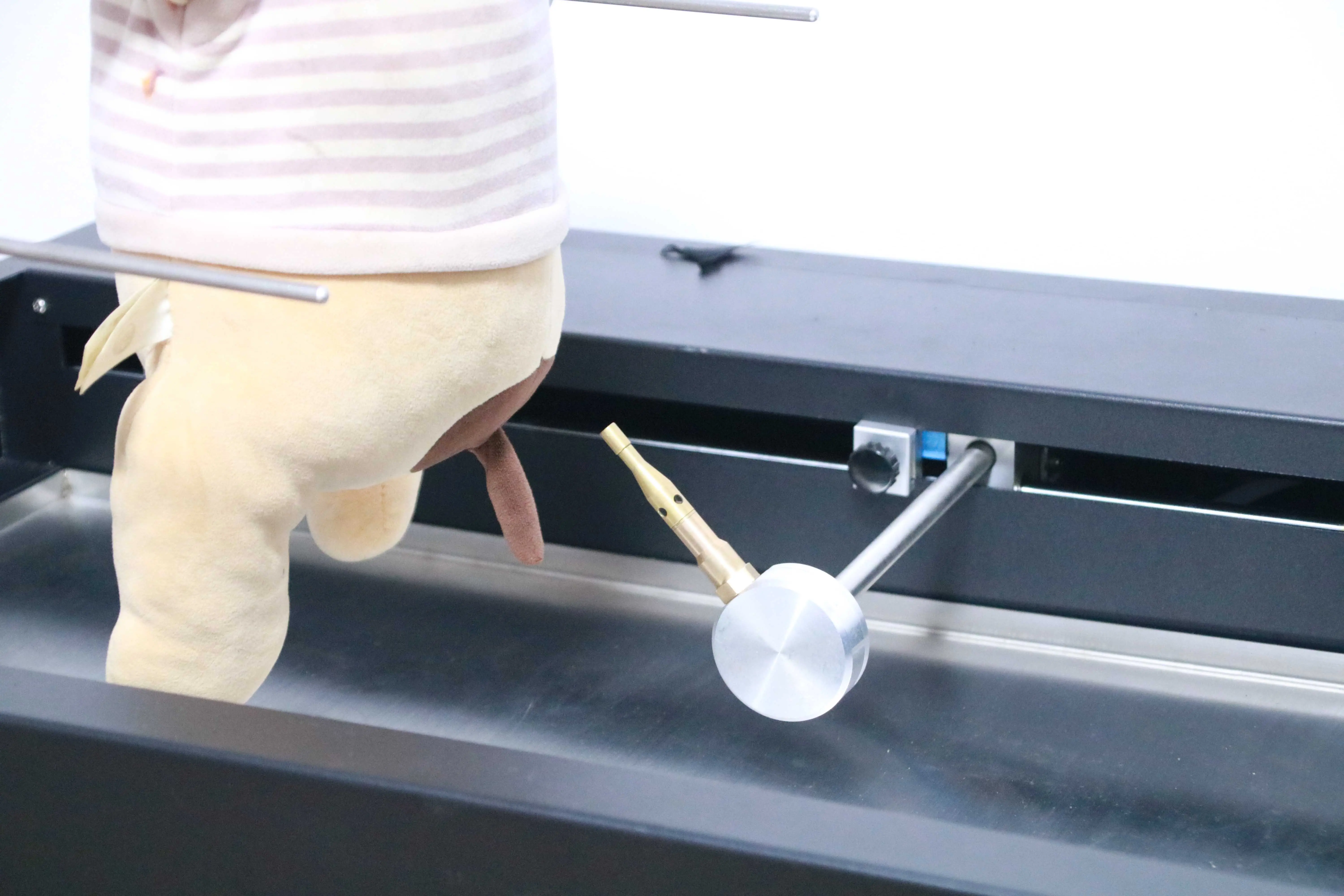

The fire mouth
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
