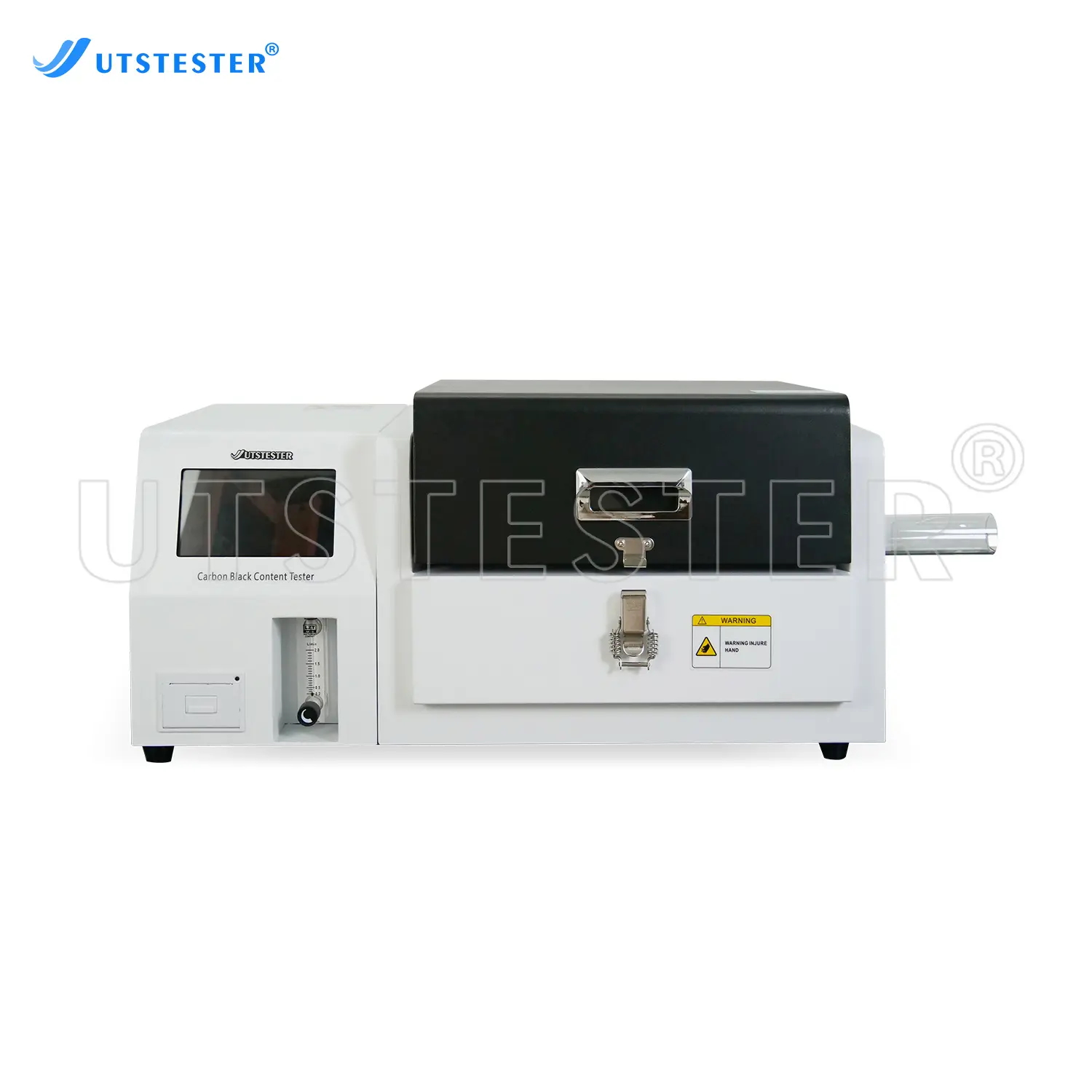

High Accuracy Pyrolysis Polyolefin Compositions Carbon Black Content Tester HP12-4
Rubber Testing Equipment

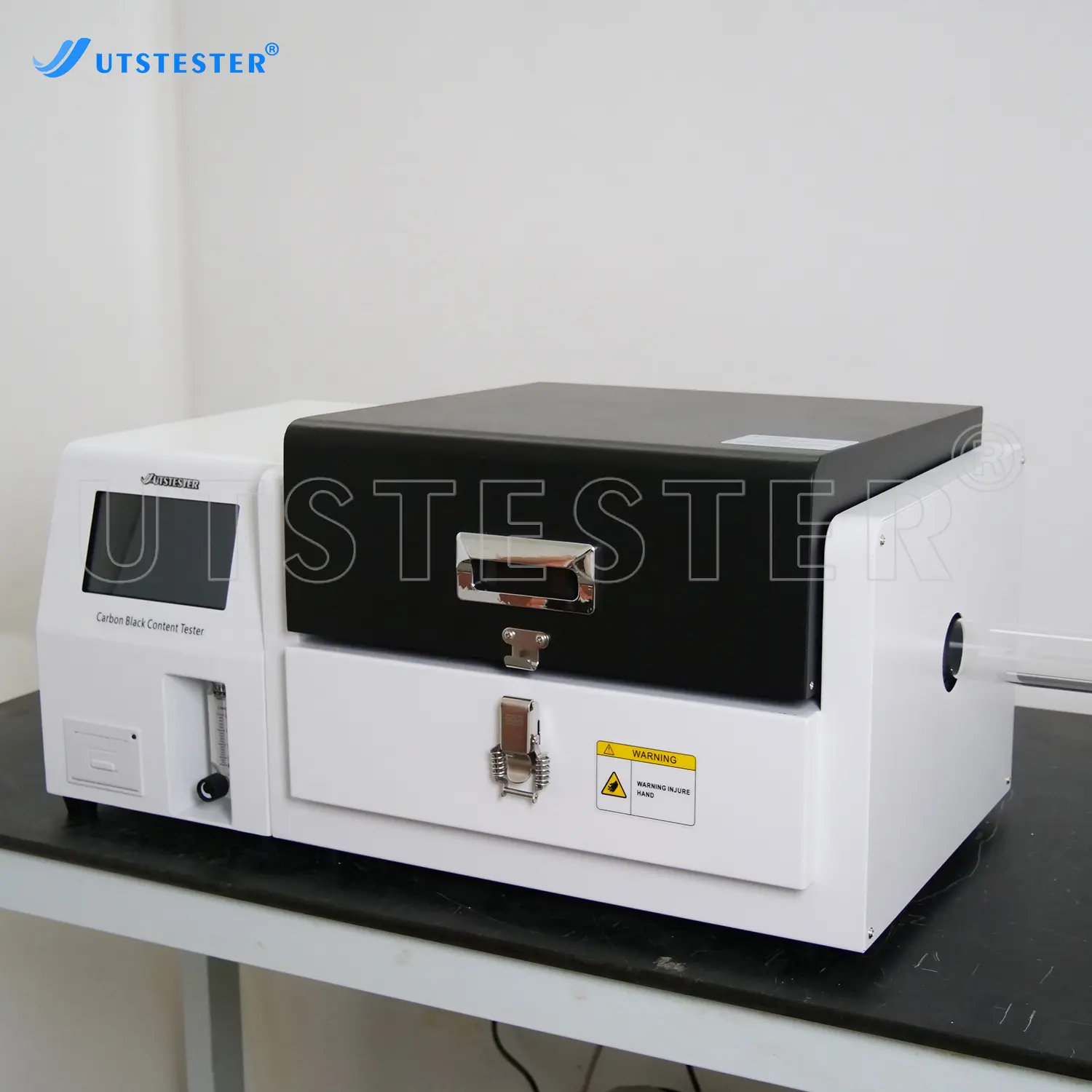

High Accuracy Pyrolysis Polyolefin Compositions Carbon Black Content Tester HP12-4

1. The instrument has beautiful appearance and structure and is easy to operate;
2. The integrated design of the heating furnace body and control system facilitates user instrument management.
3. It has a high degree of automation. You only need to set the temperature value and heating time, and the instrument will automatically heat up to the set value;
4. High temperature control accuracy, wide temperature range, and high furnace temperature uniformity;
5. 7-inch LCD touch screen display, extremely friendly operation interface, can be started with one button operation
6. It has excellent constant temperature function and can set the constant temperature time with high constant temperature accuracy;
7. The instrument can set any group of different heating time periods, and can have different heating temperatures, heating rates, and constant temperature times;
8. Comprehensive parameter display, showing the set number of groups, theoretical temperature, actual temperature, and heating time (or constant temperature time);
9. During the operation of the instrument, the set parameters and heating or constant temperature time can be viewed.Key Parameters

    Overview

    The carbon black content tester is suitable for the determination of carbon black content in polyethylene, polypropylene, polybutylene plastics, insulation and sheathing materials of optical cables and wires, and rubber. It complies with national standards such as GBT 3515-2005, GBT 13021-1991, GB∕T2951.41-2008, IEC60811-4-1:2004, but is not limited to these. A certain amount of sample is pyrolyzed at high temperature in a nitrogen stream and then passed to oxygen for calcination. Finally, the carbon black content and ash content are calculated by analyzing the weight of the sample after pyrolysis.

    Application

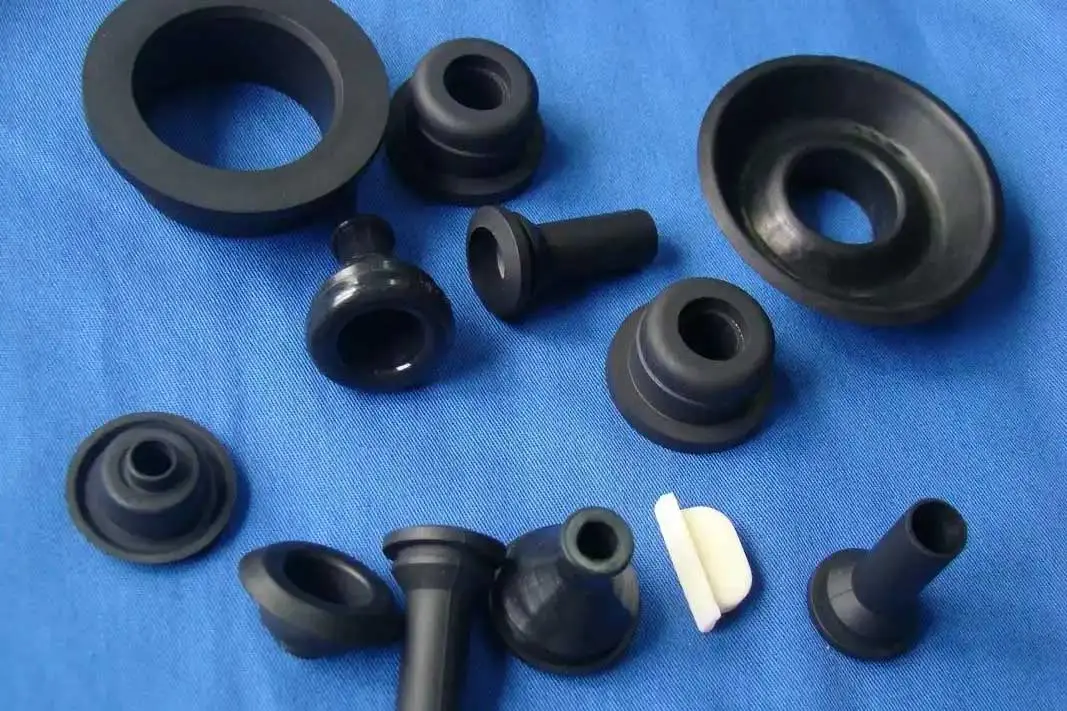

    企业微信截图_17412418557600 拷贝

    Rubber

    企业微信截图_17412418063918 拷贝

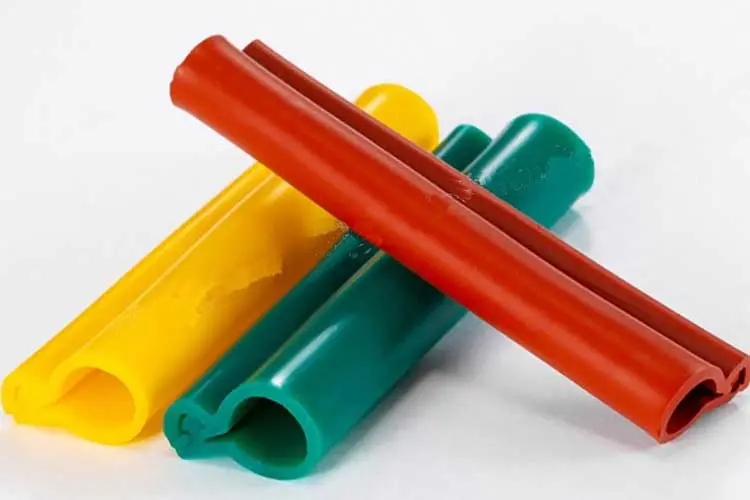

    Cable Protection Sleeve

    Standards

    ASTM D1603 GBT 3515-2005,GBT 13021-2023,GBT2951.41-2008,
    IEC60811-4-1:2004

    Key Parameters

    Model HP12-4
    Display mode 7-inch capacitive touch screen
    Quartz tube size φ44×600±5mm
    Furnace size Φ45×300±5mm
    Heating element High temperature alloy wire
    Heating zone length
    Working temperature
    250mm
    Room temperature ~1150ºC
    Temperature control method Intelligent programmable control, segmented programs can be set.
    Working power supply AC220V/50HZ/60HZ
    Sensor sensitivity 0.1ºC
    Air circuit control Two circuits, automatic program switching
    Cooling method Rapid cooling (≤20min, 900ºC to room temperature)
    Number of test samples 4 samples tested at one time
    Data calculation The software has its own calculation function, one-click calculation; it can automatically calculate carbon black
    content, ash content.

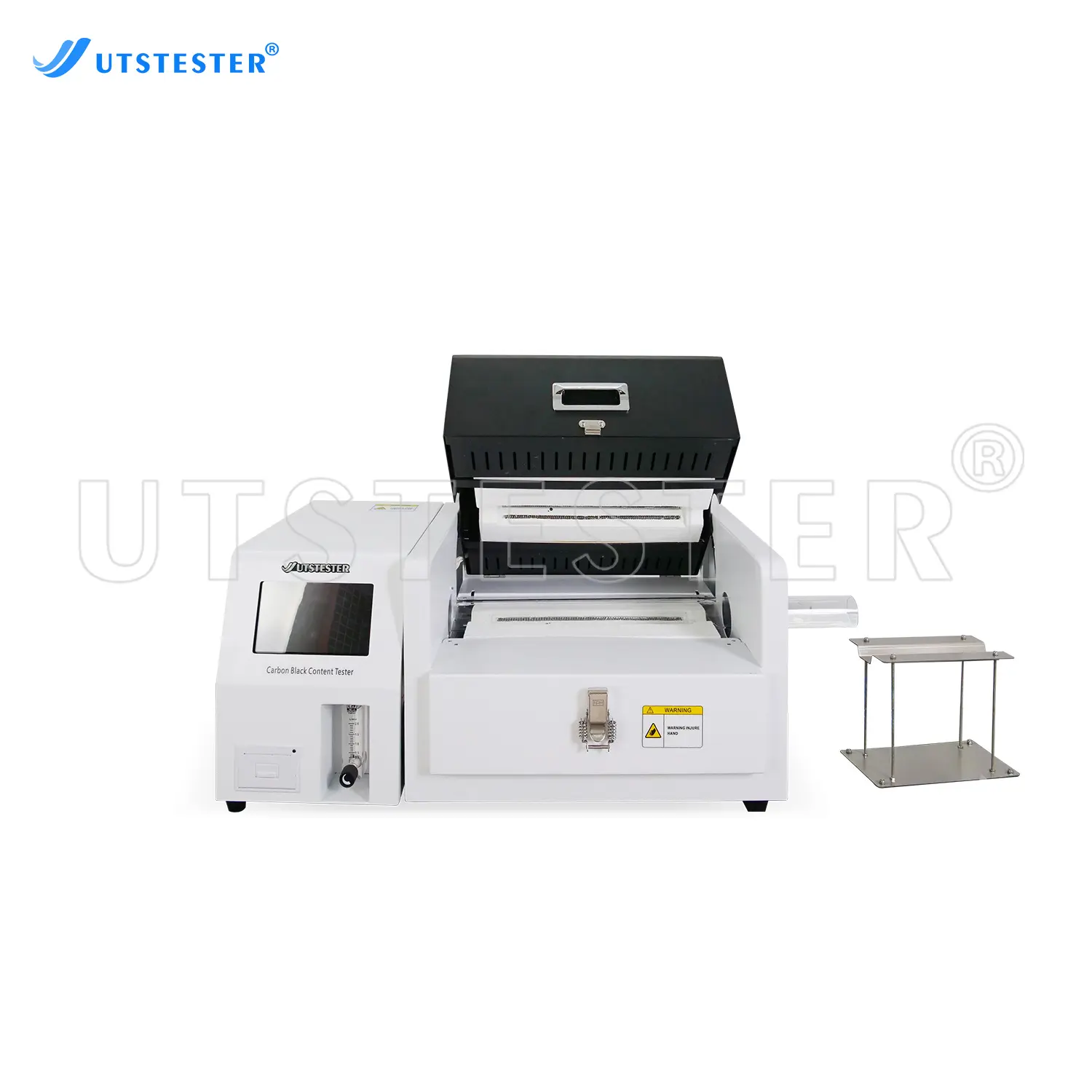

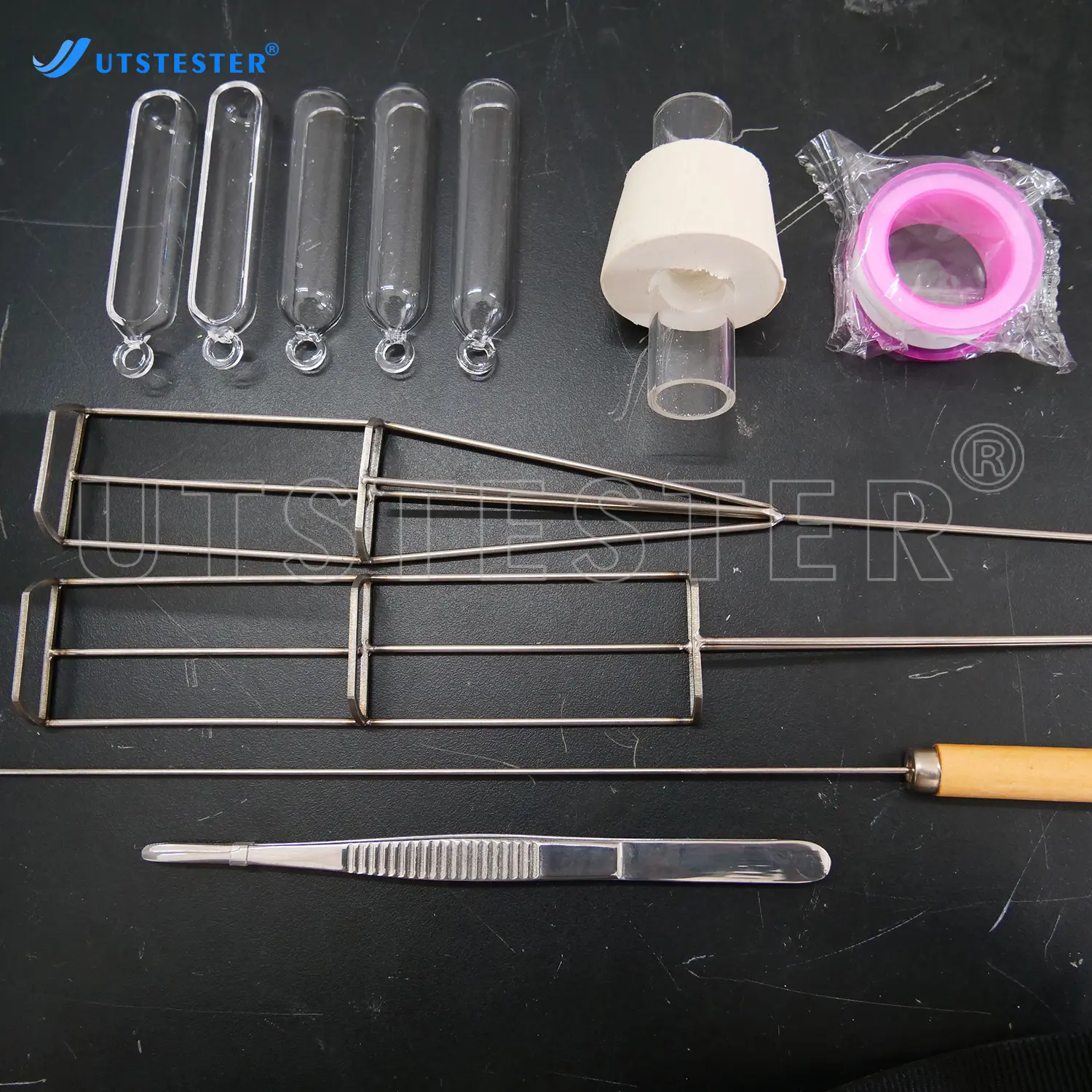

    Customized rail-type sample rack, convenient for taking and placing samples
    Open lid type, rapid cooling
    With exhaust gas filter device
    17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb
    17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb
    17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb

    Product Details

    P1041162

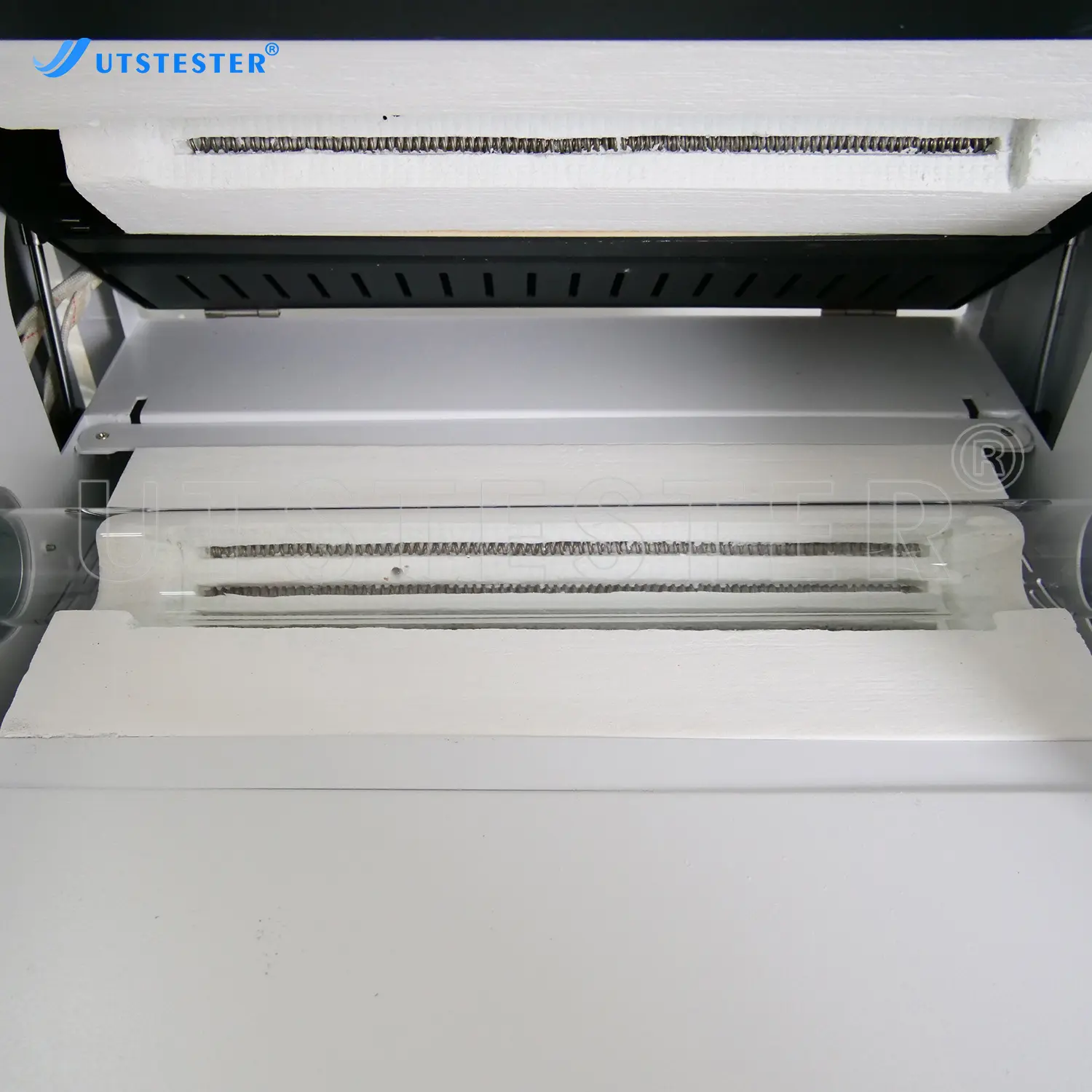

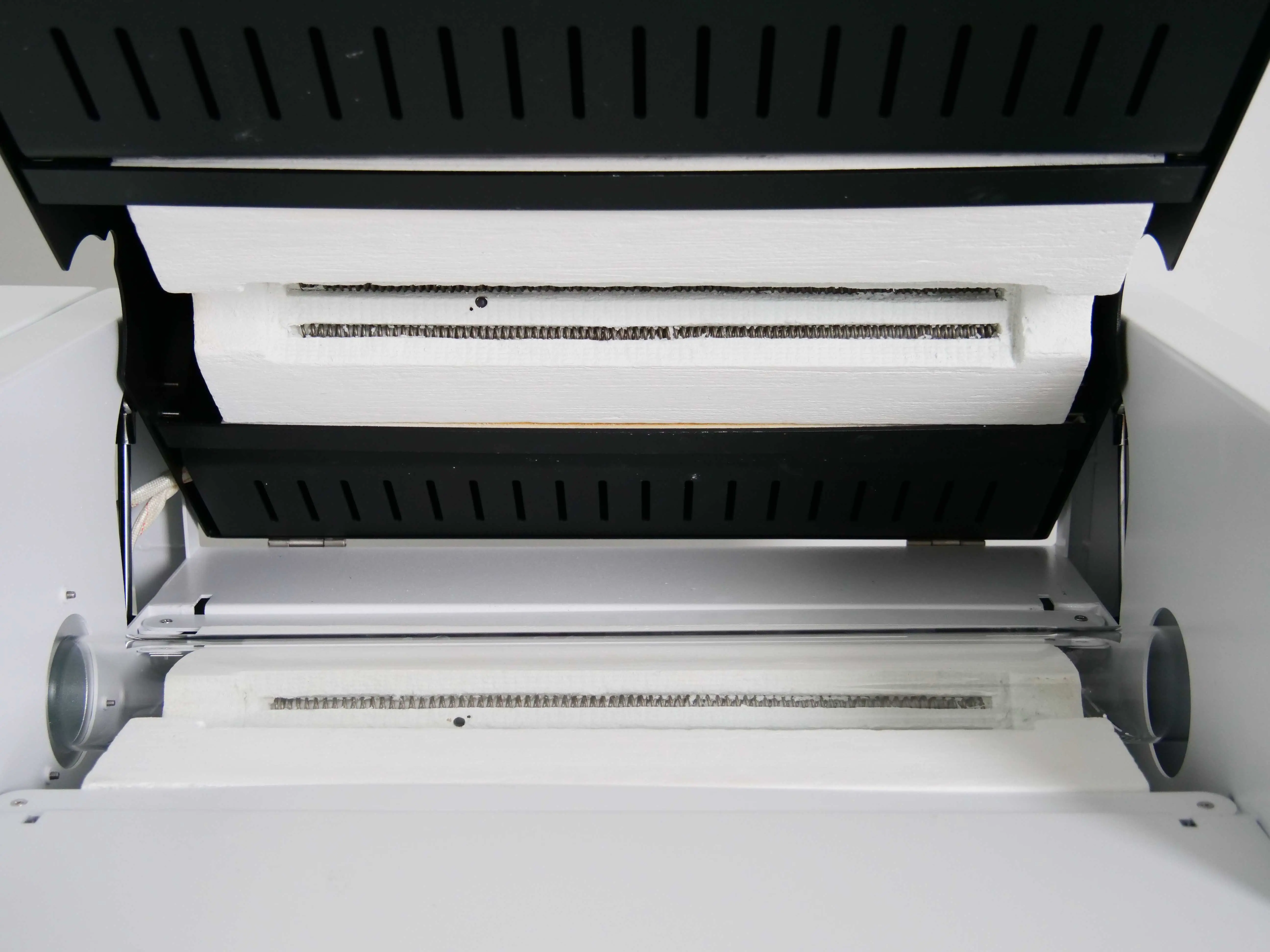

    The heating
    furnace body

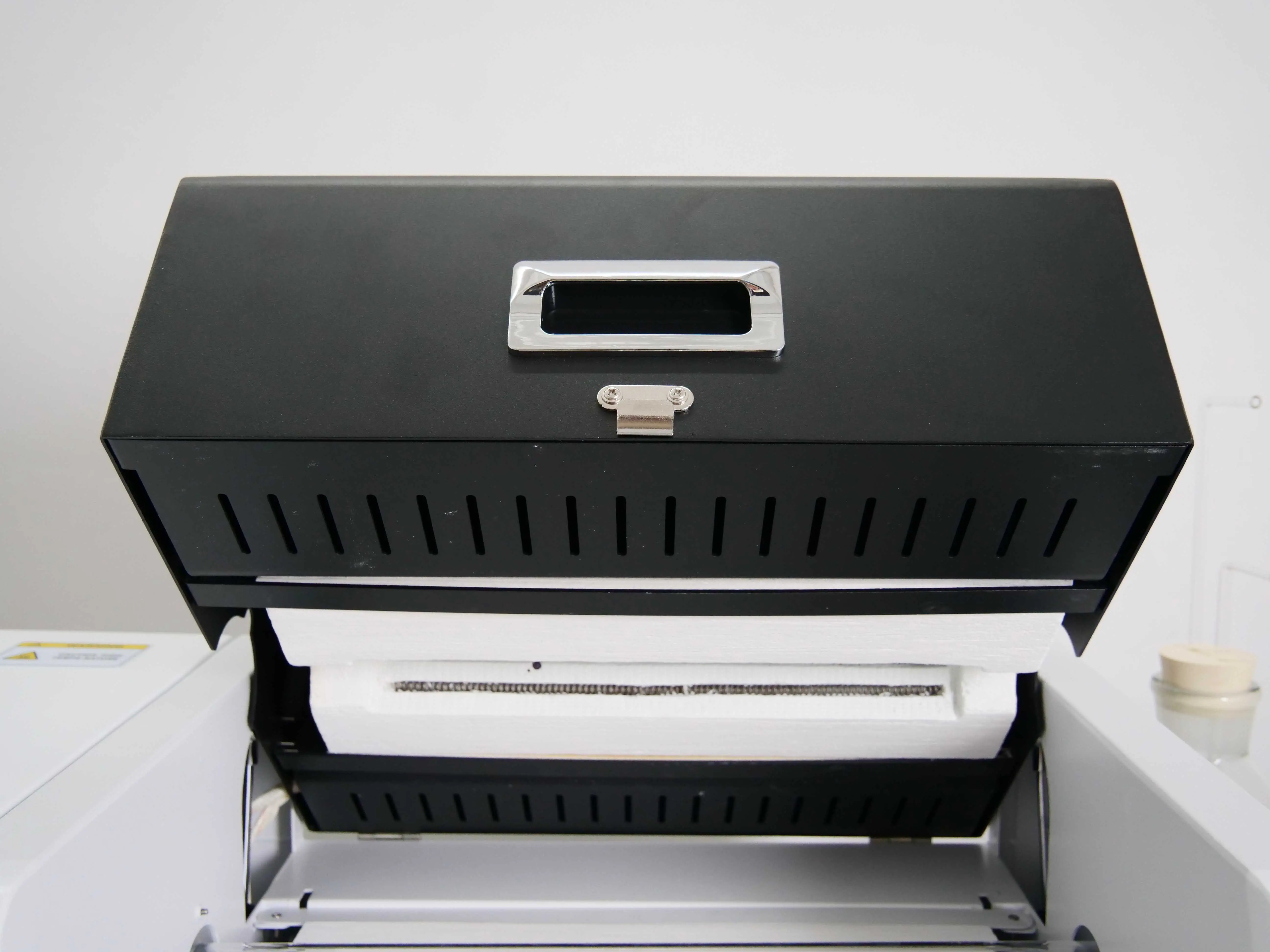

    P1041161

    Protective cover

    P1041168

    Sample holder

    P1041217

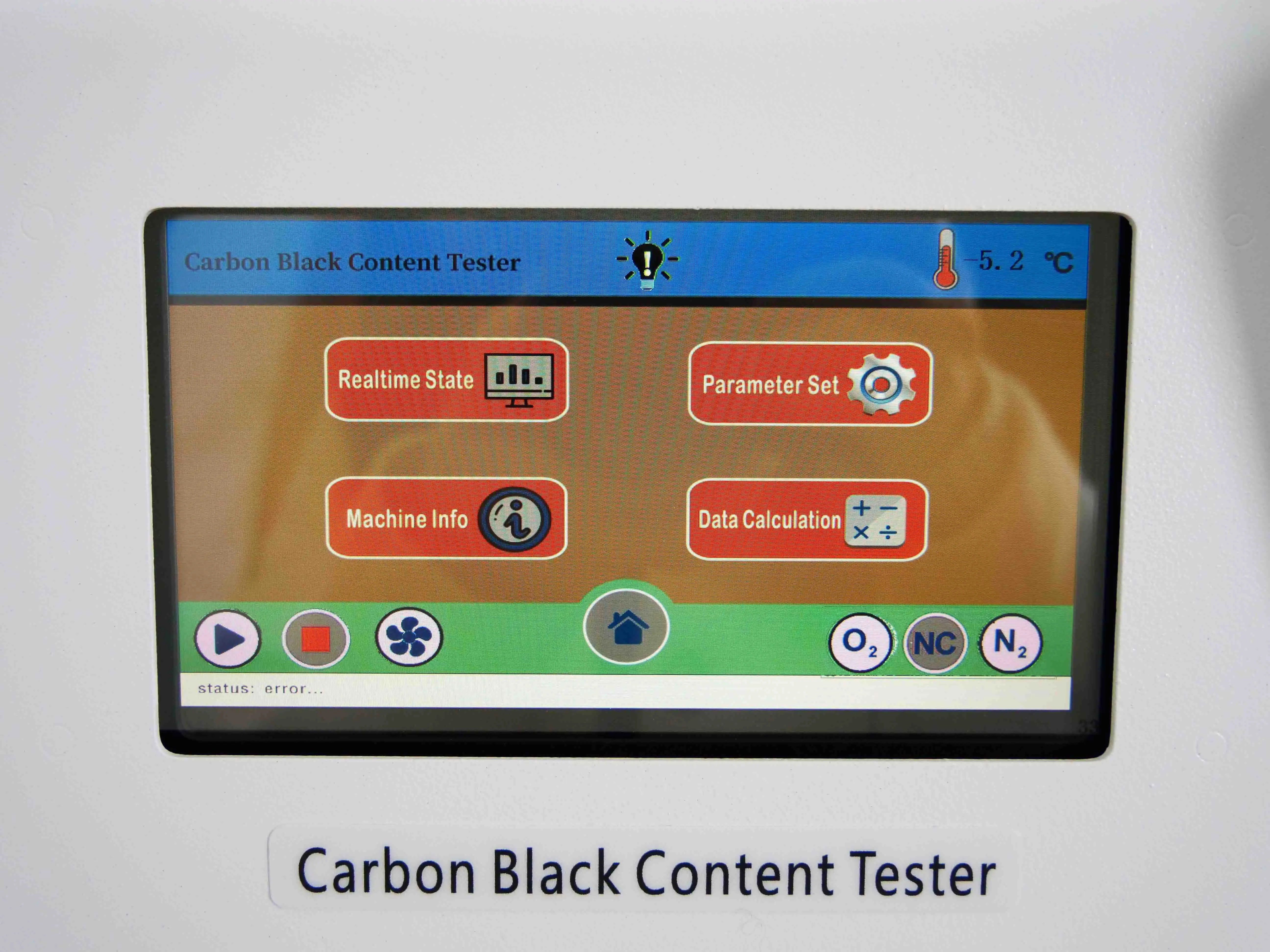

    Touch screen display

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
