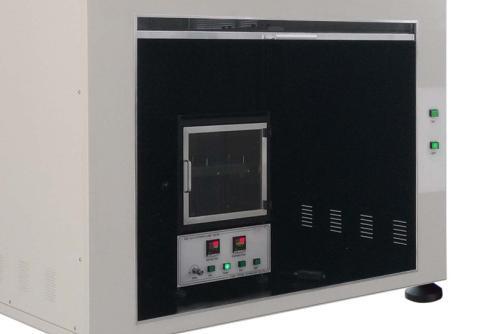

M090 Special Fume Hood system for Flammability Tester(1).jpg

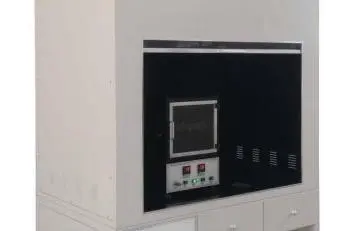

M090 Special Fume Hood system for Flammability Tester(2).jpg

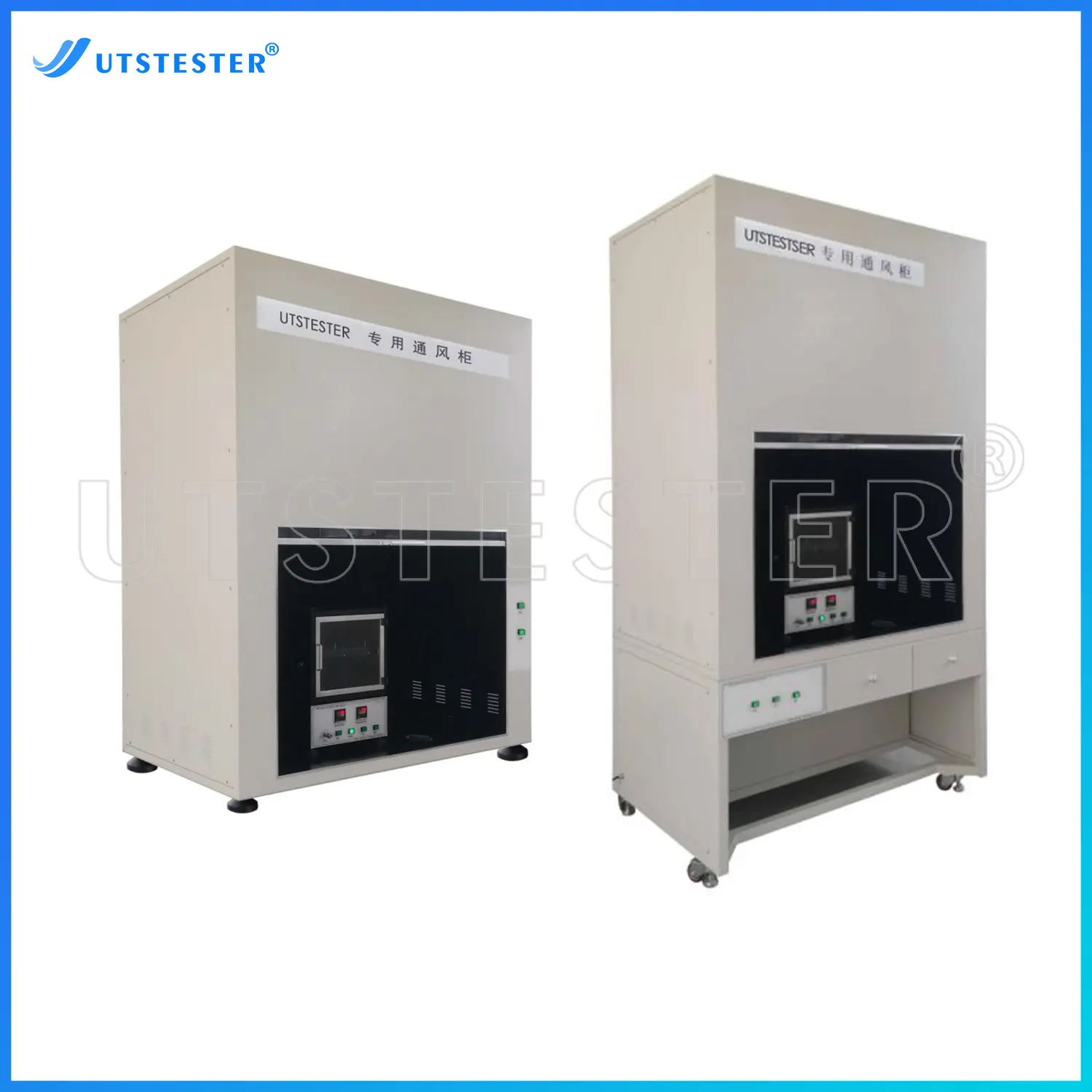

Fume Extraction System Laboratory Ventilation Fume Hood System M090

Shell material is: 1.2 mm thick high quality cold-rolled primes manufactured by Shanghai baosteel group, after processed by degreasing, pickling, watch, phosphating and drying, mechanical polishing treatment.
Electrostatic spraying of epoxy resin powder for surface, with good resistance to acid and alkali corrosion. So as to make surface in smooth, resistance to moisture, rustproof, good bearing performance with long service life;
Overall structural in strong strength and long service life, the exterior of upper cupboard adopts traditional slope, the door plate of lower cupboard adopts new type aluminum alloy, with elegant appearance.

product details

Production Processes

Packing System

Overview

Fume Hood System is to reduce the lab operators to contact with harmful gas. Fume Cupboards are constructed for use in today's demand of modern Laboratories. With its distinctive design of smooth air movement, safety features, durability and inexpensive pricing, no wonder they are the obvious choice for schools, colleges and universities.

Application

Woven fabric

Knitted fabric

Nightwear

Standards

Key Parameters

Model	M090A	M090B	M090C
External size(mm)	12008502350	15008002350	18008002350
Materials	1.2mm High quality cold-rolled steel plate processed, Metal surface epoxy resin powder coating
Guide plate, lining board	Adopts 5mm fire retardant and antiseptic anti-fibrate material
Gas-collecting hood	It adopts 5mm glass steel with anti-corrosion and acid and alkali resistance
Servicing door	Using the aluminum composite frame, the window adopts 5mm toughened glass
Transmission	The pulley group is designed by multiple pulley groups, the pulley is nylon material and the bracket is metal material.
Foot margin	The foot adopts stainless steel screw, nylon cover and rubber base assembly structure, and the height is 0-30mm.
Worktop	Use 12.7 mm solid core physical and chemical board table. With chemical resistance (149 kinds of acid and alkali resistant reagent), high temperature resistant, water proof, antibacterial, radiant heat, easy to clean and maintenance, scratch resistant, impact resistance and other properties.
socket	Using 16 a waterproof connector, it is suitable for European standard and national standard plug. Can customized.
fluorescent lamp	Lighting uses 30 w * 1 explosion-proof lamp, working surface brightness standard for 450 lux.
Control panel	LCD screen, simple operation, microcomputer control.
Observation window	Use the aluminum frame, with the weight of pulley bearing design make window open and slide freely and stronger, Window use 5 mm toughened glass, with good safety explosion-proof performance.

Product Details

Test chamber

Control panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
