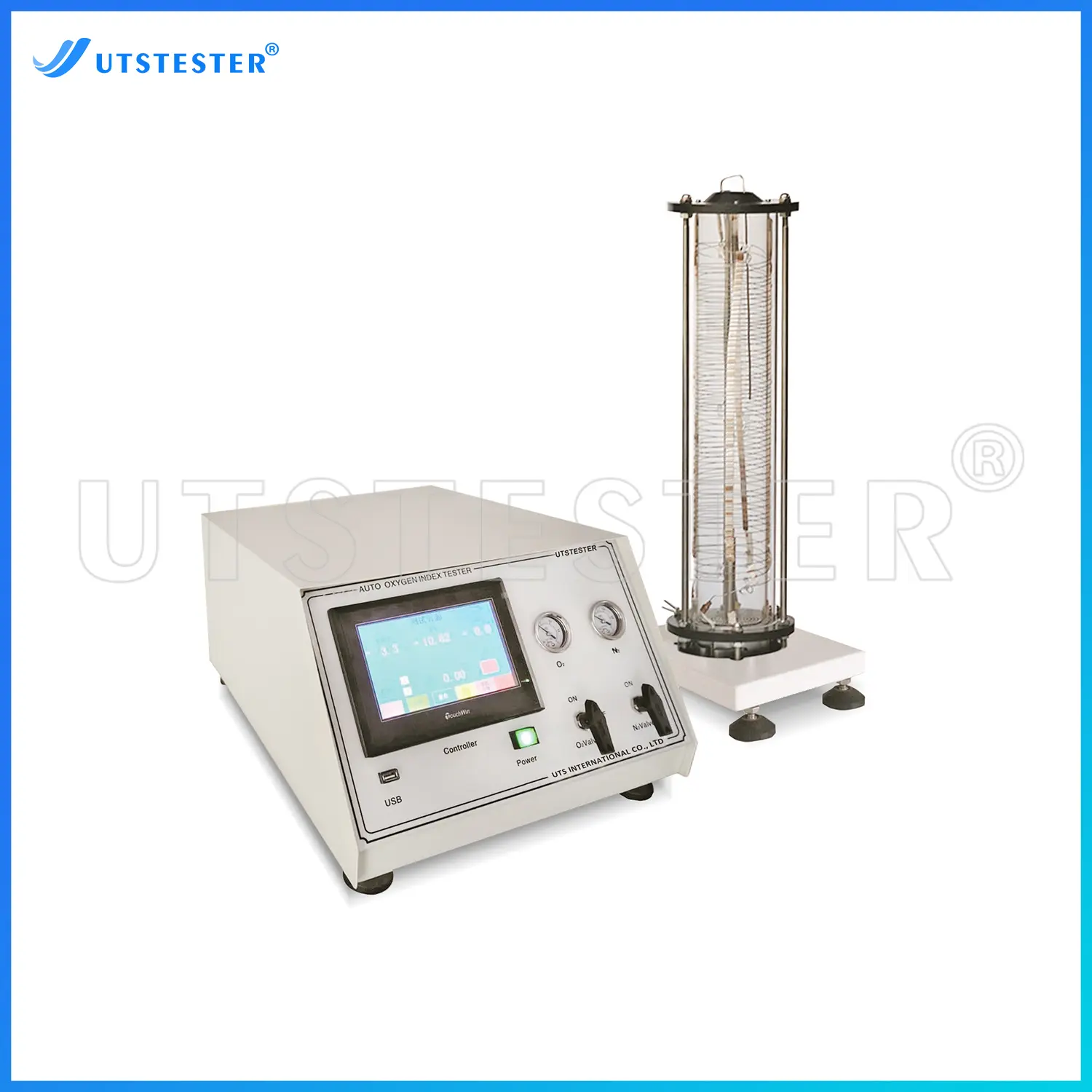

Fully Auto High Temperature Oxygen Index Tester Flammability Test Equipment M099C
Overview
The high temperature limiting oxygen index tester is used to measure the limiting oxygen index of rubber, high performance fiber, composite materials and so on under high temperature conditions. It can be used to evaluate the combustion performance of materials under high temperature conditions, so as to guide material research and development and provide data basis for product acceptance.
Application
Rubber
Plastic
Standards
GB/T 2406.3, ISO 4589.3
Key Parameters
|
Model |
M099C |
|
Measuring range |
0 ~1 00 % |
|
Working pressure |
0.05-0.3 Mpa |
|
Heating wire |
nickel-chromium wire |
|
Heating wire diameter |
0.55mm |
|
Maximum temperature |
1100 ℃ |
|
Temperature range |
RT-1100 ℃ |
|
Burning barrel height |
500mm |
|
Combustion tube inner diameter |
76mm |
|
Combustion tube top flow restriction hole |
40mm |
|
Burner flow rate |
(40 ± 2) mm/s |
|
Resolution |
0.1% |
|
Measurement accuracy |
±0.2% |
|
Outer dimension (W*D*H) |
410*510*830 |
Product Details

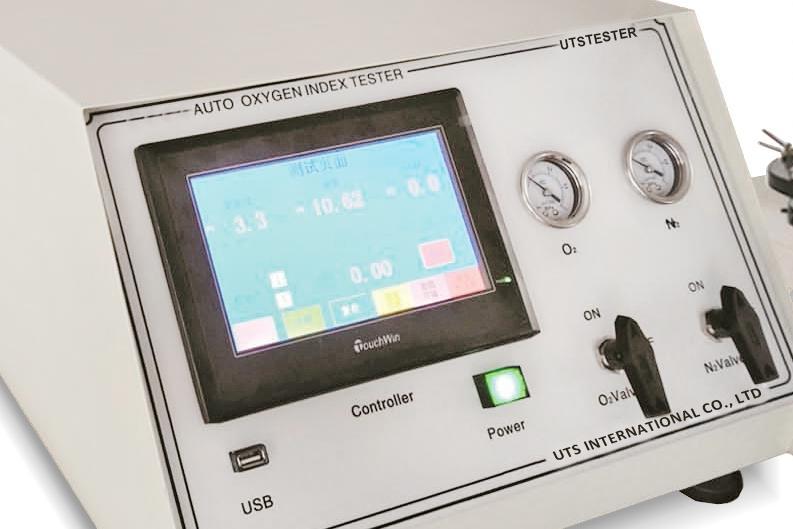

Control panel

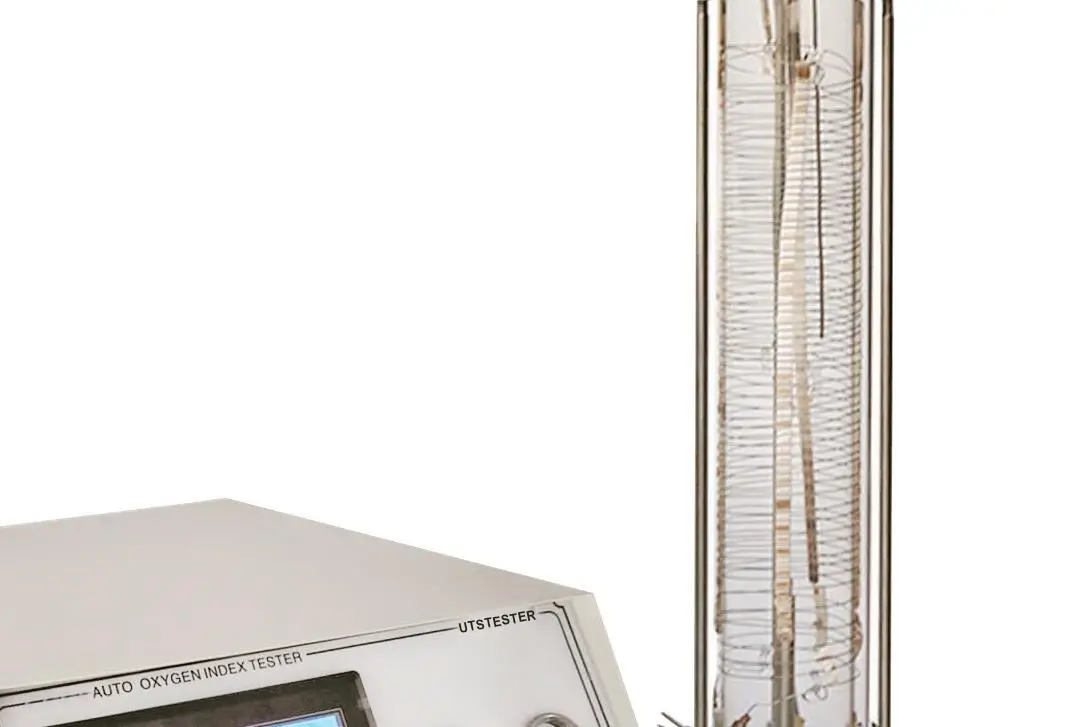

Sample testing area
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
