Footwear Testing Equipment

1.The test is conducted under minus 20-30 ℃, if conduct high temperature and low humidity, the lifetime of machine will be reduced to half.
2.Three flexing tests all need to run at about 100cpm, the machine is the heavy the better and stable.
3. The appearance of equipment will be baking varnished with beautiful appearance.
4. Touch screen control panel for easy operation.
5. H017D Horizontal type cooling flexing machine is designed standing at user side. Comparing with vertical type test chamber, It is easy and convenient to install samples on the flexing grips with proper space.

Electrical control and drive systems outside the freezer area where moisture cannot impair electrical safety, which ensures maximum operator safety. The control system cosists of a digital temperature controller which can be set to achieve the required temperature from ambient down to -30°C, as well as a counter indicating the flexing number carried out. Machine stop automatically when test completed by counter.

1. Testing times can be set and real testing speed displayed at real time.
2. With memory function. Stop testing when preset test times haven’t reached, machine will reserve present testing times. Customer can select to continue to test or zero the test times and restart to test.
3. Provided with acrylic protective cover.
4. Equipped with manual adjustable rotary knob to install sample.

Akron Abrasion Tester combines with balance to use. Designed to test the abrasion resistance property of shoe sole, tire which is made of rubber and elastic materials.

Mount the finished shoes on test machine, add a certain depth of water into tank to touch shoes. It drive forward forefoot of shoes to bend at a certain angle and frequency, so as to simulate people wear the shoes walking in the water. Test the needed bending times for water penetrate from shoes outside to inside or test water penetrate area under specified test times or bending times.

1.PLC closed-loop controller controlled.
2.AC servomotor ensures accurate and durable test results.
3.Rigid construction and advanced AC servomotor ensure quiet running without noise.
4.Transparent plastic cover ensures safe and convenient operating.

1, The sensitivity is adjustable to meet different test results
2, Displacement has a manual adjustment device, convenient clamping of the specimens.
3, Four groups of specimens respectively by four counter timing, when one or more groups of specimens sensing immersion, counter will stop count which does not affect the other groups of timing.
4, With alarm device, when all four groups induct the immersion, machine will automatically alarm immediately.

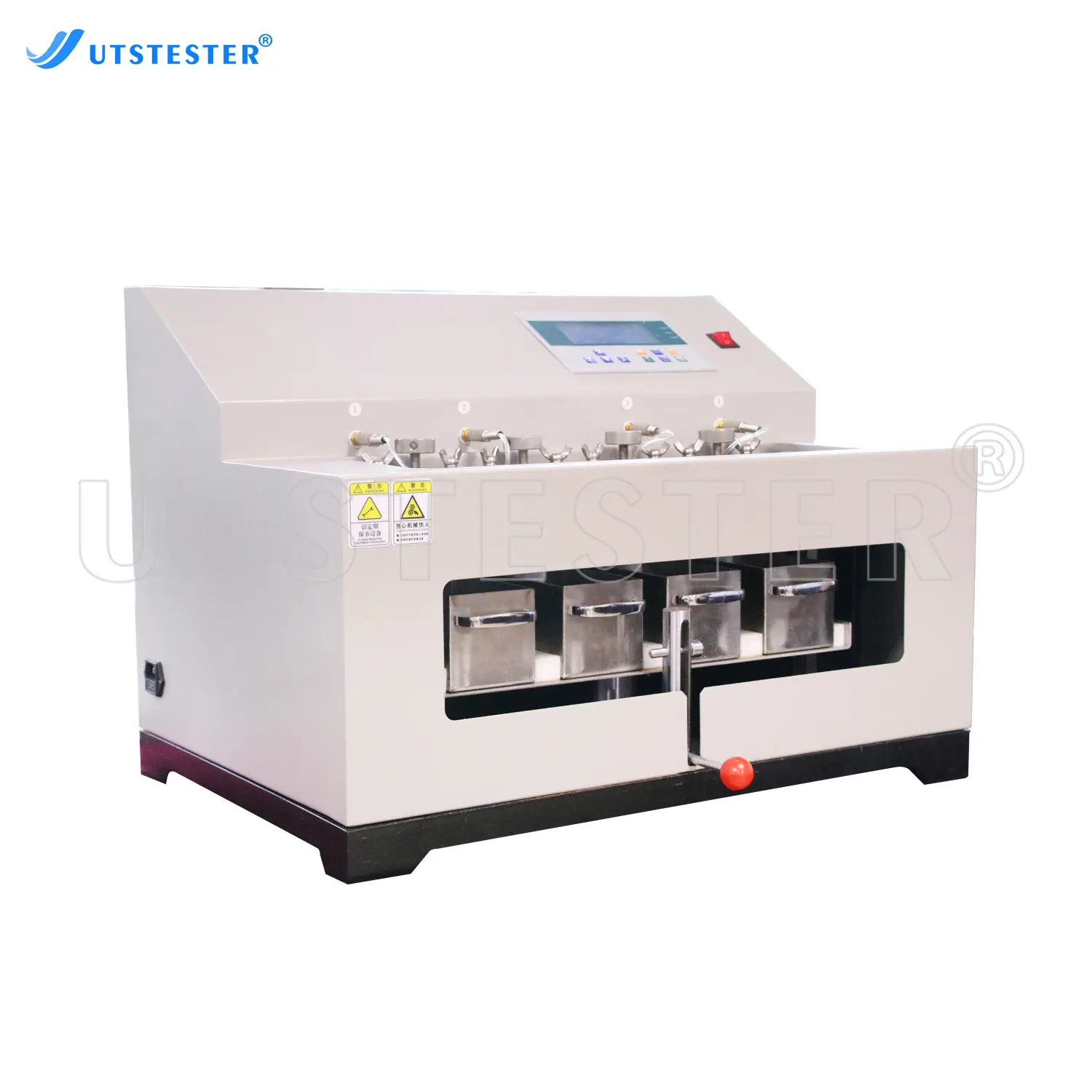

1, The sensitivity is adjustable to meet different test results
2, Displacement has a manual adjustment device, convenient clamping of the specimens.
3, Four groups of specimens respectively by four counter timing, when one or more groups of specimens sensing immersion, counter will stop count which does not affect the other groups of timing.
4, With alarm device, when all four groups induct the immersion, machine will automatically alarm immediately.

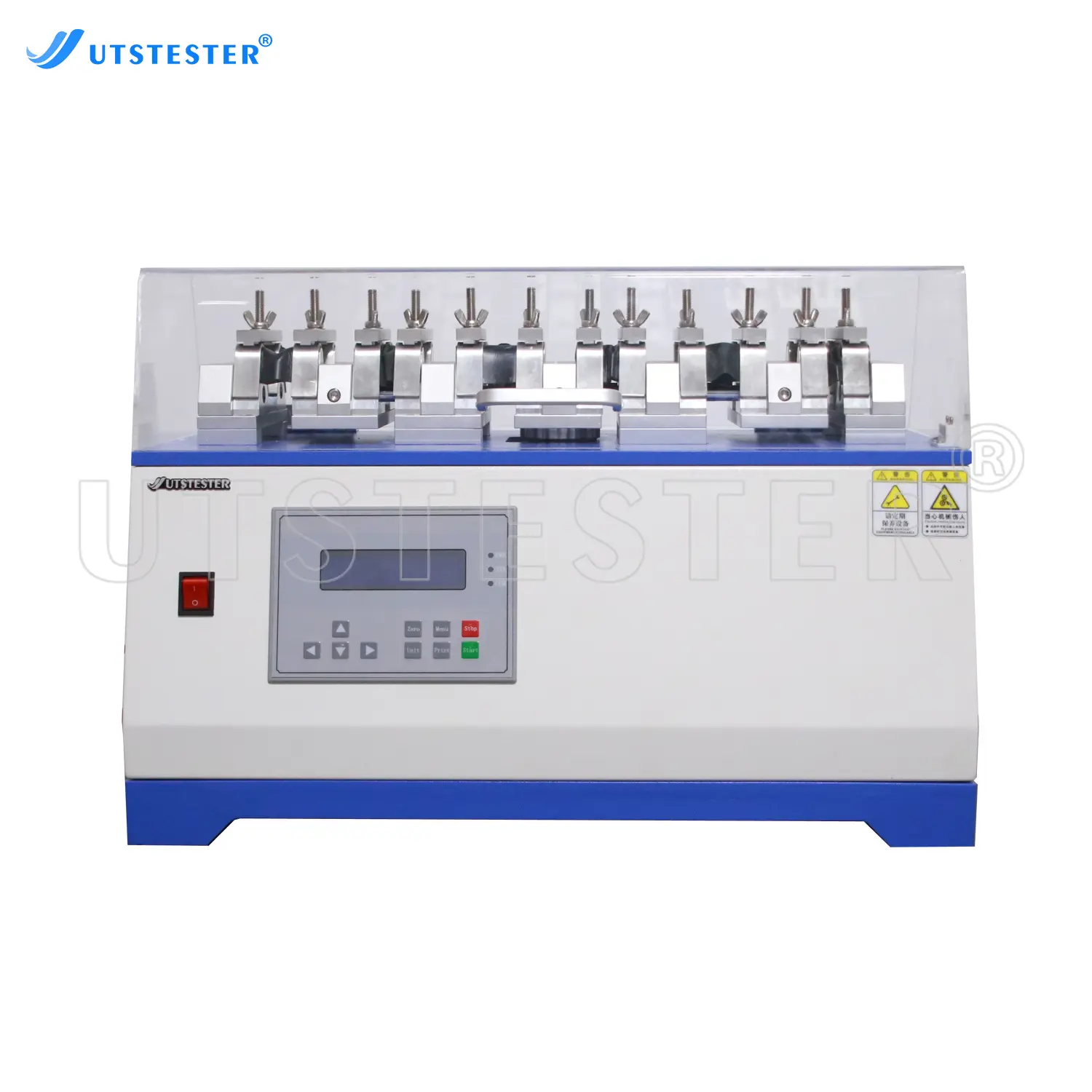

Simulating vamp flexing state during person wear shoes. Fix samples on the V shape of fixtures and fixtures do relative motion to make two fixtures close to each other and samples flex. During testing, fixture do uniform motion, samples are flexed repeatedly, evaluate sample breakage or desalination phenomenon.

1.Equipped with manual control device, which is very easy to set up, and its protective performance fully meets European health and safety requirements.
2.The machine supports the use of standard shoelaces to test shoelaces, or standard shoelaces to test shoelaces.
3.Six sets of specimens can be tested once.
4.Equipped with a separate counter for each working positions.

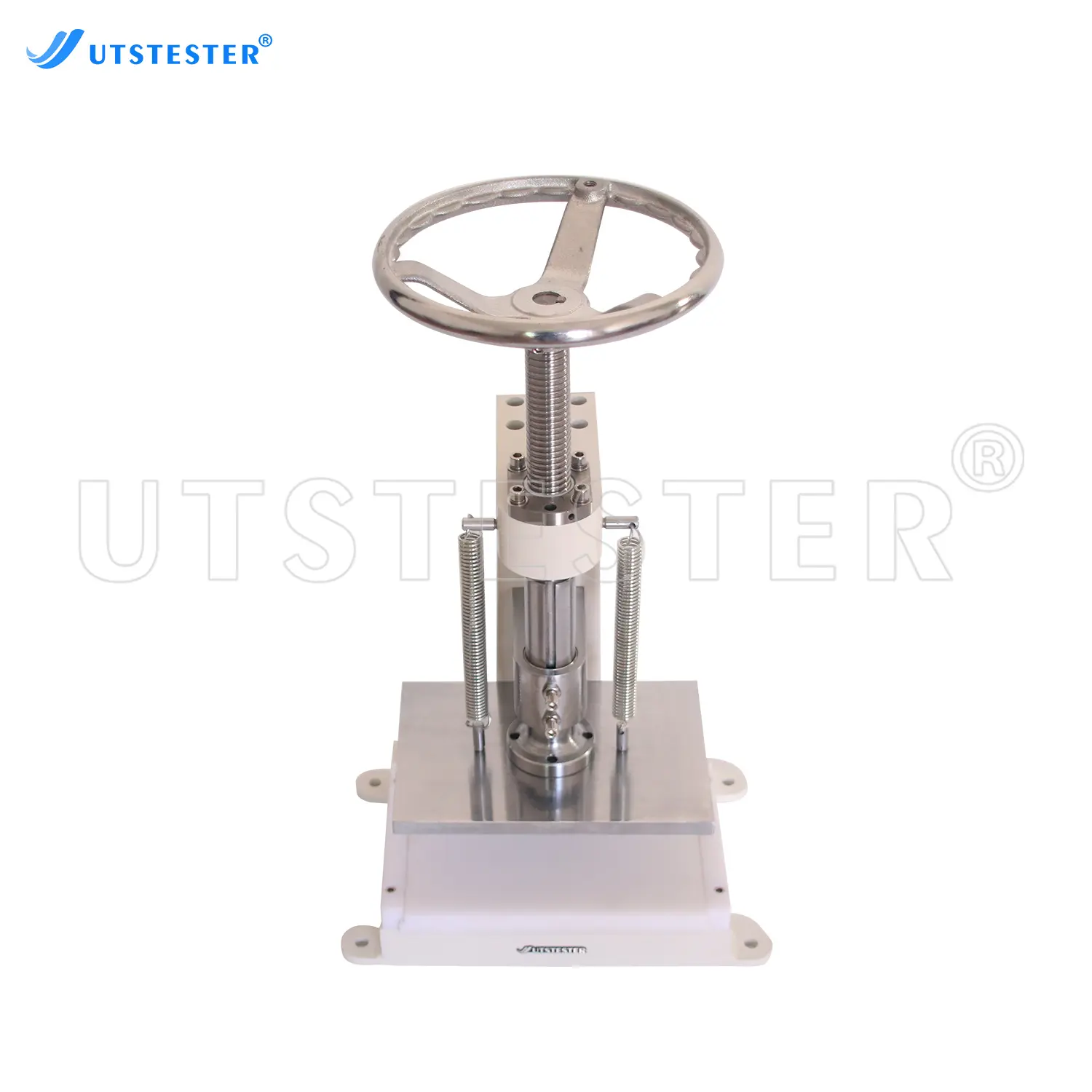

Hand wheel, three - head screw, machine base, spring, shaft, shaft, platform.
The screw hole of the fuselage is equipped with three screw rods, the upper end of the screw rod is equipped with hand wheel, the lower end of the screw rod is equipped with sliding shaft, the upper end is tightened by spring, and the lower end can be replaced by different type of cutter.When rotating the hand wheel, the three-headed screw can drive the cutter by sliding shaft, which can make reciprocating motion to achieve the purpose of cutting the test piece.

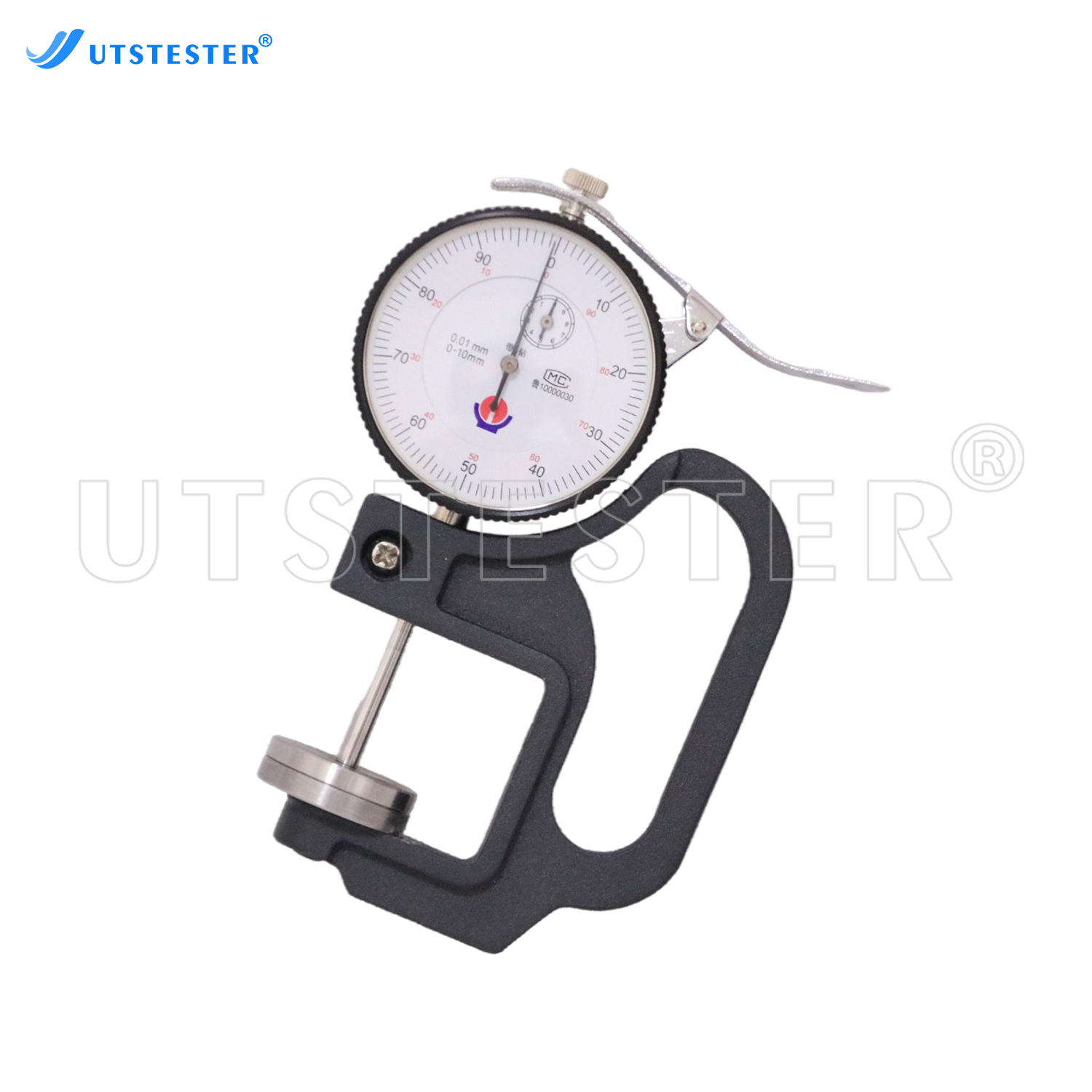

This system ensures that the thickness is being measured under the same controlled conditions for each sample. To measure the thickness of any sample, lift the deadweight by operating the lever and insert the material between the anvil and the presser foot. Lower the deadweight using the same lever.
