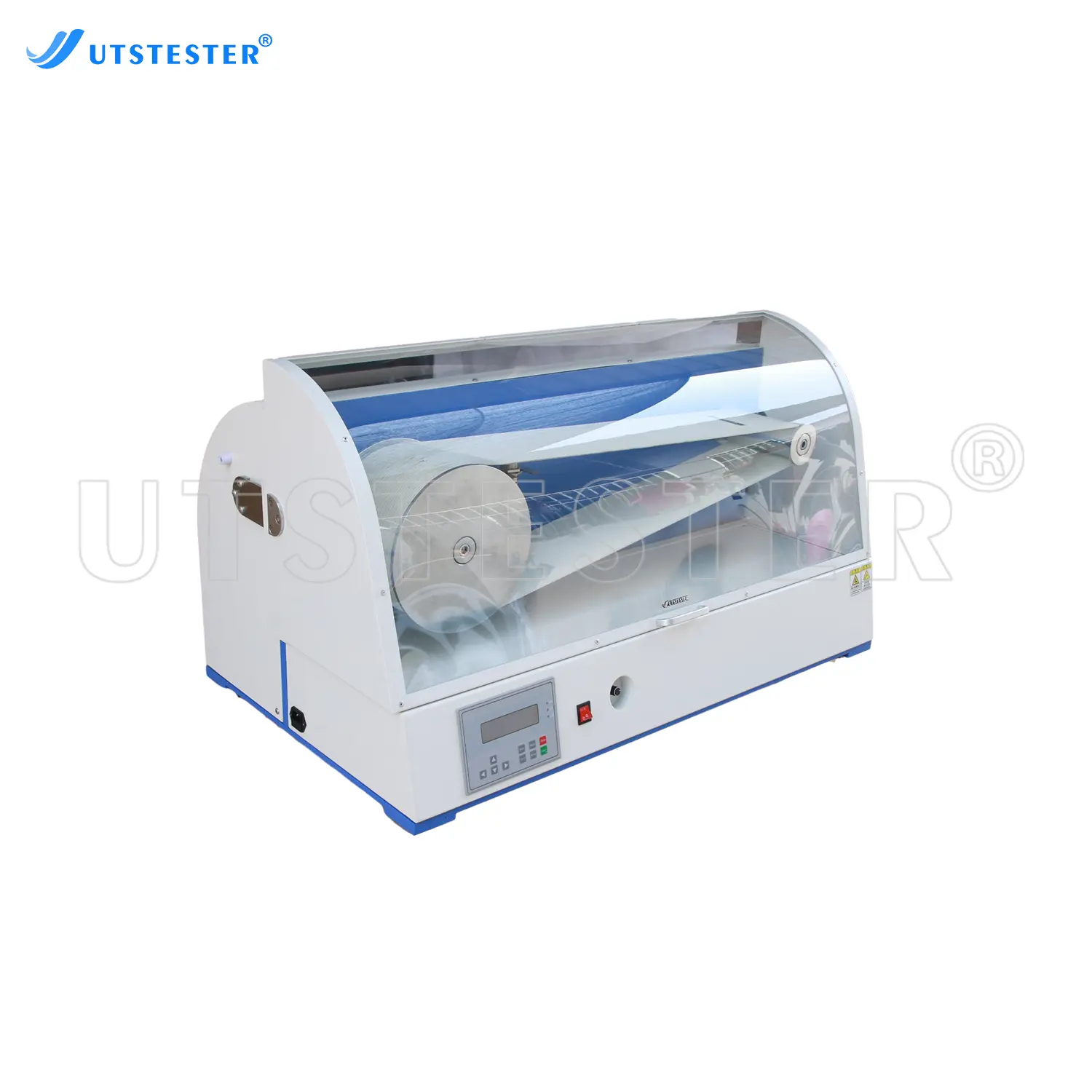

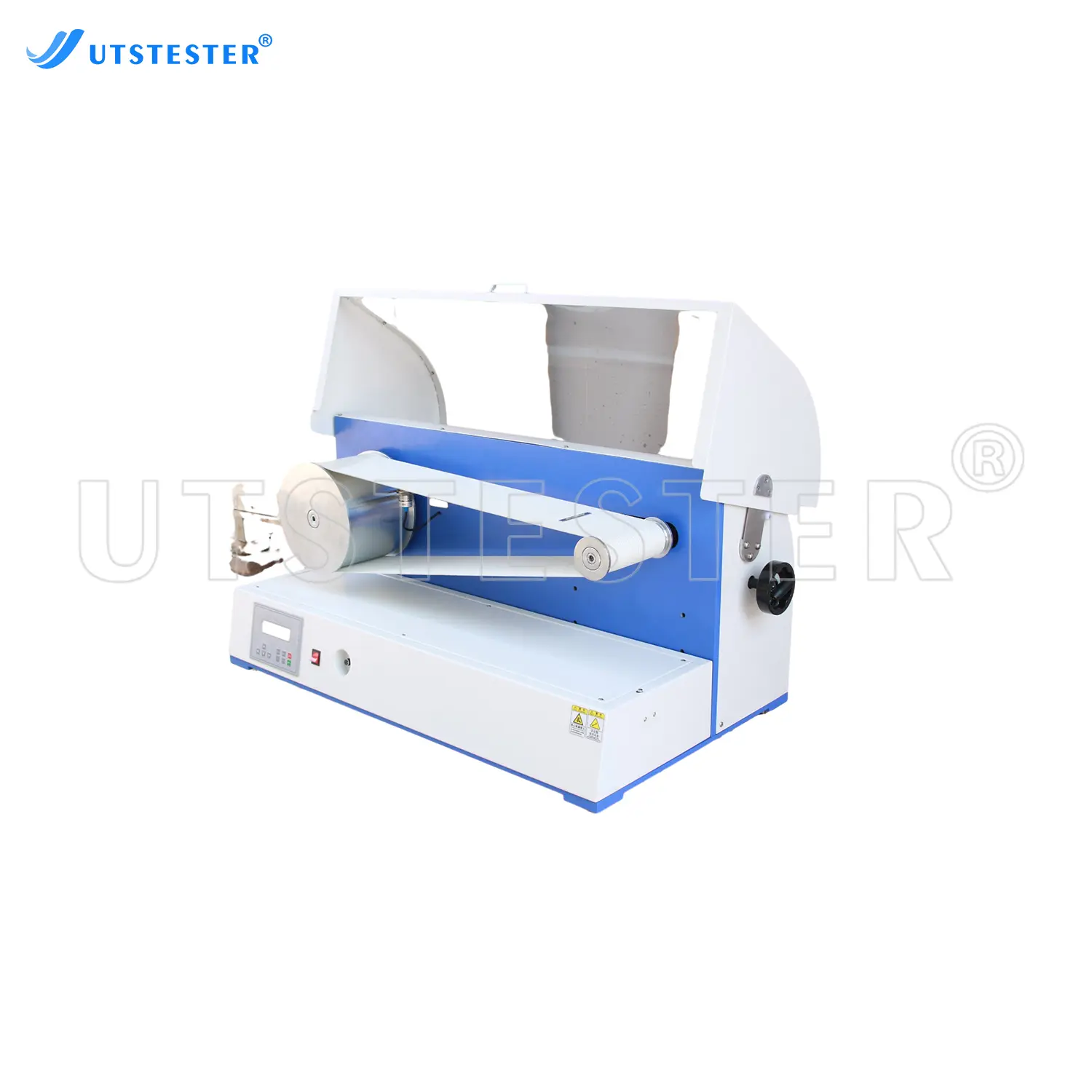

Footwear Outsole Belt Flexing Tester Satra TM 133 Shoes Flexing Test Machine H034
Overview
To determine resistance to flex property for shoes outsole. Simulating walking state with wearing shoes to do test, so as to measure sample shoes outsole the property of resistance to bend. Testing times can be set freely, machine stop to work automatically when test times reached. Available to test multiple samples simultaneously to improve working efficiency.
Application
Sole (of a shoe)
Standards
SATRA PM133
Key Parameters
|
Model |
H034 |
|
Belt size |
1930±50 mm, Width140±5 mm. |
|
Belt rotary speed |
90±8 c.p.m. |
|
Test samples |
Simultaneously maximum 6 outsoles |
|
Big wheel diameter |
￠225mm |
|
Smaller wheel diameter |
￠60mm, ￠90mm, ￠120mm |
|
Counter |
LCD, 0~999,999 times adjustable |
|
Power supply |
1∮, AC 220V 50 / 60 Hz 3A (Specified by user) |
|
Dimension (W x D x H) |
129 x 75 x 70 cm |
|
Weight |
170kg |
Product Details

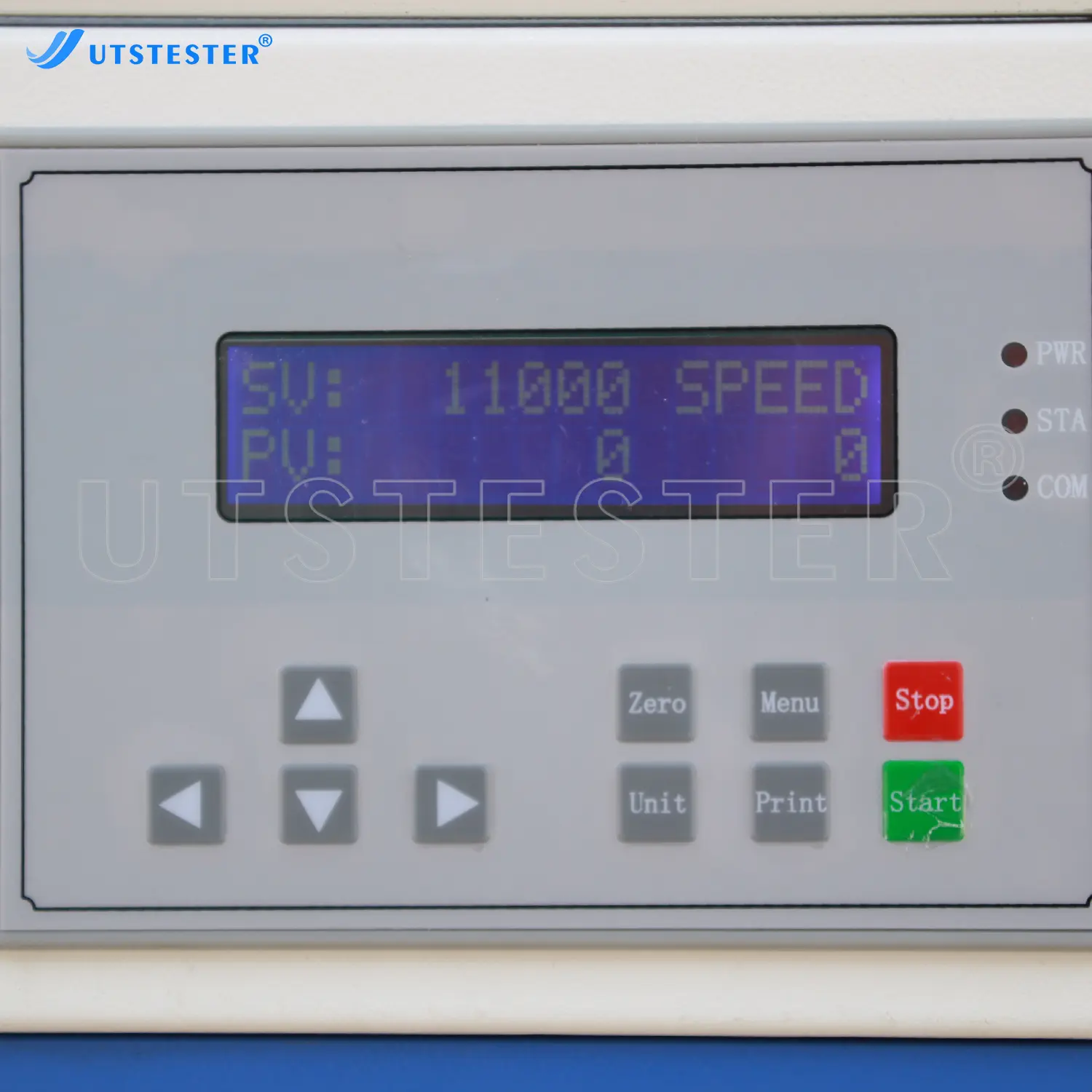

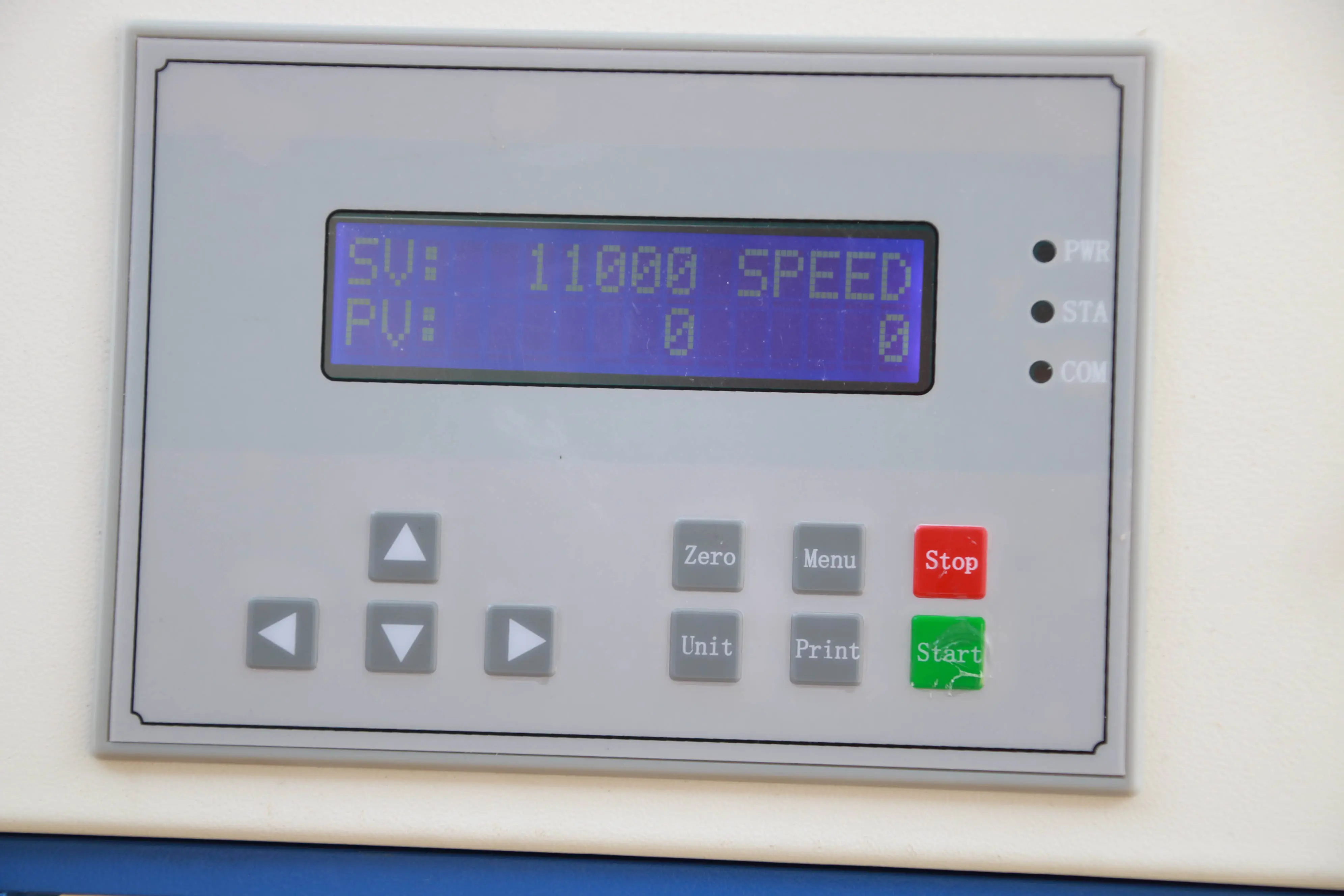

Control panel

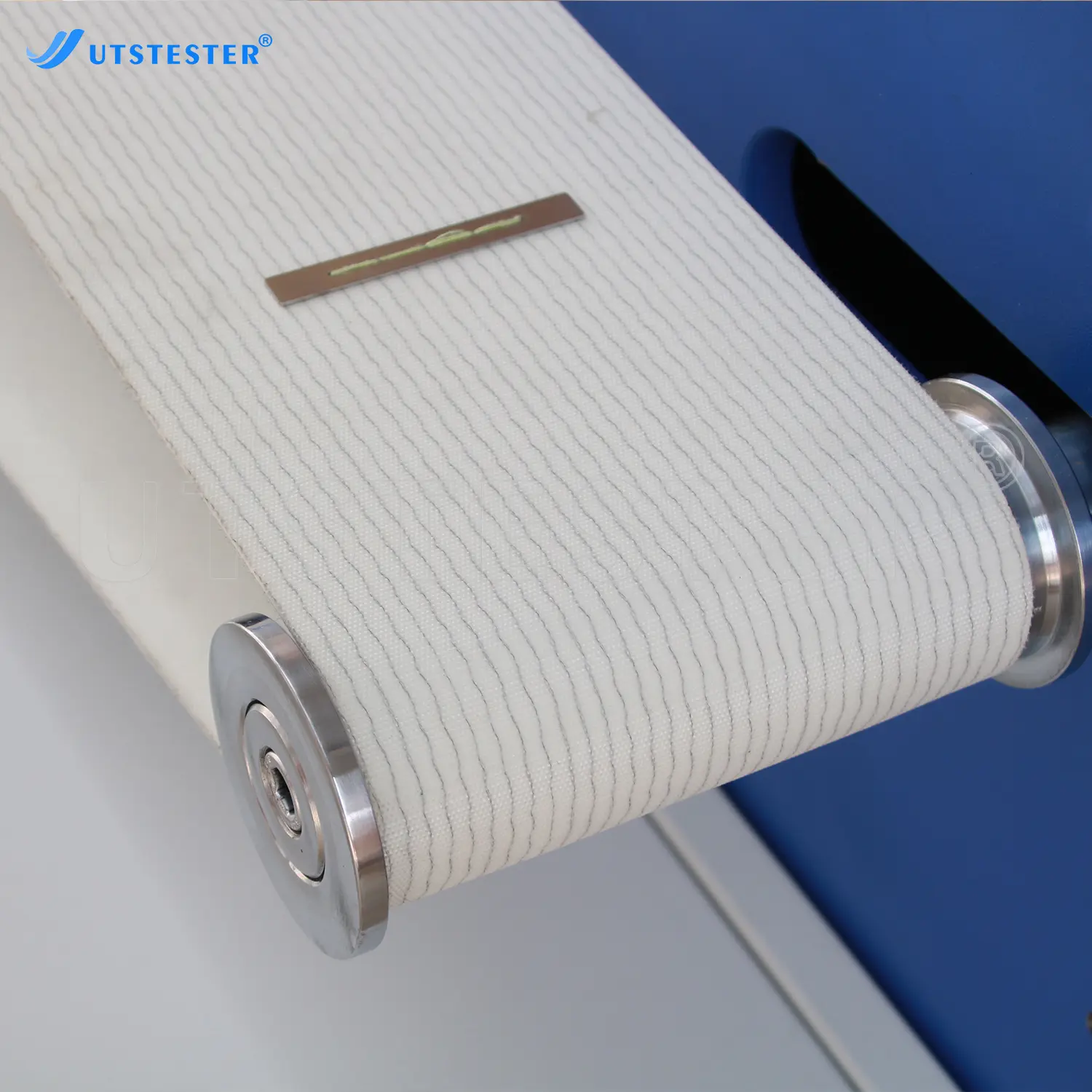

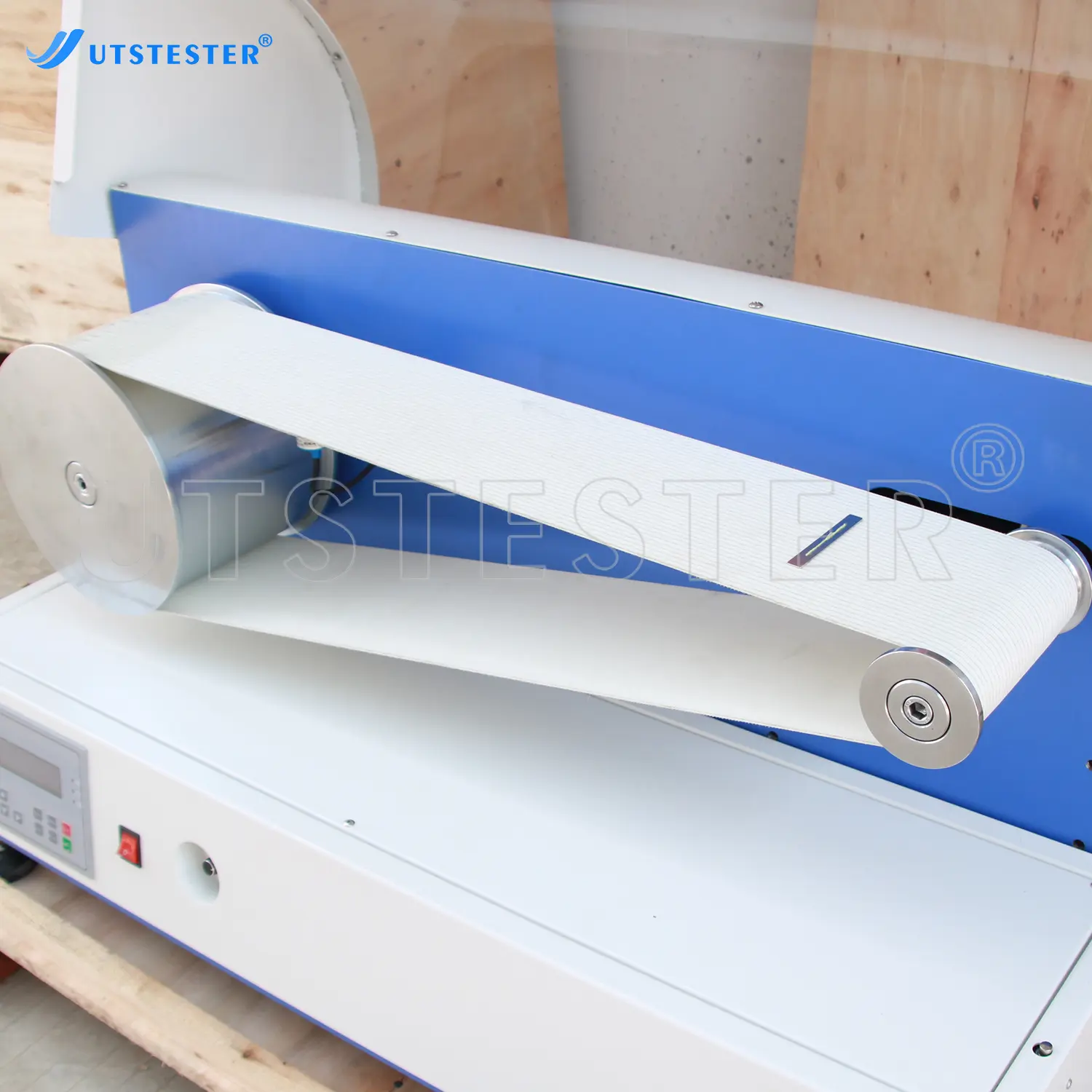

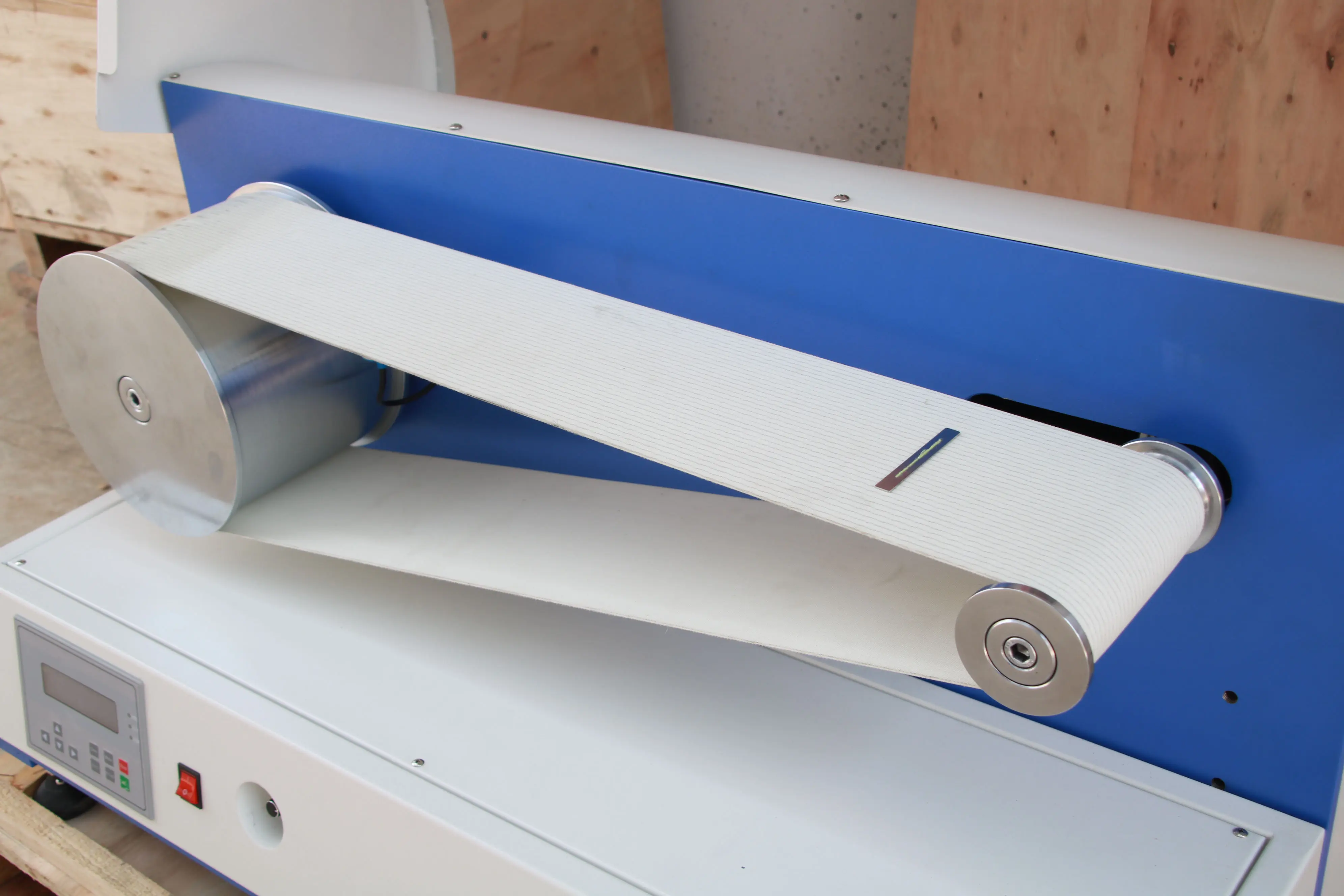

Belt

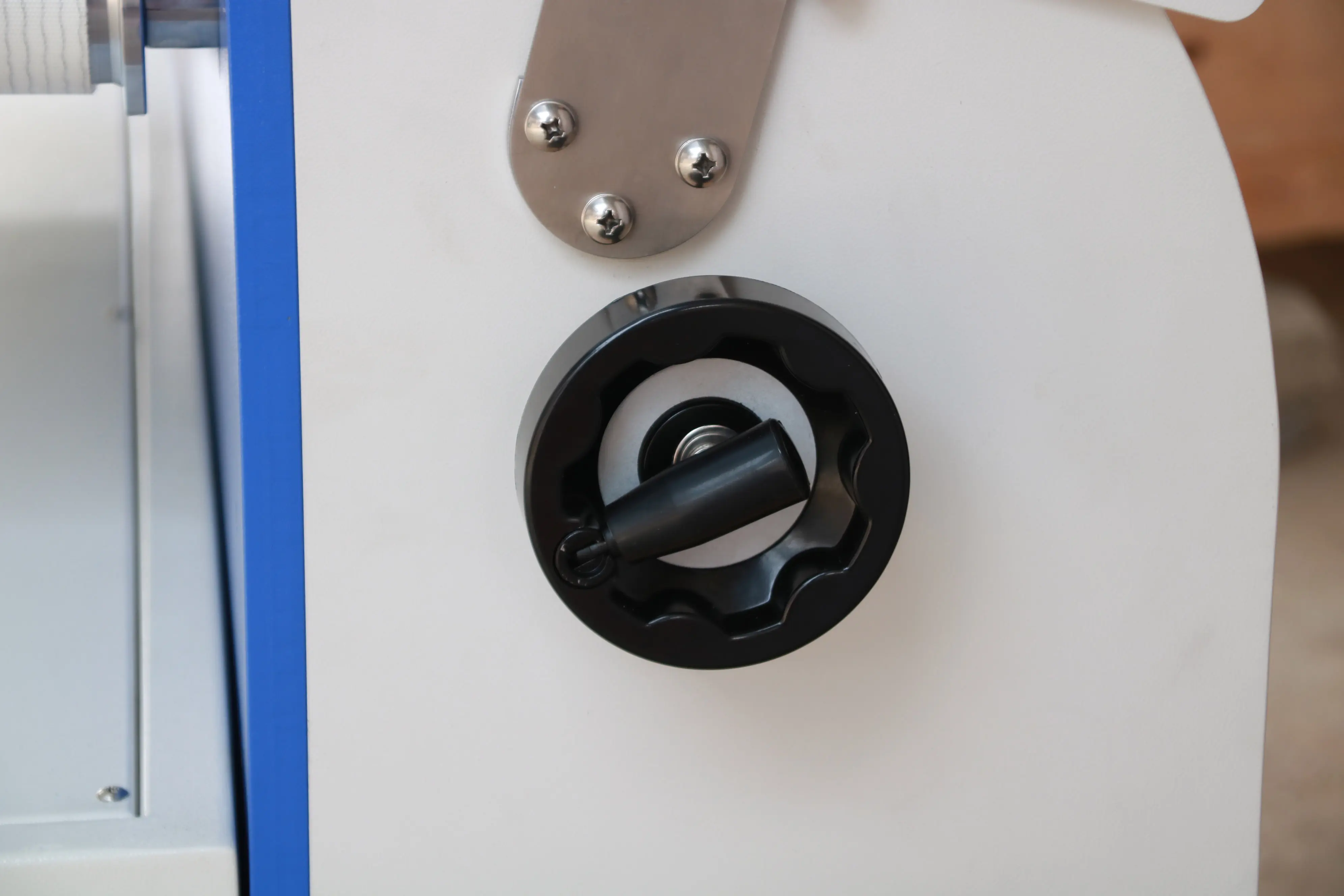

Handwheel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
