Flammability Tester Curtain Vertical Flammability Chamber M017D
Overview
Curtain burning tester, mainly used in NFPA 701 Method 1, is used to test the flame retardant properties of hanging fabrics such as curtains and curtains. Applicable to single or multiple layers of fabrics, but not to fabrics with a grammage greater than 700 g/m2 (21 oz/yd2).
Application
Curtain
Standards
NFPA 701: 2004 & 2009 Edition Test Method 1
Key Parameters
|
Model |
M017D |
|
External dimension |
600*400*550mm(W*D*H) |
|
Measuring range |
0-100% |
|
Box material |
SUS304 stainless steel |
|
Burner |
imported standard MEKER burner |
|
Flowmeter |
Rotameter |
|
Fixture |
SUS304 stainless steel special fixture |
|
Burning time |
0-999.9S can be set |
|
combustion gas |
Customers need to provide |
Product Details

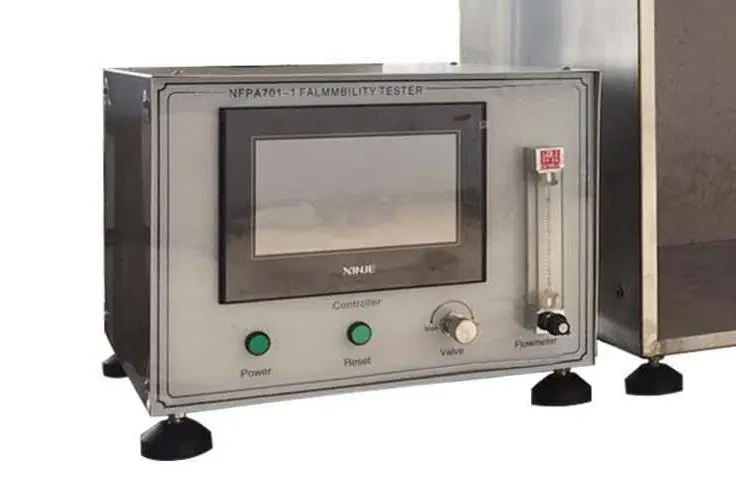

Control Panel

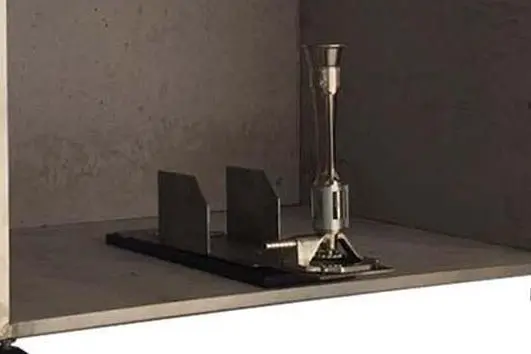

Igniter
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
