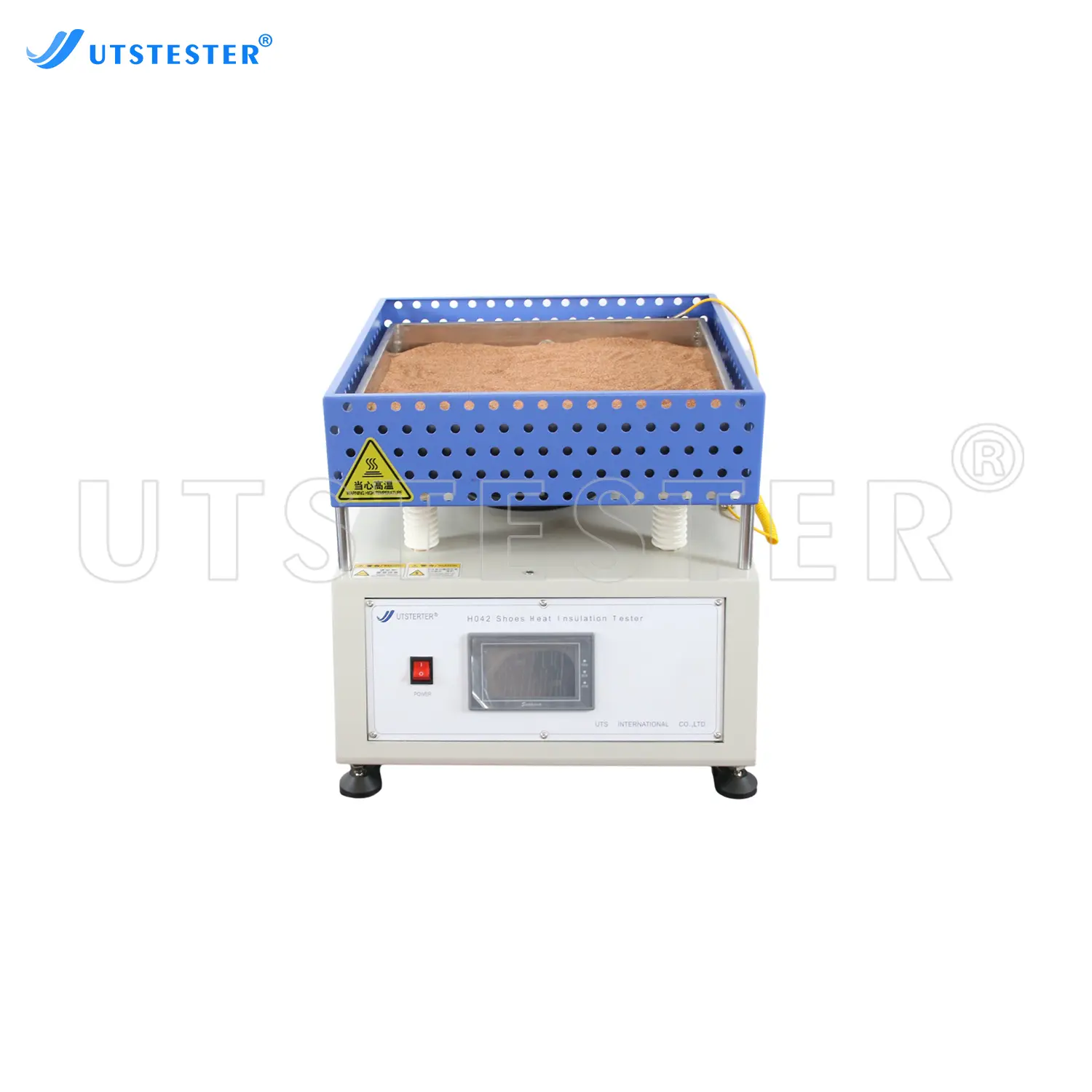

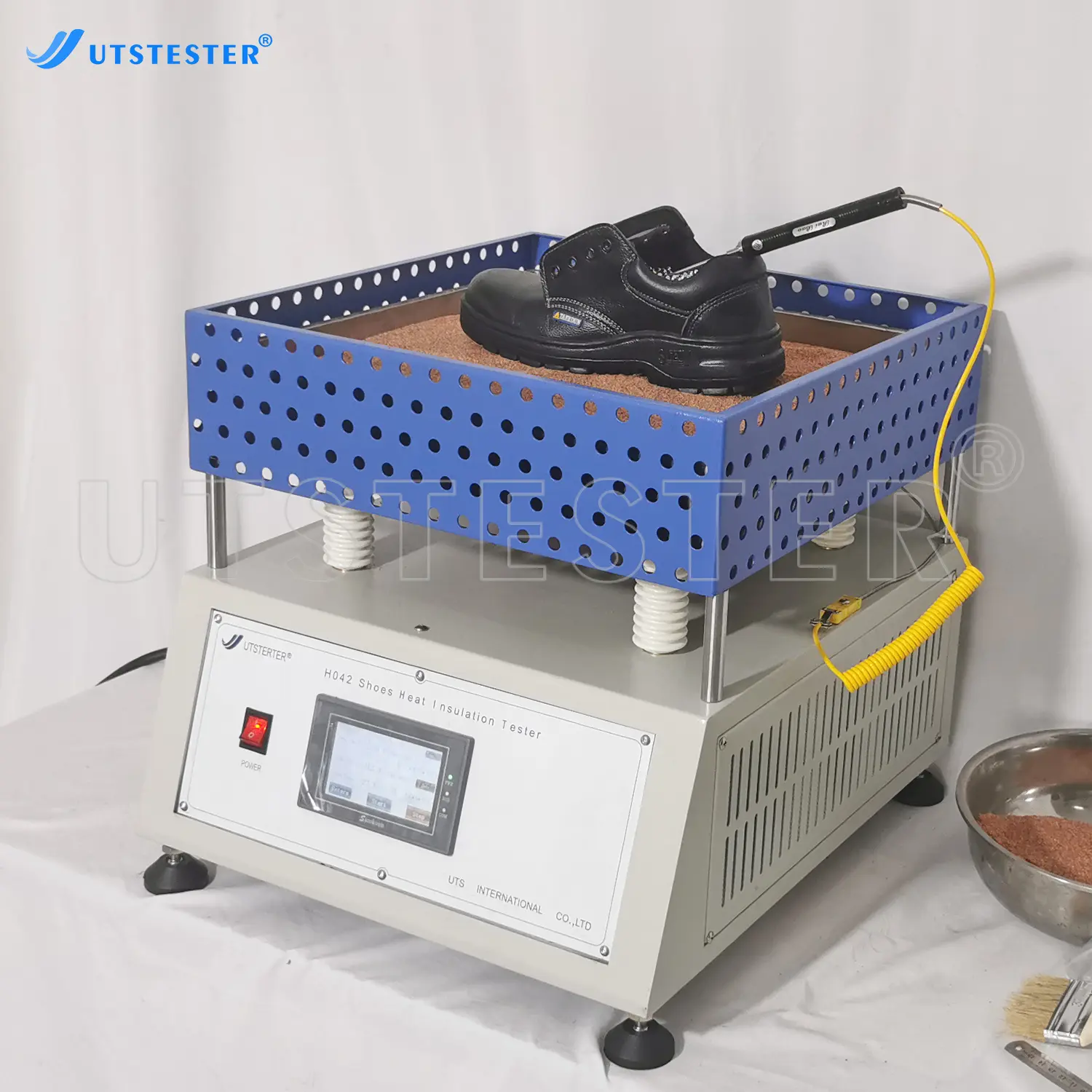

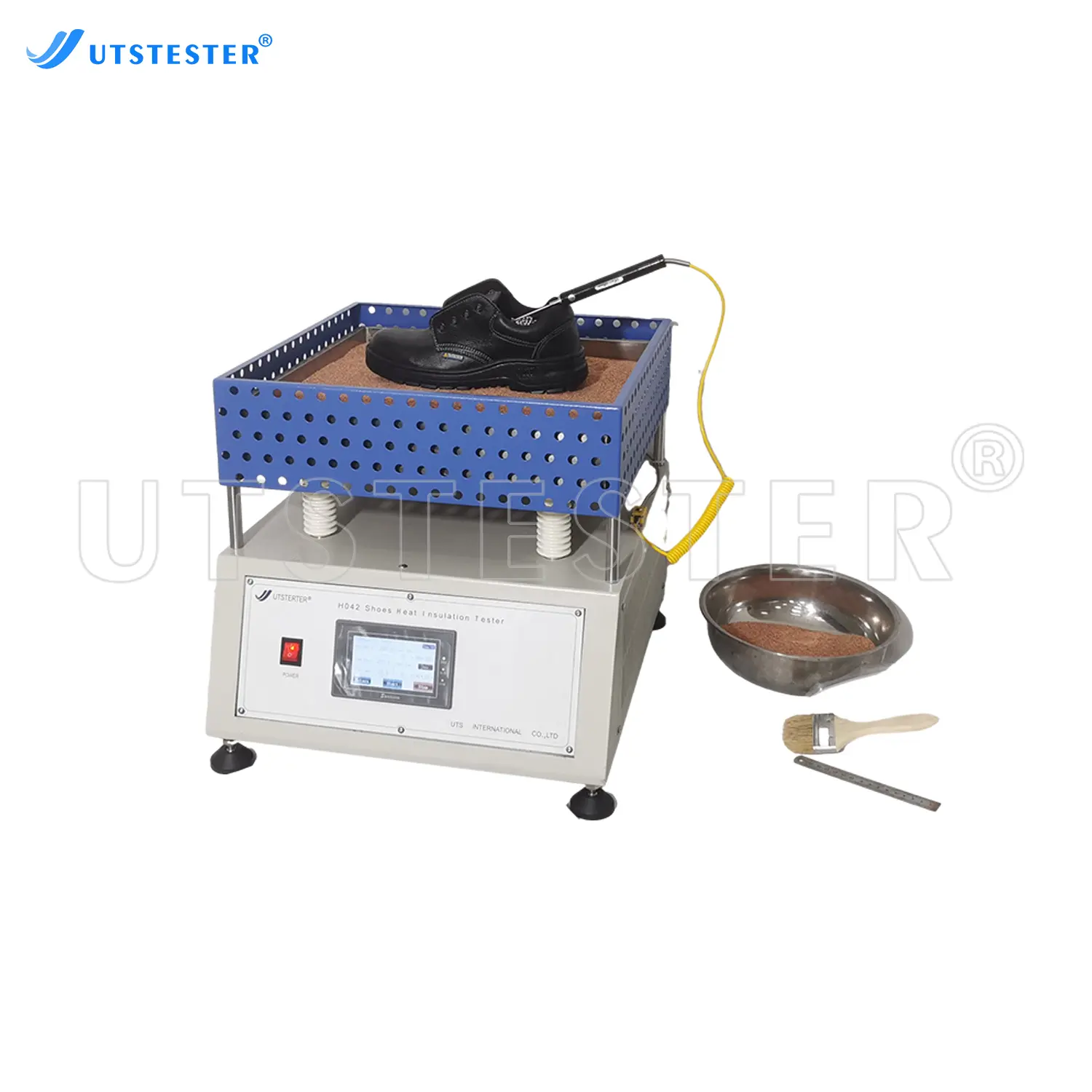

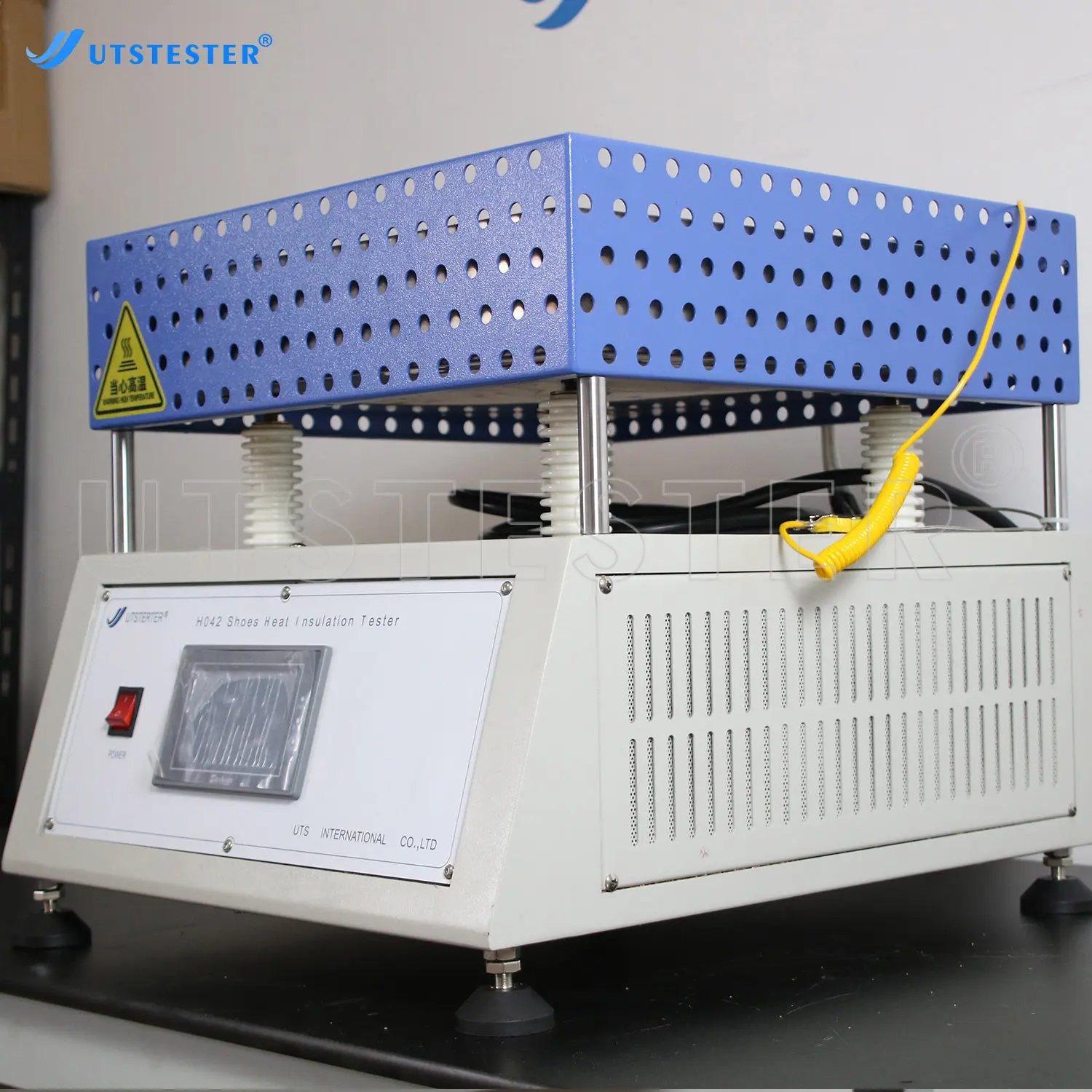

Finished Shoe Insulation Testing Machine Shoe Material Heat Insulation Tester H042
Overview
UTS Shoes Heat Insulation Tester is to test the insulation against heat performance of the whole shoe.
Application
Whole shoe
Whole shoe
Standards
EN ISO 20344 part 5.12; GB/T 20991 5.12; AS/NZS 2210.2 section 5.12
Key Parameters
|
Model |
H042 |
|
Sand size |
(40 ±2)cm × (40 ±2)cm ,height at least 5cm |
|
Temperature probe |
Weld to 2mm thick, 15mm diameter copper plate. accuracy ±0.5°C |
|
Sand volume |
5000 ±250cm3 |
|
Grain of sand size |
0.3~1.0mm |
|
Ovenware temperature |
Room temperature to 150°±5°or 250°±5° |
|
Heating power |
2500 ±250W above |
|
Heat transfer medium |

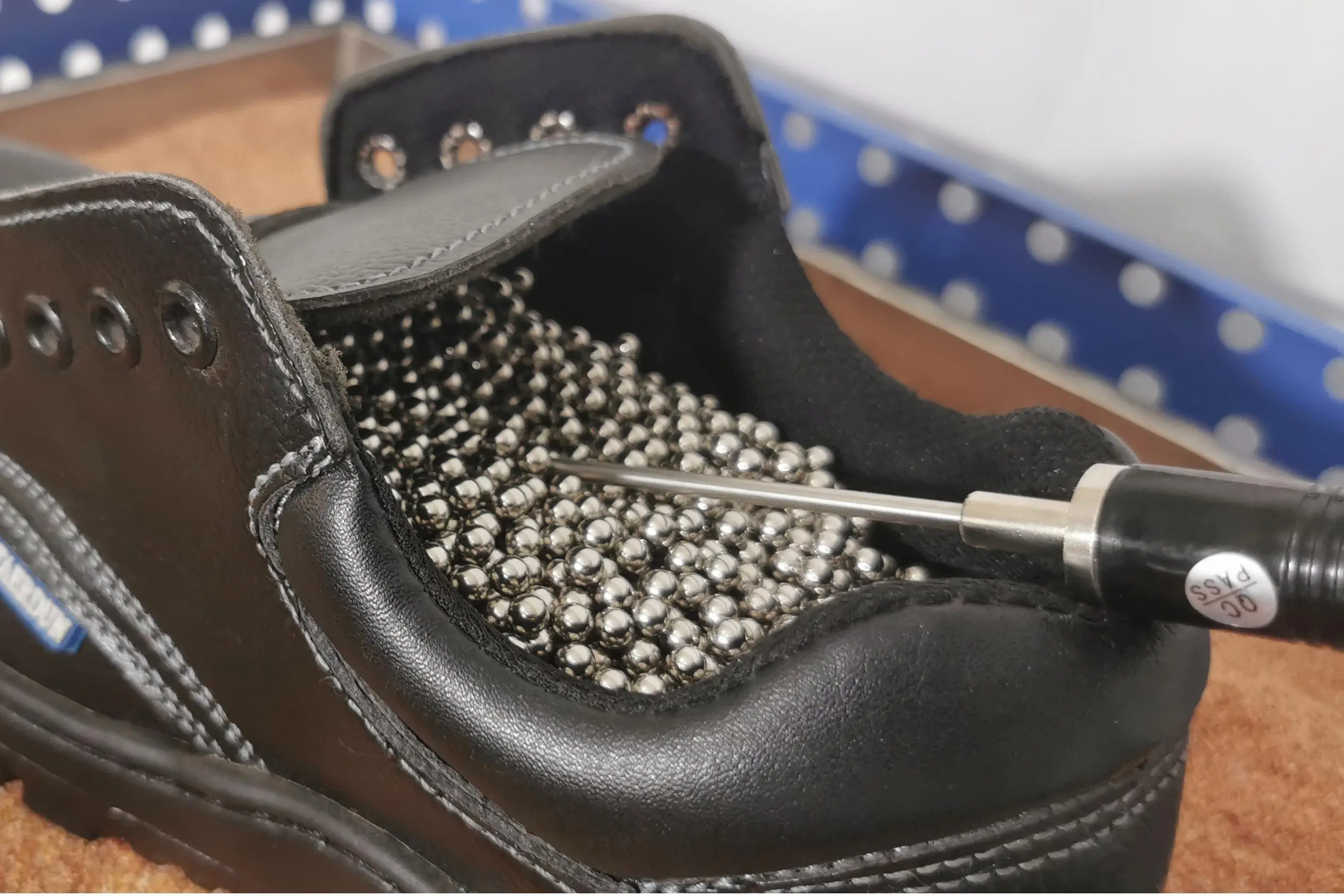

$5 mm Steel balls, total mass(4 000±40) g |
|
Power supply |
1∮ AC 220V |
|
Dimension (W x D x H) |
50×50×32cm |
|
Weight |
35kg |
Product Details

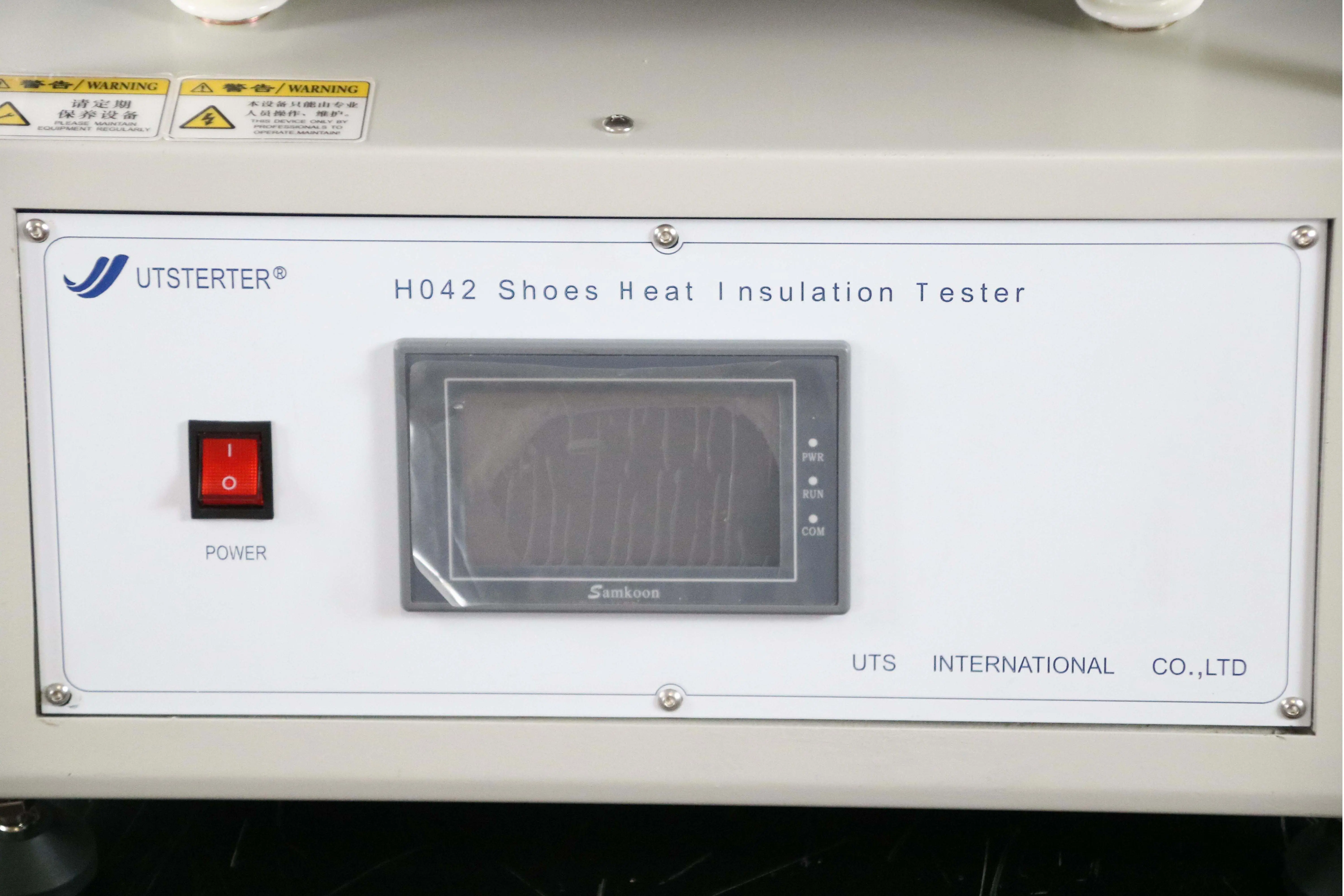

Control panel

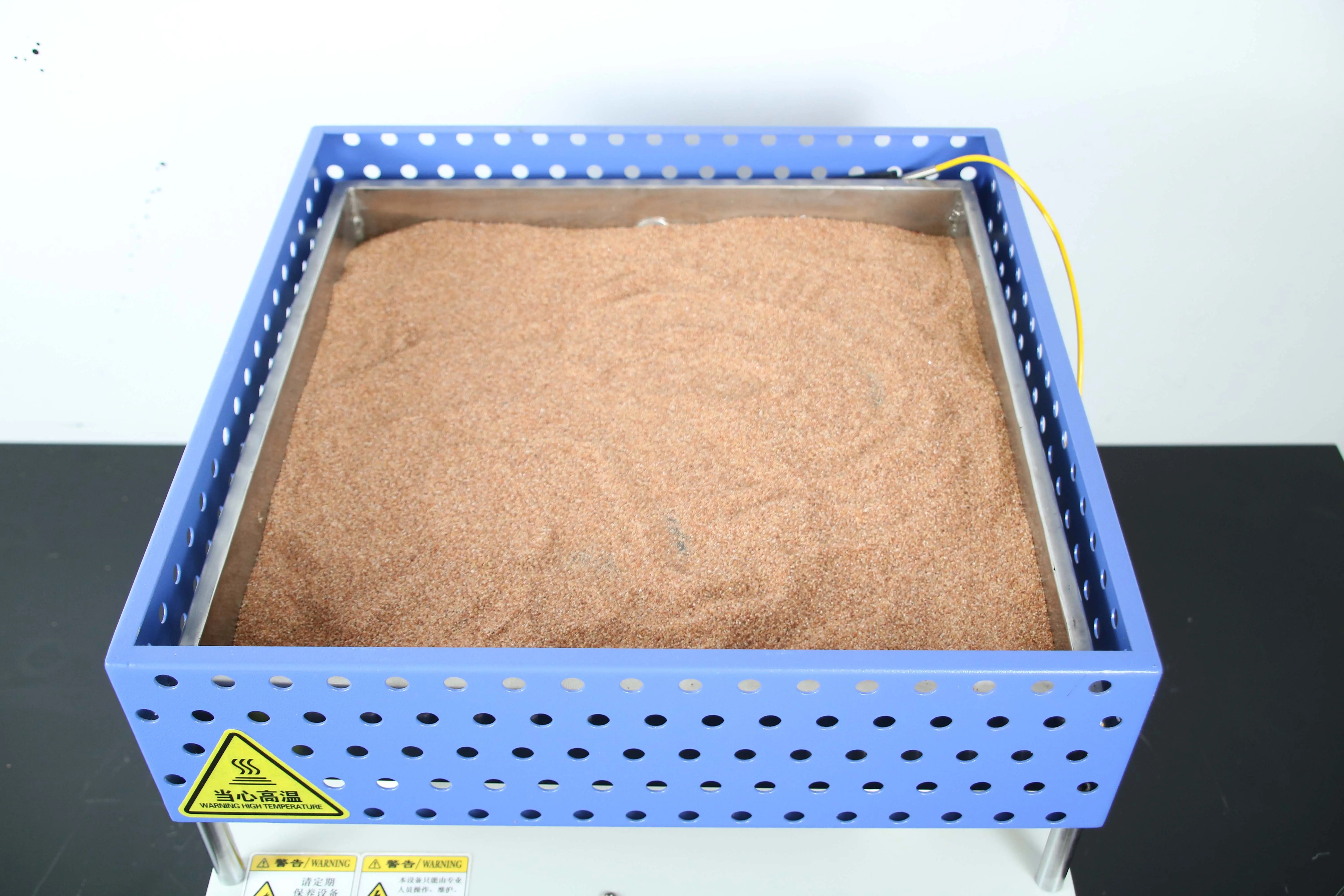

Heating plate

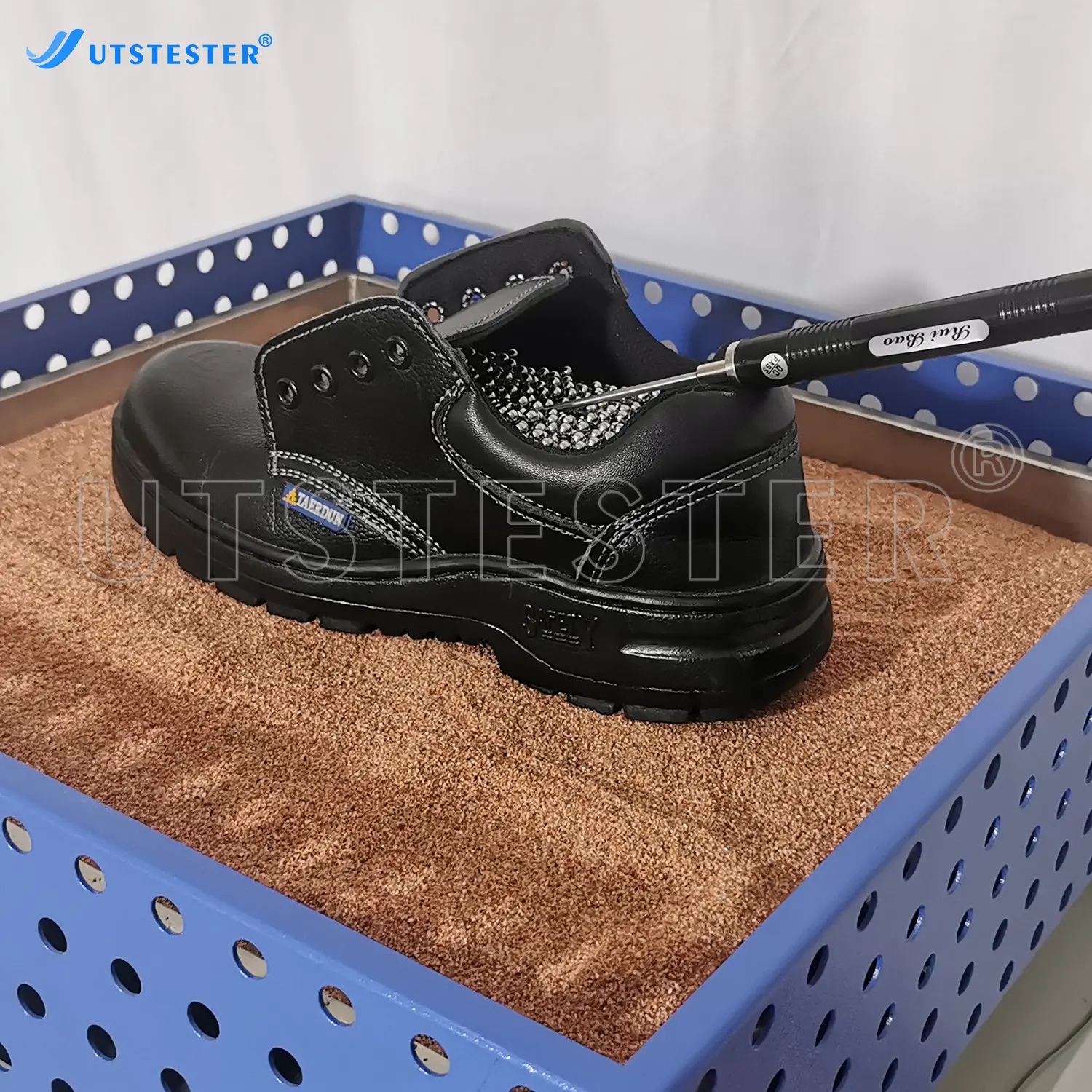

Temperature sensor
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
