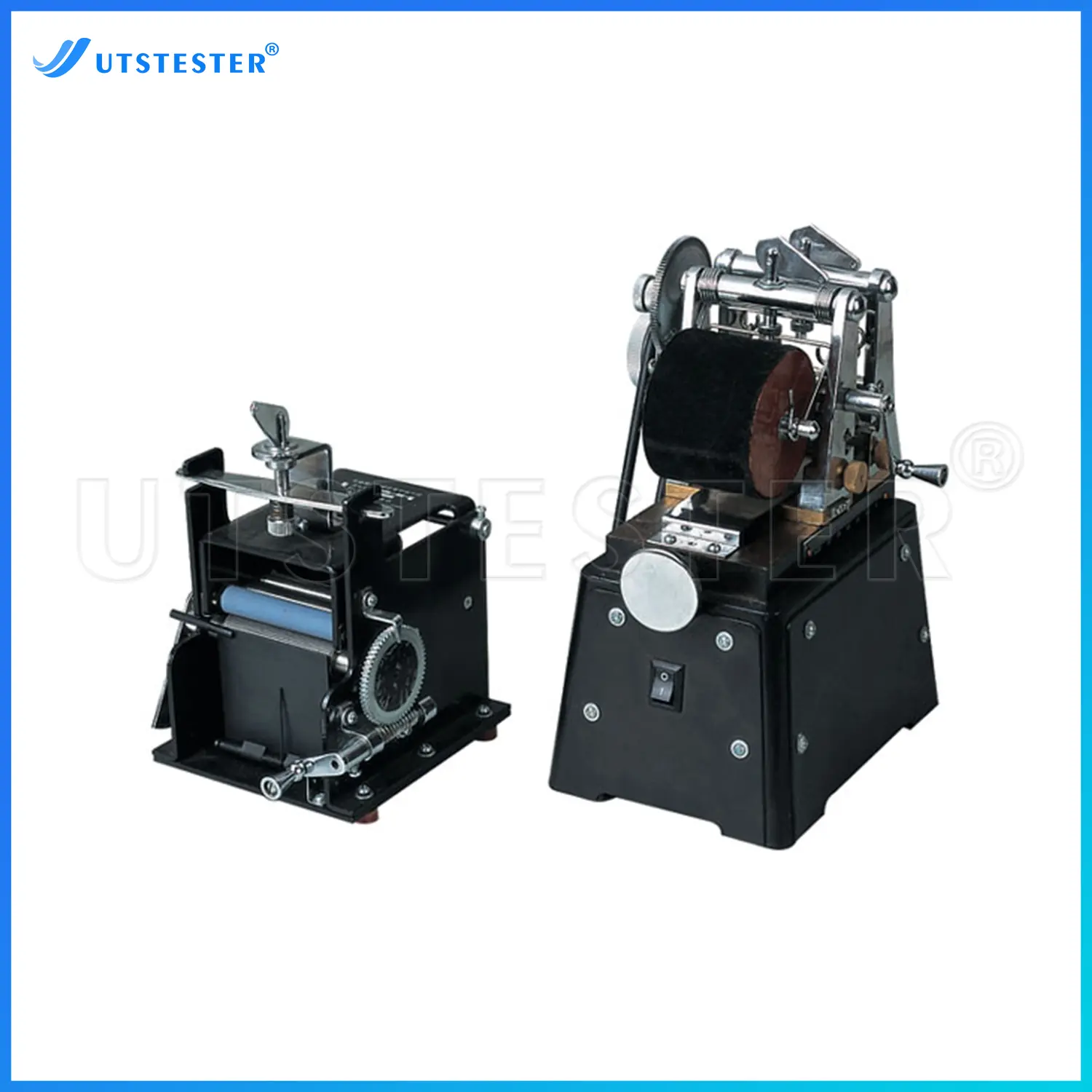

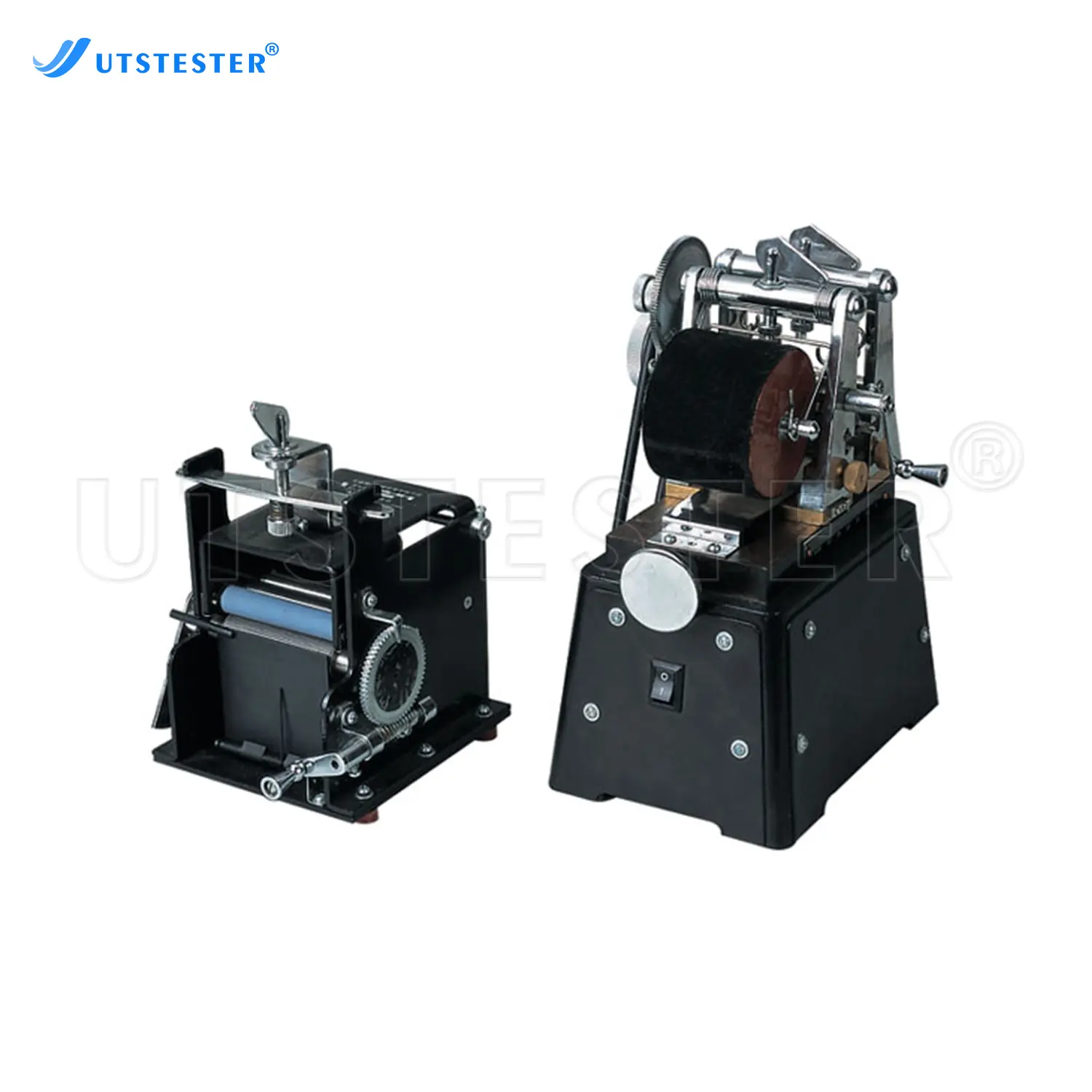

Fabric Testing Equipment Fiber Length Tester Fiber Extender F010

Used to analyze the length of cotton fiber or chemical staple fiber, consisting of two parts: fiber extender and analyzer. Performance is in line with GB/T6908.1.

product details

Production Processes

Packing System

Overview

Roller type cotton fiber length analyzer for the determination of the national standard for the determination of the length of one of the cotton fiber, the determination of the standard temperature and humidity requirements (temperature 20 ± 20C, relative humidity 65 ± 3%) under the conditions.

Lola fiber length analyzer is based on the length distribution characteristics of cotton fibers, the use of roller jaws to control the long and short fibers for equidistant group weighing measuring instrument. Measurement of the fiber test specimen must be prearranged into a neat and clear layers of cotton bunch, and then placed in the analyzer's roller clamping, rotating the roller can be sent from short to long fibers, and finally grouped weighing, so as to obtain the length distribution data. Through the calculation of the main length, quality length, average length, base, uniformity, short fiber rate and other indicators.

Application

Chemical fiber

Fibers

Standards

GB/T6908.1

Key Parameters

Model	Fiber Extension Unit Size
Diameter of front roller	φ8mm
Diameter of rear roller	φ16mm
Diameter of covered roll	φ17mm
Diameter of velvet lap roll	φ66mm
Front and rear roller center distance in line with the length scale	Error ≤ 0.5 mm
The space between Feed cotton roller and Cotton delivery roller	20 mm ~ 60mm
Circumferential velocity ratio for Feed cotton roller and Cotton delivery roller	1:4
Front roller spring pressure	12N
Rear roller spring pressure	20N
Dimensions (LxWxH)	205xl50x200mm
Weight	6.3Kg

Model	Fiber Analyzer Size
Fiber analyzer	Diameter of input roller	φ19.1mm
	Spring Press of Analyzer	70N
The distance from the inner edge of the skateboard to the center of the groove roller	9.5mm
The output length of the cotton conveyor roller	60±00.25 mm
The height of the skid plate	62 ± 0.1 mm
The skid plate and the cotton roller tangent, left, center, right gap	≤ 0.05 mm
Overall dimensions (length × width × height)	145 × l20 × l90 mm
Weight	1.8Kg

Product Details

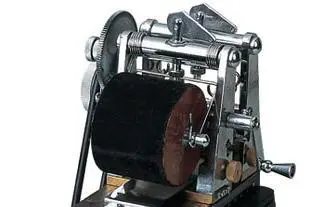

Fiber Extension

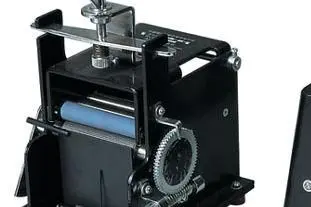

Fiber Analyzer

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
