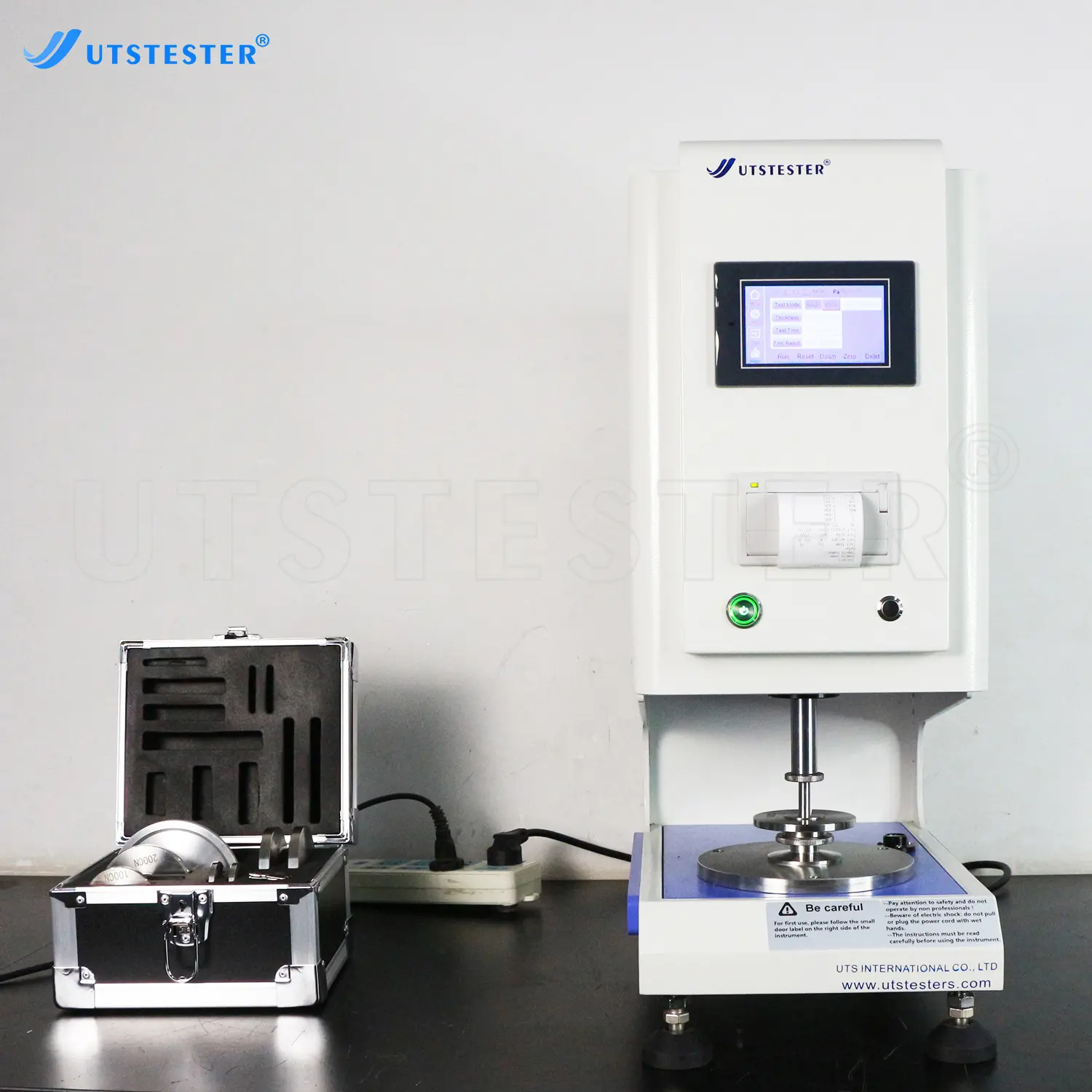

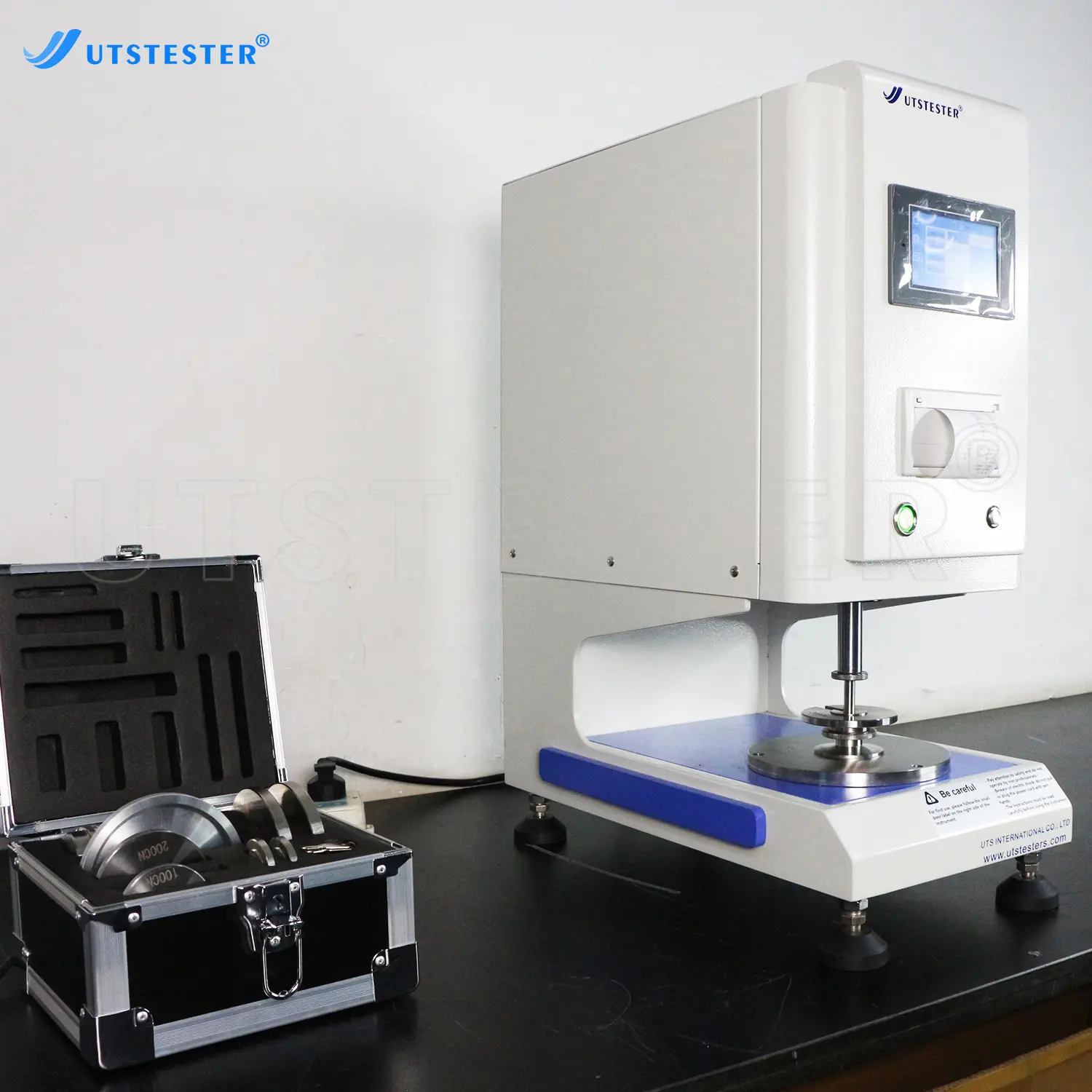

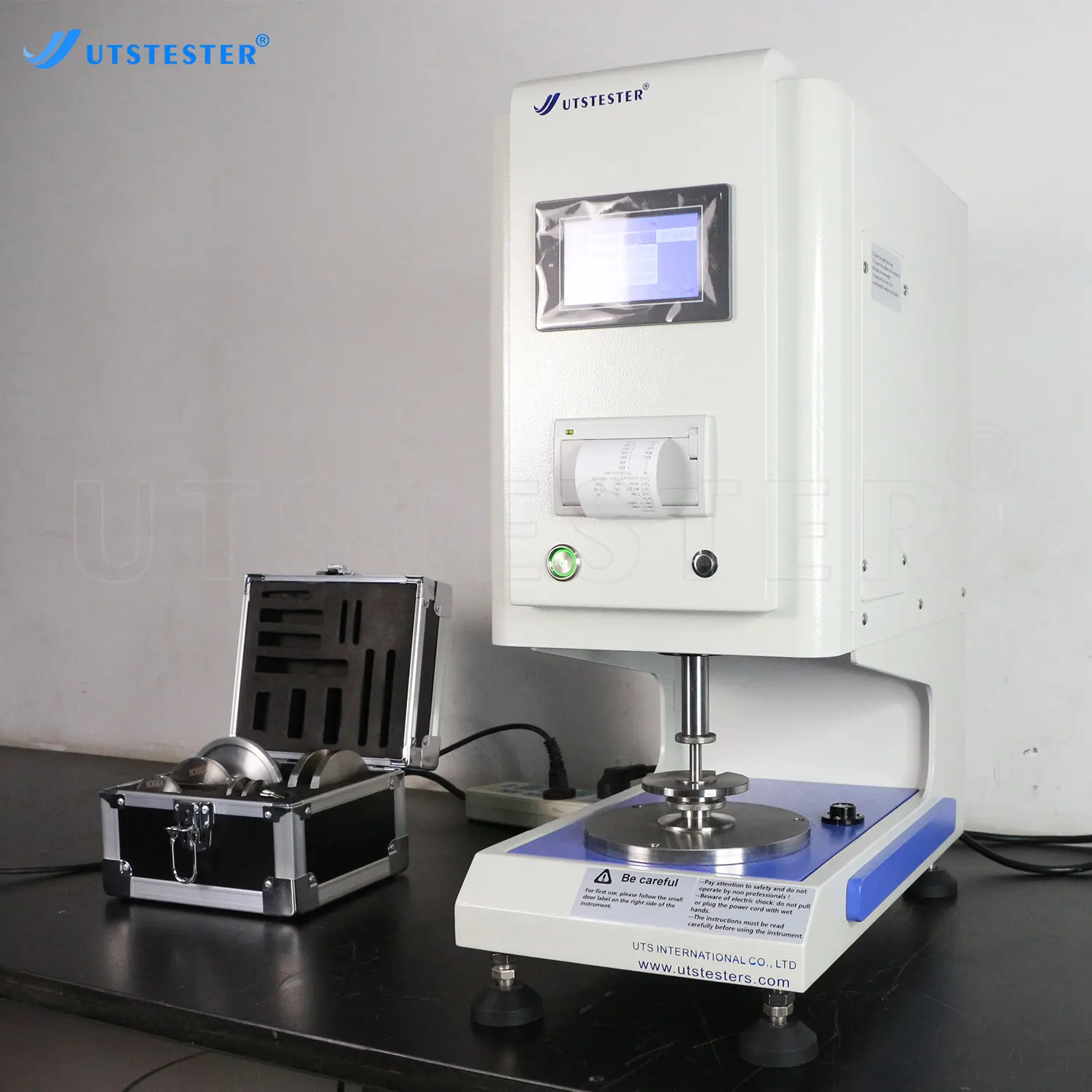

Electronic Textile Thickness Tester and Fabric Thickness Gauge M035B
Overview
To measure the thickness of various woven fabric, knitted fabric and uniform thin materials.
Application
knitted
woven fabrics
Standards
ASTM D1777 GB/T3820 ISO 5084/9073/9863 FZ/T01003
Key Parameters
|
Model |
M035B-1 |
M035B-2 |
|||
|
Resolution |
0.01mm |
0.001mm |
|||
|
Thickness Range |
0.01-25mm/50mm |
0.001-25mm |
|||
|
Pressing Load |
5cN weight 1pc 10cN weights 2pcs 50cN weights 2pcs 100cN weight 1pc 200cN weights 2pcs 500cN weight 2pcs |
||||
|
Pressure foot |
Diameter(mm) |
φ11.28mm |
φ50.48mm |
φ56.42mm |
φ112.84mm |
|
Area(mm2) |
100mm2 |
2000mm2 |
2500mm2 |
10000mm2 |
|
|
Data storage |
Test data can be stored in 30 groups, each group of 50 test results |
||||
|
Pressure weight time |
1~999s can be set |
||||
|
Display |
Touch screen |
||||
|
Power Supply |
AC 220V±10% 50Hz 100W |
||||
|
Dimensions (L×W×H) |
250×450×460mm |
||||
|
Weight |
35kg |
||||
Product Details

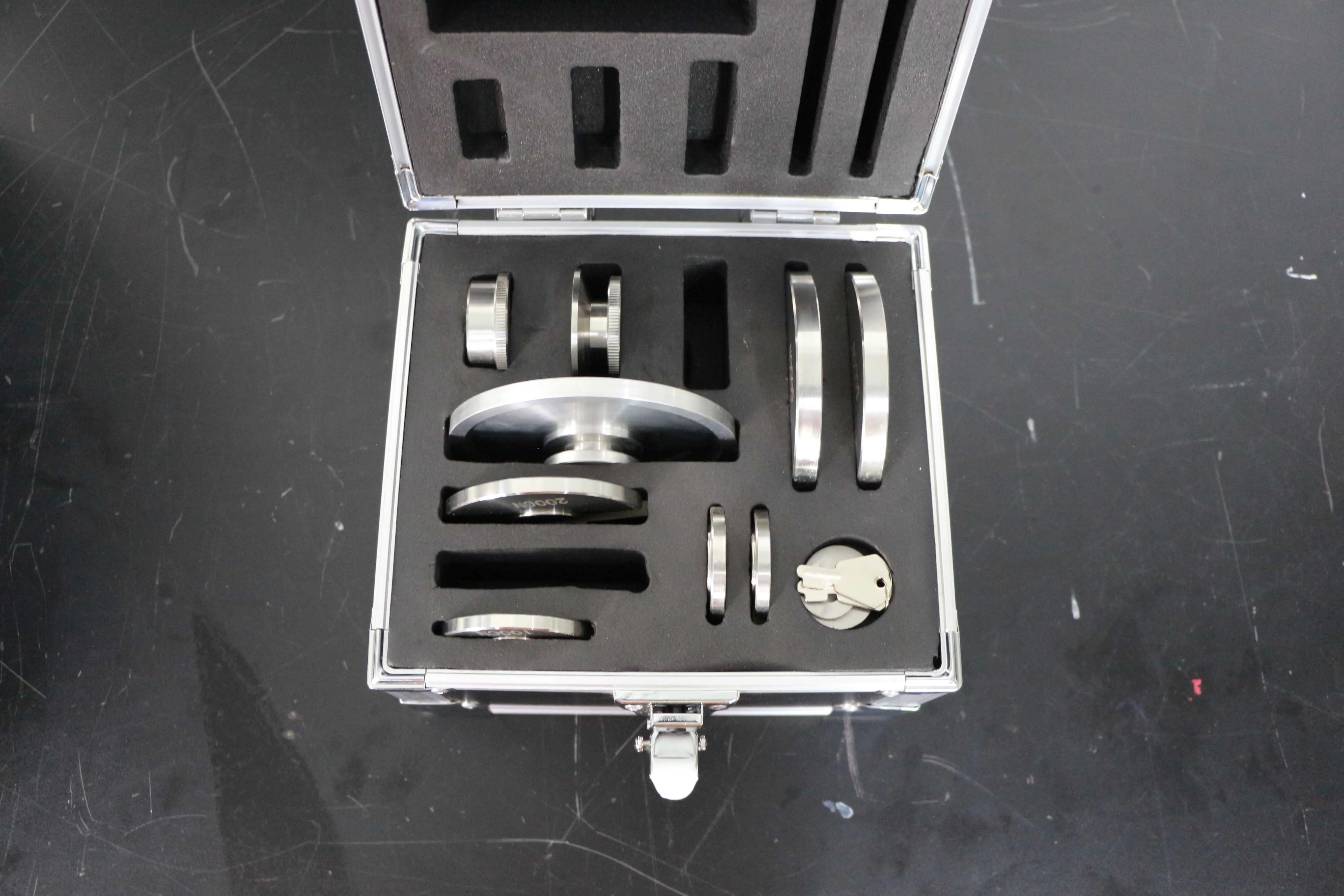

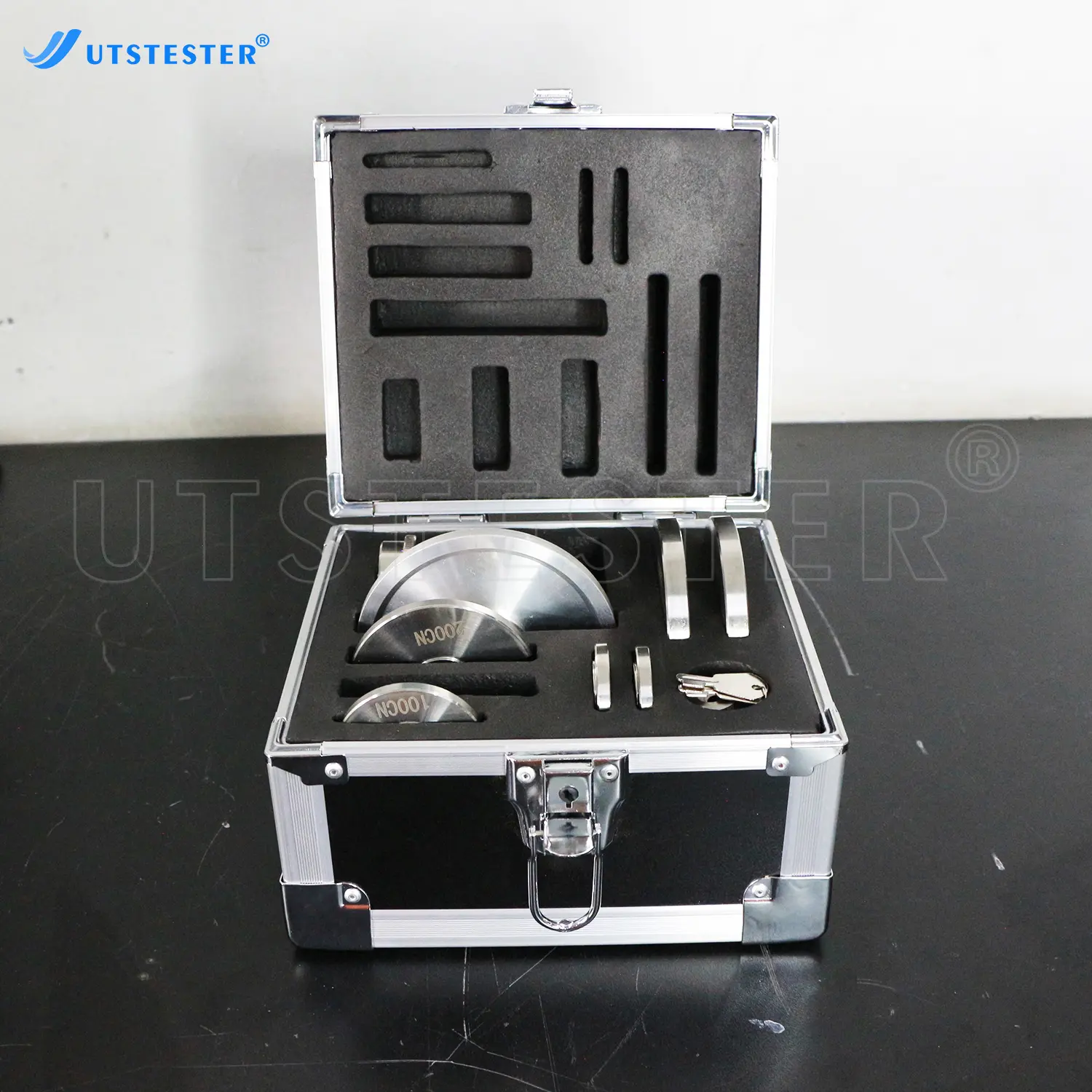

Standard weight

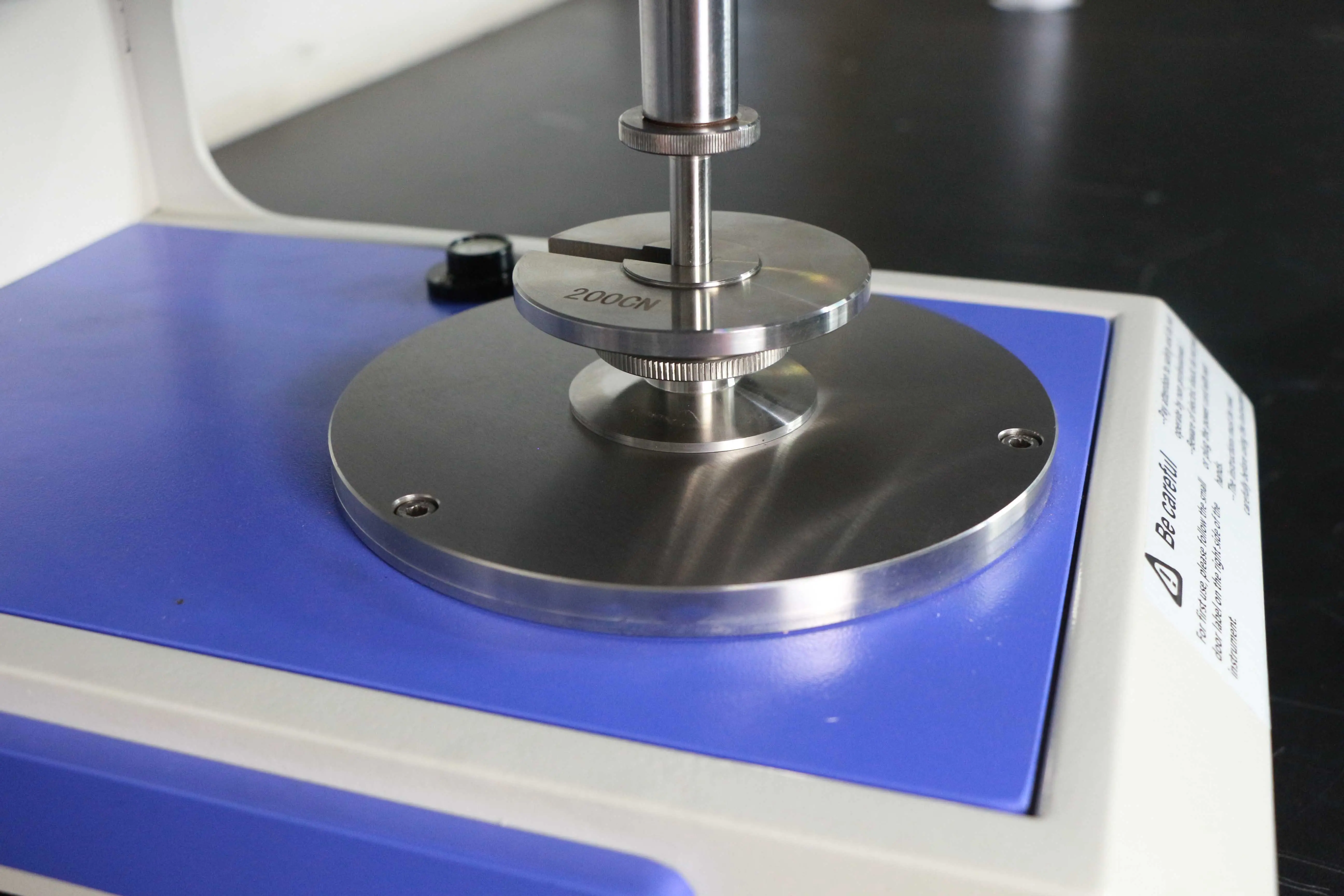

Presser foot

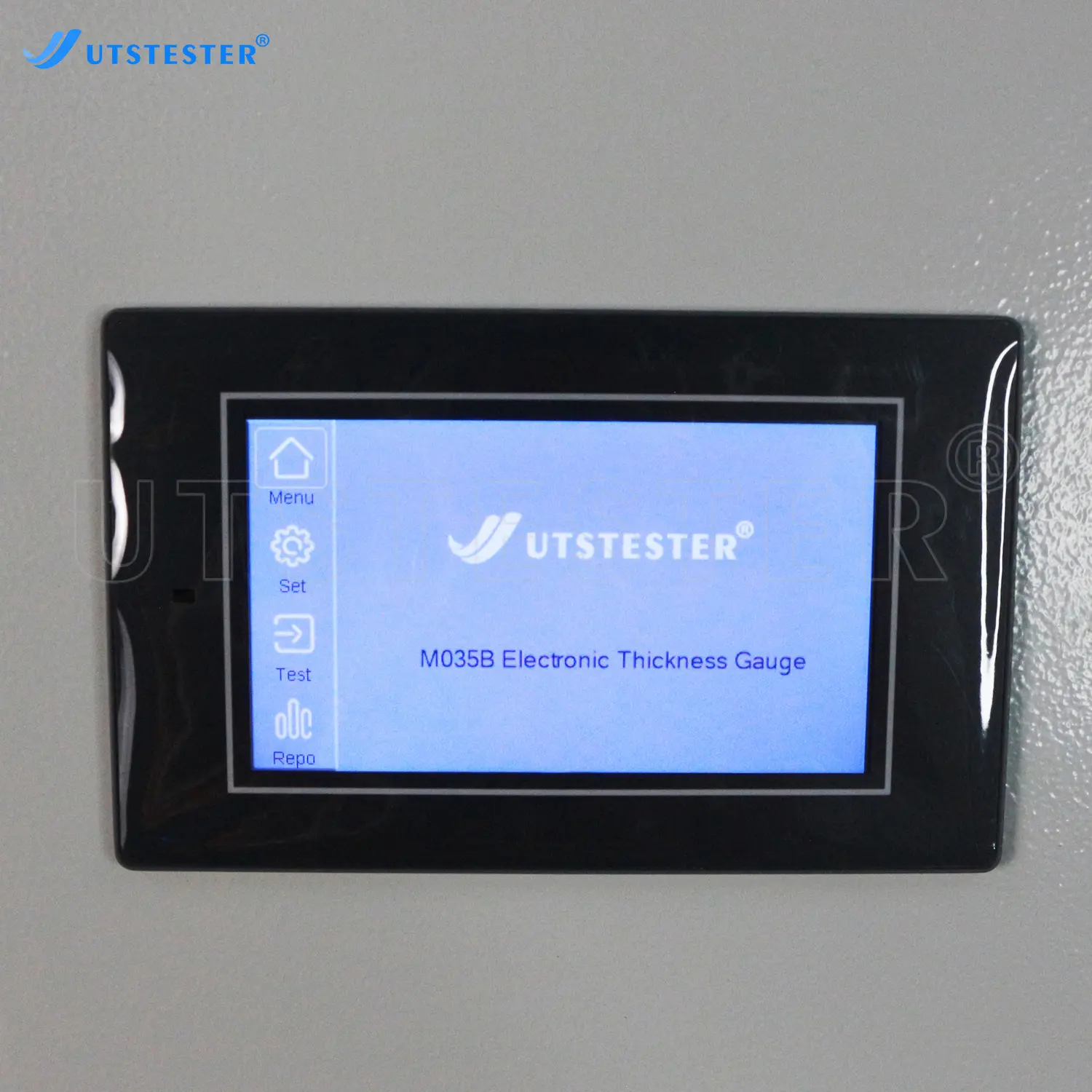

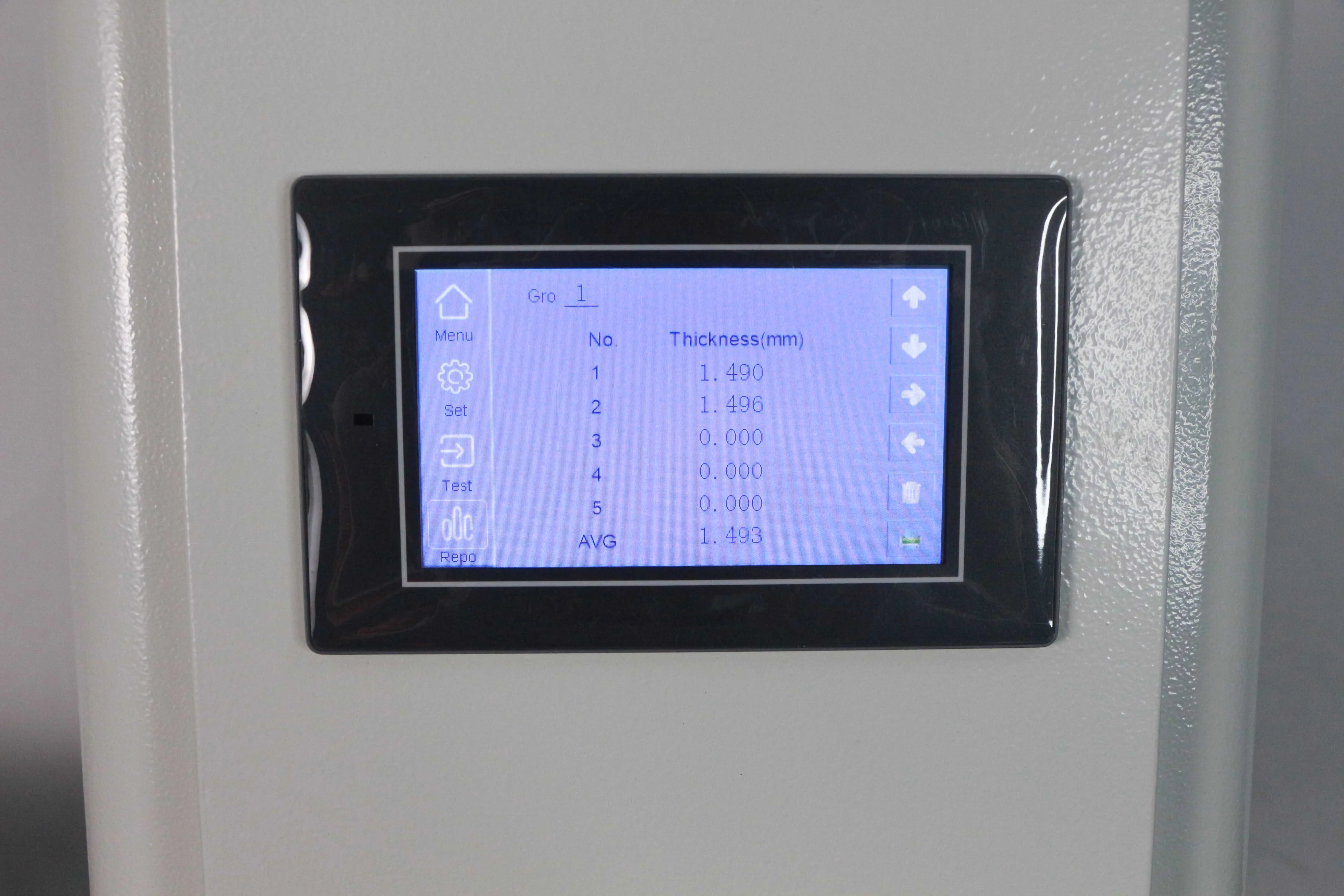

Operate the display screen

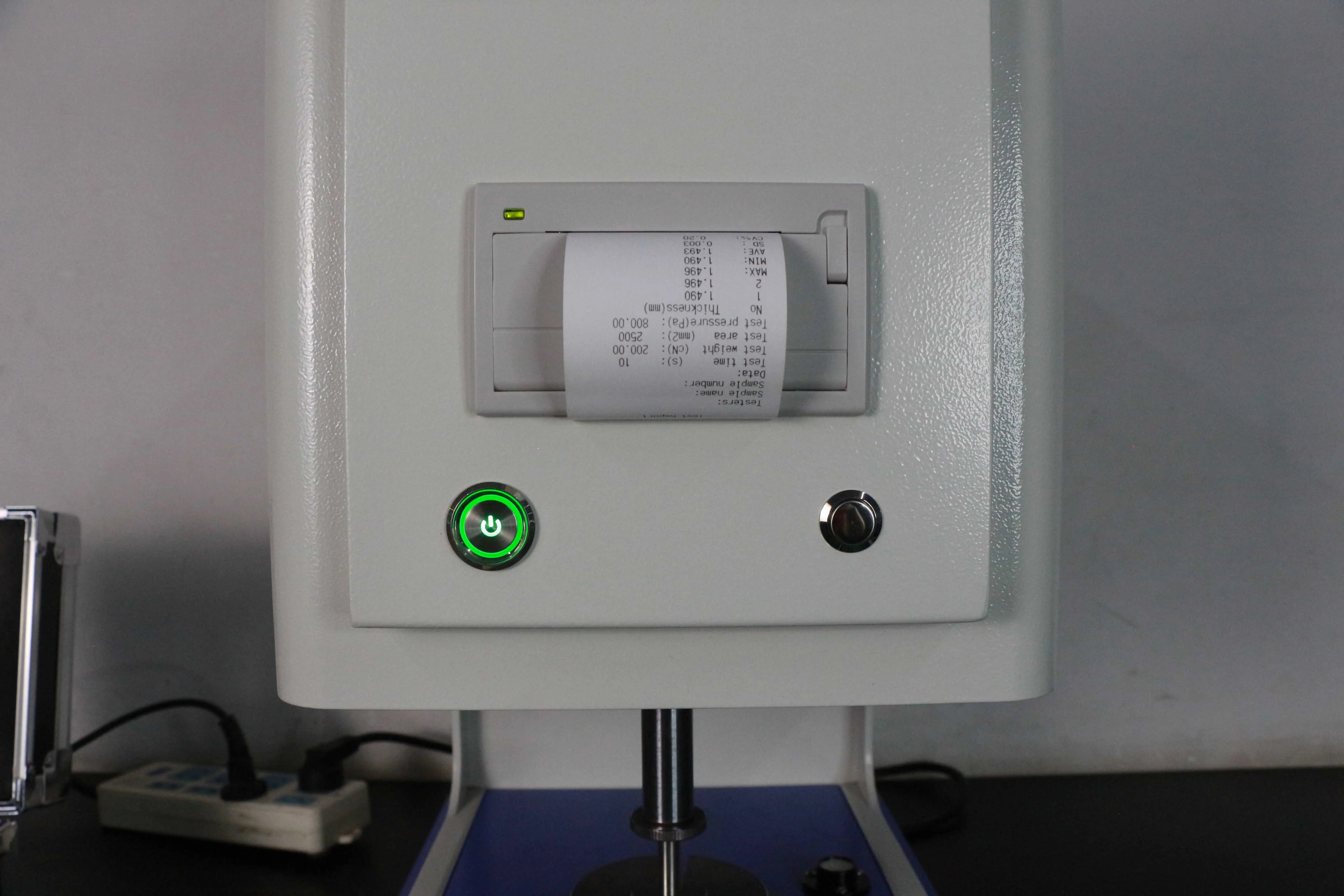

Built-in printer
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
