Dyeing and Finishing Tester

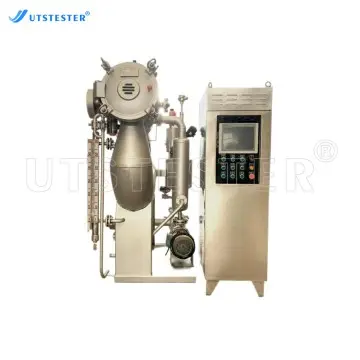

1, the machine has compact structure, small bath ratio, PLC with touch screen control, the entire process automatic control, automatic High degree of transformation.
2, dyeing fluid circulation mode: by the corrosion resistant mixed flow pump with reversing device, according to the process needs to achieve positive and negative dyeing fluid Loop.
3, groove sealing form: silicone rubber O-type sealing ring.
4, equipped with pneumatic valve, master cylinder with flap type level controller, equipped with safety interlock mechanism, master cylinder with no Rust steel safety valve, manually open cover, and temperature control, can be set 85℃ safety protection.
5, dyeing liquid reversing control, computer automatic reversing control.
6, the main material: the selection of high-quality stainless steel plate production.

1.Configure special dyeing computer for dyeing machine;
2.Dyeing cylinder is made of SUS304 stainless steel;
3.Equipped with frequency converter and frequency conversion speed regulation;
4.Fill the lower cylinder with washing water;
5.Equipped with water level gauge and scale;
6.Equipped with feeding tank and feeding control valve;
7.energy-saving design, reduce the use cost, save power consumption;
8.Operation mode: with automatic operation and inching function;
9.The feeding drum is a round one;
10.Feeding control valve is inside the body;

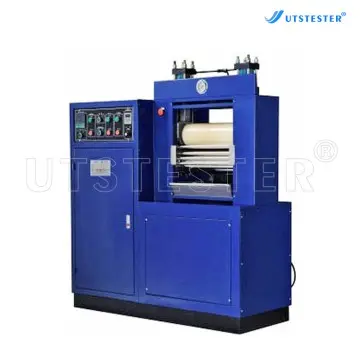

1.Consists of rollers driving system, hydraulic compression system, cooling device for rollers, etc.
2.High precision heating system, accurate temp. & time control.
3.Emergency stop Equipped to protect the machine and operators.

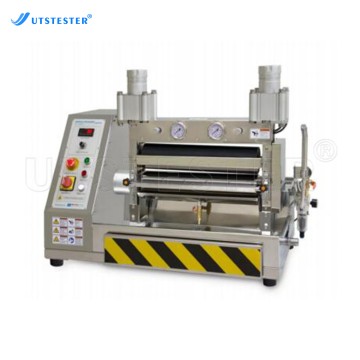

It is composed of a pneumatic electric small padder and a saturated steam box unit. Normally, the saturated steam temperature is 102+/-1℃. continuous feeding and discharging of the cloth, and the cloth sample enters the steam box after passing through the liquid tank through the roller. Frequency conversion speed control, automatic setting through the steam box time, a one-time complete even pressure belt steam, can avoid the influence of air REDOX.Pad dyeing and reduction dyeing process VAT dyes.

It is on the basis of absorbing foreign small same type rolling cars combine the domestic current situation of the pad dyeing post-processing technology digestion renovation and become one of the most advanced pad dyeing small prototype.

1.Replace traditional oven to provide amount of, fast and flat dry test template, so as to reduce unnecessary waiting time for drying, and enhance color test efficiency.
2.Can be used for color fixation test after test samples came out from padding machine quickly, so as to determine whether the samples are abnormal.
3.Can be used as padding color fixation machine and printing dryer.
4.Can simulate and forecast color changing degree for resin process or drying dyestuff.
5.Can provide flat and correct test samples to enhance color test precision via computer and correct finished products and flat color sample.

Sample preparation (Needle plate shelf) - Automatic feedstock - Automatic count - Auto return of material and finish test.

1. The countertop adopts imported printing belt, which has excellent flatness, temperature resistance, corrosion resistance and anti-aging performance.
2. The squeegee force and squeegee speed can be controlled, with good reproducibility, and avoiding man-made scraping errors.
3. The squeegee method adopts electromagnet to attract the squeegee roller to press and roll, the magnetic force can be adjusted in sections, and the magnetic force value can be displayed.
4. The magnetic table is controlled by the frequency converter, the running speed can be adjusted, and the speed value can be displayed.
5. For different fabrics and pastes, different specifications of magnetic rods can be selected.

1) the machine is made of SUS304L stainless steel mirror plate, with beautiful appearance and reasonable structure.
2) the card cup device adopts high-quality 304 stainless steel spring, and can be used for sample testing with flasks of different specifications, which is convenient and fast to operate.
3) equipped with high-performance programmable computer temperature control system, which can compile and store ten processes, and each process can be programmed in ten steps;The heating rate and holding time can be programmed, and the whole process flow can be controlled automatically.
4) PT100 temperature probe produced by DTC is equipped with high temperature measurement accuracy and long service life.
5) the number and volume of test cups can be customized according to customers' needs (the maximum beaker capacity is 500ml).

1. Whole machine in stainless steel material with strong and durable, high corrosion resistance advantage.
2. High performance programmable computer temperature control system, equipped with heating and cooling rate and accurate control of holding time.
3. Equipped with precision heating system, PT100 temperature control probe, available for edit and save 10 craft.
4. Drive system: Gear drive, small starting torque, smooth, light load, low noise.
5. Beakers material: resistant to corrosion high quality SUS 304 stainless steel, seal gasket in Teflon combine with silicone rubber material, cup cage with rotary times 40 RPM.. Test cups vertically rotate with good dye uniformity.
6. Stainless steel cooling water tube, equipped with insulation cover, fast cooling and save energy.
7. Equipped with aluminum shell motor and reducer to reach good heat dissipation effect.1. Whole machine in stainless steel material with strong and durable, high corrosion resistance advantage.
2. High performance programmable computer temperature control system, equipped with heating and cooling rate and accurate control of holding time.
3. Equipped with precision heating system, PT100 temperature control probe, available for edit and save 10 craft.
4. Drive system: Gear drive, small starting torque, smooth, light load, low noise.
5. Dye cups: 12 or 24 pieces, capacity 150㏄, 250㏄, 300㏄, 400㏄, 450㏄, 500㏄(Optional)
