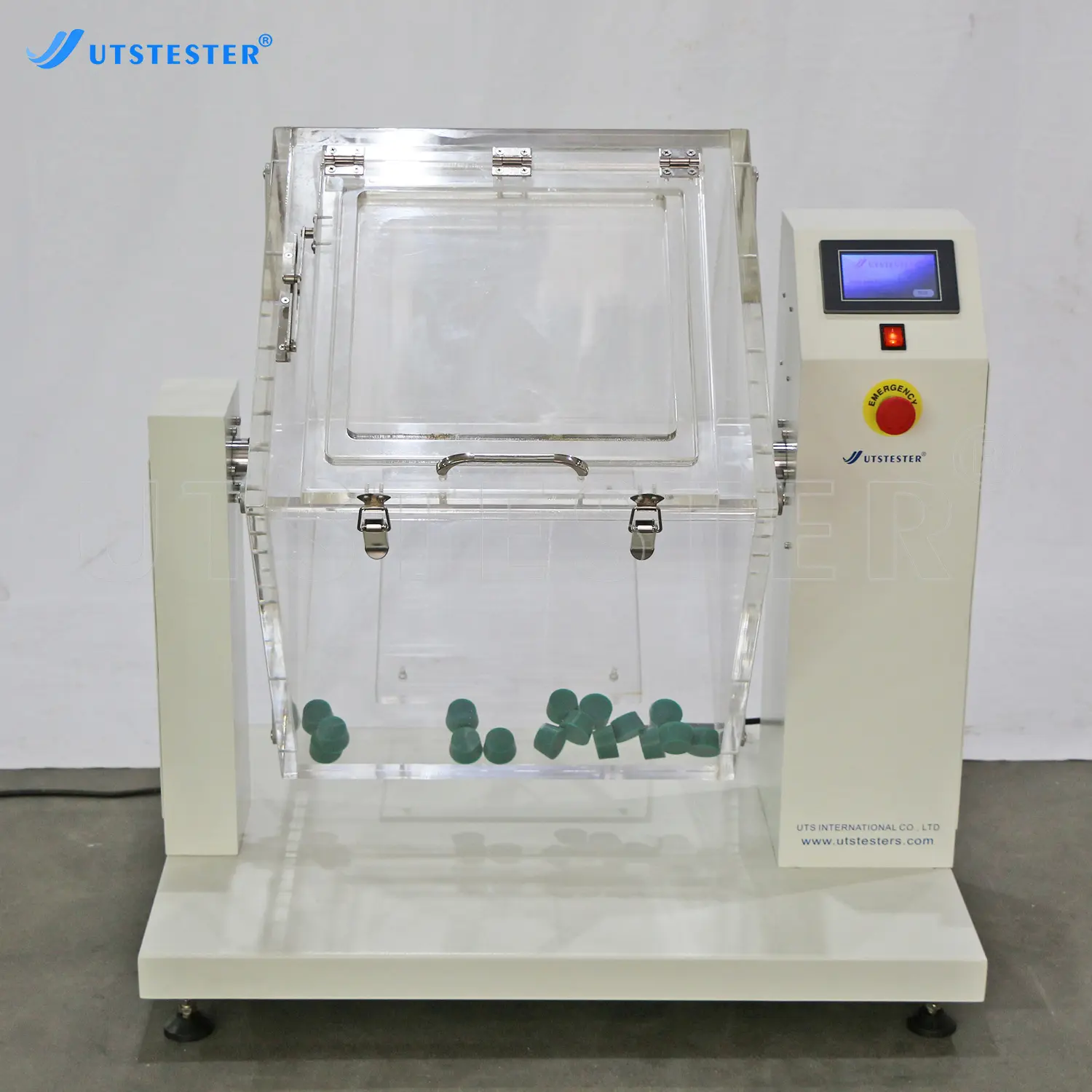

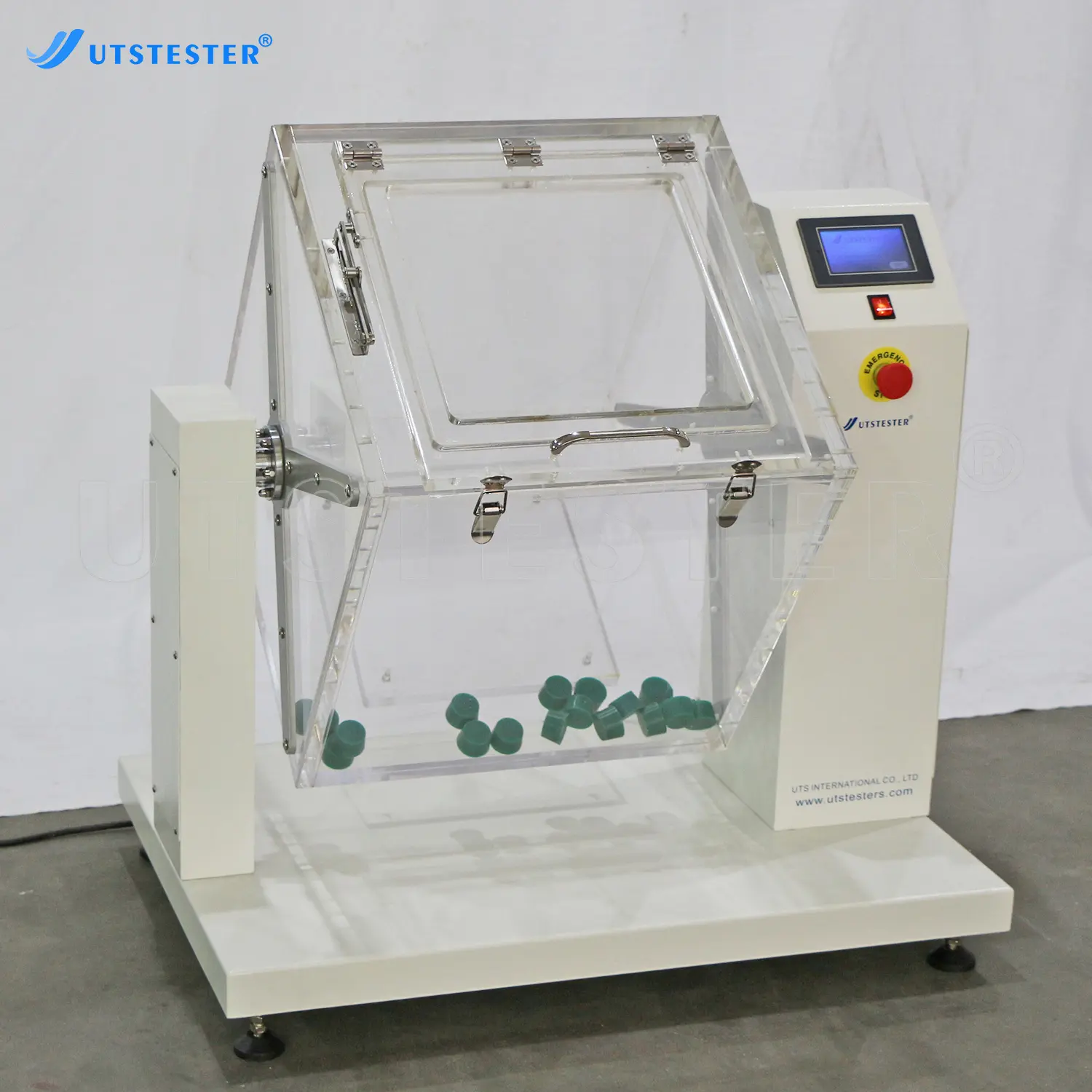

Down Proffness Rotating Box (IDFL 20-1) Fabric Downproof Testing Machine MF06C
Overview
Fabric downproof testing machine refers to the performance of fabric to prevent the leakage of down or feather from the crack of yarn. Denotes the number of drill roots under specified conditions. Suitable for testing the anti-drilling properties of the lining and fabrics used in making down products.
Application
Cold protective clothing
Bedding article
Standards
IDFL 20-1
Key Parameters
|
Model |
MF06C |
|
Inner dimension of revolving box |
455 x 455 x 455mm |
|
Rotating box speed |
48 ± 2 r/min; |
|
Set rotation number |
1 ~ 9999 times |
|
Rubber balls |
24 pcs No. 6.5 solid silicone stoppers per box |
|
Power supply |
AC 220V±10% 50Hz 200W |
|
External dimension |
1000×800×900mm |
|
Weight |
160kg |
Product Details

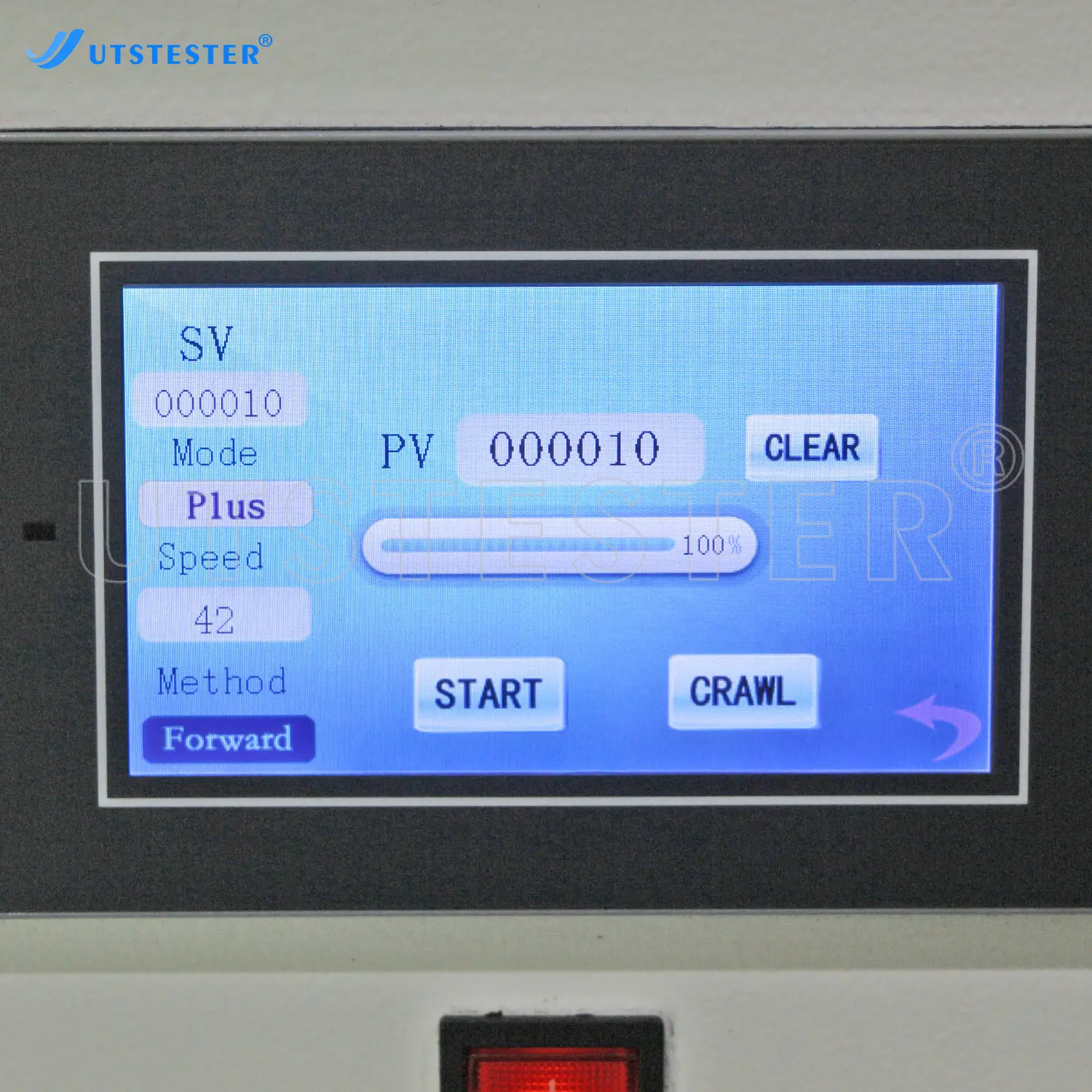

Displayer

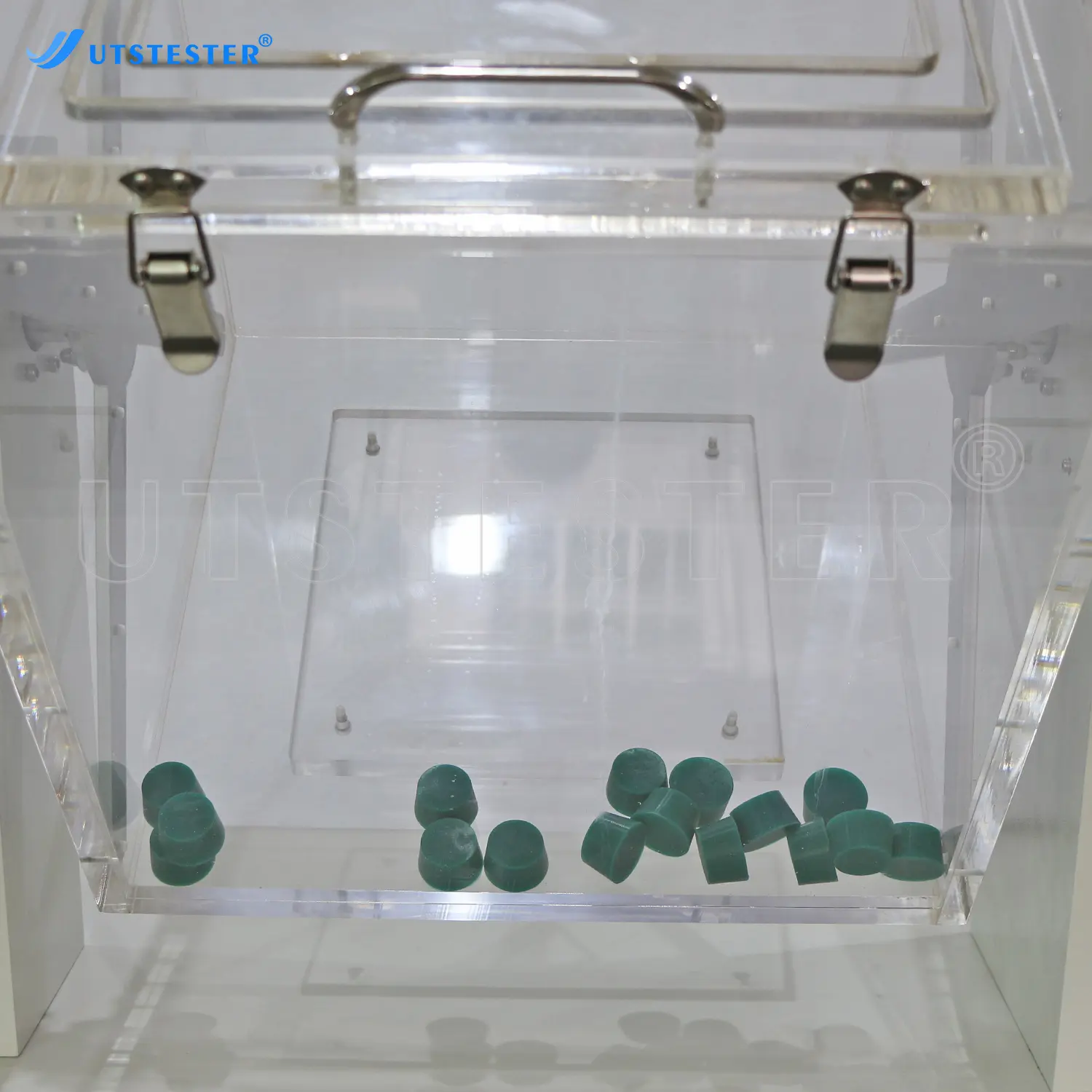

Test chamber
Rubber block
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
