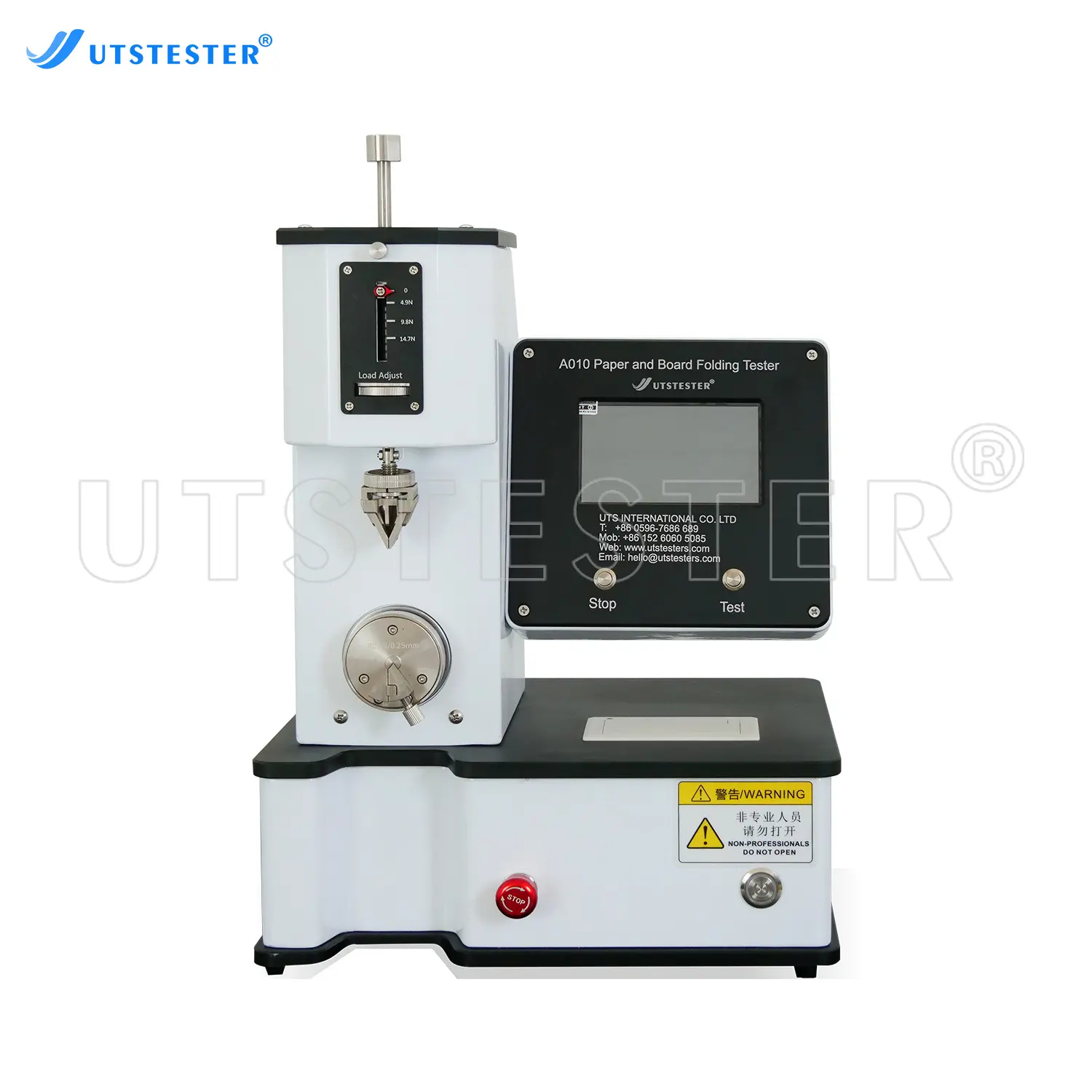

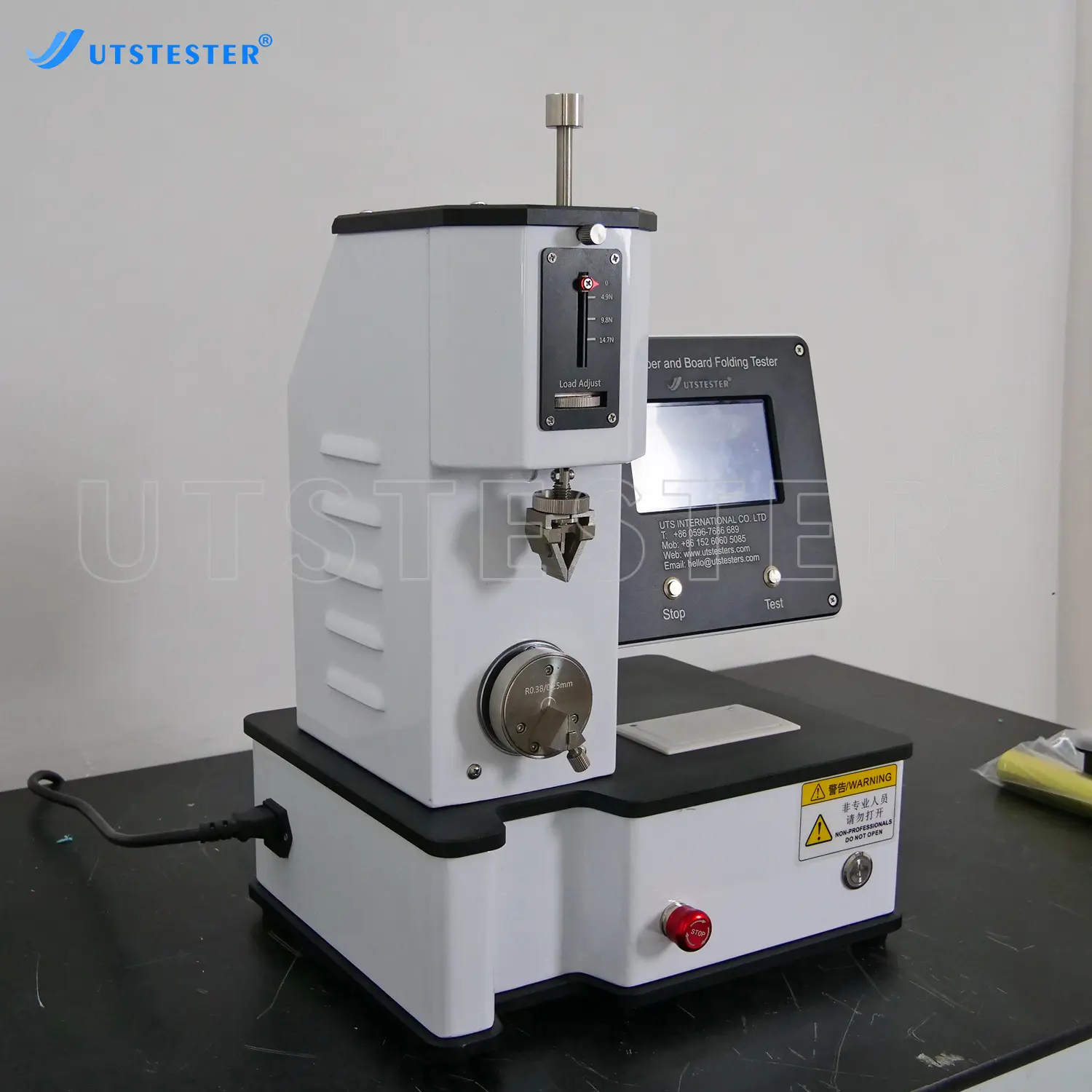

Automatic Paper and Board Folding Tester Folding Endurance Tester A010

Model

A010

Measuring range

0~99999 times

Folding angle

Material yield bending Angle is adjustable from 0° to 142°

Folding speed

adjustable bending speed from 10 times /min to 2000 times /min

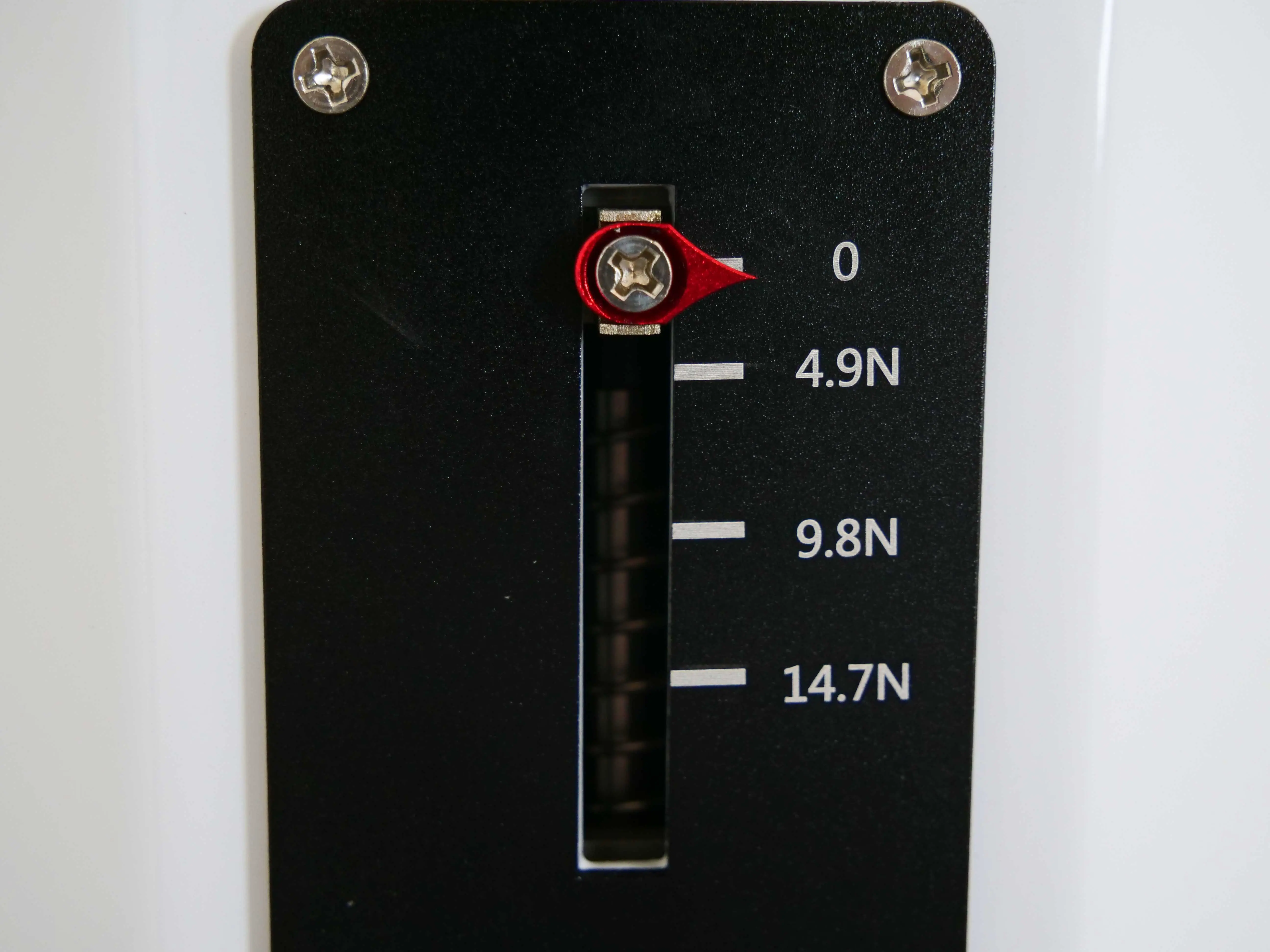

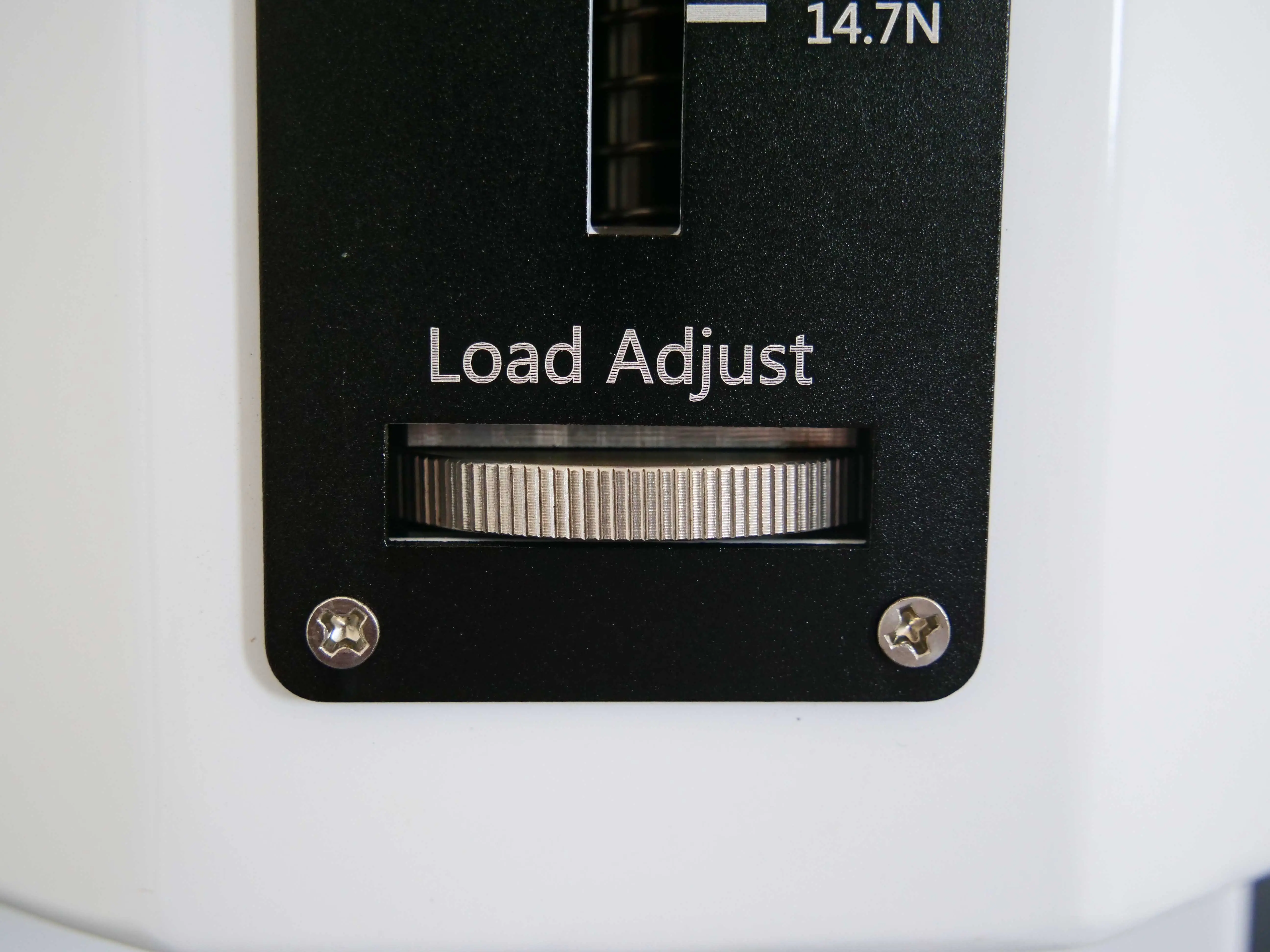

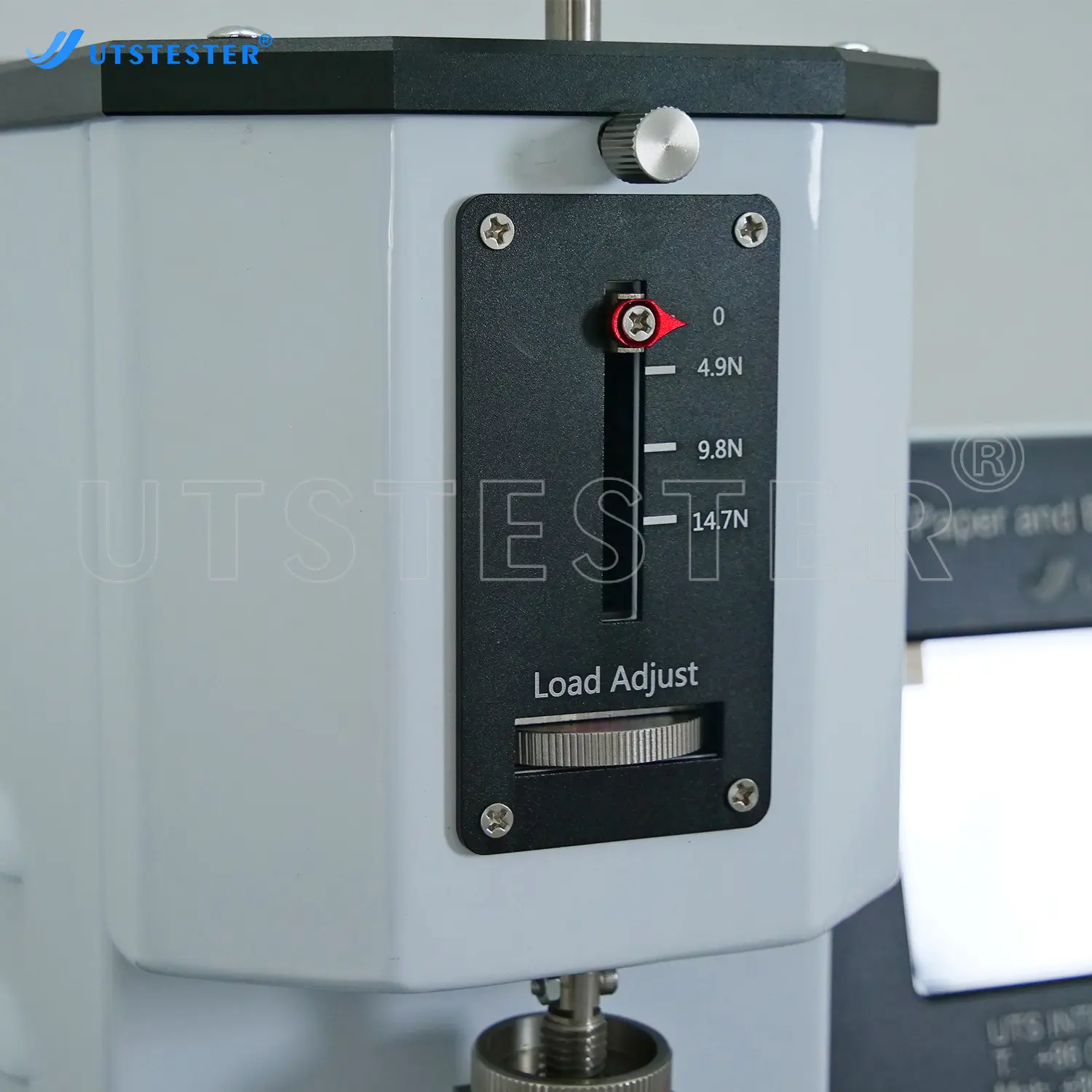

Spring Tension

4.91~14.72N, plus 9.81N force, spring compression at least 17mm.

Test tension configuration

The use of imported tension configuration, tension coefficient than domestic brand stability increased by two times.

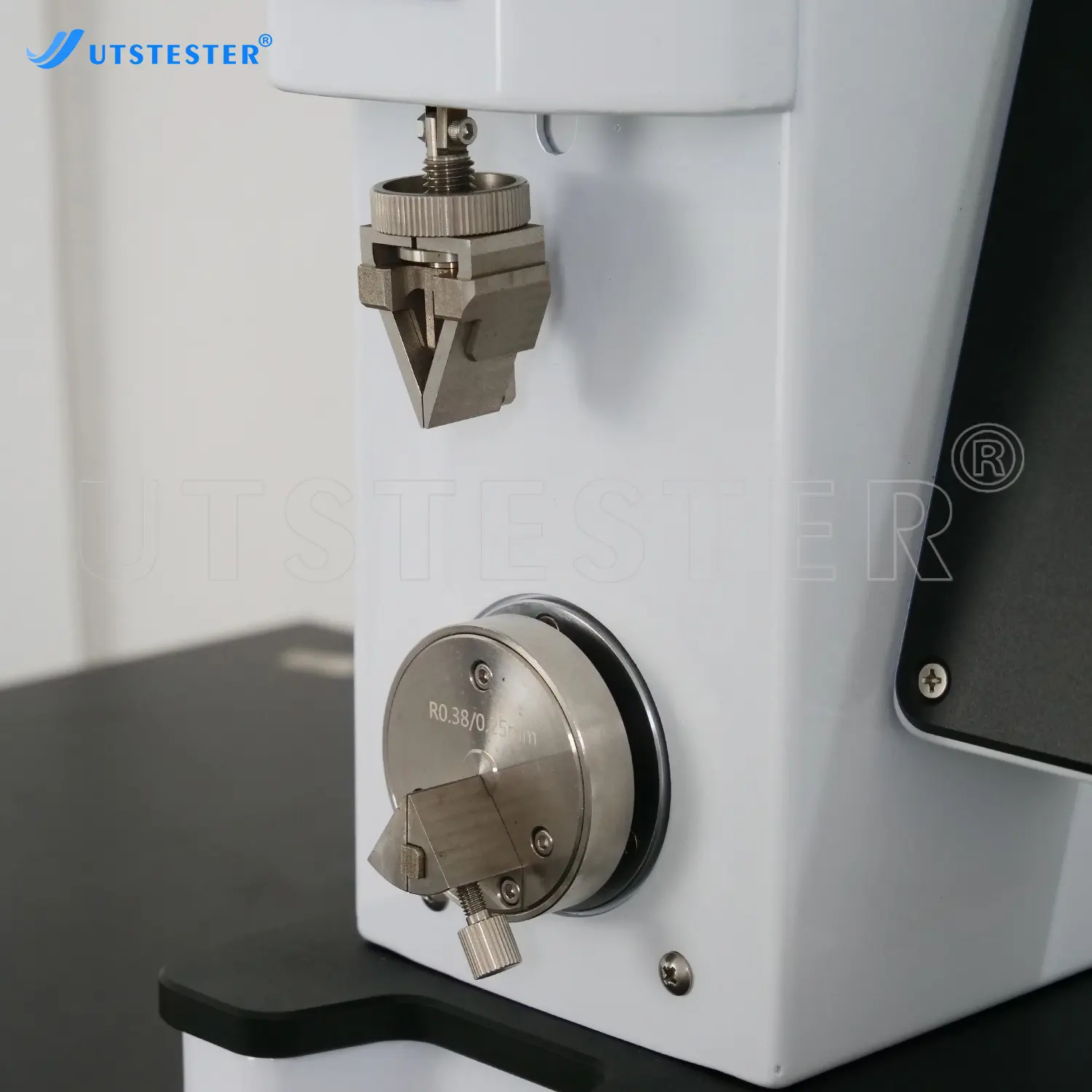

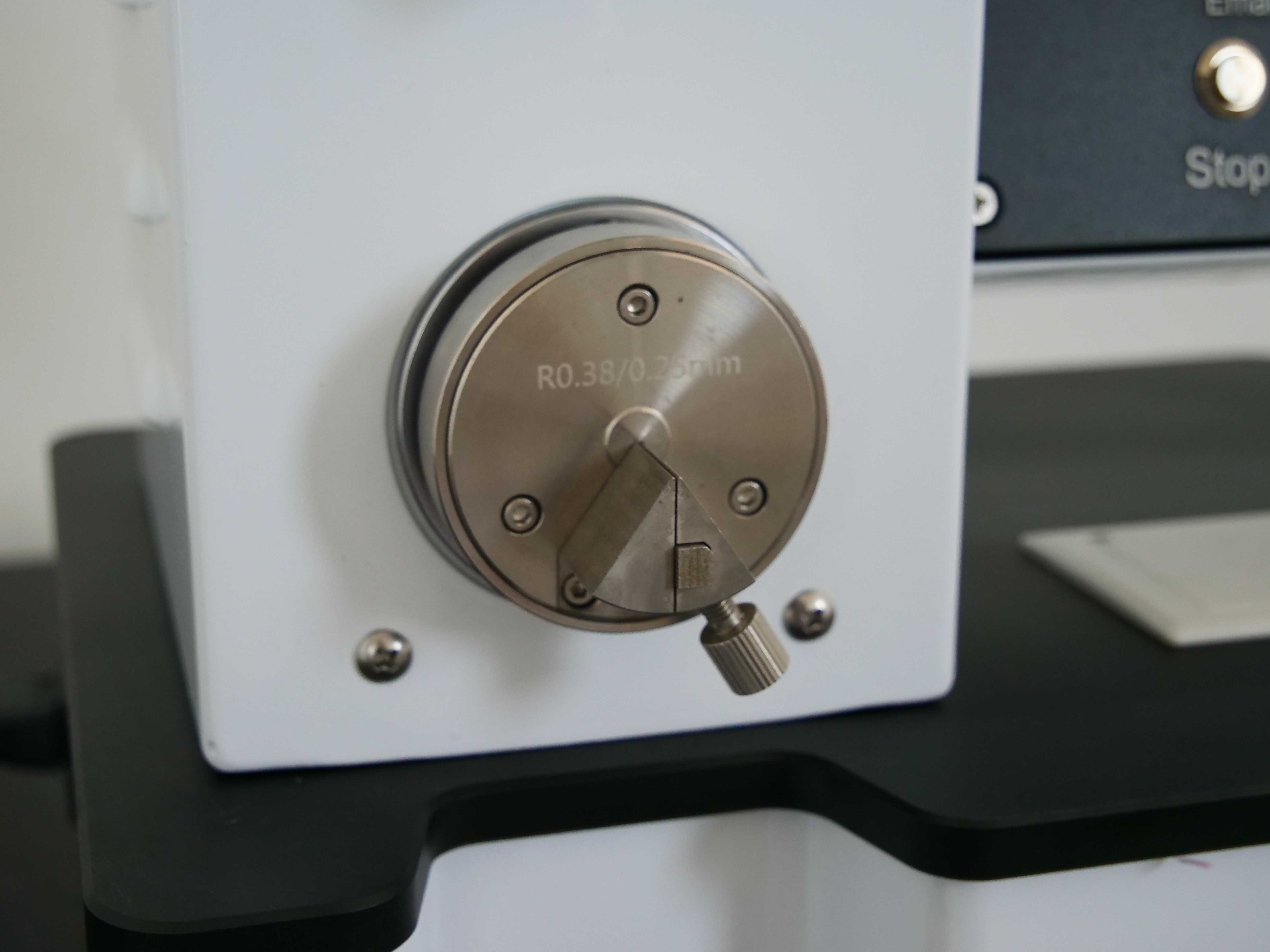

Folding chuck

tension change caused by rotating eccentricity is not greater than 0.343N.

Folding head width

19±1mm

Fold radius

0.38±0.02mm

Sample length

≥140mm

Fold temperature change

≤1°C, AFTER 4H

Collet distance

9.5mm

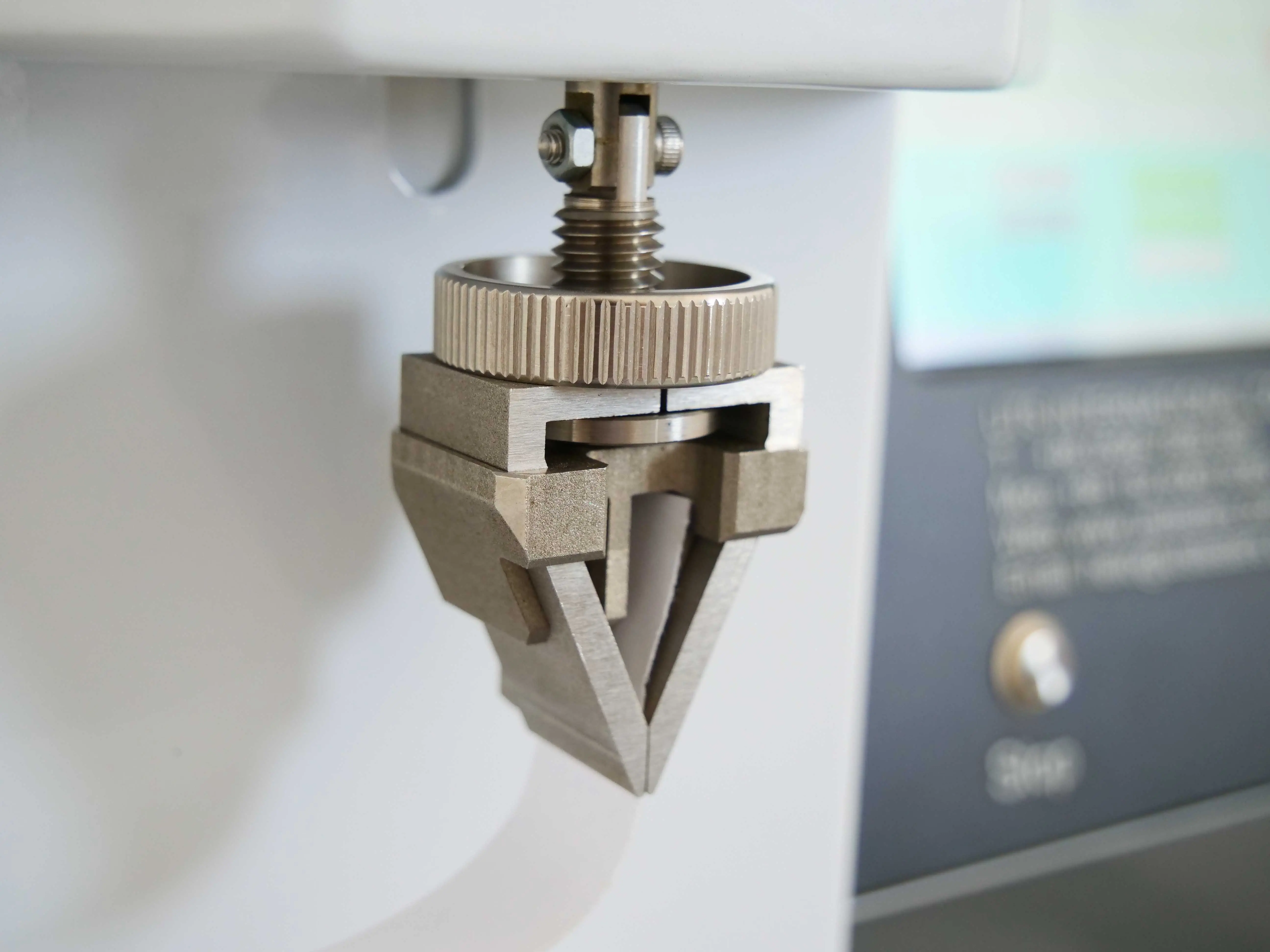

Clamping mode of the lower fixture

cylindrical knurled knob, more convenient clamping force

Fold mouth gap distance

0.25 mm / 0.5 mm / 0.75 mm / 1.00 mm (configuration) according to the requirement

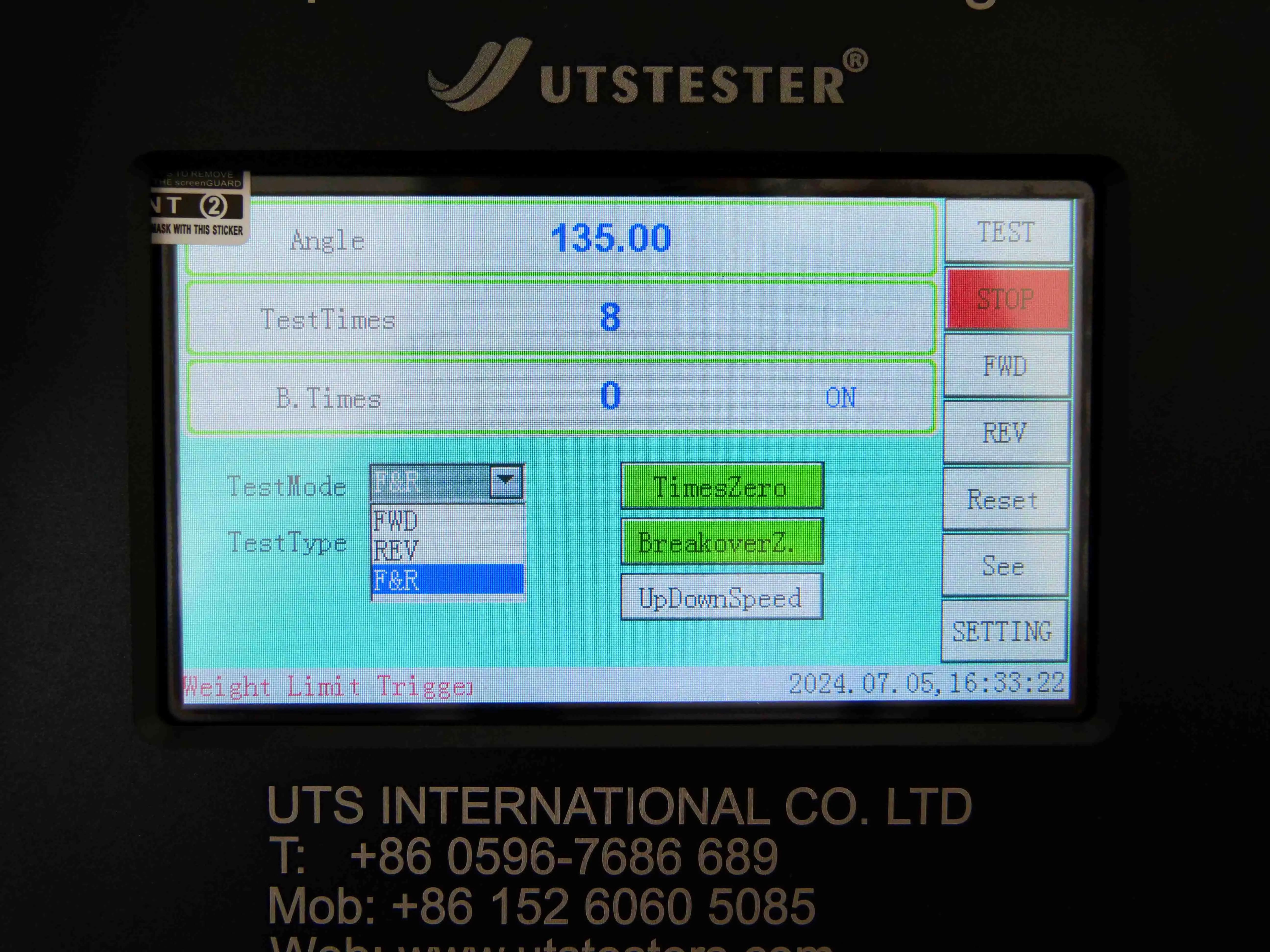

Human-machine interface

5 Inches touch screen display, real-time display of test data

Print out

Modular integrated thermal printer

Working environment

Temperature (0~35) ℃, humidity < 85%

Power source

1PH AC 220V, 50HZ/60HZ

Dimension

330x290x 51mm

Weight

25kg
