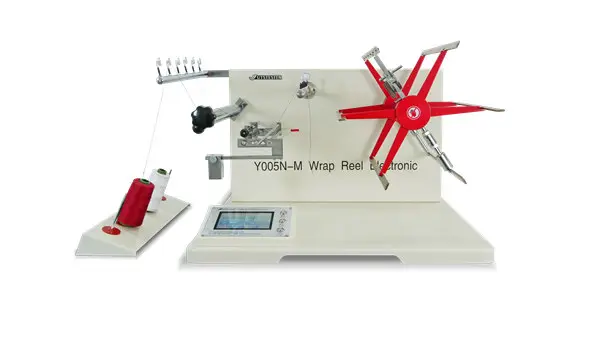

Wrap Reel Electronic—UTSTESTERS

2024-09-23

What are electronic winding reels for?

The instrument is used for the measurement of yarn density (or count) and the test of yarn breaking strength by winding the sample on yarn tube with yarn frame.

Test Standards

ISO 7211-5, ASTM D1907, ISO2060, GB/T4743, GB/T6838, GB/T14343

Instrument Features

1. Touch screen display, Chinese and English menu, man-machine dialogue mode.
2. Convenient and fast parameter input.
3. Smooth start and stop, low running noise, accurate ring count.
4. Continuous stepless speed regulation.

Key Specifications of the instrument

Model	Y005N-E	Y005N-M
Reel circumference	54± 1/16in (English system)	1000± 1mm (Metric system)
Working positions	6
Spindle distance	65 mm
Yarn frame speed	30 ~ 300 r/min
Guide rod reciprocating range	35 mm
Single yarn tension adjustment range	0 ~ 100 cN
Lap number setting range	1 ~ 9999 laps
Power	AC 220V±10% 50Hz 180W
Size (L×W×H)	760×650×460mm
Weight	About 60Kg
